Dual Mode Detection of Chlorogenic Acid Based on Silicon Quantum Dot via Fluorescence Spectroscopy and Colorimetric Method

doi:10.19894/j.issn.1000-0518.240394

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (4): 511-521.DOI: 10.19894/j.issn.1000-0518.240394

• Full Papers • Previous Articles Next Articles

Dual Mode Detection of Chlorogenic Acid Based on Silicon Quantum Dot via Fluorescence Spectroscopy and Colorimetric Method

Song-Bai WANG¹(), Tian-Yu LI¹, Meng-Shu WEI¹, Xin-Ming GUO¹, Jun-Fen LI¹, Ying ZHOU¹, Xiu-Ying PENG², Chuan DONG¹()

^1.School of Chemistry and Chemical Engineering，Institute of Environmental Science，Shanxi University，Taiyuan 030006，China
^2.Department of Environment and Safety Engineering，Taiyuan Institute of Technology，Taiyuan 030008，China

Received:2024-11-30 Accepted:2025-03-17 Published:2025-04-01 Online:2025-05-14
Contact: Song-Bai WANG,Chuan DONG
Supported by:
Shanxi Scholarship Council of China(2021-011);the Basic Research Project of Shanxi Provincial(202103021223351)

Abstract

Abstract:

A silicon quantum dots （SiQDs） was prepared by refluxing 3-aminopropyltriethoxysilane （APTES）， sodium ascorbate and sodium citrate with heating at 90 ℃. Based on the SiQDs， an efficient， sensitive and convenient method for the detection of chlorogenic acid （CGA） was constructed based on the dual-mode fluorescence and UV absorption via electrostatic adsorption between SiQDs and CGA. The SiQDs possessed good water solubility as well as excellent selectivity for CGA. The fluorescence quantum yield （QD） of SiQDs was as high as 0.58. Under the optimal working conditions， the linear range of fluorescence detection of SiQDs was 0.054~265 μmol/L， and the limit of detection was 0.018 μmol/L. The absorbance detection of SiQDs was 0.516~45 μmol/L， and the limit of detection was 0.172 μmol/L. In addition， the analytical detection of CGA in Lonicera japonica Thunb. was realized by using the spiked recovery method， which showed good recoveries （97.76%~105.5%）.

Key words: Silicon quantum dots, 3-Aminopropyltriethoxysilane, Chlorogenic acid, Fluorescent probe

CLC Number:

O655

Song-Bai WANG, Tian-Yu LI, Meng-Shu WEI, Xin-Ming GUO, Jun-Fen LI, Ying ZHOU, Xiu-Ying PENG, Chuan DONG. Dual Mode Detection of Chlorogenic Acid Based on Silicon Quantum Dot via Fluorescence Spectroscopy and Colorimetric Method[J]. Chinese Journal of Applied Chemistry, 2025, 42(4): 511-521.

Figures/Tables 10

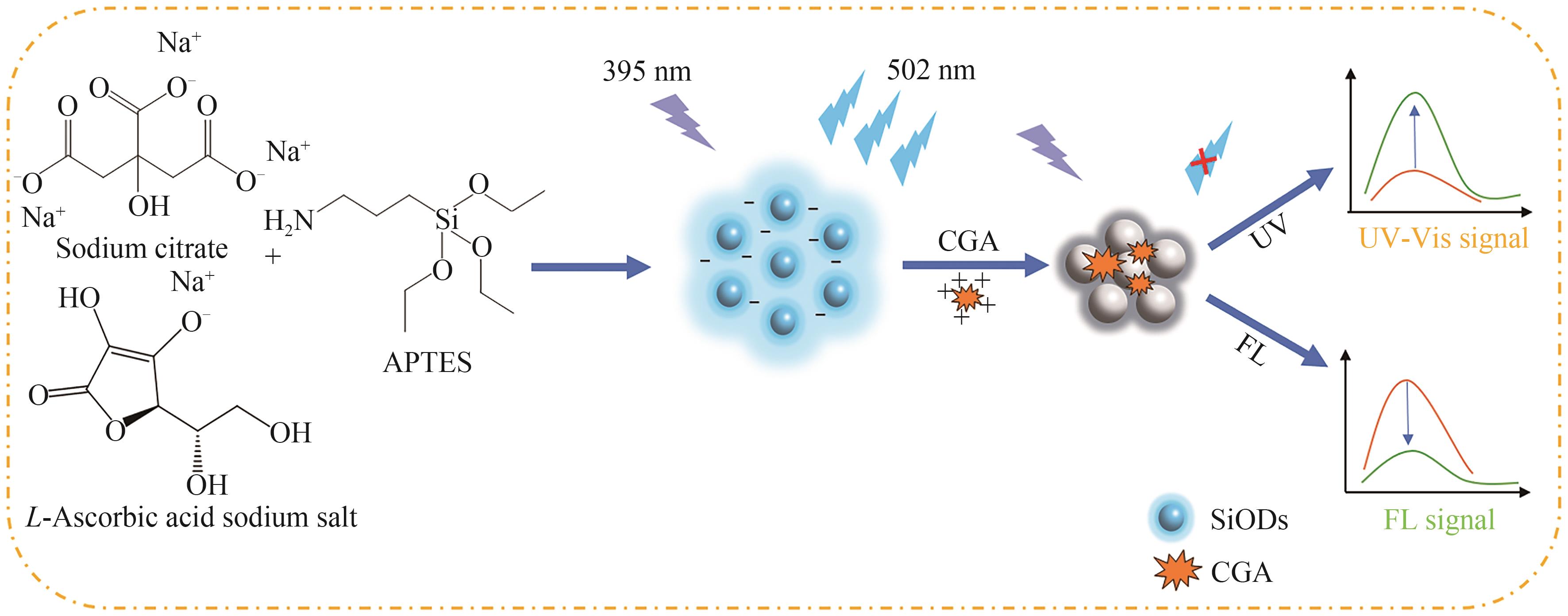

Fig.1 Construction of SiQDs fluorescence and colorimetric sensors for detection of chlorogenic acid

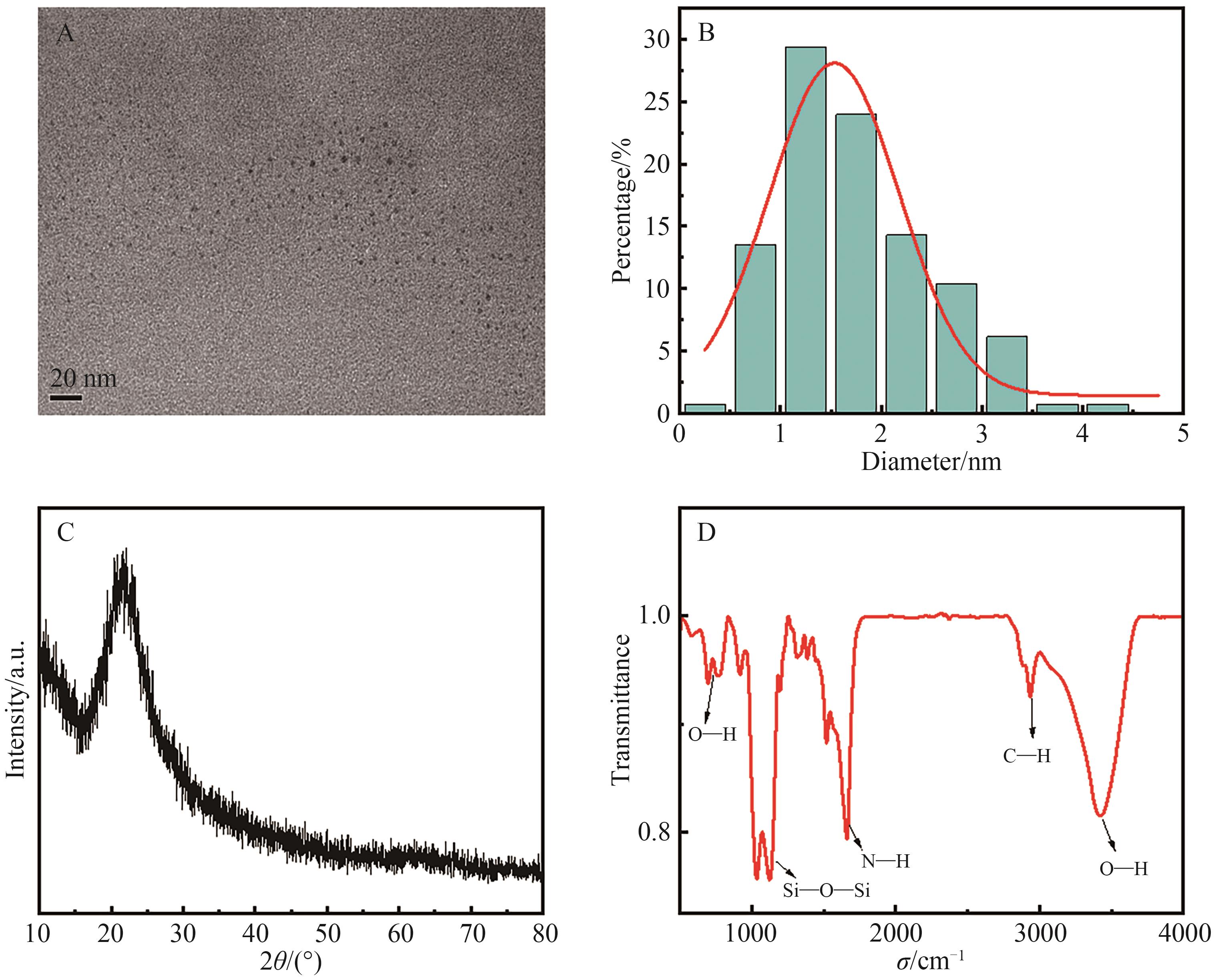

Fig.2 （A） TEM，（B） histogram of particle size distribution，（C） XRD pattern and （D） FT-IR spectrum of SiQDs

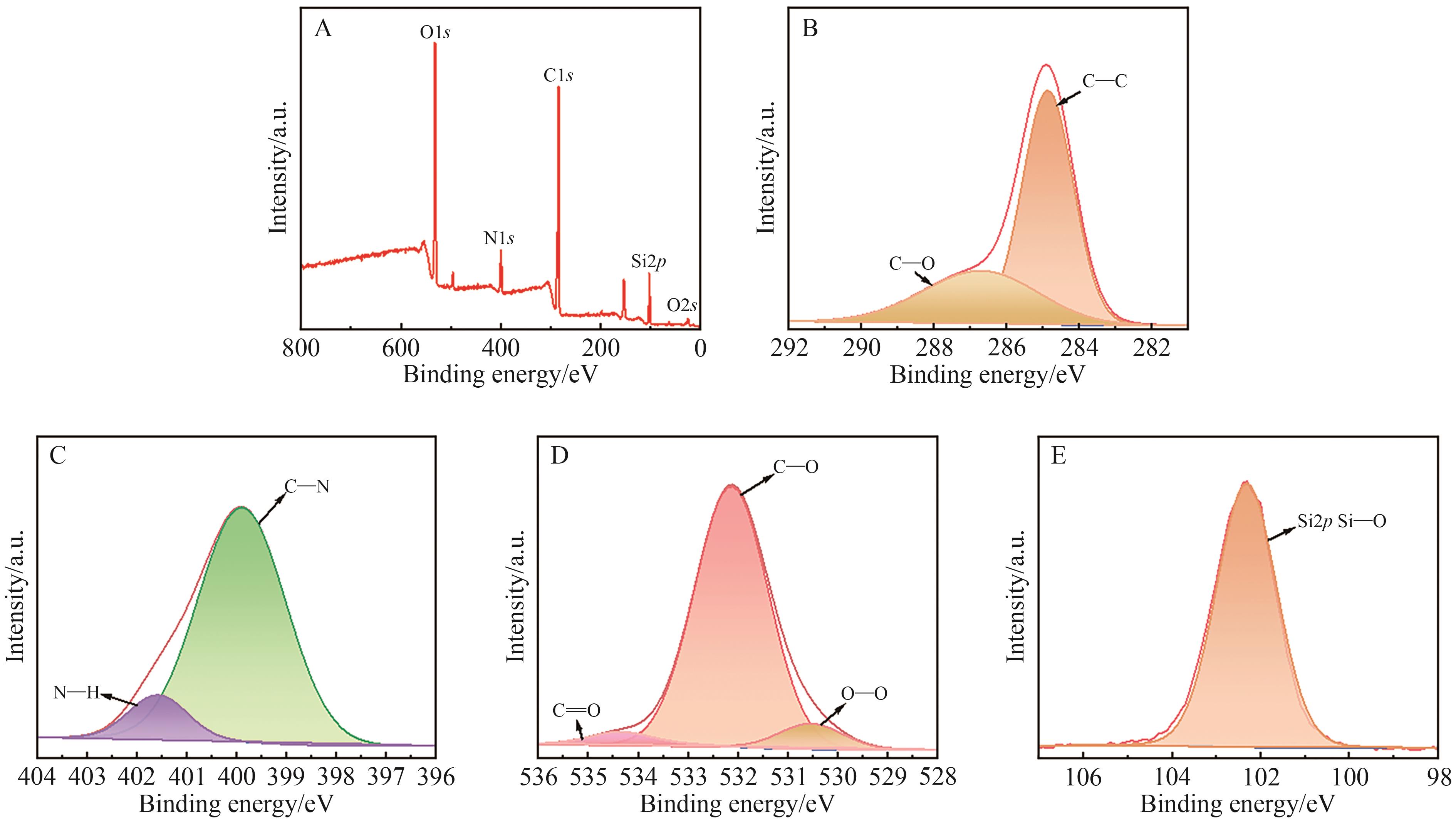

Fig.3 （A） XPS mapping of SiQDs；（B-E） C1s， N1s， O1s and Si2p mapping

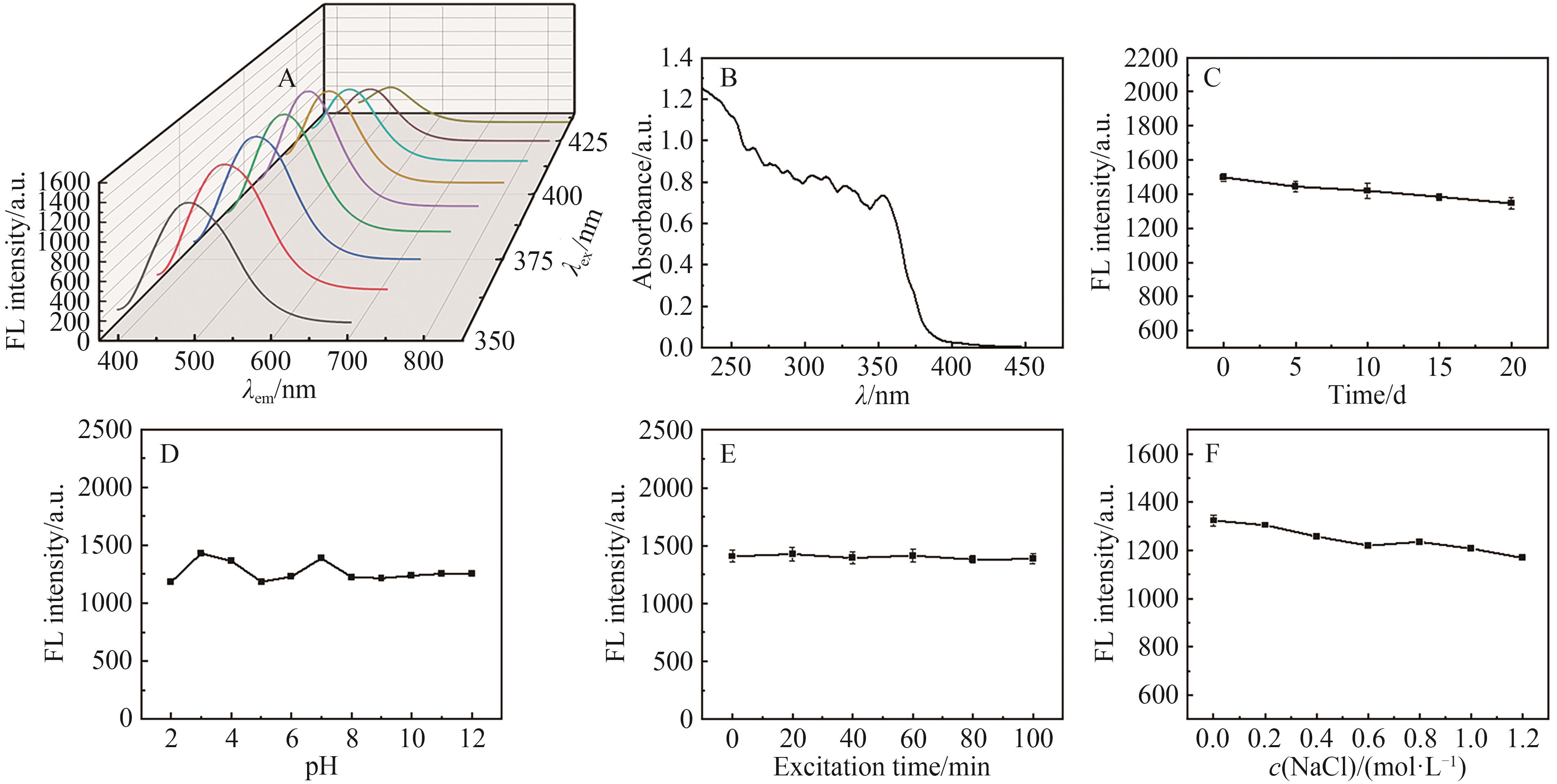

Fig.4 （A） Fluorescence emission spectra of SiQDs at different excitation wavelengths；（B） UV-Vis absorption spectrum of SiQDs；（C） Effect of room temperature placement time on the fluorescence intensity of SiQDs；（D） Effect of pH on the fluorescence intensity of SiQDs；（E） Effect of excitation time on the fluorescence intensity of SiQDs；（F） Effect of ionic strength on the fluorescence intensity of SiQDs

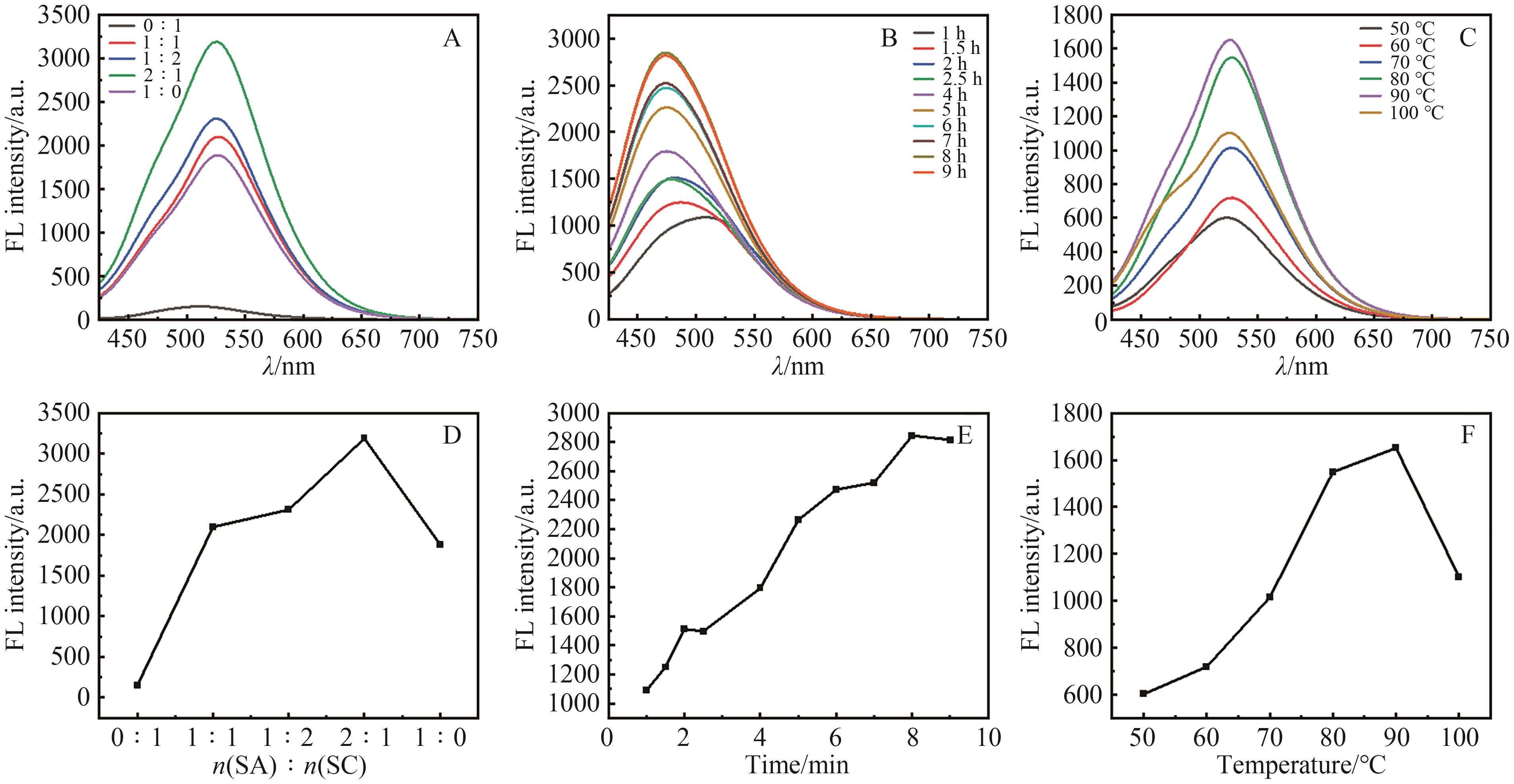

Fig.5 （A） Effect of reactant ratio on experimental results；（B） Effect of reaction time on experimental results；（C） Effect of reaction temperature on experimental results；（D） Line graph of Fig.5A；（E） Line graph of Fig.5B；（F） Line graph of Fig.5C

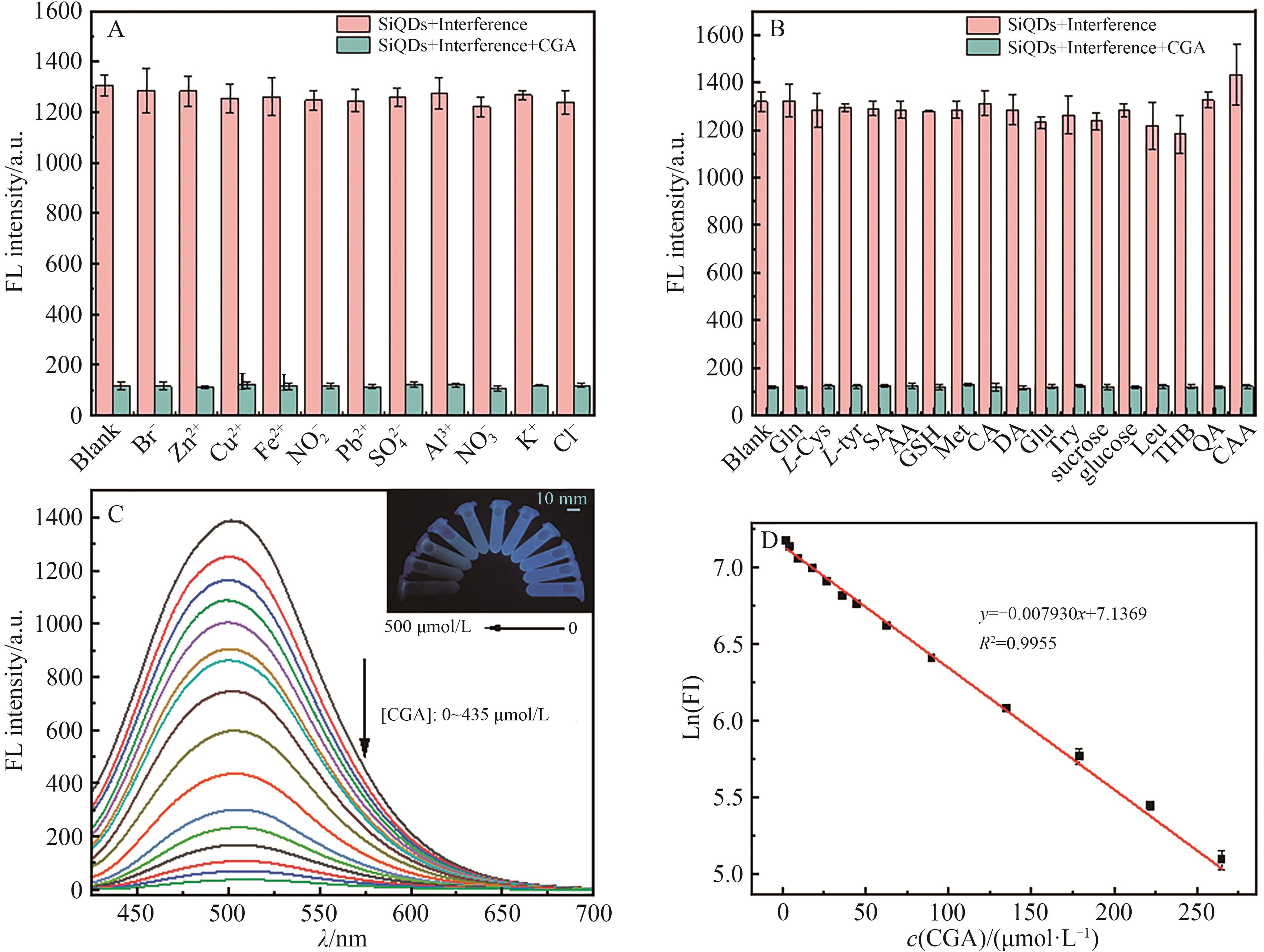

Fig.6 （A） Fluorescence intensity of SiQDs in the presence of ionic interferences Br-， Zn2+， Cu2+， Fe2+， NO2-， Pb2+，SO42-， Al3+， K+， Cl-（1500 μmol/L） and the addition of 150 μmol/L CGA；（B） Fluorescence intensity of SiQDs in the presence of organic small molecule interferences Gln， L-Cys， L-Tyr， SA， AA， GSH， Met， CA， DA， Glu， Try， Glucose， Sucrose， Leu， THB， QA and CAA （1500 μmol/L） in the presence of 150 μmol/L CGA；（C） Fluorescence spectrograms of SiQDs with the concentration of CGA ranging from 0 to 435 μmol/L；（D） Linear relationship between ln （FI） and CGA concentration

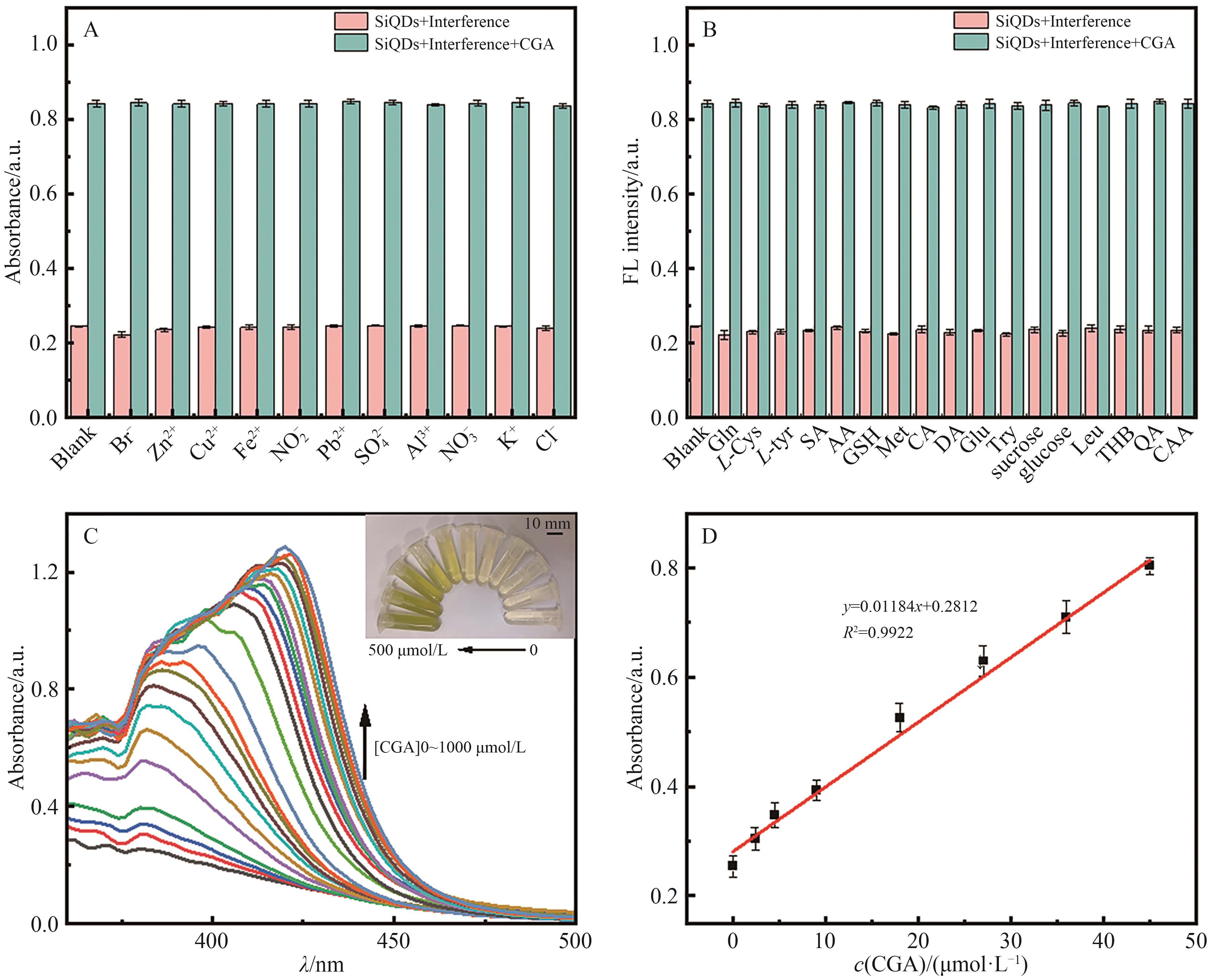

Fig.7 （A） Absorbance of SiQDs in the presence of ionic interferences Cu2+， NO2-， Zn2+， Cl-， Br-， Fe2+， Al3+， NO3-， Pb2+， K+ and SO42-（500 μmol/L） and with the addition of 50 μmol/L CGA；（B） Absorbance of SiQDs in the presence of organic small molecule interferences L-Tyr， Glucose， Sucrose， DA， GSH， Gln， SA， Met， CA， Cys， Glu， Try， Leu， THB， QA， CAA （500 μmol/L） and the addition of 50 μmol/L CGA；（C） UV profiles of SiQDs in the range of 0~1000 μmol/L for the concentration of CGA；（D） Linear plots of the absorbance and the concentration of CGA

Table 1 Comparison of this method with other CGA detection methods

Detection method	Material	Linear range/（μmol·L^-1）	LOD of CGA/（μmol·L^-1）	Ref.
Electrochemistry	TAPB-DMTP-COFS/AuNPs/GCE	0.010~40	0.009 5	［26］
	BDD	5.64~147.0	1.260	［27］
	MIS/Au/GCE	0.50~14	0.148	［28］
	PASA/GCE	0.40~12	0.040	［29］
Fluorescence	CDs	0.15~60	0.045	［25］
	CDs	0.10~220	0.030	［24］
	CDs	1.53~80	0.460	［30］
	SiQDs	0.054~265	0.018	This work
Colorimetry	Probe	11.3~113	0.475	［31］
	SiQDs	0.516~45	0.172	This work

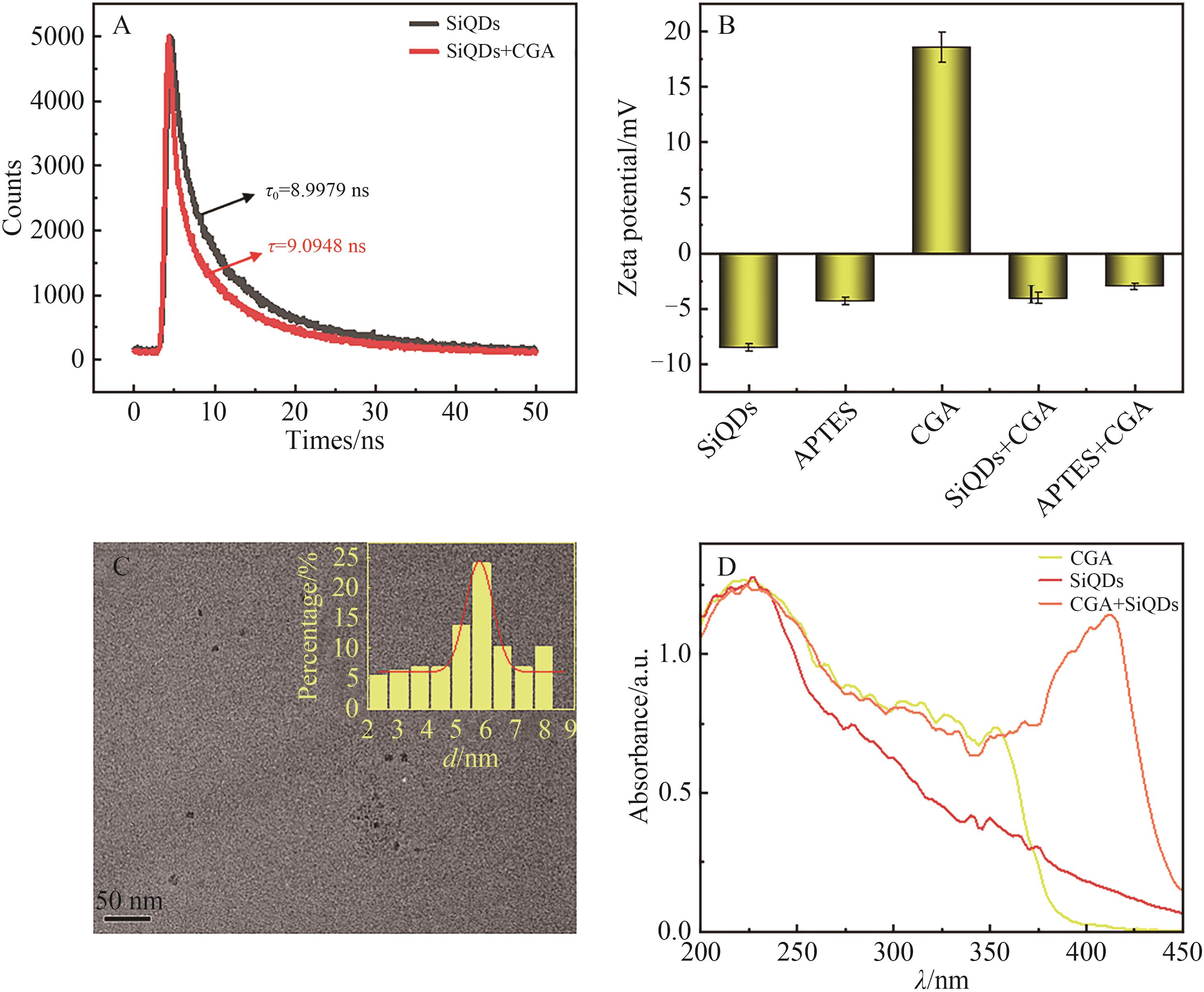

Fig.6 （A） Fluorescence decay curves of SiQDs （τ0） and SiQDs+CGA （τ）；（B） Zeta potentials of SiQDs （1 mg/mL）， APTES （0.06 mol/L）， CGA （0.01 mol/L）， and SiQDs+CGA and APTES+CGA；（C） TEM images of SiQDs incorporated into CGA （inset： histogram of frequency distribution of particle sizes）；（D） UV-Vis absorption spectra of SiQDs （1 mg/mL）， CGA （0.01 mol/L）， and SiQDs+CGA

Table 2 Determination of CGA in Lonicera japonica Thunb.

Samples	Found/（μmol·L^-1）	Add/（μmol·L^-1）	Total found/（μmol·L^-1）	Recovery/%	Average recovery/%	RSD/%
Lonicera japonica Thunb.	0.82	89.29	89.23	99.02	98.55	0.56
	0.85	89.29	88.12	97.76
	0.83	89.29	89.10	98.87
	8.97	44.44	54.70	102.4	102.8	1.96
	9.01	44.44	56.28	105.5
	8.91	44.44	53.68	100.6
	27.09	17.67	46.48	103.8	102.9	2.18
	26.12	17.67	43.69	99.77
	25.66	17.67	45.51	105.0

References 31

1	NAVEED M， BIBI J， KAMBOH A A， et al. Pharmacological values and therapeutic properties of black tea （Camellia sinensis）： a comprehensive overview［J］. Biomed Pharmacother， 2018， 100： 521-531.
2	MARQUES V， FARAH A. Chlorogenic acids and related compounds in medicinal plants and infusions［J］. Food Chem， 2009， 113（4）： 1370-1376.
3	TOŠOVIĆ J， MARKOVIĆ S， DIMITRIĆ MARKOVIĆ J M， et al. Antioxidative mechanisms in chlorogenic acid［J］. Food Chem， 2017， 237： 390-398.
4	GASTÉLUM-ESTRADA A， RABADÁN-CHÁVEZ G， REZA-ZALDÍVAR E E， et al. Biofortified beverage with chlorogenic acid from stressed carrots： anti-obesogenic， antioxidant， and anti-inflammatory properties［J］. Foods， 2023， 12（21）： 3959.
5	HUANG J， XIE M， HE L， et al. Chlorogenic acid： a review on its mechanisms of anti-inflammation， disease treatment， and related delivery systems［J］. Front Pharmacol， 2023， 14： 1218015.
6	SOCAŁA K， SZOPA A， SEREFKO A， et al. Neuroprotective effects of coffee bioactive compounds： a review［J］. Int J Mol Sci， 2020， 22（1）： 107.
7	李淑芳，郝学飞，王红旗，等. 基于超高效液相色谱联用高分辨质谱自动解析方法的金银花不同加工方式分析［J］. 应用化学， 2022， 39（5）： 819-827.
	LI S F， HAO X F， WANG H Q， et al. Automatic data analysis strategy coupled with Q exactive high resolution mass spectrometry for studying different industrial process of Lonicerae Japonicae Flos［J］. Chin J Appl Chem， 2022， 39（5）： 819-827.
8	YUAN W， HAN X， SHI G， et al. Machine learning-driven multi-level composite SERS platform for trace detection of chlorogenic acid as pharmacodynamic substance in honeysuckle［J］. Opt Laser Technol， 2024， 169： 109911.
9	GONZÁLEZ-JIMÉNEZ F E， SALAZAR-MONTOYA J A， CALVA-CALVA G， et al. Phytochemical characterization， in vitro antioxidant activity， and quantitative analysis by micellar electrokinetic chromatography of hawthorn （crataegus pubescens） fruit［J］. J Food Qual， 2018， 2018： 1-11.
10	CRUPI P， BLEVE G， TUFARIELLO M， et al. Comprehensive identification and quantification of chlorogenic acids in sweet cherry by tandem mass spectrometry techniques［J］. J Food Compos Anal， 2018， 73： 103-111.
11	LEBOT V， MICHALET S， LEGENDRE L. Identification and quantification of phenolic compounds responsible for the antioxidant activity of sweet potatoes with different flesh colours using high performance thin layer chromatography （HPTLC）［J］. J Food Compos Anal， 2016， 49： 94-101.
12	WANG J， PAN S， SUN W， et al. Ingenious microenvironment regulation of a metal-organic framework （MOF） nanoreactor for electrochemical detection of chlorogenic acid［J］. New J Chem， 2024， 48（4）： 1792-1799.
13	LIU Q， DONG Z， HAO A， et al. Synthesis of highly fluorescent carbon dots as a dual-excitation rationmetric fluorescent probe for the fast detection of chlorogenic acid［J］. Talanta， 2021， 221： 121372.
14	GUTIÉRREZ-ORTIZ A L， VIDA V， PETERKA M， et al. Fluorescent imprinted nanoparticles for sensing of chlorogenic acid in coffee extracts［J］. Sensors， 2022， 22（24）： 9874.
15	GELLOZ B， JUANGSA F B， NOZAKI T， et al. Si/SiO₂ core/shell luminescent silicon nanocrystals and porous silicon powders with high quantum yield， long lifetime， and good stability［J］. Front Phys， 2019， 7： 47.
16	SRIVASTAVA P K， HAN S， TU C C， et al. Phototoxicity generated by silicon quantum dot nanoparticles on zebrafish embryos［J］. ACS Appl Bio Mater， 2019， 2（7）： 2872-2878.
17	CHIAPPINI C， DE ROSA E， MARTINEZ J O， et al. Biodegradable silicon nanoneedles delivering nucleic acids intracellularly induce localized in vivo neovascularization［J］. Nat Mater， 2015， 14（5）： 532-539.
18	ZHANG H， WANG H， YANG H， et al. Luminescent， protein-binding and imaging properties of hyper-stable water-soluble silicon quantum dots［J］. J Mol Liq， 2021， 331： 115769.
19	LIU F， LIN J， LUO Y， et al. Sialic acid-targeting multi-functionalized silicon quantum dots for synergistic photodynamic and photothermal cancer therapy［J］. Biomater Sci， 2023， 11（11）： 4009-4021.
20	LIU Y， WANG Q， GUO S， et al. Highly selective and sensitive fluorescence detection of hydroquinone using novel silicon quantum dots［J］. Sens Actuators B：Chem， 2018， 275： 415-421.
21	SULLAM E M， ADAM K M， LIU J， et al. Silicon quantum dots-based fluorescent sensor for the detection of cobalt with high sensitivity and selectivity［J］. Chin Chem Lett， 2024， 35（1）： 108476.
22	LIU Y， CAO L， ZAN M， et al. Cyan-emitting silicon quantum dots as a fluorescent probe directly used for highly sensitive and selective detection of chlorogenic acid［J］. Talanta， 2021， 233： 122465.
23	DI S， STEVEN W， PEREMY J M， et al. Streamlined synthesis of potential dual-emissive fluorescent silicon quantum dots （SiQDs） for cell imaging［J］. RSC Adv， 2023， 13（38）： 26392-26405.
24	PAN C J， DENG X X， LU M C， et al. Preparation of bright blue fluorescent carbon dots and their application in highly sensitive chlorogenic acid detection［J］. Chin J Anal Chem， 2023， 51（12）：100334.
25	YANG H， YANG L， YUAN Y， et al. A portable synthesis of water-soluble carbon dots for highly sensitive and selective detection of chlorogenic acid based on inner filter effect［J］. Spectrochim Acta A， 2018， 189： 139-146.
26	ZHANG T， CHEN Y， HUANG W， et al. A novel AuNPs-doped COFs composite as electrochemical probe for chlorogenic acid detection with enhanced sensitivity and stability［J］. Sens Actuators B：Chem， 2018， 276： 362-369.
27	YARDIM Y， KESKIN E， ŞENTÜRK Z. Voltammetric determination of mixtures of caffeine and chlorogenic acid in beverage samples using a boron-doped diamond electrode［J］. Talanta， 2013， 116： 1010-1017.
28	SANTOS W D J R， SANTHIAGO M， YOSHIDA I V P， et al. Novel electrochemical sensor for the selective recognition of chlorogenic acid［J］. Anal Chim Acta， 2011， 695（12）： 44-50.
29	CHAO M， MA X. Voltammetric determination of chlorogenic acid in pharmaceutical products using poly（aminosulfonic acid） modified glassy carbon electrode［J］. J Food Drug Anal， 2014， 22（4）： 512-519.
30	ZHU H， LI H， SHUANG P， et al. Hydrothermal synthesis of carbon dots and their application for detection of chlorogenic acid［J］. Luminescence， 2020， 35（7）： 989-997.
31	CUFFARO D， PALLADINO P， DIGIACOMO M， et al. Fast， sensitive， and sustainable colorimetric detection of chlorogenic acid in artichoke waste material［J］. Food Chem， 2025， 463： 141505.
