Strength Simulation Analysis of Lightmass Aviation Tire Carcass Based on Finite Element Simulation

Peng WANG¹, Jia-Lin GUO², Ying ZHANG¹, Chang-Yan SU¹()

^1.T -Rubber Co. ，Ltd. ，Shenyang 110144，China
^2.State Key Laboratory of Polymer Science and Technology，Changchun Institute of Applied Chemistry，Chinese Academy of Sciences，Changchun 130022，China

Received:2024-11-27 Accepted:2025-02-01 Published:2025-07-01 Online:2025-07-23
Contact: Chang-Yan SU
About author:suchangyan211302@163.com
Supported by:
the National Key Research and Development Plan Project(2023YFB3709503)

Abstract

Abstract:

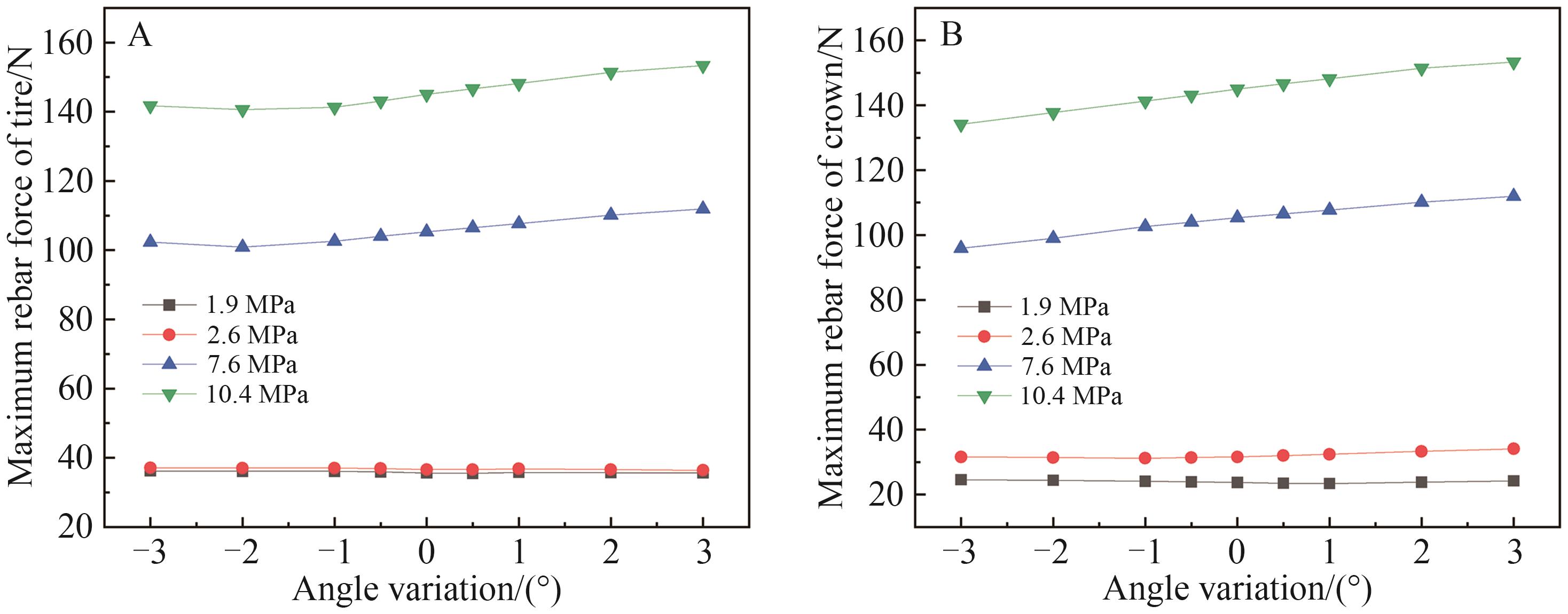

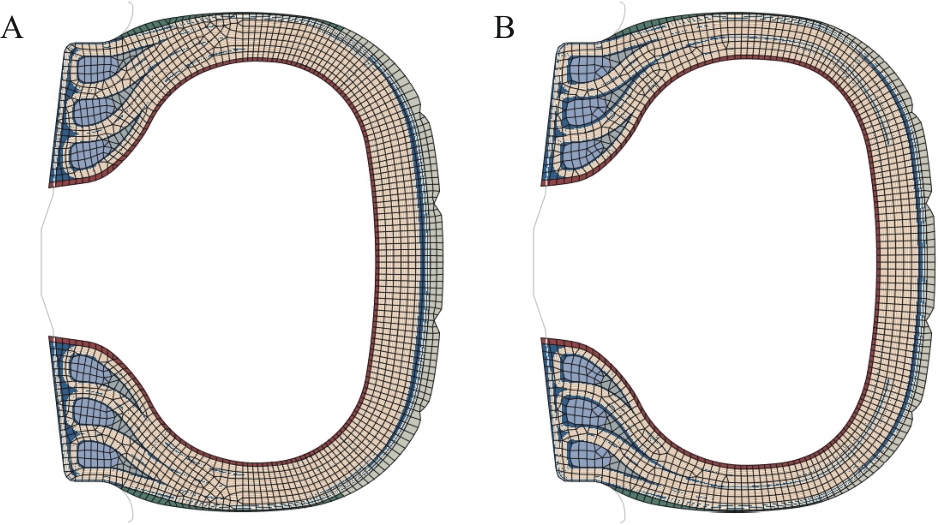

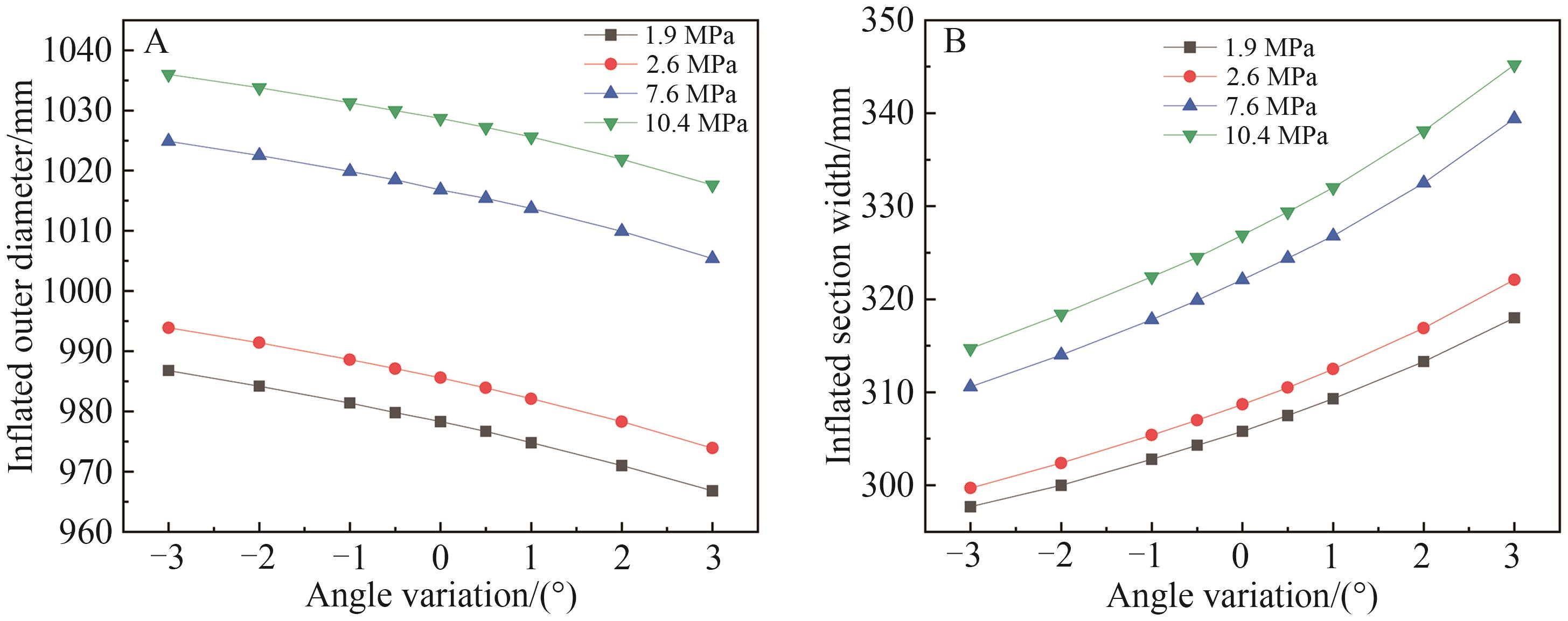

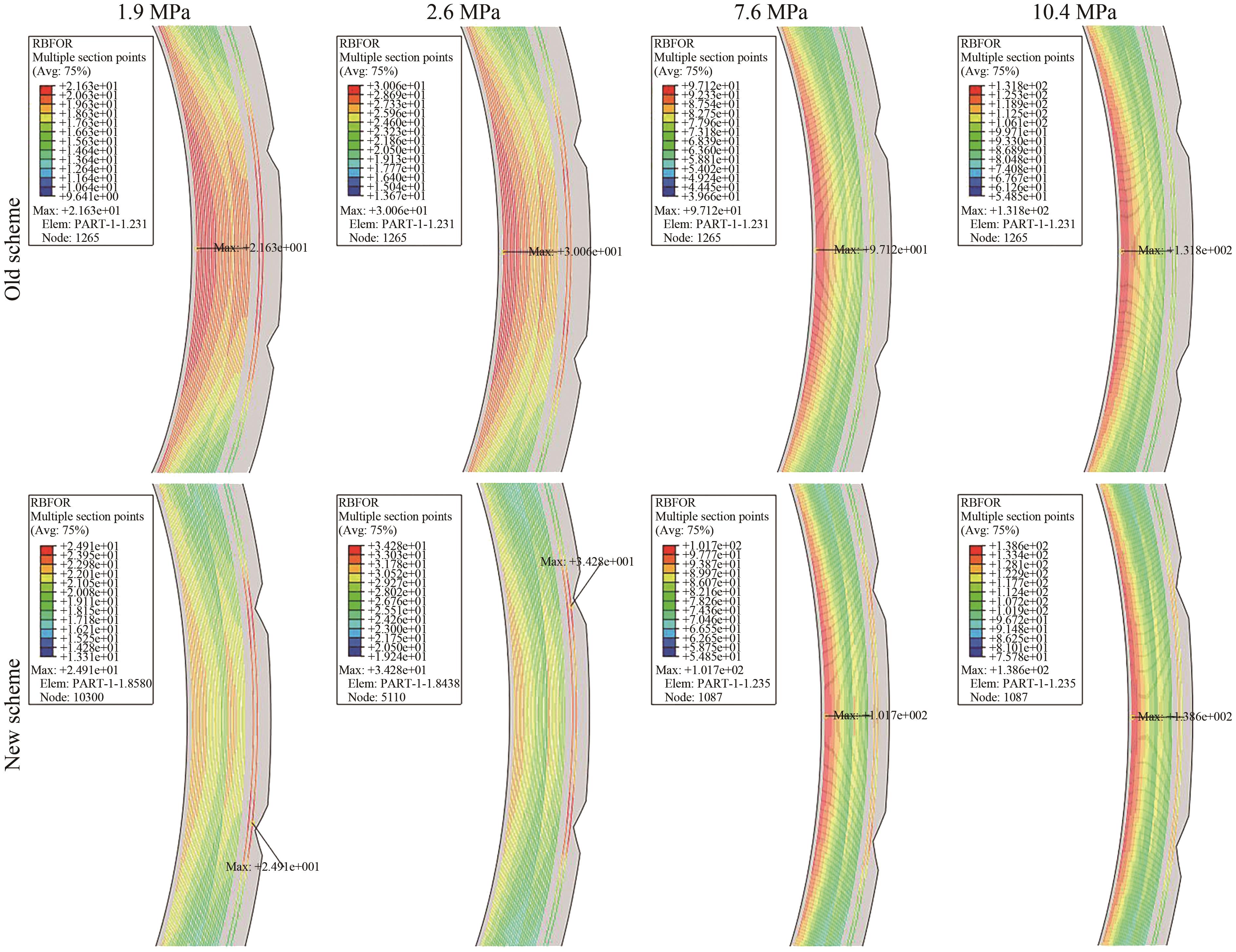

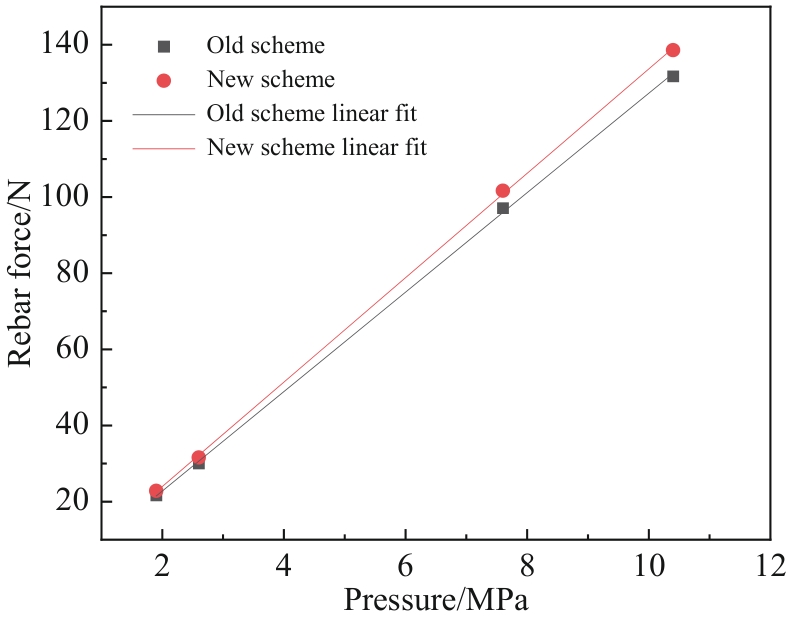

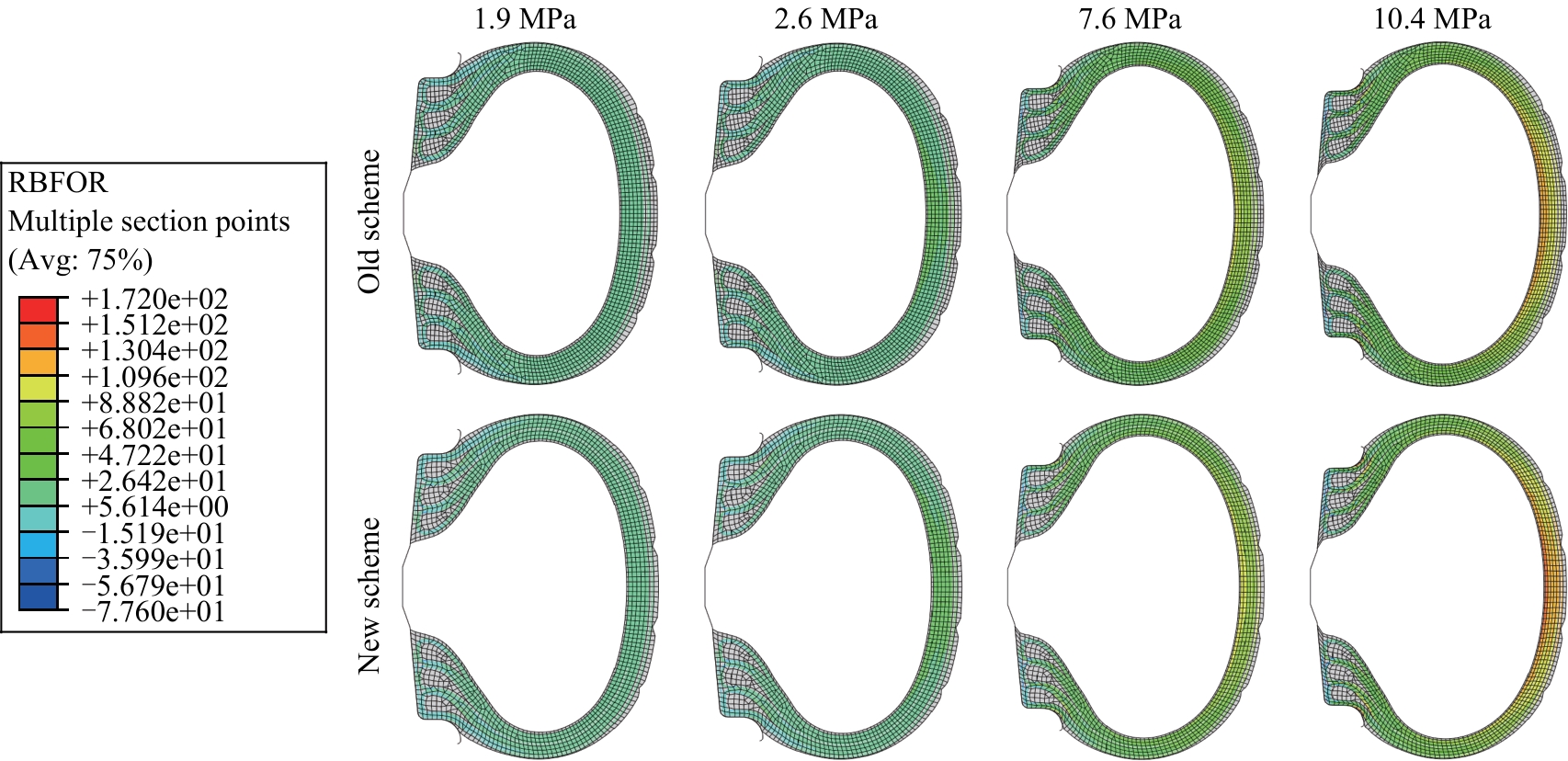

Taking 1030×350 aviation tires as an example， high strength HS1400dtex/2 nylon 66 cord was used to replace 1400dtex/2 conventional national standard cord， and the tire carcass strength and outer edge size were simulated and recalculated by ABAQUS finite element analysis software. The results show that the inflated outer diameter expansion rate of the aerial tire is slightly smaller and the inflated section width expansion rate is slightly larger after adopting high strength HS1400dtex/2 nylon 66 cord and reducing 2 layers of carcass cord； under bursting air pressure （10.4 MPa）， the force on the tire cord decreases after the cord angle is reduced， which improves the strength of the tire， and the reduction of the angle of the carcass cord by 1（°） is preferable. Through the mass accounting of each part of the tire， the mass of the aviation tire is reduced by 3.1 kg， which can realize the lightmass design of aviation tires.

Key words: Aviation tires, High tensile cord, ABAQUS simulation analysis, Cord angle, Lightmass design

CLC Number:

O631

Peng WANG, Jia-Lin GUO, Ying ZHANG, Chang-Yan SU. Strength Simulation Analysis of Lightmass Aviation Tire Carcass Based on Finite Element Simulation[J]. Chinese Journal of Applied Chemistry, 2025, 42(7): 955-961.

Figures/Tables 12

References 8

[1]	繆红燕，徐鸿，计斌，等. 子午线轮胎的有限元分析［J］. 轮胎工业， 2001（1）： 16-20.
	LIAO H Y， XU H， JI B， et al. Finite element analysis of radial tires［J］. Tire Ind， 2001（1）： 16-20.
[2]	许喆. 多工况下子午线轮胎非线性有限元分析［D］. 青岛：青岛科技大学， 2009.
	XU Z. Nonlinear finite element analysis of radial tire under multiple operating conditions［D］. Qingdao： Qingdao University of Science and Technology， 2009.
[3]	李双宝，张博. 航空轮胎着陆冲击动力学仿真与安全分析［J］. 中国民航大学学报， 2024， 42（2）： 58-64.
	LI S B， ZHANG B. Impact dynamics simulation and safety analysis of aircraft tire landing［J］. J Civil Aviation Univ China， 2024， 42（2）： 58-64.
[4]	孙鹏飞，周水庭，黄红武，等. 子午线轮胎帘线受力特性的有限元分析［J］. 厦门理工学院学报， 2017， 25（5）： 1-6.
	SUN P F， ZHOU S T， HUANG H W， et al. Finite element analysis of stress characterstics of radial tire cord［J］. J Xiamen Univ Technol， 2017， 25（5）： 1-6.
[5]	李汉堂. 轮胎轻量化技术研究进展［J］. 中国橡胶， 2006（23）： 31-35.
	LI H T. Research progress of tire lightweighting technology［J］. China Rubber， 2006（23）： 31-35.
[6]	刘肖英，焦志伟，何雪涛，等. 基于有限元法的航空轮胎瞬态冲击性能分析［J］. 轮胎工业， 2014， 34（9）： 539-543.
	LIU X Y， JIAO Z W， HE X T， et al. Transient impact performance analysis of aviation tires based on finite element method［J］. Tire Ind， 2014， 34（9）： 539-543.
[7]	郭晓辉，袁晓静，张泽，等. 橡胶帘线复合材料界面失效机制［J］. 高分子材料科学与工程， 2022， 38（11）： 88-95.
	GUO X H， YUAN X J， ZHANG Z， et al. Interface failure mechanism of rubber cord composites［J］. Polym Mater Sci Eng， 2022， 38（11）： 88-95.
[8]	侯险峰，李秉超，陈毅敏，等. 纤维帘线浸渍试验装置的发展和应用［A］. 中国化工学会橡塑绿色制造专业委员会新型绿色浸渍材料和环保新技术发展大会资料汇编， 2019： 284-289.
	HOU X F， LI B C， CHEN Y M， et al. Development and application of impregnation test device for fiber cord［A］. China Chemical Society rubber and plastic Green Manufacturing Committee New green impregnated materials and environment conference data compilation， 2019： 284-289.

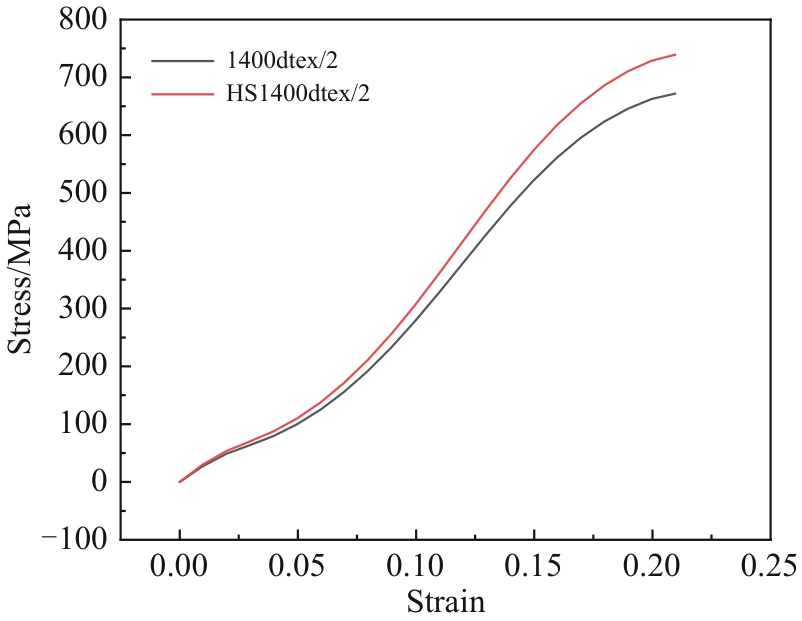

performance	A curtain line index	B curtain line index
Breaking strength/（N·root^-1）	≥215.6	≥237.2
Fracture elongation/%	19~23	19~23
66.6N constant load elongation/%	9.0±0.6	9.0±0.6
Diameter/mm	0.65±0.05	0.65±0.05

performance	A curtain line index	B curtain line index
Breaking strength/（N·root^-1）	≥215.6	≥237.2
Fracture elongation/%	19~23	19~23
66.6N constant load elongation/%	9.0±0.6	9.0±0.6
Diameter/mm	0.65±0.05	0.65±0.05

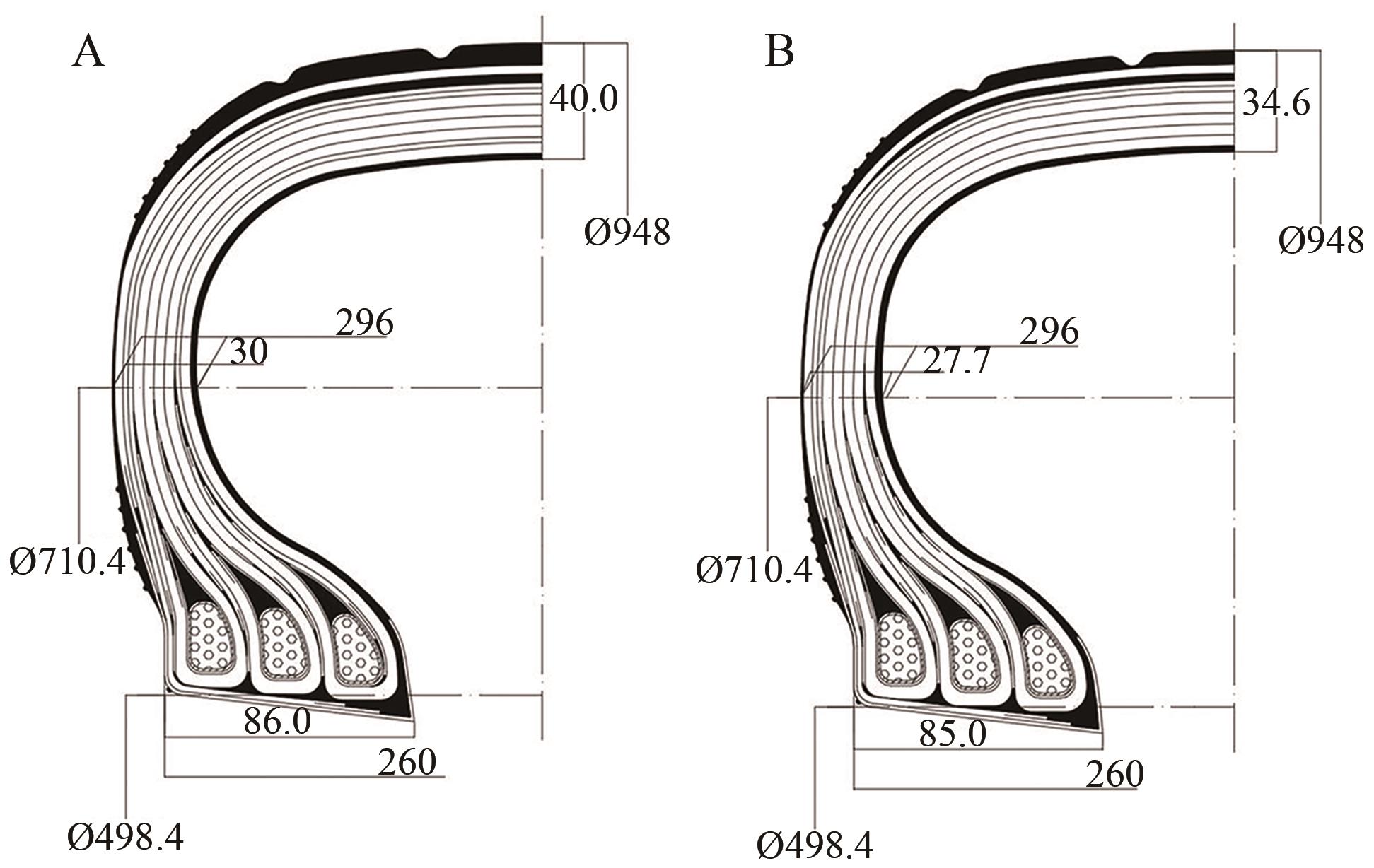

Old plan （A curtain line） Fig.2A	New plan （B curtain line） Fig.2B	Steel ring position
4-layer reverse packet+2-layer positive packet+4-layer positive packet	4-layer reverse packet+4-layer positive packet	The first steel ring
4-layer reverse packet+4-layer positive packet	4-layer reverse packet+4-layer positive packet	The second steel ring
4-layer reverse packet+2-layer positive packet	4-layer reverse packet+2-layer positive packet	The third Steel Ring
2-layer positive packet	2-layer positive packet	The third Steel Ring

Old plan （A curtain line） Fig.2A	New plan （B curtain line） Fig.2B	Steel ring position
4-layer reverse packet+2-layer positive packet+4-layer positive packet	4-layer reverse packet+4-layer positive packet	The first steel ring
4-layer reverse packet+4-layer positive packet	4-layer reverse packet+4-layer positive packet	The second steel ring
4-layer reverse packet+2-layer positive packet	4-layer reverse packet+2-layer positive packet	The third Steel Ring
2-layer positive packet	2-layer positive packet	The third Steel Ring

	0 MPa		1.9 MPa		2.6 MPa
	Diameter/mm	Width/mm	Diameter/mm	Width/mm	Diameter/mm	Width/mm
Old scheme	948.8	293.6	954.4	328.2	960.2	333.8
New scheme	948.4	294.0	948.6	338.0	954.4	344.6

Strength Simulation Analysis of Lightmass Aviation Tire Carcass Based on Finite Element Simulation

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 12

References 8

Related Articles 15

Recommended Articles

Metrics

Comments

No.	Assembly unit	Tire components	Original mass/kg	Improved mass/kg
1	Tread	Outer tread and inner tread	8.80	8.80
2	Sidewall	Two pieces of tire sidewall	2.70	2.70
3	Reinforcing layer	A nylon 66 cord	3.77	—
3	Reinforcing layer	B nylon 66 cord	—	3.32
4	Carcass layer	26 layers of A nylon 66 cord	42.03	—
4	Carcass layer	24 layers of B nylon 66 cord	—	39.38
5	Seal layer	The same as the old design	3.30	3.30
6	Steel ring	One side 3 steel rings×2	8.90	8.90
7	Other	Total mass of film and filler	4.50	4.50
8	Total	Sum of parts	74.00	70.90
