Comparison of Chain Microstructure of Four Polyethylene Resins for Films and Pipes

doi:10.19894/j.issn.1000-0518.240307

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (4): 490-498.DOI: 10.19894/j.issn.1000-0518.240307

• Full Papers • Previous Articles Next Articles

Comparison of Chain Microstructure of Four Polyethylene Resins for Films and Pipes

Yu-Xin GAO¹, Wei LIU²(), Rui LI², Yan-Xiong PAN², Deng-Fei WANG¹, Ming-Jun ZHANG¹, Shu-Yan HE¹, Xiang-Ling JI²()

^1.Daqing Petrochemical Research Center，Petrochemical Research Institute of PetroChina，Daqing 163714，China
^2.State Key Laboratory of Polymer Science and Technology，Changchun Institute of Applied Chemistry，Chinese Academy of Sciences，Changchun 130022，China

Received:2024-09-26 Accepted:2024-12-30 Published:2025-04-01 Online:2025-05-14
Contact: Wei LIU,Xiang-Ling JI

Abstract

Abstract:

Polyethylene is one of the most widely used polymer materials in the world. Chain structure parameters including the content and distribution of α-olefin comonomer along the chains in the polyethylene copolymer have significant effects on the properties and applications of polyethylene resin. The chain structure of four ethylene/1-octene copolymers for films and pipes was studied by high-temperature gel permeation chromatography， high temperature ¹³C nuclear magnetic resonance spectroscopy， differential scanning calorimeter and successive self-nucleation and annealing and further compared. The four polyethylene resins are used for casting film （CPE）， polyethylene pipe of raised temperature resistance （PERT）， linear low density polyethylene （LLDPE） packaging and biaxial stretched polyethylene （BOPE） film. The primary chain structure parameters， including relative molecular mass and its distribution， comonomer molar fraction， triad sequence distribution， average ethylene and 1-octene sequence length， average methylene sequence length， were determined and compared. The obtained chain structure information shows that although both CPE and PERT are high density polyethylene， the relative molecular mass of PERT is much higher and the molecular mass distribution is wider， which improve the environmental stress cracking resistance， impact resistance and slow crack growth resistance of PERT pipes by forming more tie molecules between crystalline lamellae. Both LLDPE and BOPE are linear low density polyethylene， but BOPE contains more and longer crystalline sequences， which is conducive to improving the orientation of molecular chains during stretching.

Key words: Polyethylene, Comonomer, Chain structure, Sequence distribution

CLC Number:

O631

Yu-Xin GAO, Wei LIU, Rui LI, Yan-Xiong PAN, Deng-Fei WANG, Ming-Jun ZHANG, Shu-Yan HE, Xiang-Ling JI. Comparison of Chain Microstructure of Four Polyethylene Resins for Films and Pipes[J]. Chinese Journal of Applied Chemistry, 2025, 42(4): 490-498.

Figures/Tables 9

Table 1 Information of the PE resins

Sample	ρ/（g·cm^-3）	MFR/（g·10 min^-1）	Application
CPE	0.961	8.0	Casting polyethylene （CPE） film
PERT	0.941	0.55	Polyethylene of raised temperature resistance （PERT）； Pipes for hot and cold water system
LLDPE	0.920	1.0	Linear low density polyethylene （LLDPE）； Packaging
BOPE	0.912	0.85	Biaxially oriented polyethylene （BOPE）； Packaging

Table 2 Relative molecular mass of the PE resins

Sample	10^-4M_w	10^-4M_n	M_w/M_n
CPE	9.65	2.19	4.42
PERT	19.07	1.98	9.65
LLDPE	14.48	5.56	2.60
BOPE	8.47	2.42	3.50

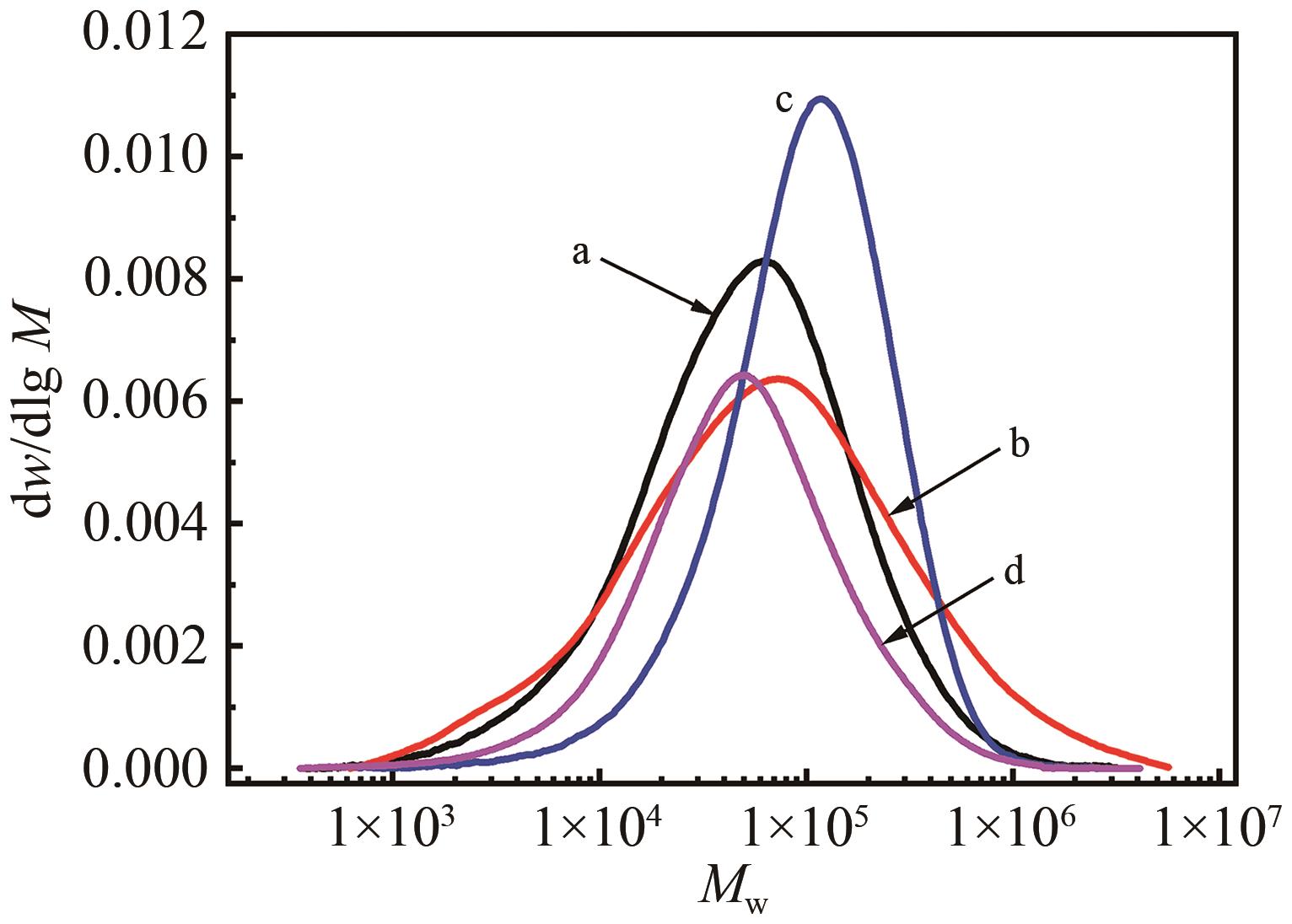

Fig.1 Molecular mass distribution profiles of CPE （a）， PERT （b）， LLDPE （c） and BOPE （d） resins

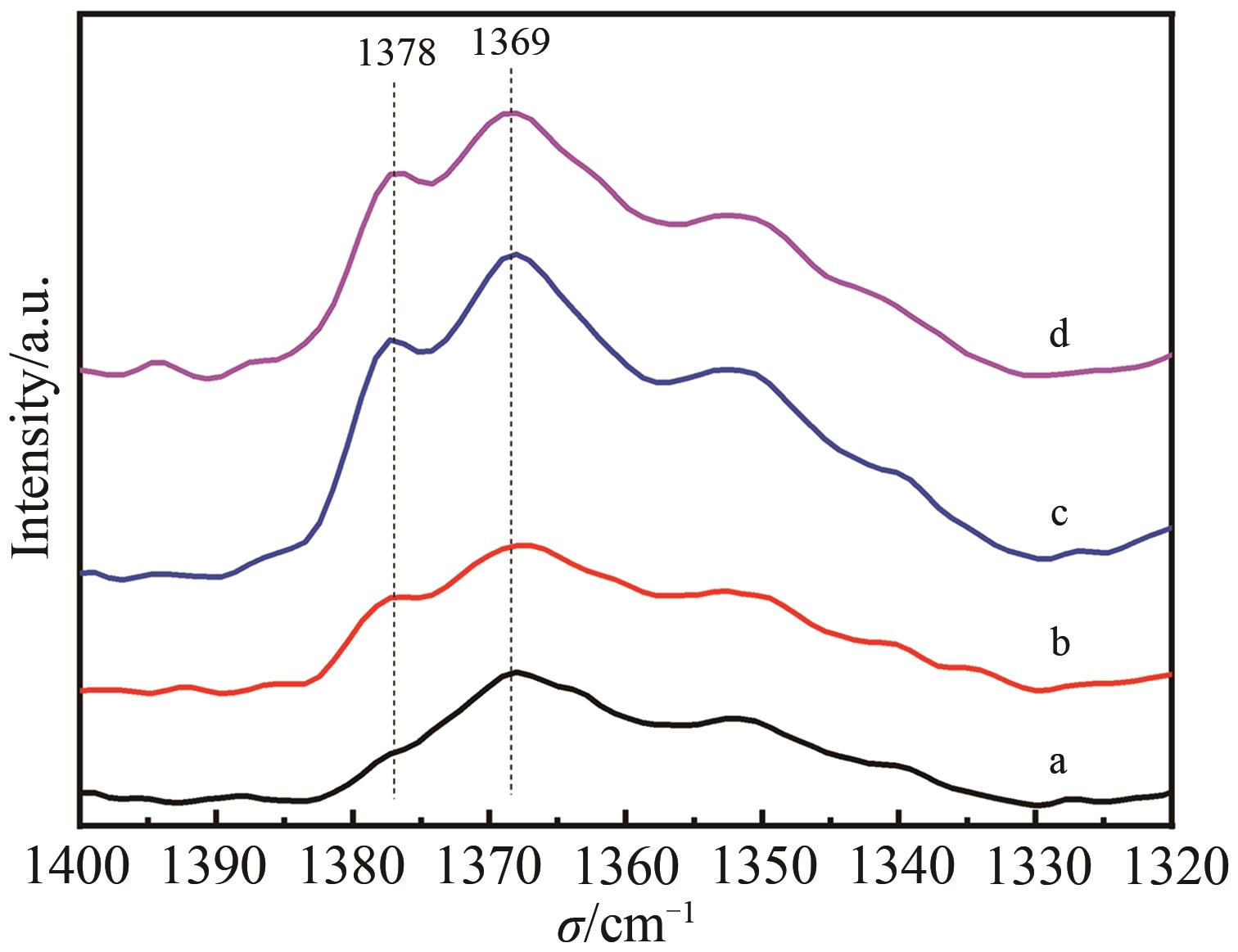

Fig.2 FT-IR spectra of CPE （a）， PERT （b）， LLDPE （c） and BOPE （d） resins

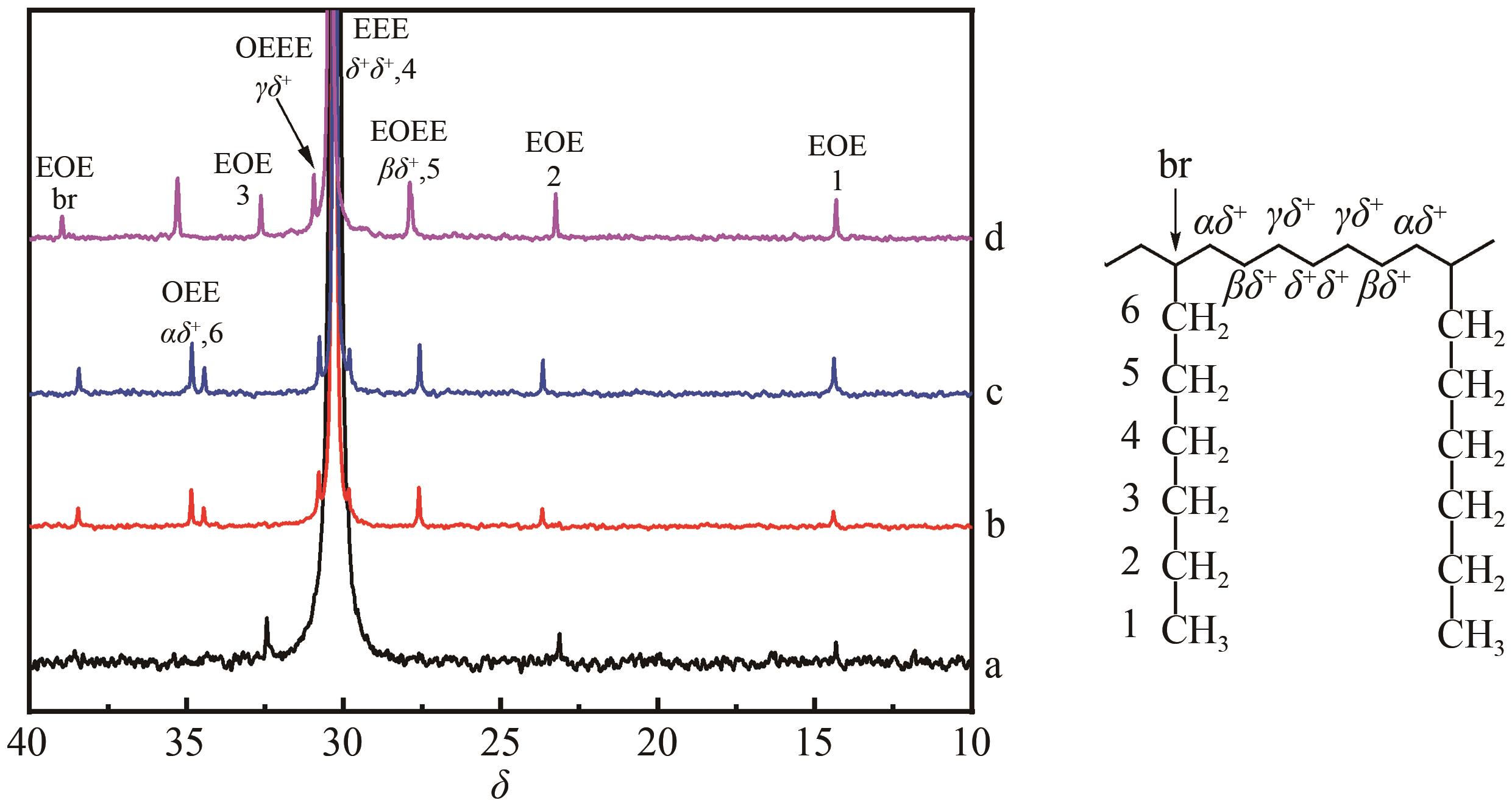

Fig.3 13C NMR spectra of CPE （a）， PERT （b）， LLDPE （c） and BOPE （d） resins

Table 3 1-Octene molar fraction， triad sequence distribution， number-average sequence lengths of ethylene and 1-octene in the PE resins

Sample	x（ethylene）/%	x（1-octene）/%	x（EOE）/%	x（OEE）/%	x（EEE）/%	n_E	n_O
CPE	99.8	0.2	0.2	0	99.8	-	1.0
PERT	98.8	1.2	1.2	2.2	96.6	90.5	1.0
LLDPE	97.8	2.2	2.2	4.3	93.5	45.4	1.0
BOPE	97.5	2.5	2.5	2.5	95.0	78.4	1.0

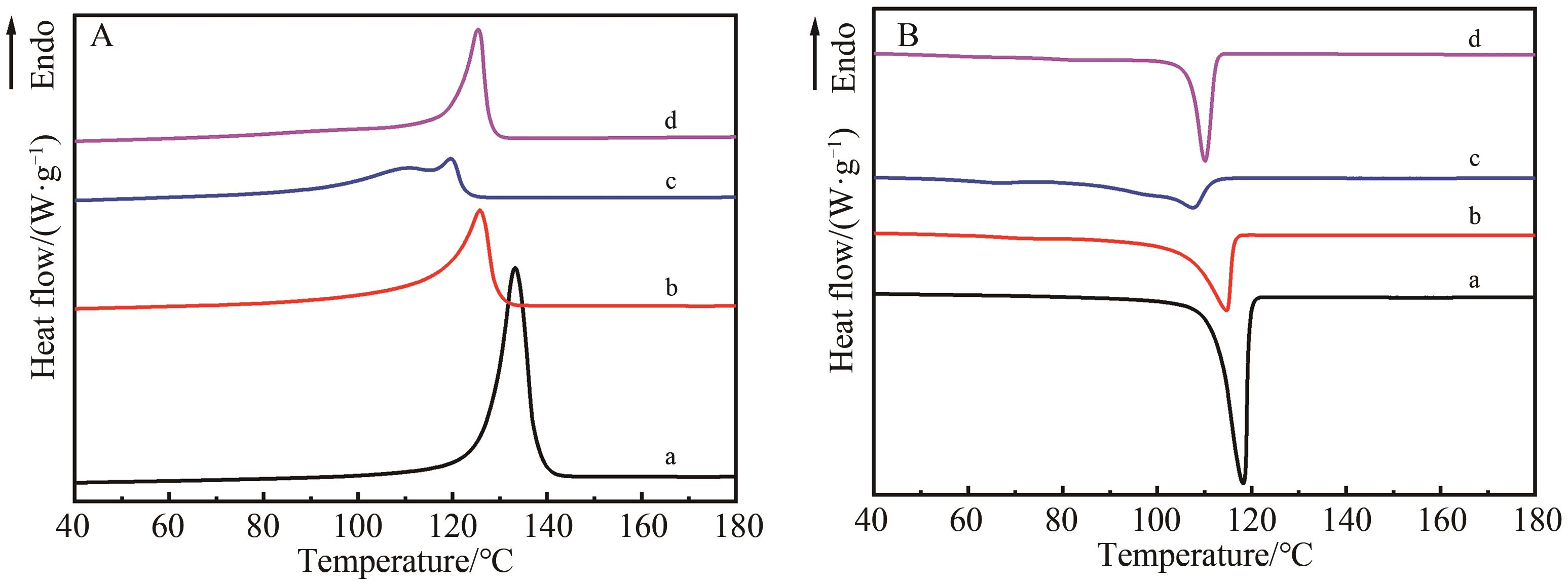

Fig.4 DSC curves of CPE （a）， PERT （b）， LLDPE （c） and BOPE （d） resins upon heating （A） and cooling （B） at a rate of 10 ℃/min

Table 4 Melting temperature， crystallization temperature and crystallinity （Xc） of PE resins measured using DSC

Sample	T_m/℃	T_c/℃	X_c/%
CPE	133.2	118.1	76.5
PERT	125.7	114.6	56.0
LLDPE	110.9/119.6	67.5/107.6	49.0
BOPE	125.3	110.1	41.4

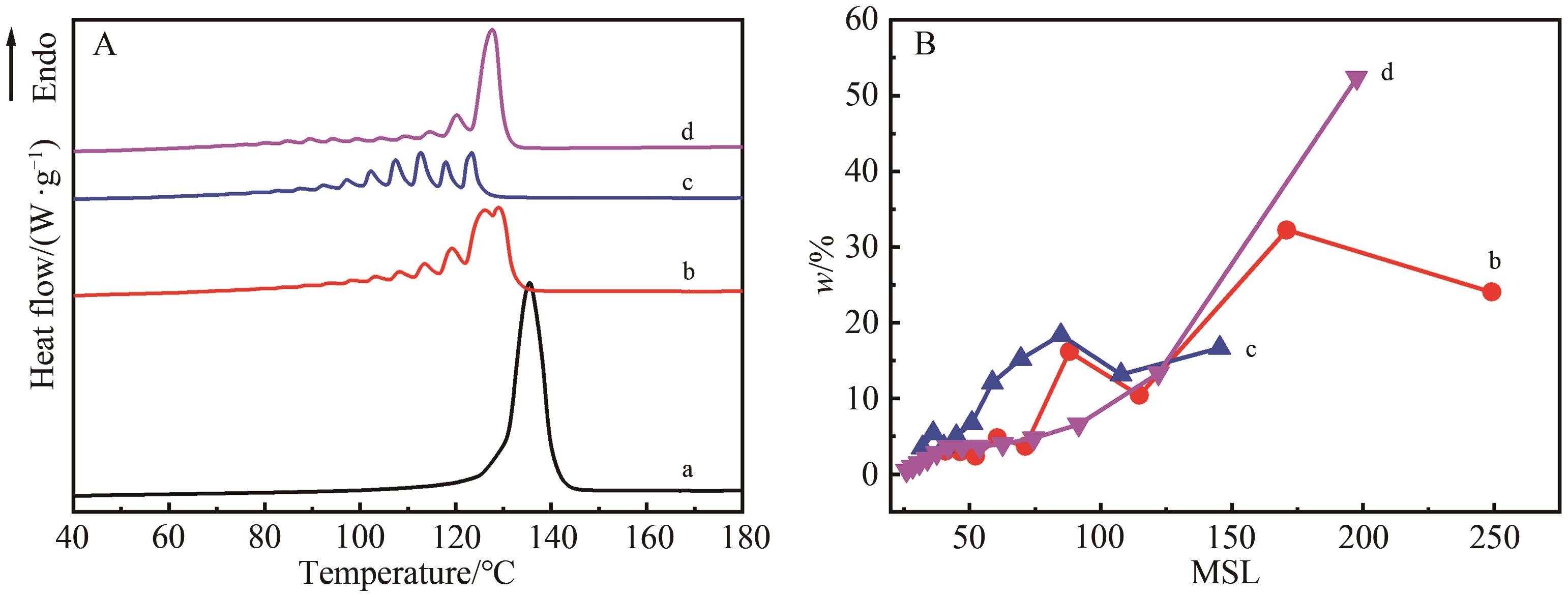

Fig.5 DSC heating scans for CPE （a）， PERT （b）， LLDPE （c） and BOPE （d） resins after SSA thermal fractionation （A） and methylene sequence length （MSL） distribution calculated from SSA thermal fractionation （B）

References 33

1	PATEL K， CHIKKALI S H， SIVARAM S. Ultrahigh molecular weight polyethylene： catalysis， structure， properties， processing and applications［J］. Prog Polym Sci， 2020， 109： 101290.
2	PAXTON N C， ALLENBY M C， LEWIS P M， et al. Biomedical applications of polyethylene［J］. Eur Polym J， 2019， 118： 412-428.
3	WEE J W， PARK S Y， CHOI B H. Modeling and application of discontinuous slow crack growth behaviors of high-density polyethylene pipe with various geometries and loading conditions［J］. Eng Fract Mech， 2020， 236： 107205.
4	SPALDING M A， CHATTERJEE A. Handbook of industrial polyethylene and technology： definitive guide to manufacturing， properties， processing， applications and markets set［M］. Hoboken： John Wiley & Sons， 2017.
5	PETICOLAS W L， WATKINS J M. The molecular structure of polyethylene. Ⅶ. melt viscosity and the effect of molecular weight and branching［J］. J Am Chem Soc， 1957， 79（19）： 5083-5085.
6	POPLI R， MANDELKERN L. Influence of structural and morphological factors on the mechanical-properties of the polyethylenes［J］. J Polym Sci Pol Phys， 1987， 25（3）： 441-483.
7	WILLBOURN A H. Polymethylene and the structure of polyethylene： study of short-chain branching， its nature and effects［J］. J Polym Sci， 1959， 34（127）： 569-597.
8	HOSODA S. Structural distribution of linear low-density polyethylenes［J］. Polym J， 1988， 20（5）： 383-397.
9	ALAMO R G， MANDELKERN L. Thermodynamic and structural-properties of ethylene copolymers［J］. Macromolecules， 1989， 22（3）： 1273-1277.
10	SHIRAYAMA K， KITA S I， WATABE H. Effects of branching on some properties of ethylene/α-olefin copolymers［J］. Makromol Chem， 1972， 151（1）： 97-120.
11	WILD L， RYLE T R， KNOBELOCH D C， et al. Determination of branching distributions in polyethylene and ethylene copolymers［J］. J Polym Sci， Polym Phys Ed， 1982， 20（3）： 441-455.
12	LUSTIGER A， MARKHAM R L. Importance of tie molecules in preventing polyethylene fracture under long-term loading conditions［J］. Polymer， 1983， 24（12）： 1647-1654.
13	SEGUELA R. Critical review of the molecular topology of semicrystalline polymers： the origin and assessment of intercrystalline tie molecules and chain entanglements［J］. J Polym Sci Pol Phys， 2005， 43（14）： 1729-1748.
14	CHENG J J， POLAK M A， PENLIDIS A. Influence of micromolecular structure on environmental stress cracking resistance of high density polyethylene［J］. Tunn Undergr Sp Technol， 2011， 26（4）： 582-593.
15	YADEGARI A， MORSHEDIAN J， KHONAKDAR H A， et al. Influence of annealing on anisotropic crystalline structure of HDPE cast films［J］. Polyolefins J， 2016， 3（1）： 1-9.
16	YADEGARI A， MORSHEDIAN J， KHONAKDAR H A， et al. Correlation of crystal alignment with interphase content in oriented high density polyethylene cast films［J］. CrystEngComm， 2016， 18（13）： 2337-2346.
17	BOHM L L， ENDERLE H F， FLEISSNER M. High-density polyethylene pipe resins［J］. Adv Mater， 1992， 4（3）： 234-238.
18	SCHRAMM D. PE-RT： a new class of polyethylene for industrial pipes： 25th international conference on offshore mechanics and arctic engineering［C］. 2006， 3： 513-521.
19	ZHANG C， ZHAO B， DING L， et al. Influence of comonomer distribution on crystallization kinetics and performance of polyethylene of raised temperature resistance［J］. Polym Int， 2019， 68（10）： 1748-1758.
20	GUPTA P， WILKES G L， SUKHADIA A M， et al. Does the length of the short chain branch affect the mechanical properties of linear low density polyethylenes？ an investigation based on films of copolymers of ethylene/1-butene， ethylene/1-hexene and ethylene/1-octene synthesized by a single site metallocene catalyst［J］. Polymer， 2005， 46（20）： 8819-8837.
21	AJJI A， AUGER J， HUANG J， et al. Biaxial stretching and structure of various LLDPE resins［J］. Polym Eng Sci， 2004， 44（2）： 252-260.
22	MULLER A J， HERNANDEZ Z H， ARNAL M L， et al. Successive self-nucleation/annealing （SSA）： a novel technique to study molecular segregation during crystallization［J］. Polym Bull， 1997， 39（4）： 465-472.
23	MÜLLER A J， MICHELL R M， PÉREZ R A， et al. Successive self-nucleation and annealing （SSA）： correct design of thermal protocol and applications［J］. Eur Polym J， 2015， 65： 132-154.
24	FAZELI N， ARABI H， BOLANDI S. Effect of branching characteristics of ethylene/1-butene copolymers on melt flow index［J］. Polym Test， 2006， 25（1）： 28-33.
25	RODRÍGUEZ-HERNÁNDEZ M T， ANGULO-SÁNCHEZ J L， PÉREZ-CHANTACO A. Determination of the molecular characteristics of commercial polyethylenes with different architectures and the relation with the melt flow index［J］. J Appl Polym Sci， 2007， 104（3）： 1572-1578.
26	USAMI T， TAKAYAMA S. Identification of branches in low-density polyethylenes by fourier-transform infrared-spectroscopy［J］. Polym J， 1984， 16（10）： 731-738.
27	RANDALL J C. A review of high resolution liquid 13carbon nuclear magnetic resonance characterizations of ethylene-based polymers［J］. J Macromol Sci， Polym Rev， 1989， 29（2/3）： 201-317.
28	DEPOOTER M， SMITH P B， DOHRER K K， et al. Determination of the composition of common linear low-density polyethylene copolymers by ¹³C-NMR spectroscopy［J］. J Appl Polym Sci， 1991， 42（2）： 399-408.
29	GALLAND G B， DE SOUZA R F， MAULER R S， et al. ¹³C NMR determination of the composition of linear low-density polyethylene obtained with ［η ³-methallyl-nickel-diimine］PF₆ complex［J］. Macromolecules， 1999， 32（5）： 1620-1625.
30	MIRABELLA F M， BAFNA A. Determination of the crystallinity of polyethylene/α-olefin copolymers by thermal analysis： relationship of the heat of fusion of 100% polyethylene crystal and the density［J］. J Polym Sci， Part B： Polym Phys， 2002， 40（15）： 1637-1643.
31	MANG M Q， WANKE S E. Quantitative determination of short-chain branching content and distribution in commercial polyethylenes by thermally fractionated differential scanning calorimetry［J］. Polym Eng Sci， 2003， 43（12）： 1878-1888.
32	HUANG Y L， BROWN N. Dependence of slow crack-growth in polyethylene on butyl branch density-morphology and theory［J］. J Polym Sci Pol Phys， 1991， 29（1）： 129-137.
33	MUELLER C， CAPACCIO G， HILTNER A， et al. Heat sealing of LLDPE： relationships to melting and interdiffusion［J］. J Appl Polym Sci， 1998， 70（10）： 2021-2030.
