Effect of Ag Content on Microstructure and Mechanical Properties of Mg-Gd Binary Alloys

doi:10.19894/j.issn.1000-0518.250358

Chinese Journal of Applied Chemistry ›› 2026, Vol. 43 ›› Issue (1): 87-95.DOI: 10.19894/j.issn.1000-0518.250358

• Full Papers • Previous Articles Next Articles

Effect of Ag Content on Microstructure and Mechanical Properties of Mg-Gd Binary Alloys

Dong-Yue ZHAO¹, HAO GU², Qiang YANG¹(), You LYU¹, Xin QIU¹, Valery-Konstantinovich SHELE³, Marina-Anatolyevna KRAVCHUK³

^1.China-Belarus Belt and Road Joint Laboratory on Advanced Materials and Manufacturing，Changchun Institute of Applied Chemistry，Chinese Academy of Sciences，Changchun 130022，China
^2.Key Laboratory of Superlight Material and Surface Technology，Ministry of Education，College of Material Science and Chemical Engineering，Harbin Engineering University，Harbin 150001，China
^3.Department of Mechanical Engineering Technology，Belarusian National Technical University，Minsk 220027，Belarus

Received:2025-09-17 Accepted:2025-11-17 Published:2026-01-01 Online:2026-01-26
Contact: Qiang YANG
About author:qiangyang@ciac.ac.cn
Supported by:
the Scientific and Technological Developing Scheme of Jilin Province(YDZJ202301ZYTS538)

Abstract

Abstract:

This study systematically investigates the influence of Ag content on the microstructure and mechanical properties of Mg-8Gd-0.5Zr-xAg（x%=0，0.5%，2%，5%） alloys fabricated via high-temperature extrusion with a large extrusion ratio， employing scanning electron microscopy （SEM）， transmission electron microscopy （TEM）， and tensile testing. The results demonstrate that the yield strength increases markedly with Ag addition， showing a remarkable improvement of 142 MPa in the Mg-8Gd-0.5Zr-5Ag alloy compared to the Ag-free counterpart. Microstructural analyses reveal that Ag not only refines grain size but also fundamentally alters the types of precipitates formed during extrusion. Electron backscatter diffraction （EBSD） indicates that the Mg-8Gd-0.5Zr-0Ag and Mg-8Gd-0.5Zr-0.5Ag alloys consist of partially recrystallized microstructures with elongated grains， whereas the Mg-8Gd-0.5Zr-2Ag and 5Ag alloys exhibit fully recrystallized structures， with the Mg-8Gd-0.5Zr-5Ag alloy achieving the smallest average grain size （1.3 μm）. SEM-EDS analyses confirm an increase in the volume fraction of dynamic precipitates with higher Ag content. While the secondary phases in Mg-8Gd-0.5Zr-0Ag and Mg-8Gd-0.5Zr-0.5Ag alloys are identified as Mg₅Gd （via TEM）， the Mg-8Gd-0.5Zr-2Ag and Mg-8Gd-0.5Zr-5Ag alloys form Mg₁₂Gd₂Ag ternary phases. The superior yield strength of the 5%Ag alloy is attributed to the synergistic effects of precipitation strengthening and grain refinement.

Key words: Grain refinement, Precipitation strengthening, Mechanical properties, Microstructure evolution

CLC Number:

O614.2

Dong-Yue ZHAO, HAO GU, Qiang YANG, You LYU, Xin QIU, Valery-Konstantinovich SHELE, Marina-Anatolyevna KRAVCHUK. Effect of Ag Content on Microstructure and Mechanical Properties of Mg-Gd Binary Alloys[J]. Chinese Journal of Applied Chemistry, 2026, 43(1): 87-95.

Figures/Tables 8

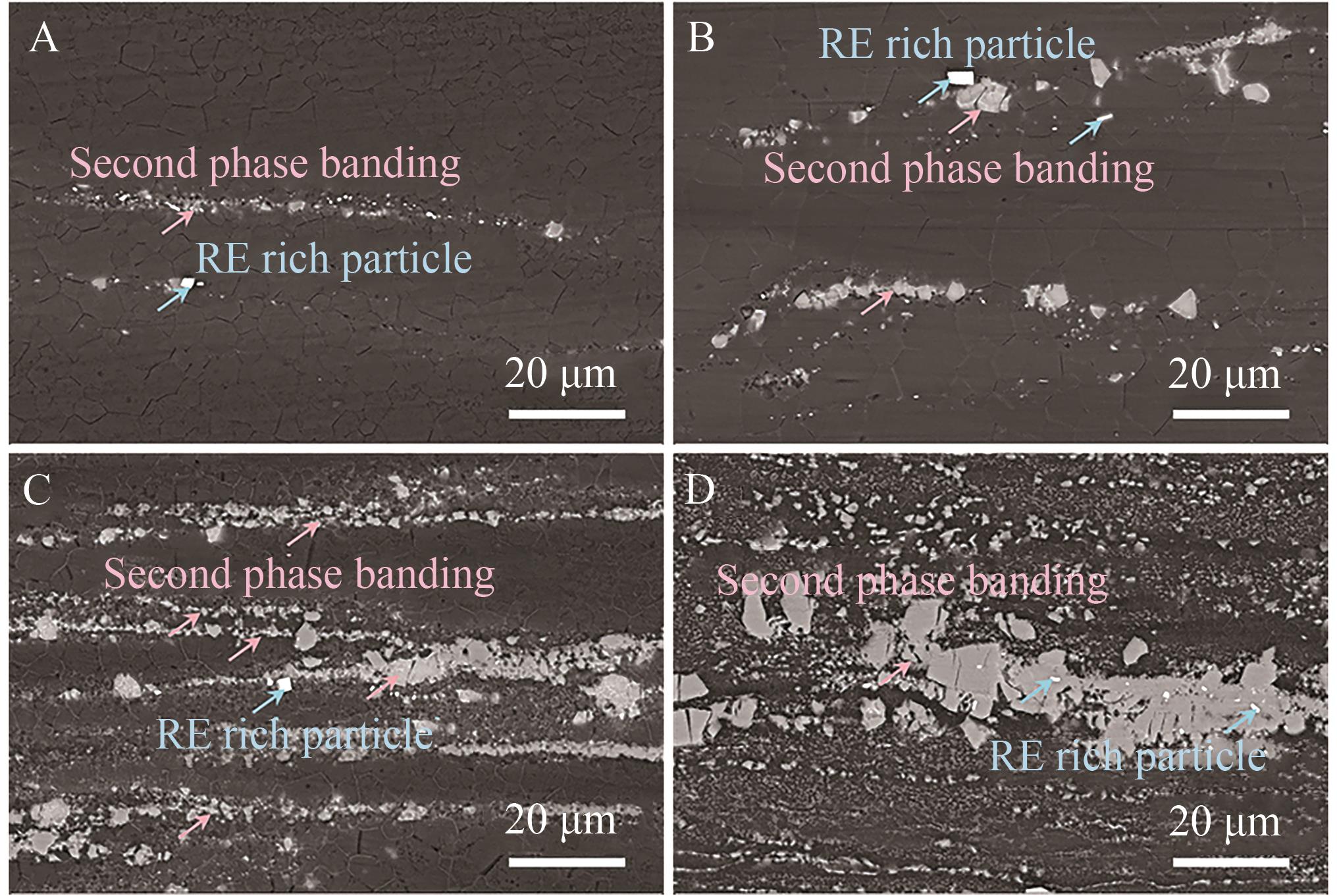

Fig.1 SEM micrographs of the Mg-8Gd-0.5Zr-xAg sample

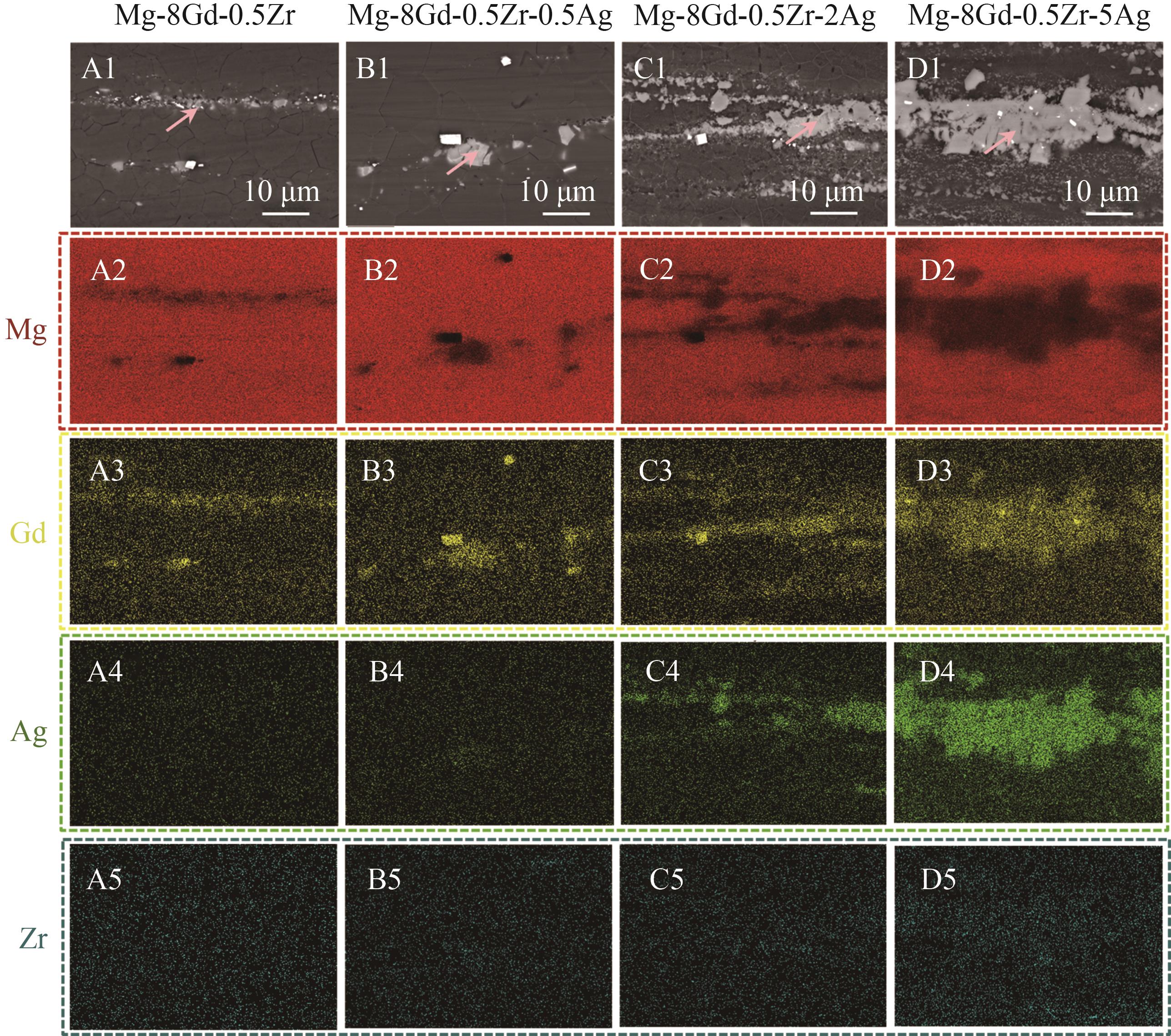

Fig.2 Backscattered electron （BSE） images and elemental distribution of Mg-8Gd-0.5Zr-xAg alloysNote： A1-D1. BSE images； A2-D5. EDS images； A1-A5. Mg-8Gd-0.5Zr alloy； B1-B5. Mg-8Gd-0.5Zr-0.5Ag alloy； C1-C5. Mg-8Gd-0.5Zr-2Ag alloy； D1-D5. Mg-8Gd-0.5Zr-5Ag alloy

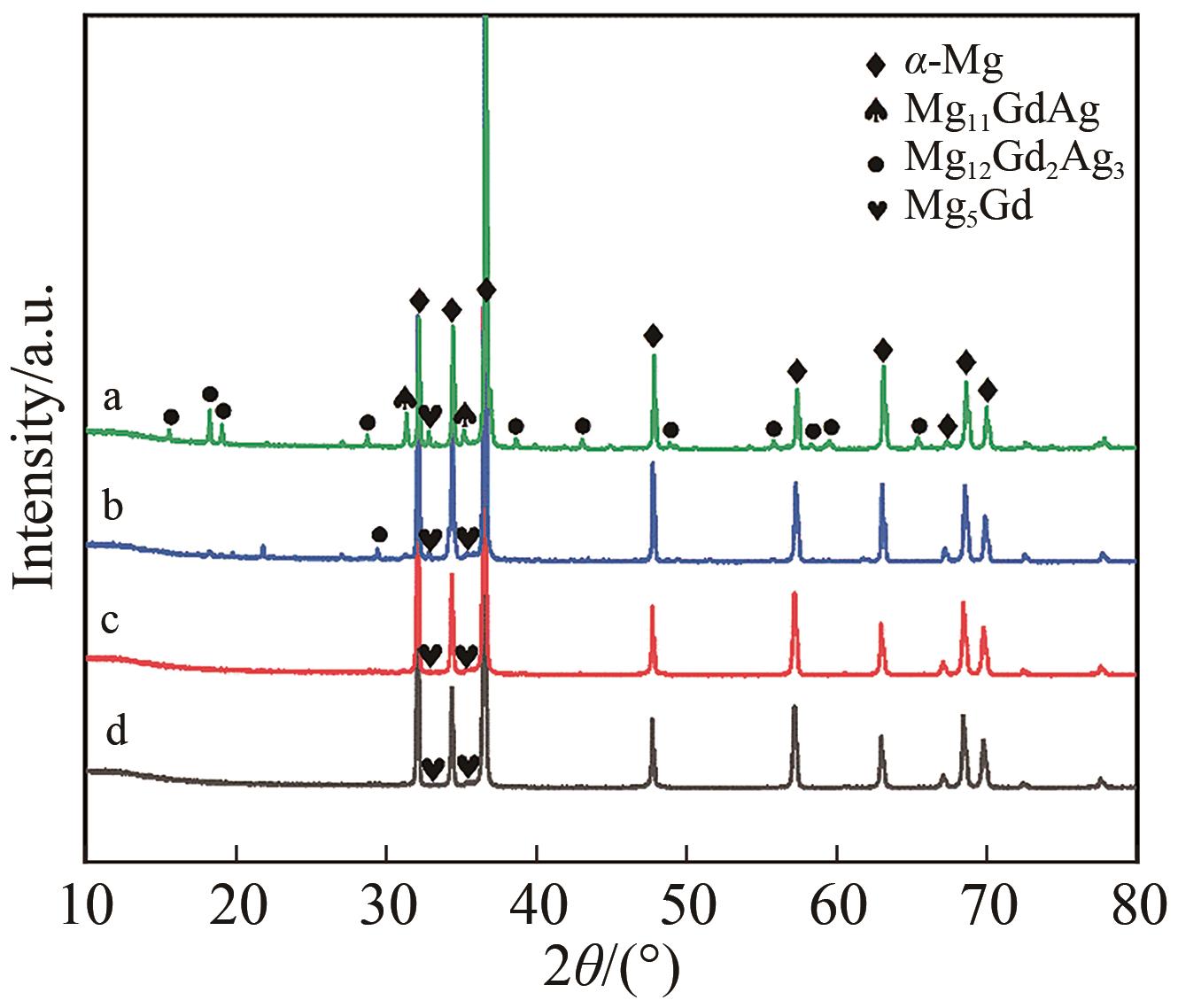

Fig.3 XRD patterns of Mg-8Gd-0.5Zr-0Ag （a）， Mg-8Gd-0.5Zr-0.5Ag （b）， Mg-8Gd-0.5Zr-2Ag （c） and Mg-8Gd-0.5Zr-5Ag （d）

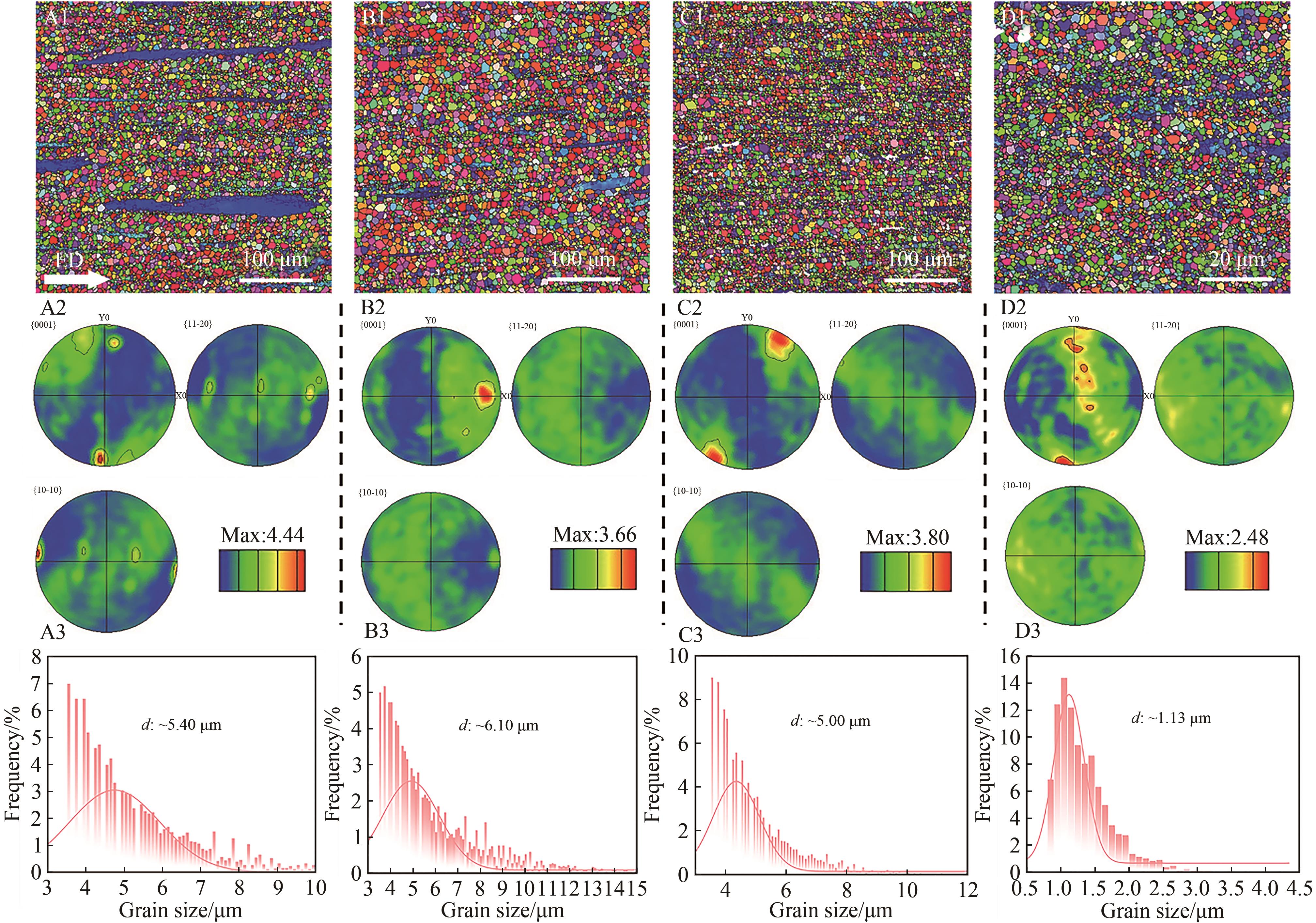

Fig.4 EBSD analysis results of Mg-8Gd-0.5Zr-xAg alloysNote： A1-A3. Mg-8Gd-0.5Zr alloy； B1-B3. Mg-8Gd-0.5Zr-0.5Ag alloy； C1-C3. Mg-8Gd-0.5Zr-2Ag alloy； D1-D3. Mg-8Gd-0.5Zr-5Ag alloy. A1-D1： IPF orientation distribution diagrams of the four alloys； A2-D2. polar plots of the four alloys； A3-D3. histogram of grain size distribution of the four alloys

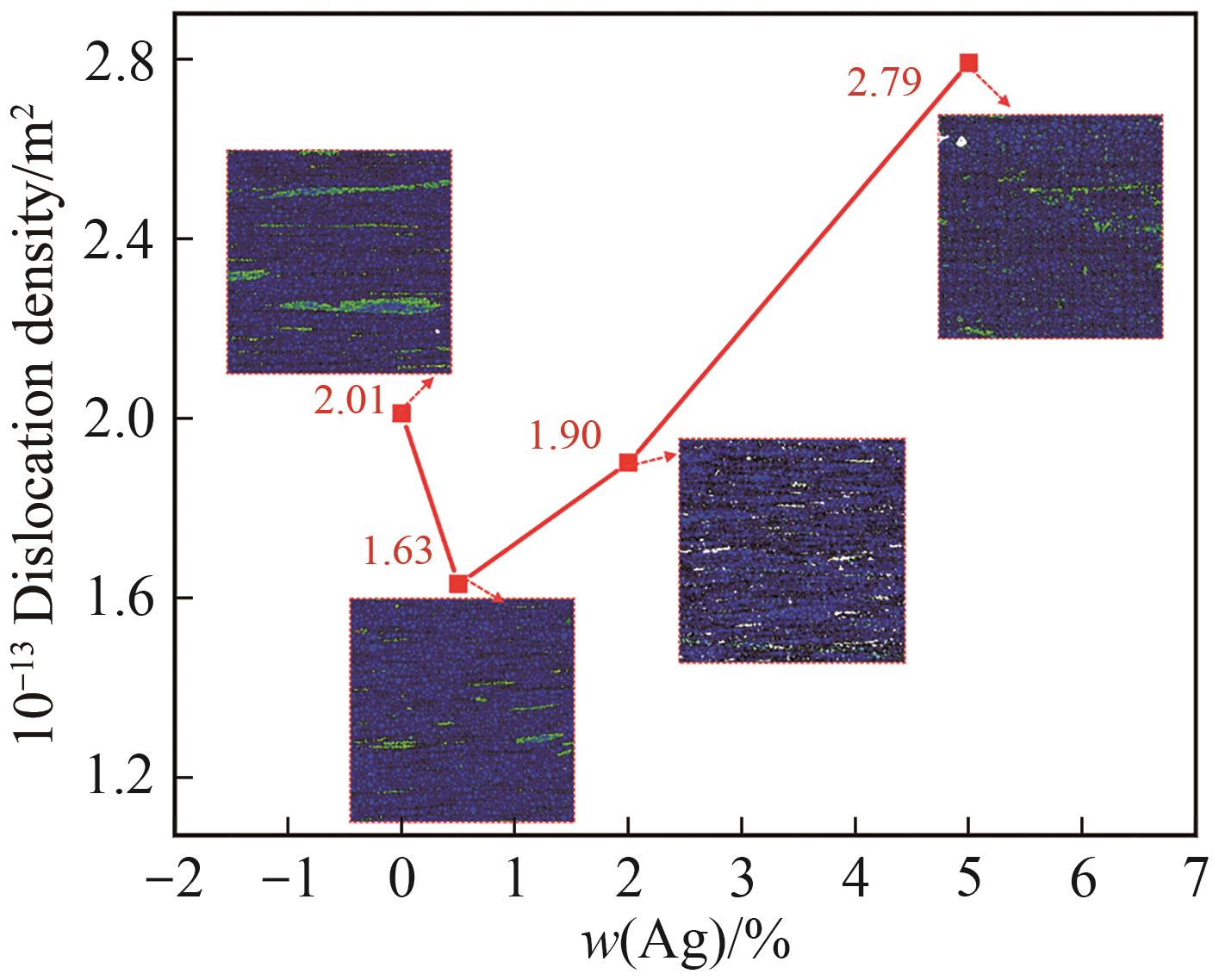

Fig.5 Dislocation density （statisticed chart） in four alloys

Fig.6 SEM images of the fracture morphology：（A） Mg-8Gd-0.5Zr-0Ag；（B） Mg-8Gd-0.5Zr-0.5Ag；（C） Mg-8Gd-0.5Zr-2Ag；（D） Mg-8Gd-0.5Zr-5Ag

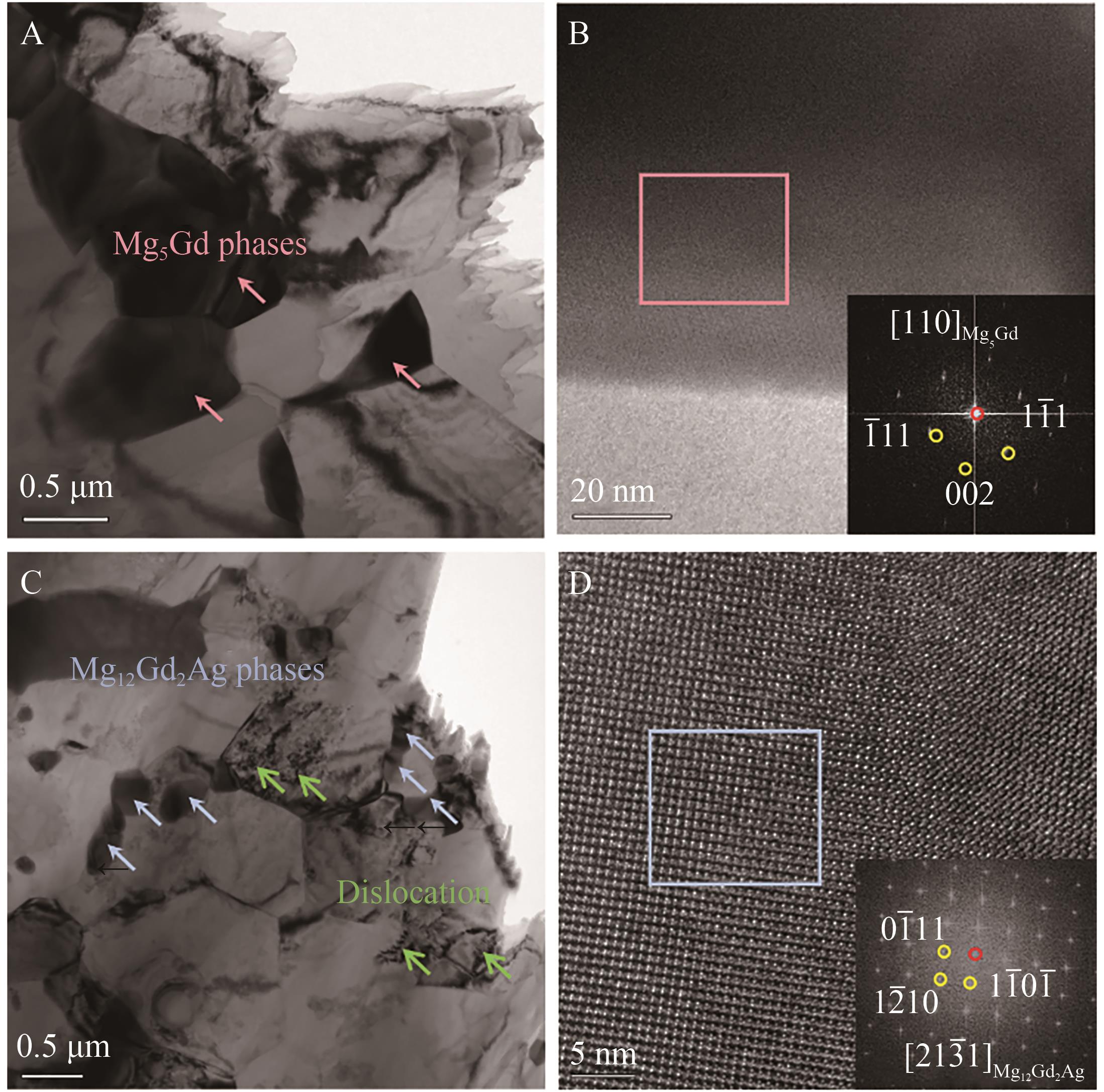

Fig.7 BF-TEM images and HRTEM images of Mg-8Gd-0.5Zr （A， B） and Mg-8Gd-0.5Zr-5Ag （C， D） alloys

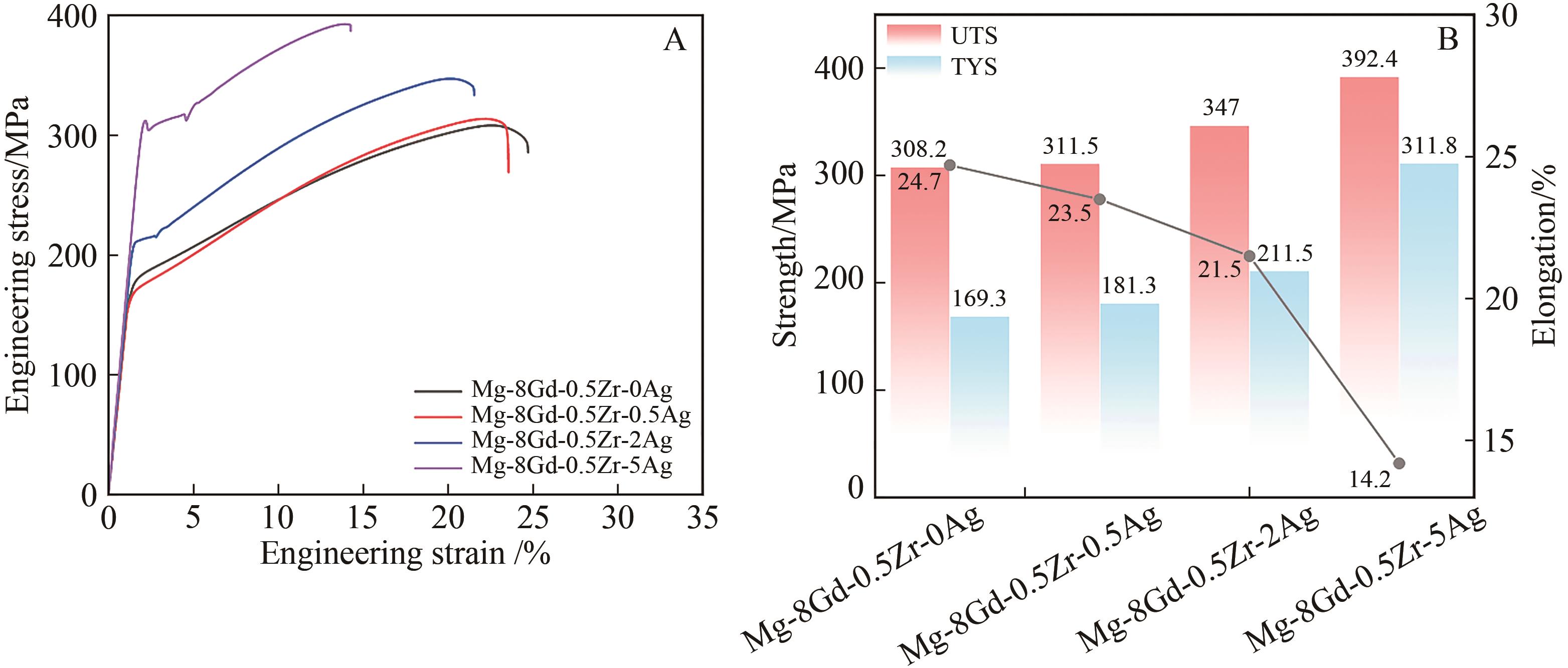

Fig.8 （A） True stress-strain curves obtained from tensile testing at room temperature and （B） comparative bar charts showing yield strength （YS）， ultimate tensile strength （UTS）， and elongation to failure （EL）

References 13

[1]	YANG Q， LV S， GUAN K， et al. Extra-conventional strengthening mechanisms in non-recrystallized grains of an extruded Mg-Gd-Zr alloy［J］. J Magnesium Alloys， 2024， 12（11）： 4561-4573.
[2]	DENG B， LV S， YANG Q， et al. Lath-like phases formed at an extremely high temperature in a Mg-RE（RE=rare earth）-Al alloy［J］. Rare Met， 2024， 43（8）： 3937-3945.
[3]	管凯，张景怀，杨强，等. 微量Ca添加对铸造Mg-Sm-Gd基合金显微组织与力学性能的影响（英文）［J］. Transact Nonferrous Met Soc China， 2023， 33（1）： 46-58.
	GUAN K， ZHANG J H， YANG Q， et al. Effects of trace Ca addition on microstructure andmechanical properties of as-cast Mg-Sm-Gd-based alloy［J］.Transact Nonferrous Met Soc China， 2023， 33（1）： 46-58.
[4]	朱明杰，王强，杨勇彪，等. Mg-9Gd-4Y-2Zn-0.5Zr合金连续降温压缩扭转组织演变［J］. 塑性工程学报， 2024， 31（5）： 155-162.
	ZHU M J， WANG Q， YANG Y B， et al． Microstructure evolution of Mg-9Gd-4Y-2Zn-0.5Zr alloy under compression-torsion with con-tinuous decreasing temperature［J］. J Plasticity Eng， 2024， 31（5）： 155-162.
[5]	LI B， GUAN K， YANG Q， et al. Microstructures and mechanical properties of a hot-extruded Mg-8Gd-3Yb-1.2Zn-0.5Zr （wt%） alloy［J］. J Alloys Comp， 2019（776）： 666-678.
[6]	LI B， GUAN K， YANG Q， et al. Effects of 0.5 wt% Ce addition on microstructures and mechanical properties of a wrought Mg-8Gd-1.2Zn-0.5Zr alloy［J］. J Technol Sci， 2018（763）： 120-133.
[7]	张冬冬，刘楚明，黄英杰，等. 微量Ag对Mg-Gd-Y-Zr挤压棒高温蠕变性能的影响（英文）［J/OL］. Transact Nonferrous Met Soc China，1-18［2025-08-11］.https：//link.cnki.net/urlid/43.1239.tg.20240806.1645.010.
	ZHANG D D， LIU C M， HUANG Y J， et al. Effect of Ag micro-alloying on elevated-temperature creep resistance of Mg-Gd-Y-Zr extrusion bars［J/OL］. Transact Nonferrous Met Soc China， 2025-08-07 ［2025-08-11］. https：//link.cnki.net/urlid/43.1239.tg.20240806.1645.010. ［published online ahead of print］.
[8]	李玲，辛仁龙. 预变形对Mg-Gd-Ag-Zr合金时效硬化行为与力学性能的影响［J］. 材料导报， 2014， 28（S2）： 436-438.
	LI L， XIN R L. Effect of pre-deformation on aging hardening and mechanical property of Mg-Gd-Ag-Zr alloy［J］. Mater Rev， 2014， 28（S2）： 436-438.
[9]	赵政，王渠东，丁文江. Mg-Gd-Ag-Zr合金的组织与力学性能［J］. 特种铸造及有色合金， 2009， 29（5）： 477-479， 391-392.
	ZHAO Z， WANG Q D， DING W J. Microstructure and mechanical properties of Mg-Gd-Ag-Zr alloys［J］. Spec Cast Nonferrous Alloys， 2009， 29（5）： 477-479， 391-392.
[10]	王若天，朱帅帅. Mg-Gd-Zn-Zr镁合金的摩擦磨损行为［J］. 金属热处理， 2024， 49（11）： 23-28.
	WANG R T， ZHU S S. Tribological behavior of Mg-Gd-Zn-Zr magnesium alloys［J］. Heat Treat Met， 2024， 49（11）： 23-28.
[11]	黄静怡，刘窈伶，韩宇翔，等. 含与不含LPSO相的Mg-Gd-Zn合金多向锻造过程中的显微组织演变及力学性能（英文）［J］. Transact Nonferrous Met Soc China， 2025， 35（4）： 1075-1091.
	HUANG J Y， LIU Y L， HAN Y X， et al. Microstructure evolution and mechanical properties of Mg-Gd-Zn alloy with and without LPSO phase processed by multi-directional forging［J］. Transact Nonferrous Met Soc China， 2025， 3504： 1075-1091.
[12]	赵俊，蒋斌，宋燕，等. Mn的添加协同提升挤压态Mg-Gd-Zn合金强度与塑性（英文）［J］. Transact Nonferrous Met Soc China， 2022， 32（5）： 1460-1471.
	ZHAO J， JIANG B， SONG Y， et al. Simultaneous improvement of strength andductility by Mn addition in extruded Mg-Gd-Zn alloy［J］. Transact Nonferrous Met Soc China， 2022， 32（5）： 1460-1471.
[13]	丁志兵，张帅，赵宇宏，等. Al添加对Mg-Gd-Zn合金显微组织和力学性能的影响（英文）［J］. Transact Nonferrous Met Soc China， 2022， 32（3）： 824-837.
	DING Z B， ZHANG S， ZHAO Y H， et al. Effect of Al addition on microstructure andmechanical properties of Mg-Gd-Zn alloys［J］. Transact Nonferrous Met Soc China， 2022， 32（3）： 824-837.
