Synthesis， Luminescence and Electrochemical Properties of Bis-Triphenylamine-Based Small Molecules and Electrochemical Polymers Connected by Flexible Chains

doi:10.19894/j.issn.1000-0518.240260

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (3): 353-364.DOI: 10.19894/j.issn.1000-0518.240260

• Full Papers • Previous Articles Next Articles

Synthesis， Luminescence and Electrochemical Properties of Bis-Triphenylamine-Based Small Molecules and Electrochemical Polymers Connected by Flexible Chains

Hong-Yu SHI¹^,², Dong-Xing TAN¹(), Fu-She HAN¹^,²()

^1.The Laboratory of Green Chemistry and Process，Changchun Institute of Applied Chemistry，Chinese Academy of Sciences，Changchun 130022，China
^2.School of Applied Chemistry and Engineering，University of Science and Technology of China，Hefei 230026，China

Received:2024-08-12 Accepted:2025-02-06 Published:2025-03-01 Online:2025-04-11
Contact: Dong-Xing TAN,Fu-She HAN
About author:fshan@ciac.ac.cn
dxtan@ciac.ac.cn；

1. .pdf(1772KB)

Abstract

Abstract:

Three bis-triphenylamine small molecules 1-3 linked by flexible amides or ester chains were designed and synthesized. The corresponding electrochemical polymer films were prepared by electrochemical polymerization （EP）. Following which， the photoluminescence （PL） and electrochemiluminescence （ECL） properties of the small molecules and polymers were studied. The solutions and solids of three small molecules， and their corresponding polymers exhibited strong photoluminescence in the blue region of 407~468 nm. The relative fluorescence quantum yields of compounds 1-3 in CH₂Cl₂ are 77%， 97% and 84%， respectively. Using tripropylamine as a co-reactant， the small molecule solid films of the three compounds exhibit general to good ECL with relative quantum yields of 0.52%， 55.58% and 16.82%， respectively. Comparative analysis revealed that compound 2 displayed the strongest photoluminescence and electrochemiluminescence， while compound 1 showed the weakest property. Based on the ¹H NMR spectroscopic analyses by varying the concentrations， compound 1 exhibits strong intermolecular hydrogen bonding， while compound 2 exhibits strong intramolecular hydrogen bonding. The difference in luminescence efficiency may be caused by different modes of intermolecular and intramolecular hydrogen bonding interactions. Finally， both the small molecule solid film and EP film of compound 2 could be used as an ECL luminophore for detection of dopamine （DA）， with a limit of detection （LOD） of 0.43 and 1.51 μmol/L， respectively.

Key words: Bis-triphenylamine, Electrochemical polymer film, Photoluminescence, Electrochemiluminescence, Detection of dopamine

CLC Number:

O625.6

Hong-Yu SHI, Dong-Xing TAN, Fu-She HAN. Synthesis， Luminescence and Electrochemical Properties of Bis-Triphenylamine-Based Small Molecules and Electrochemical Polymers Connected by Flexible Chains[J]. Chinese Journal of Applied Chemistry, 2025, 42(3): 353-364.

Figures/Tables 11

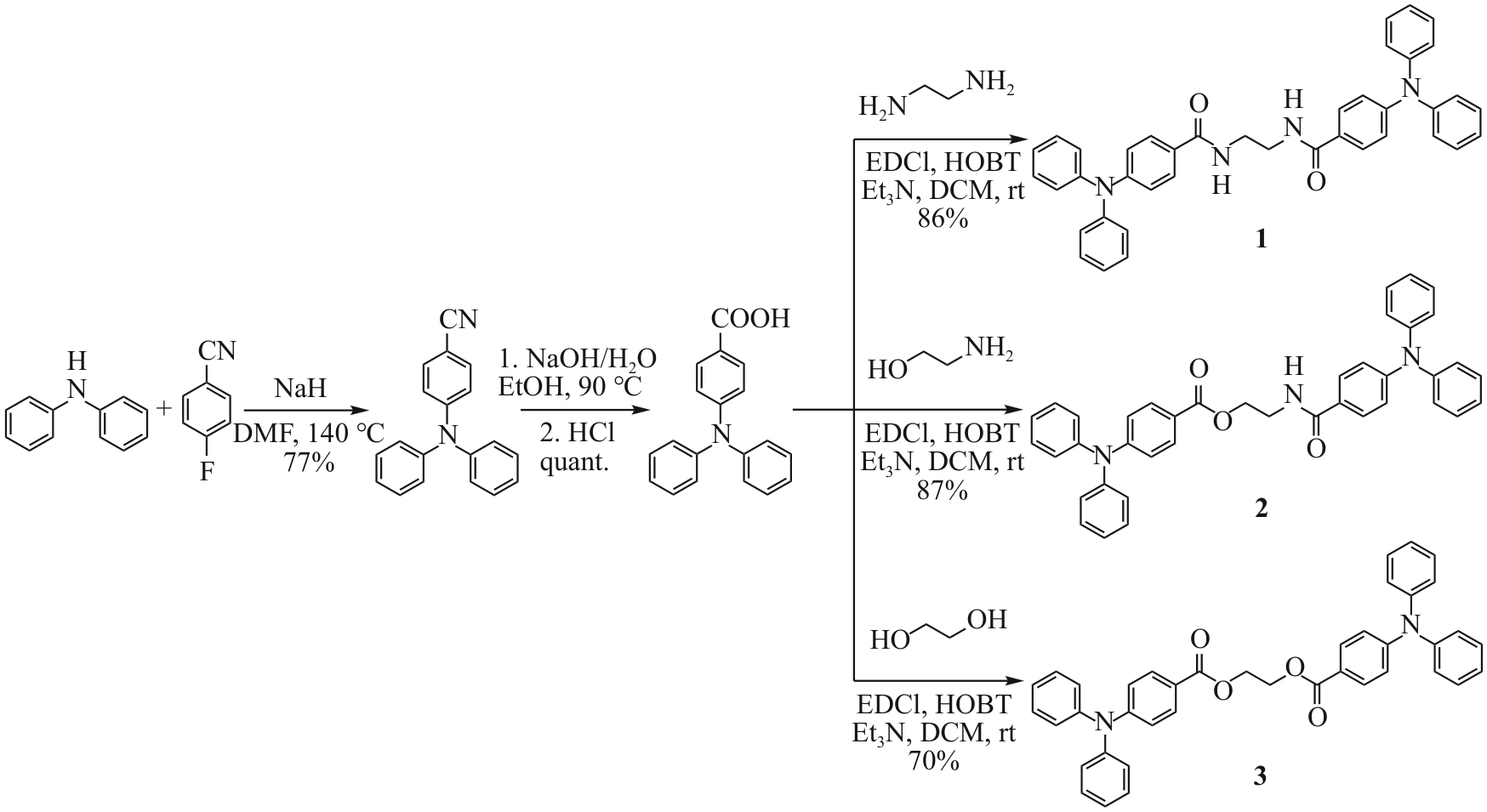

Fig.1 Synthetic routes of compounds 1-3

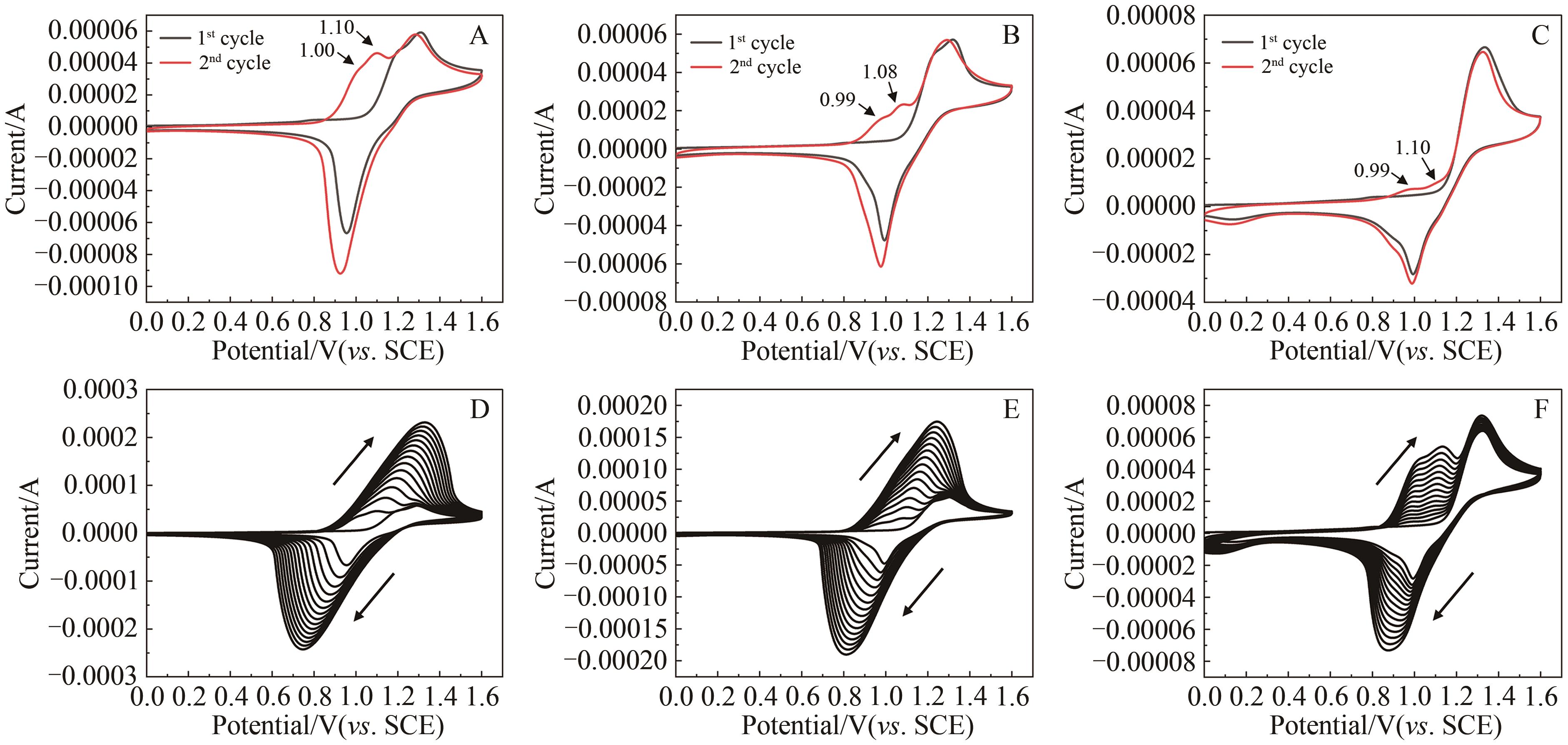

Fig.2 CV profiles （1st and 2nd cycle） of compounds 1 （A）， 2 （B） and 3 （C） and CV profiles （1st to 15th cycles） of compounds 1 （D）， 2 （E） and 3 （F） in CH2Cl2 in the presence of TBAP （0.1 mol/L） electrolyte at room temperature under argon protection. Scan rate： 100 mV/s； Scan range： 0 to 1.60 V

Table 1 Electrochemical data and theoretical calculation results of compounds 1-3 in CH2Cl2 （0.1 mol/L TBAP）

Compounds	E_onset/V ^a	HOMO/eV	LUMO/eV	$E_{g}^{o p t}$ /eV ^e	$E_{g}^{c a l}$ /eV ^c
1	1.06	-5.41 ^b /-4.86 ^c	-2.04 ^d /-1.03 ^c	3.37	4.18
2	1.10	-5.45/-5.17	-2.13/-1.24	3.32	3.99
3	1.16	-5.51/-5.57	-2.16/-1.30	3.35	4.02

Table 1 Electrochemical data and theoretical calculation results of compounds 1-3 in CH2Cl2 （0.1 mol/L TBAP）

Compounds	E_onset/V ^a	HOMO/eV	LUMO/eV	$E_{g}^{o p t}$ /eV ^e	$E_{g}^{c a l}$ /eV ^c
1	1.06	-5.41 ^b /-4.86 ^c	-2.04 ^d /-1.03 ^c	3.37	4.18
2	1.10	-5.45/-5.17	-2.13/-1.24	3.32	3.99
3	1.16	-5.51/-5.57	-2.16/-1.30	3.35	4.02

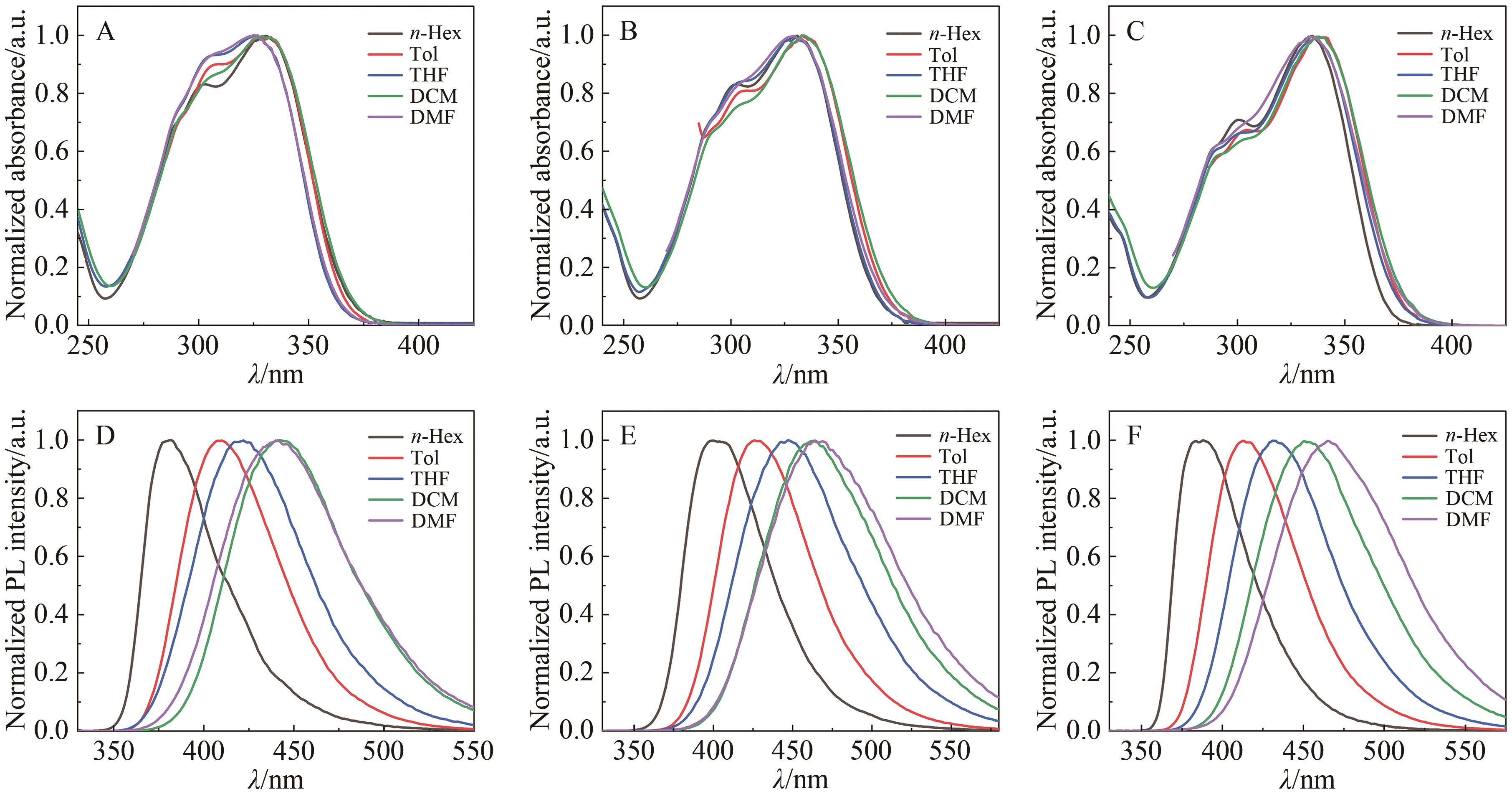

Fig.3 Normalized absorption and PL spectra of 1 （A， D）， 2 （B， E） and 3 （C， F） in solvents with different polarities

Table 2 The absorption （λab） and emission （λPL） date of compounds 1-3 in different solvents

Compounds	Solvents	λ_ab/nm ^a	10^-4ε/（L·mol^-1·cm^-1）	λ_PL/nm ^b	Δλ/nm ^c
1	n-Hex	330/300	2.53/2.37	385	55
	Tol	332/308	4.09/3.68	410	78
	THF	325/305	2.95/2.75	442	117
	DCM	331/306	2.86/2.45	443	112
	DMF	326/307	3.65/3.42	442	116
2	n-Hex	331/302	2.08/1.73	402	71
	Tol	333/304	3.31/2.66	428	95
	THF	330/304	2.94/2.65	447	117
	DCM	334/305	3.93/3.00	462	128
	DMF	330/305	3.36/2.82	467	137
3	n-Hex	335/300	3.41/2.42	387	52
	Tol	341/304	4.01/2.70	415	74
	THF	334/307	3.47/2.32	433	99
	DCM	336/302	3.07/1.96	451	115
	DMF	334/302	3.51/2.42	465	131

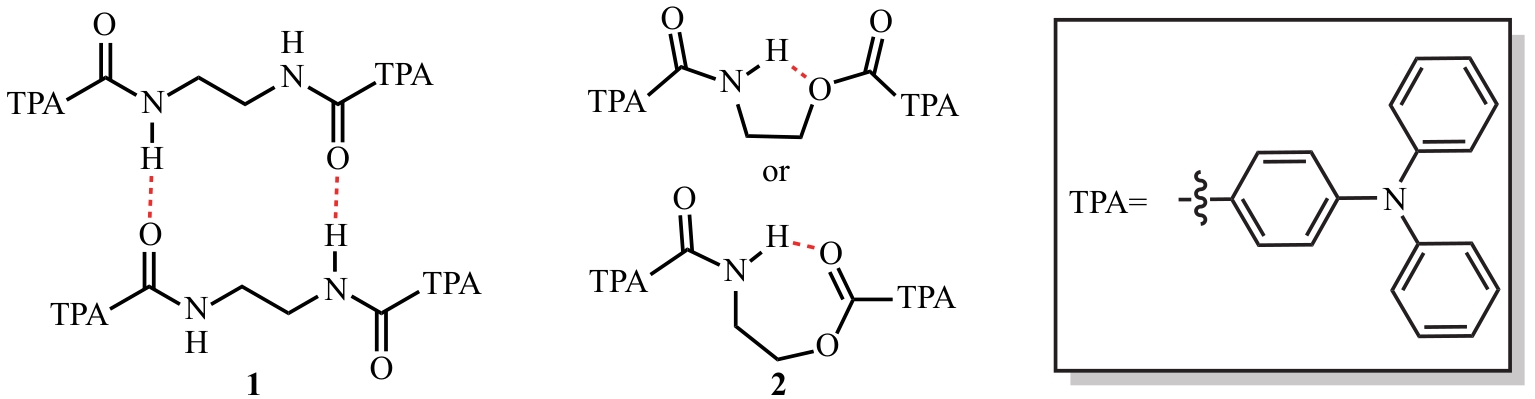

Fig.4 Possible hydrogen bonding modes of compounds 1 and 2

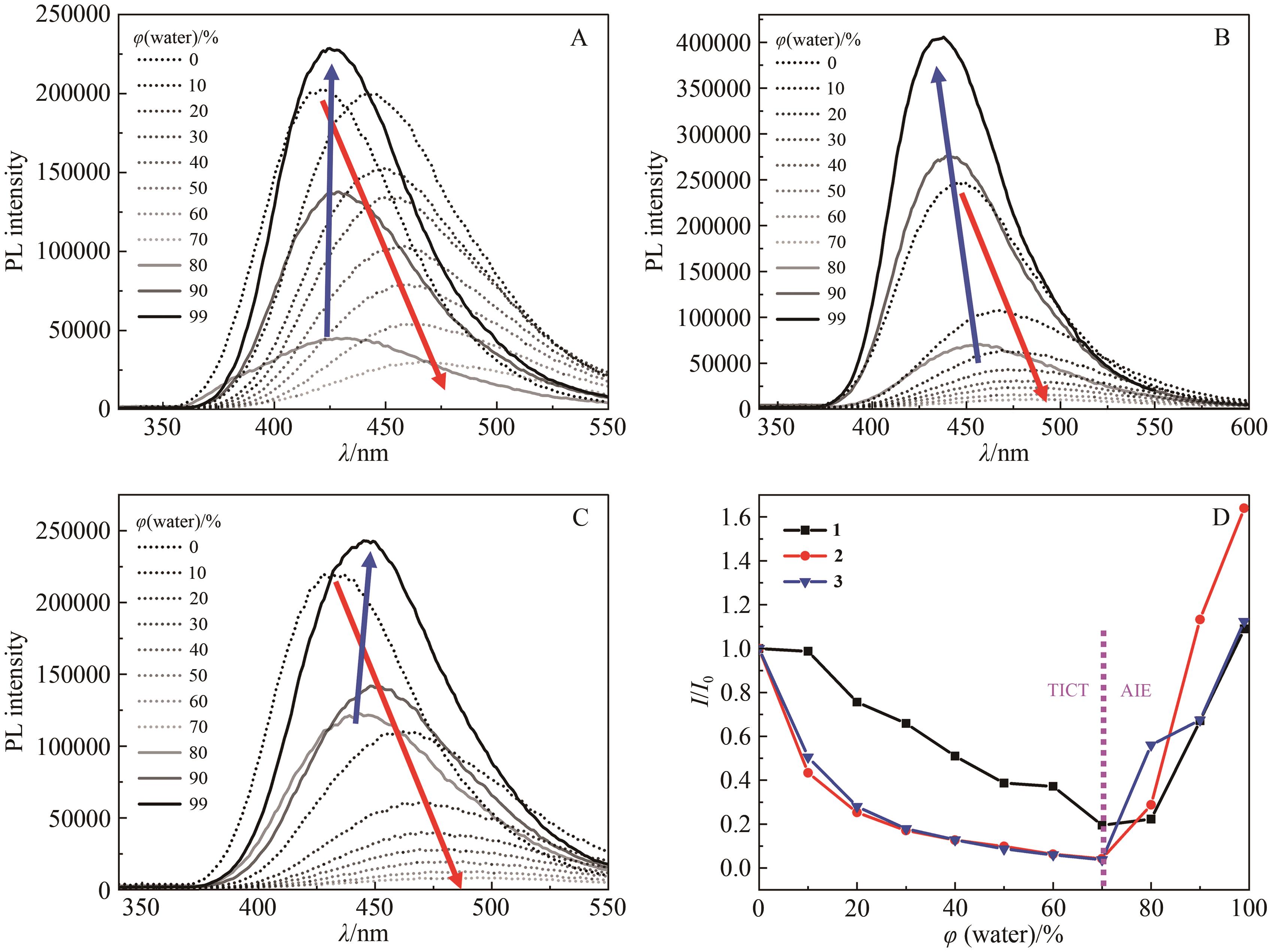

Fig.5 PL spectra of compounds 1 （A）， 2 （B） and 3 （C） in THF/water mixtures with different water volume fractions （φ（water））. Plots of the relative PL intensity （I/I0 ） versus water volume fractions （φ（water）） of compounds 1， 2 and 3 （D）. I0 denotes emission intensity in pure THF. Concentration： 10 μmol/L

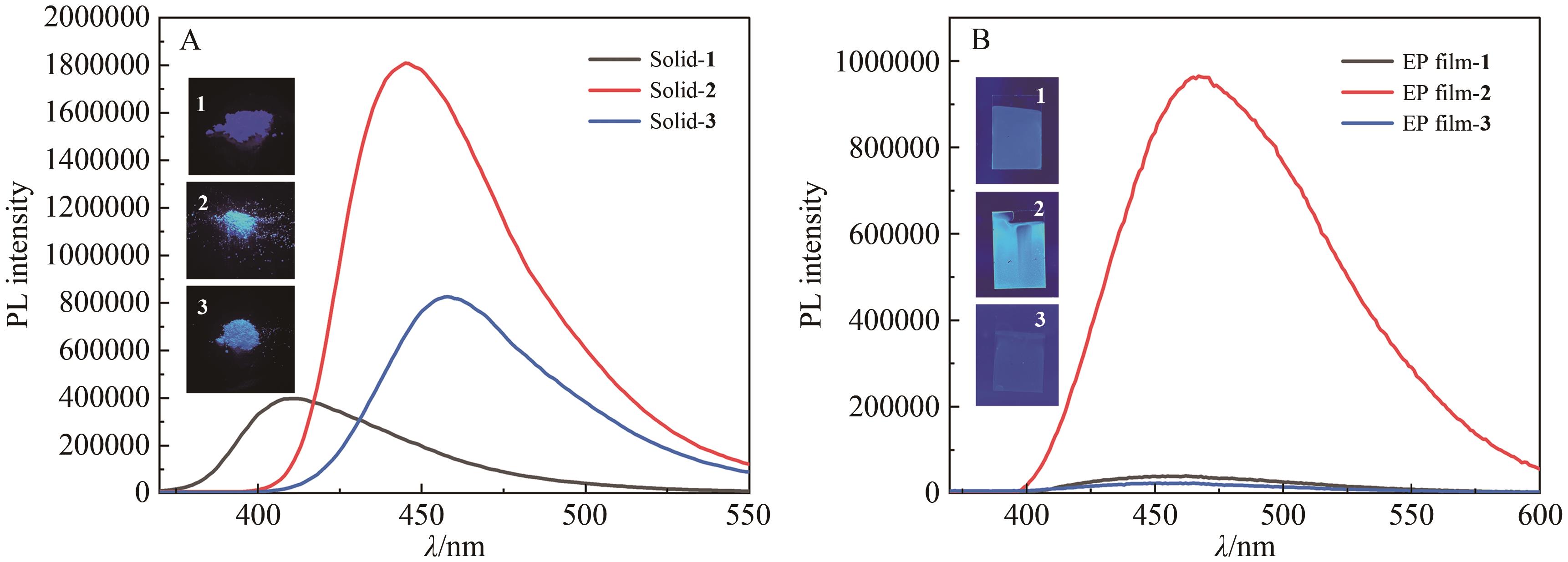

Fig.6 PL emission spectra of solid （A） and EP films （B） of compounds 1-3. Insert： solid and EP films under UV light of 365 nm

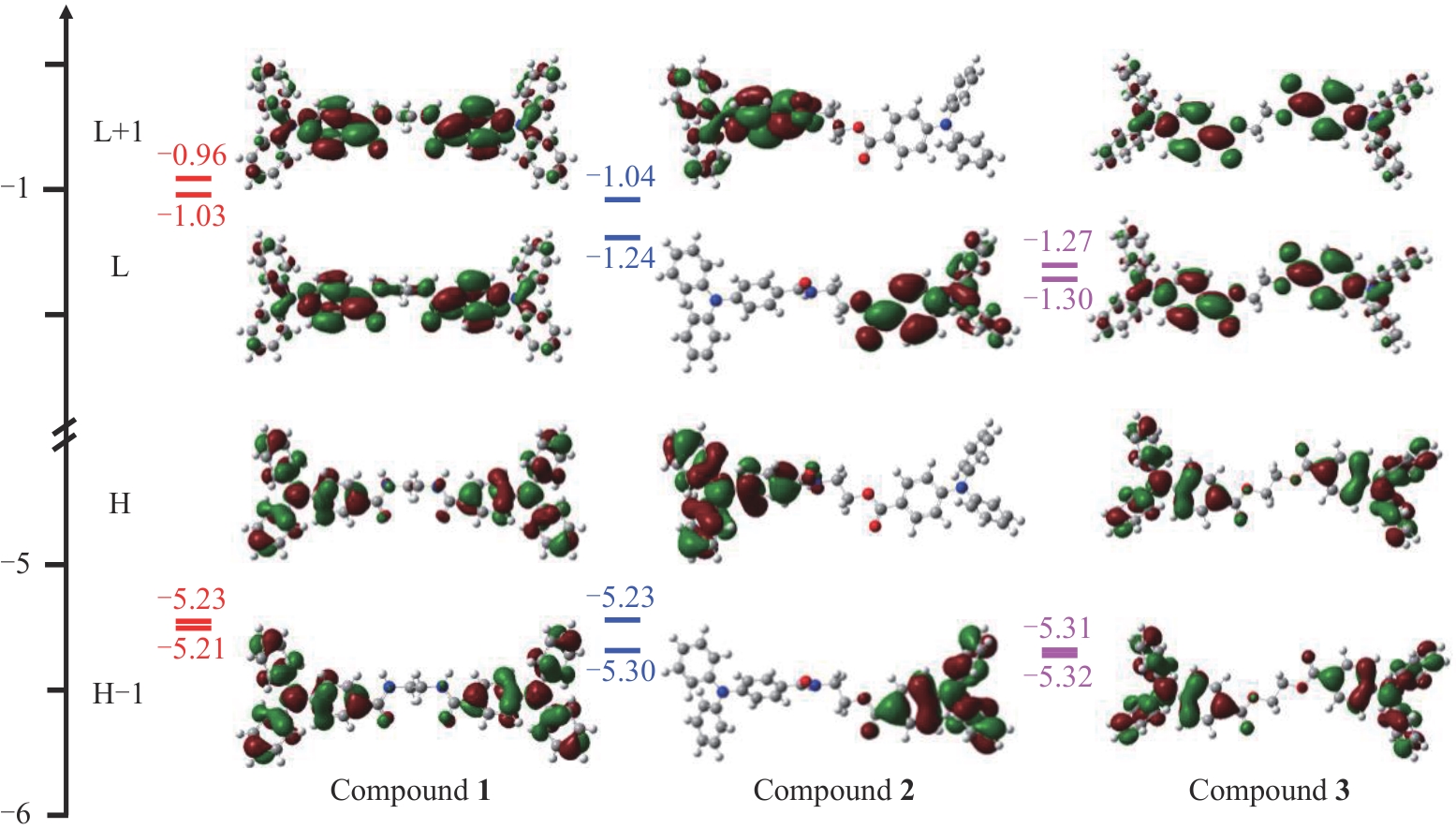

Fig.7 Optimized geometries and molecular orbitals of HOMO and LUMO levels of the molecules

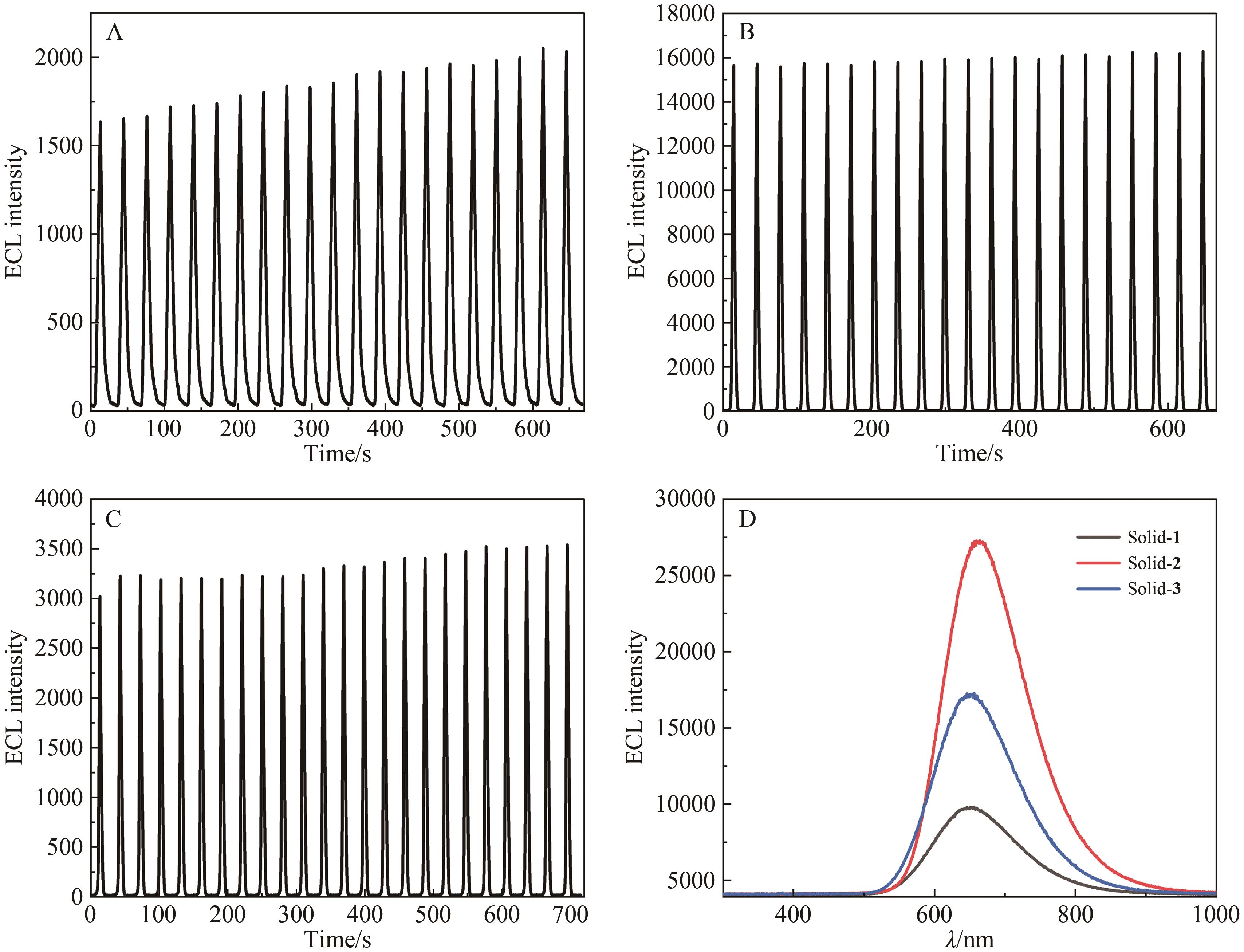

Fig.8 ECL stability of the solid films of compounds 1 （A）， 2 （B） and 3 （C）； ECL spectra of the solid films （D）， PMT=800 V

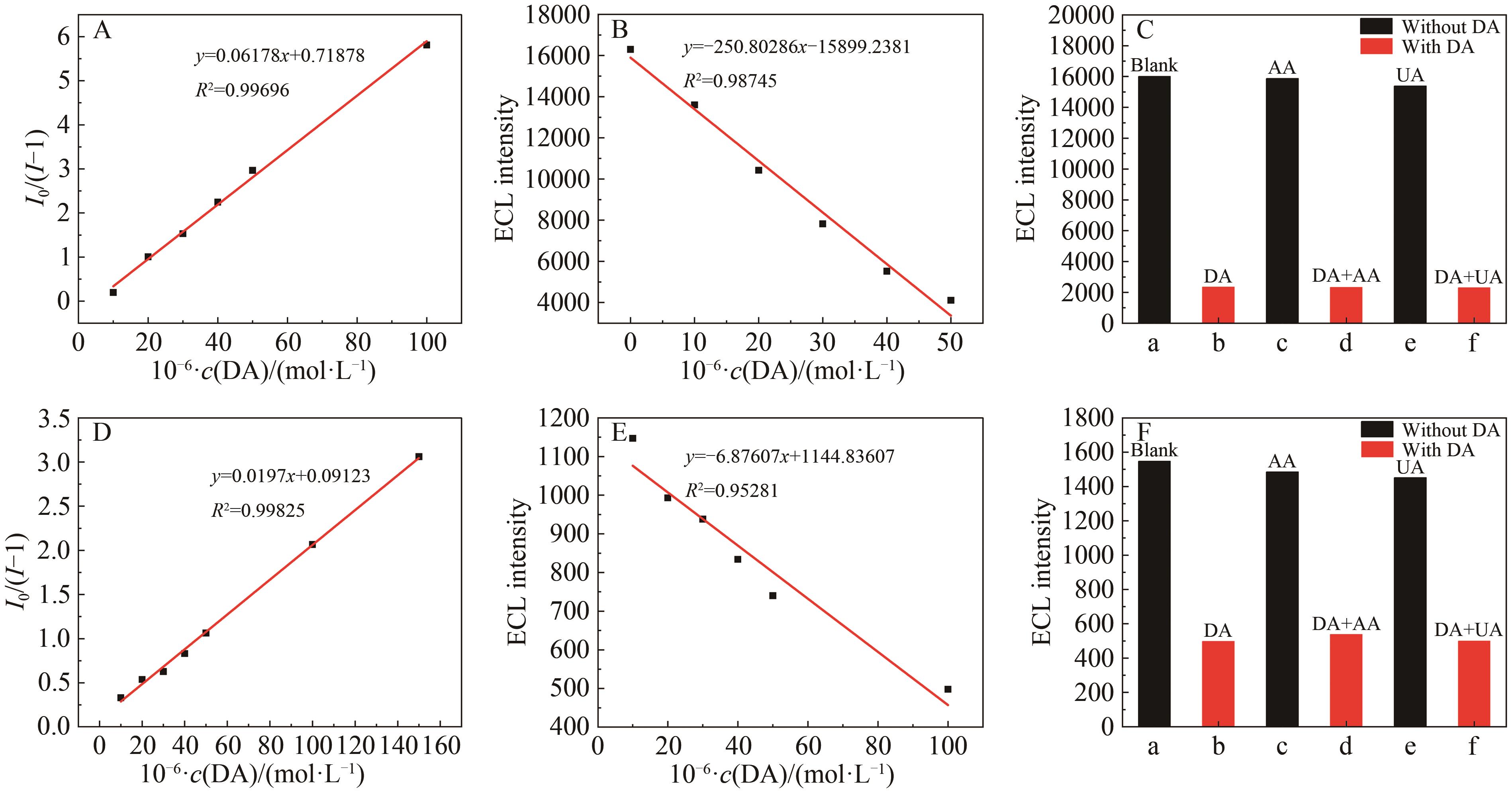

Fig.9 Stern-Volmer charts of I0/（I-1） of the solid and EP film versus the concentration of DA （A， D）. The linear plots of the solid and EP film between the ECL intensity and the DA concentration （B， E）. ECL intensity of the solid and EP film with different analytes with （red） and without （black） the addition of 100 μmol/L DA （C， F）

References 38

1	XU Z. Mechanism and application of aggregation induced luminescence compounds［J］. IOP Conf Ser： Earth Environ Sci，2021， 680（1）： 012073-012089.
2	DUAN J， PAN H， WEI C， et al. Synthesis and physical properties of triphenylamine-functionalized twistacenes： blue-emitting fluorophores［J］. RSC Adv，2017， 7（17）： 10570-10574.
3	OZDEMIR A， ERDEMIR S. Phenanthroimidazole and dicyanovinyl-substituted triphenylamine for the selective detection of CN^-： DFT calculations and practically applications［J］. J Photochem Photobiol A-Chem，2020， 390： 112328-112334.
4	QIU Q， XU P， ZHU Y， et al. Rational design of dual-state emission luminogens with solvatochromism by combining a partially shared donor-acceptor pattern and twisted structures［J］. Chem-A Europ J，2019， 25（70）： 15983-15987.
5	POLO F， RIZZO F， VEIGA-GUTIERREZ M， et al. Efficient greenish blue electrochemiluminescence from fluorene and spirobifluorene derivatives［J］. J Am Chem Soc，2012， 134（37）： 15402-15409.
6	RIZZO F， POLO F， BOTTARO G， et al. From blue to green： fine-tuning of photoluminescence and electrochemiluminescence in bifunctional organic dyes［J］. J Am Chem Soc，2017， 139（5）： 2060-2069.
7	TANG S， LIU M， GU C， et al. Synthesis and electrochemical properties of peripheral carbazole functional ter（9，9-spirobifluorene）s［J］. J Org Chem，2008， 73（11）： 4212-4218.
8	KIM Y H， ZHAO Q， KWON S K. Synthesis and characterization of poly（fluorene）-based copolymer containing triphenylamine group［J］. J Polym Sci Pol Chem，2006， 44（1）： 172-182.
9	SUN M， LI J， LI B， et al. Toward high molecular weight triphenylamine-based hyperbranched polymers［J］. Macromolecules，2005， 38（7）： 2651-2658.
10	BRADY S， LAU K T， MEGILL W， et al. The development and characterisation of conducting polymeric-based sensing devices［J］. Synth Met，2005， 154（1）： 25-28.
11	MIHAI I， IVANOIU M， VACAREANU L， et al. Polyazomethines with triphenylamine groups synthesized by suzuki polycondensation reactions［J］. Des Monomers Polym，2012， 15（1）： 41-52.
12	NOMURA M， SHIBASAKI Y， UEDA M， et al. Synthesis and properties of poly［di（1-naphthyl）-4-tolylamine］ as a hole transport material［J］. Macromolecules，2004， 37（4）： 1204-1210.
13	HA J， VACHA M， KHANCHAITIT P， et al. Synthesis and characterization of novel light-emitting copolymers containing triphenylamine derivatives［J］. Synth Met，2004， 144（2）： 151-158.
14	XU L， ZHAO Y， LONG G， et al. Synthesis， structure， physical properties and OLED application of pyrazine-triphenylamine fused conjugated compounds［J］. RSC Adv， 2015， 5（77）： 63080-63086.
15	LI S， HUANG D， WAN J， et al. A two-photon fluorescent probe derived from spirobifluorene for fast sensing of hypochlorite and mercury ions［J］. Sens Actuator B： Chem，2018， 275： 101-109.
16	ZHANG P， XUE K， DAI Y， et al. A novel AIE fluorescence probe featuring with high quantum yield for high-fidelity lysosomal targeting and tracking［J］. Spectroc Acta Pt A-Molec Biomolec Spectr，2023， 296： 122657-122664.
17	YANG C， CAI W， ZHANG X， et al. Multifunctional conjugated oligomers containing novel triarylamine and fluorene units with electrochromic， electrofluorochromic， photoelectron conversion， explosive detection and memory properties［J］. Dyes Pigm，2019， 160： 99-108.
18	SUN J， LIANG Z. Swift electrofluorochromism of donor-acceptor conjugated polytriphenylamines［J］. ACS Appl Mater Interfaces，2016， 8（28）： 18301-18308.
19	SANTRA D C， NAD S， MALIK S. Electrochemical polymerization of triphenylamine end-capped dendron： electrochromic and electrofluorochromic switching behaviors［J］. J Electroanal Chem，2018， 823： 203-212.
20	SU C， YANG F， XU L， et al. Radical polymer containing a polytriphenylamine backbone： its synthesis and electrochemical performance as the cathode of lithium-ion batteries［J］. ChemPlusChem，2015， 80（3）： 606-611.
21	HSIAO S H， CHIU Y T. Electrosynthesis and electrochromic properties of poly（amide-triarylamine）s containing triptycene units［J］. RSC Adv，2015， 5（110）： 90941-90951.
22	HSIAO S H， LU H Y. Electrosynthesis of aromatic poly（amide-amine） films from triphenylamine-based electroactive compounds for electrochromic applications［J］. Polymers， 2017，9（12）： 708-723.
23	SEO E T， NELSON R F， FRITSCH J M， et al. Anodic oxidation pathways of aromatic amines. electrochemical and electron paramagnetic resonance studies［J］. J Am Chem Soc，1966， 88（15）： 3498-3503.
24	ZOU L， GUO S， LV H， et al. Molecular design for organic luminogens with efficient emission in solution and solid-state［J］. Dyes Pigm，2022， 198： 109958-109966.
25	OMER K M， KU S Y， CHENG J Z， et al. Electrochemistry and electrogenerated chemiluminescence of a spirobifluorene-based donor （triphenylamine）-acceptor （2，1，3-benzothiadiazole） molecule and its organic nanoparticles［J］. J Am Chem Soc，2011， 133（14）： 5492-5499.
26	MELHUISH W H. Calibration of spectrofluorimeters for measuring corrected emission spectra［J］. J Opt Soc Am，1962， 52（11）： 1256-1258.
27	MELHUISH W H. Quantum efficiencies of fluorescence of organic substances： effect of solvent and concentration of the fluorescent solute1［J］. J Phys Chem，1961， 65（2）： 229-235.
28	MELHUISH W H. Measurement of quantum efficiencies of fluorescence and phosphorescence and somes uggested luminescence standards［J］. J Opt Soc Am，1964， 54（2）： 183-186.
29	LI Z， QIN W， WU J， et al. Bright electrochemiluminescent films of efficient aggregation-induced emission luminogens for sensitive detection of dopamine［J］. Mater Chem Front， 2019， 3： 2051-2057.
30	LAZIC V， JURKOVIC M， JEDNACAK T， et al. Intra- and intermolecular hydrogen bonding in acetylacetone and benzoylacetone derived enaminone derivatives ［J］. J Mol Struct，2015， 1079： 243-249.
31	LIU Y， ZHANG Y， WU X， et al. Deep-blue luminescent compound that emits efficiently both in solution and solid state with considerable blue-shift upon aggregation［J］. J Mater Chem C，2014， 2（6）： 1068-1075.
32	YU W L， PEI J， HUANG W， et al. A novel triarylamine-based conjugated polymer and its unusual light-emitting properties［J］. Chem Commun，2000， 8： 681-682.
33	JEN A K Y， LIU Y， HU Q， et al. Efficient light-emitting diodes based on a binaphthalene-containing polymer［J］. Appl Phys Lett，1999， 75（24）： 3745-3747.
34	SARMA M， WONG K T. Exciplex： an intermolecular charge-transfer approach for TADF［J］. ACS Appl Mater Interfaces，2018， 10（23）： 19279-19304.
35	BARAH D， RAY D. Broadband white electroluminescence from a dopant-free OLED comprising pure electromer and electroplex emission［J］. J Phys D-Appl Phys，2024， 57（13）： 135312-135324.
36	JENEKHE S A， OSAHENI J A. Excimers and exciplexes of conjugated polymers［J］. Science，1994， 265： 765-768.
37	KALINOWSKI J. Excimers and exciplexes in organic electroluminescence［J］. Mater Sci，2009， 27（3）： 0137-1339.
38	STERN O. Uder die abklingzeit der fluoreszenz［J］. Phys Z，1919， 20： 183-188.
