Preparation and Characterization of the Electrocatalysts of Cobalt Atom Anchored on Nitrogen-Doped Porous Carbon for Efficient Oxygen Reduction Reaction

doi:10.19894/j.issn.1000-0518.250165

Chinese Journal of Applied Chemistry ›› 2026, Vol. 43 ›› Issue (2): 226-234.DOI: 10.19894/j.issn.1000-0518.250165

• Full Papers • Previous Articles Next Articles

Preparation and Characterization of the Electrocatalysts of Cobalt Atom Anchored on Nitrogen-Doped Porous Carbon for Efficient Oxygen Reduction Reaction

Rui-Tao CHAI¹, Guo ZHANG¹^,²()

^1.School of Chemistry and Chemical Engineering，Xi'an University of Architecture and Technology，Xi'an 710055，China
^2.Institute for Interdisciplinary and Innovate Research，Xi'an University of Architecture and Technology，Xi'an 710055，China

Received:2025-04-17 Accepted:2025-11-04 Published:2026-02-01 Online:2026-03-06
Contact: Guo ZHANG
About author:zhangguo@xauat.edu.cn
Supported by:
the National Natural Science Foundation of China(21205092);the Natural Science Foundation of Xi'an University of Architecture and Technology(X20220084)

1. .pdf(344KB)

Abstract

Abstract:

Due to the high cost， scarcity and low stability limiting the widespread application of the precious metal group （PMG） electrocatalysts toward oxygen reduction reaction （ORR）， it is of vital importance to develop outstanding non-precious transition metal alternatives. Herein， a highly stable and efficient cobalt-based catalyst， Co-N-C， was synthesized via the pyrolysis of a precursor of Co（acac）₂@ZIF-8， originating from Co（acac）₂ and zeolitic imidazolate frameworks （ZIF-8）. The as-synthesized Co-N-C not only possesses well-defined dodecahedral shape with large surface area and pore volume but also shows the excellent electrocatalytic activity towards ORR. The E_onset and E_1/2 in 0.1 mol/L KOH solution are 1.028 and 0.844 V（vs.RHE）， respectively. When injecting 5 mL of 1.0 mol/L methanol into the solution， there was almost no change in E_1/2. After 5000 cycles， E_1/2 has a slight decrease of about 15 mV.

Key words: Oxygen reduction reaction, Cobalt atom, Nitrogen-doped, Porous carbon

CLC Number:

O643.3

Rui-Tao CHAI, Guo ZHANG. Preparation and Characterization of the Electrocatalysts of Cobalt Atom Anchored on Nitrogen-Doped Porous Carbon for Efficient Oxygen Reduction Reaction[J]. Chinese Journal of Applied Chemistry, 2026, 43(2): 226-234.

Figures/Tables 9

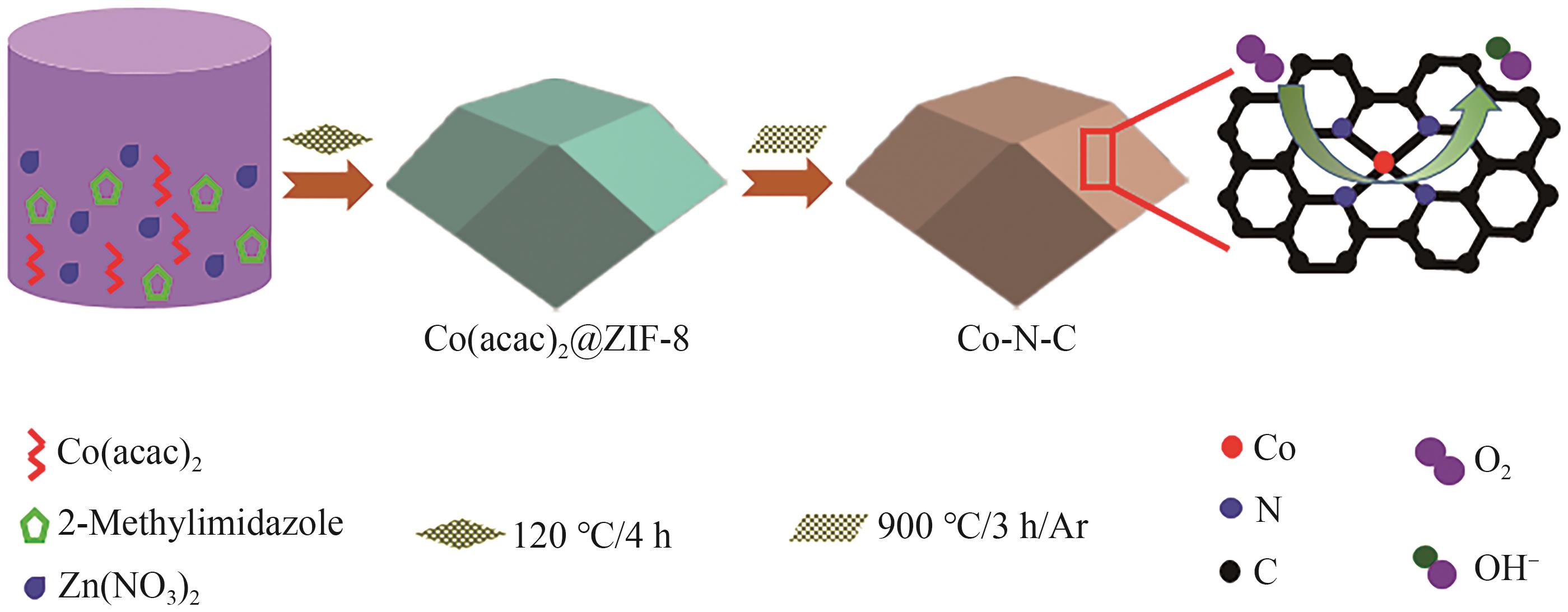

Fig.1 Schematic illustration of the synthesis of Co-N-C for ORR electrocatalysis

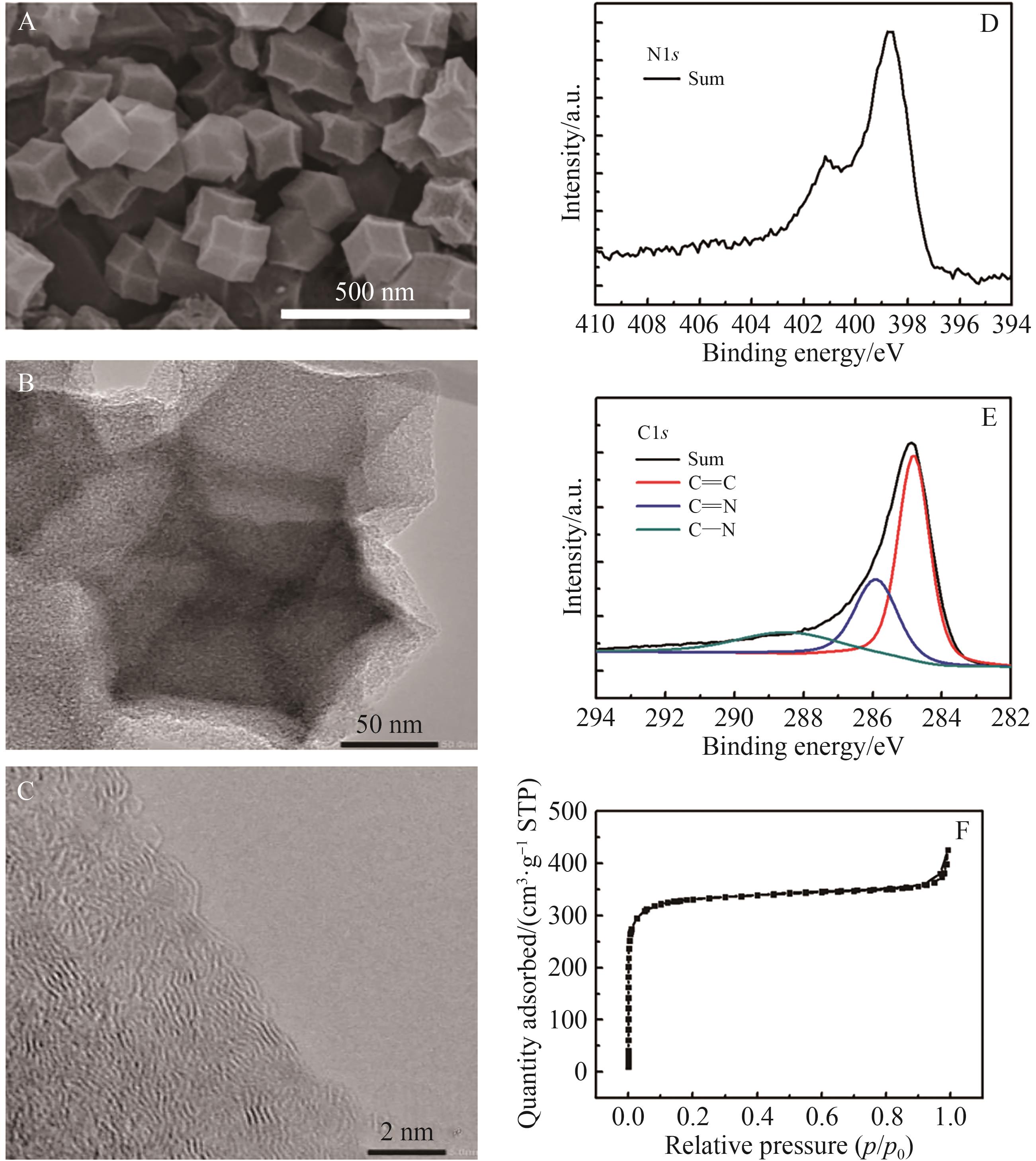

Fig.2 （A） SEM image，（B， C） TEM images，（D， E） XPS spectra and （F） N2 adsorption-desorption isotherms plot of Co-N-C

Fig.3 （A） Element maps of HAADF-STEM （Co-blue， C-red， and N-green） and （B） EDX spectrum of Co-N-C

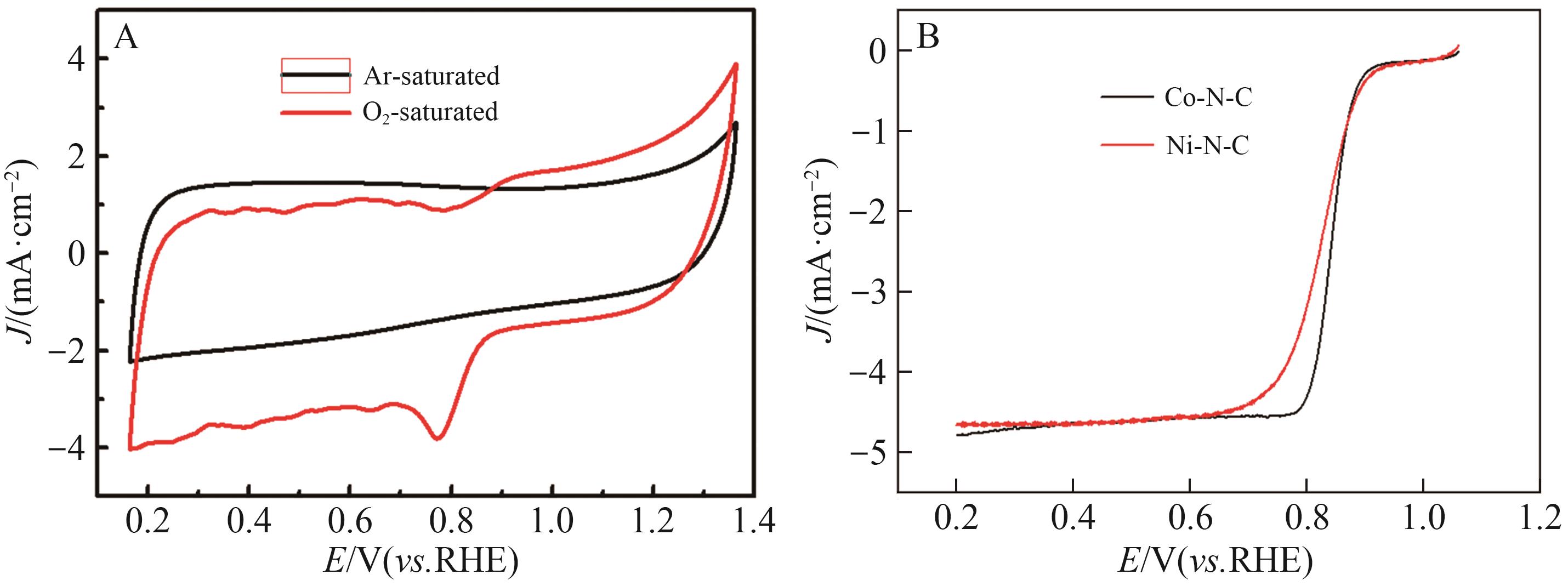

Fig.4 （A） Cyclic voltammetry curves of Co-N-C in Ar/O2-saturated 0.1 mol/L KOH at a speed of 50 mV/s；（B） Linear sweep voltammetry curve of Co-N-C and Ni-N-C in O2-saturated 0.1 mol/L KOH at a speed of 1600 r/min at a scanning rate of 5 mV/s， respectively

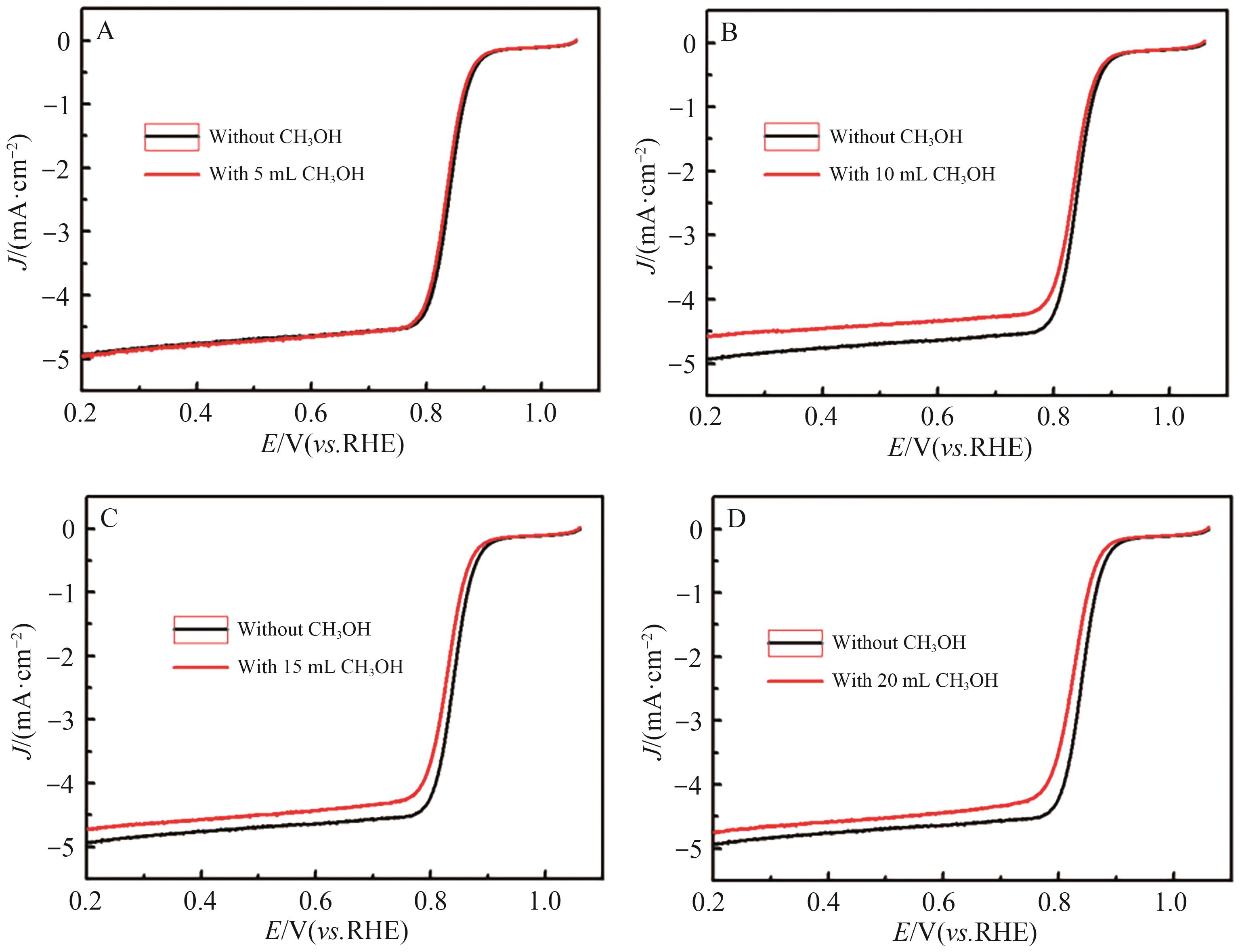

Fig.5 Linear sweep voltammetry curves of Co-N-C in O2-saturated 0.1 mol/L KOH and 0.1 mol/L KOH/1.0 mol/L CH3OH with methanol：（A） 5，（B） 10，（C） 15 and （D） 20 mL

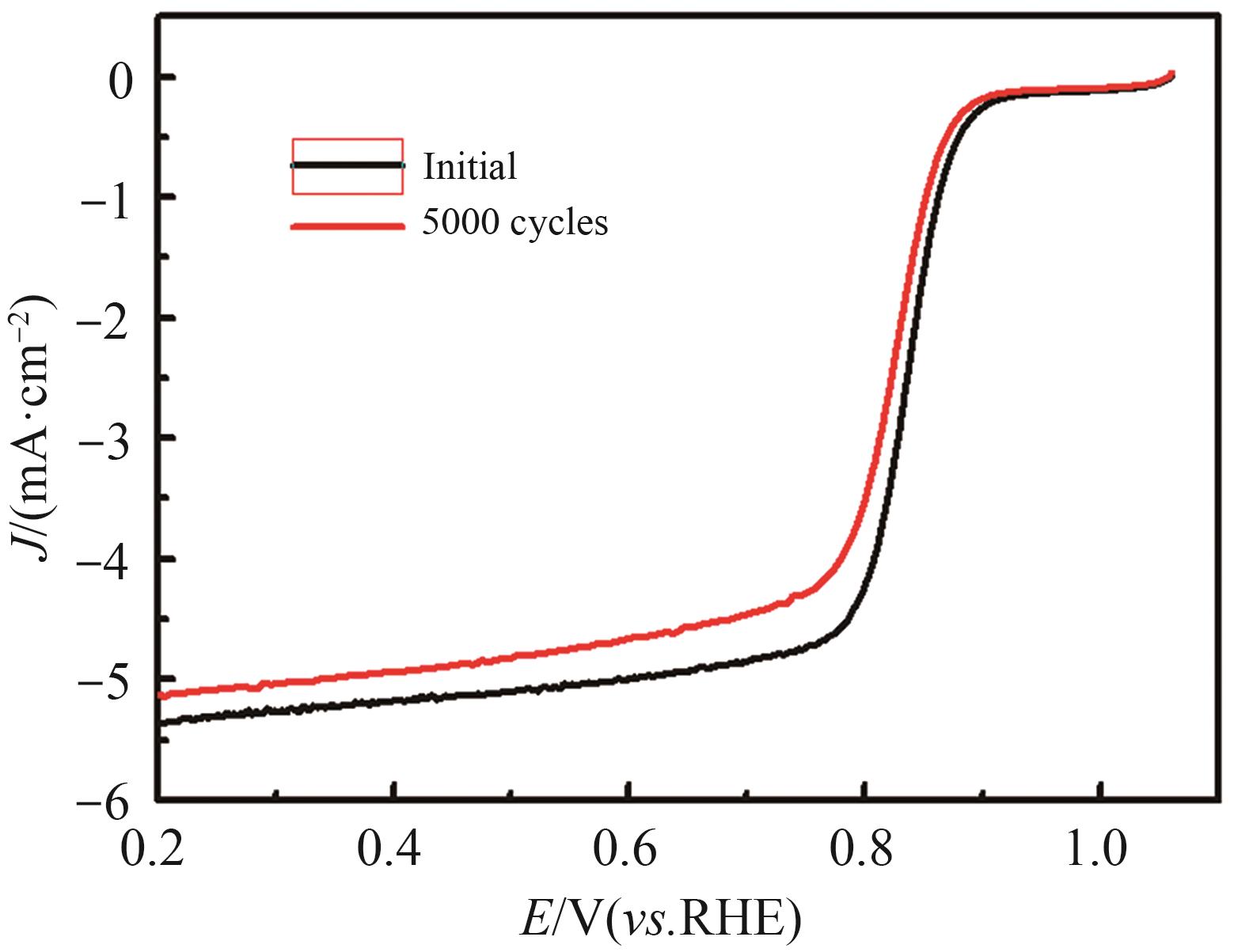

Fig. 6 Linear sweep voltammetry curves of Co-N-C in O2-saturated 0.1 mol/L KOH before and after 5000 potential cycles

Table 1 Number of electron transfer （n） of Co-N-C towards ORR

E/V（vs.RHE）	0.2	0.3	0.4	0.5	0.6	0.7	0.8
n	3.64	3.67	3.69	3.72	3.76	3.82	3.91

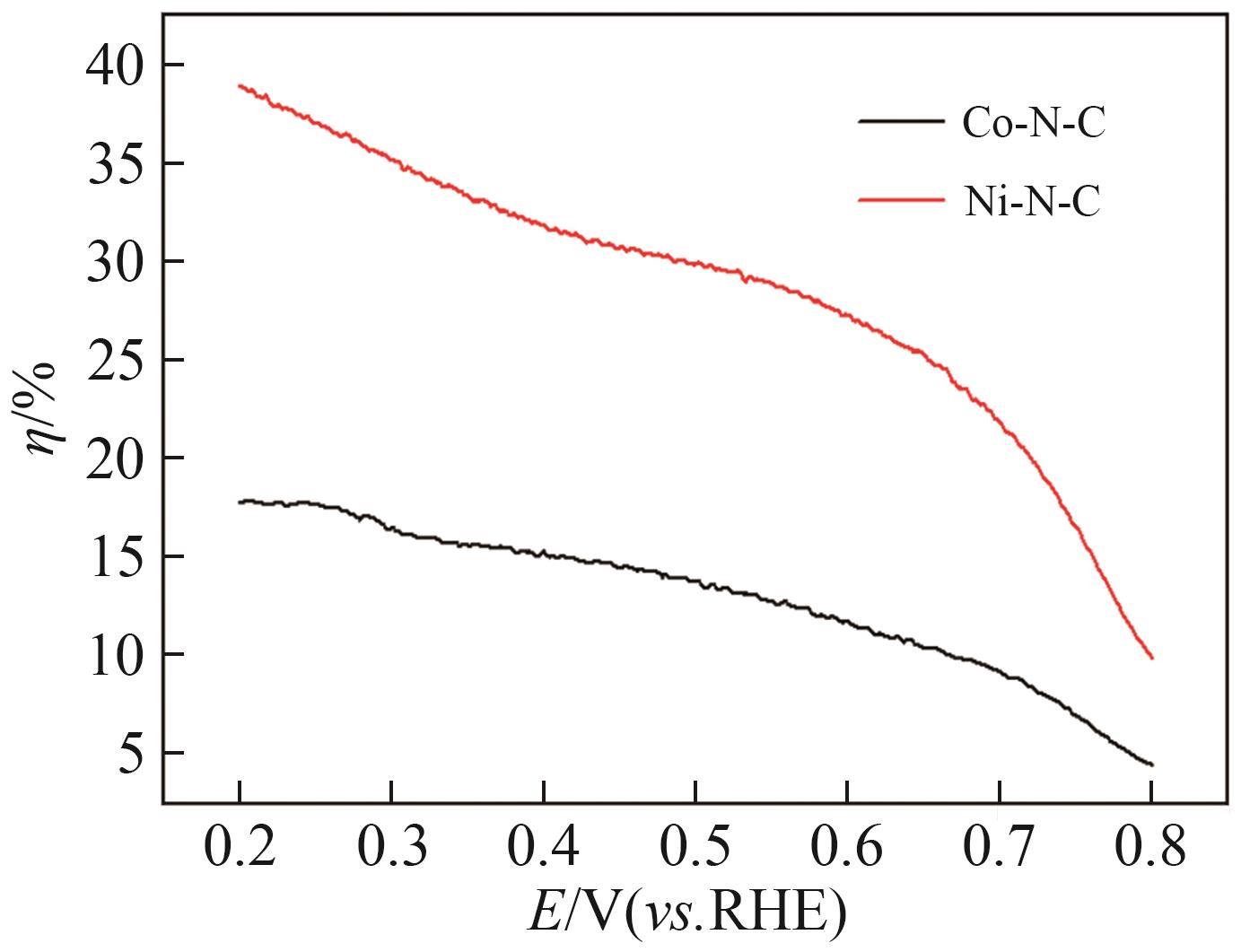

Fig.7 Curves of hydrogen peroxide yield for Co-N-C and Ni-N-C

Table 2 Comparison of electrocatalytic activity toward ORR with different Co-based catalysts

Catalyst	E_onset/V（vs.RHE）	E_1/2/V（vs.RHE）	Ref.
aFP-TCoP/C	0.76	0.80	［17］
CoL （mass ratios 2∶1）	0.936	0.84	［3］
ZL 600 （mass ratio 3∶1）	0.91	0.79	［2］
ZIF-67@CoTMPP （800）	0.854	0.784	［21］
Co-NC （Zn₁₂-SiO₂［20］）-900	0.875	0.835	［13］
Co/NHCS-BCNT	0.941	0.814	［20］
BCTFCo-phen（OH）	0.89	0.80	［28］
Pt/C	0.98	0.81	［2］
Co-N-C	1.028	0.844	This work

References 28

[1]	LIU D， FU L， HUANG X， et al. Inﬂuence of iron source type on the electrocatalytic activity toward oxygen reduction reaction in Fe-N/C for Al-air batteries［J］. J Electrochem Soc， 2018， 165： F662-F670.
[2]	PRIYA V K， KHARABE G P， BARIK S， et al. Co-incorporated N-doped micro-meso porous carbon as an electrocatalyst for oxygen reduction reaction and Zn-air battery［J］. Energy Fuels， 2024， 38： 7196-7207.
[3]	ALLWYN N， GOKUlLNATH S， SATHISH M. In-situ nanoarchitectonics of Fe/Co LDH over cobalt-enriched N-doped carbon cookies as facile oxygen redox electrocatalysts for high-rate rechargeable zinc-air batteries［J］. ACS Appl Mater Interfaces， 2024， 16： 20360-20374.
[4]	NIE Y， LI L， WEI Z. Recent advancements in Pt and Pt-free catalysts for oxygen reduction reaction［J］. Chem Soc Rev， 2015， 44： 2168-2201.
[5]	LIU R， JIANG C， GUO J， et al. Activating Ru nanoclusters for robust oxygen reduction in aqueous wide-temperature zinc-air batteries［J］ Matter， 2024， 7： 4031-4045.
[6]	VLIET D F V D， WANG C， TRIPKOVIC D， et al. Mesostructured thin films as electrocatalysts with tunable composition and surface morphology［J］. Nat Mater， 2012， 11： 1051-1058.
[7]	CHEN Y， JI S， WANG Y， et al. Isolated single iron atoms anchored on N-doped porous carbon as an efficient electrocatalyst for the oxygen reduction reaction［J］. Angew Chem Int Ed， 2017， 56： 6937-6941.
[8]	XIE L， ZHANG X， ZHAO B， et al. Enzyme-inspired iron porphyrins for improved electrocatalytic oxygen reduction and evolution reactions［J］. Angew Chem Int Ed， 2021， 60： 7576-7581.
[9]	郑锐雪，孟庆磊，张丽，等. 分级孔结构的Fe-N-C催化剂用于高效电催化氧还原［J］. 应用化学， 2023， 40（8）： 1187-1194.
	ZHENG R X， MENG Q L， ZHANG L， et al. Hierarchically porous Fe-N-C catalysts for efficient electrocatalytic oxygen reduction reaction［J］. Chin J Appl Chem， 2023， 40（8）： 1187-1194.
[10]	LI N， SONG X， WANG L， et al. Single-atom cobalt catalysts for electrocatalytic hydrodechlorination and oxygen reduction reaction for the degradation of chlorinated organic compounds［J］. ACS Appl Mater Interfaces， 2020， 12： 24019-24029.
[11]	ZHAO Y， GAO L， CHEN W， et al. The S-doped cobalt porphyrin-based molecular catalysts with large conjugated meso-substituents for enhanced electrocatalytic oxygen reduction and evolution reaction［J］. J Electrochem Soc， 2021， 168： 116502.
[12]	DINDA S， ROY S， PATRA S C， et al. Polyaromatic hydrocarbon derivatized azo-oximes of cobalt（Ⅲ） for the ligand-redox controlled electrocatalytic oxygen reduction reaction［J］. New J Chem， 2020， 44： 3737-3747.
[13]	ABE Y， SATOH I， SAITO T， et al. Oxygen reduction reaction catalytic activities of pure Ni-based perovskite-related structure oxides［J］. Chem Mater， 2020， 32： 8694-8699.
[14]	KARIUKI N N， CANSIZOGLU M F， BEGUM M， et al. SAD-GLAD Pt-Ni@Ni nanorods as highly active oxygen reduction reaction electrocatalysts［J］. ACS Catal， 2016， 6： 3478-3485.
[15]	TODOROKI N， KATO T， HAYASHI T， et al. Pt-Ni nanoparticle-stacking thin film： highly active electrocatalysts for oxygen reduction reaction［J］. ACS Catal， 2015， 5： 2209-2212.
[16]	YANG J， LI J， DING R， et al. Kinetic effects of temperature on Fe-N-C catalysts for 2e^- and 4e^-oxygen reduction reactions［J］. J Electrochem Soc， 2021， 168： 096502.
[17]	BAI J， ZHANG K， GAO J， et al. Co-NC catalyst with rich coordinated nitrogen and hierarchical porous structure for oxygen reduction reaction［J］. J Alloy Compd， 2024， 992： 174599.
[18]	LI P， QI Z， YAN D， Rare earth Er-Nd dual single-atomic catalysts for efficient visible-light induced CO₂ reduction to CnH₂ n₊₁OH （n=1， 2）［J］. Angew Chem Int Ed， 2024， 63： e202411000.
[19]	JASINSKI R. A new fuel cell cathode catalyst［J］. Nature， 1964， 201： 1212-1213.
[20]	LI M， BO X， ZHANG Y， et al. Comparative study on the oxygen reduction reaction electrocatalytic activities of iron phthalocyanines supported on reduced graphene oxide， mesoporous carbon vesicle， and ordered mesoporous carbon［J］. J Power Sources， 2014， 264： 114-122.
[21]	REN C， LI H， LI R， et al. Electrocatalytic study of a 1，10-phenanthroline-cobalt（Ⅱ） metal complex catalyst supported on reduced graphene oxide towards oxygen reduction reaction［J］. RSC Adv， 2016， 6： 33302-33307.
[22]	WEI Y， LI Y， FENG L， et al. Effects of electrolyte pH on oxygen reduction properties using a cobalt porphyrin-coated carbon composite［J］. Electrochim Acta， 2024， 489： 144293.
[23]	CHEN S， LUO T， LI X， et al.Identification of the highly active Co-N₄ coordination motif for selective oxygen reduction to hydrogen peroxide［J］. J Am Chem Soc， 2022， 144： 14505-14516.
[24]	LV M， CUI C， HUANG N， et al. Precisely engineering asymmetric atomic CoN₄ by electron donating and extracting for oxygen reduction reaction［J］. Angew Chem Int Ed， 2024， 63： e202315802.
[25]	JIN X， FU J， ZHAO C， et al. FeN₄- and CoN₄-centered transition metallomacrocyles as highly efficient non-noble metal electrocatalysts for oxygen reduction reaction［J］. J Electroanal Chem， 2024， 967： 118398.
[26]	YANG H， LI Z， KOU S， et al. A complex-sequestered strategy to fabricate Fe single-atom catalyst for efficient oxygen reduction in a broad pH-range［J］. Appl Catal B-Environ， 2020， 278： 119270.
[27]	DENG L， QIU L， HU R， et al. Restricted diffusion preparation of fully-exposed Fe single-atom catalyst on carbon nanospheres for efficient oxygen reduction reaction［J］. Appl Catal B-Environ， 2022， 305： 121058.
[28]	YE W， YANG Y， ARIF M， et al. Fe， Mo-N/C hollow porous nitrogen-doped carbon nanorods as an effective electrocatalyst for N₂ reduction reaction［J］. ACS Sustainable Chem Eng， 2020， 8： 15946-15952.
