Preparation of Ion-Imprinted Material Based on 2-Ethylhexylamino Methyl Phosphonic Acid Mono-2-Ethylhexyl Ester Extractant and Its Application for the Removal of Trace Scandium

doi:10.19894/j.issn.1000-0518.250086

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (9): 1245-1256.DOI: 10.19894/j.issn.1000-0518.250086

• Full Papers • Previous Articles Next Articles

Preparation of Ion-Imprinted Material Based on 2-Ethylhexylamino Methyl Phosphonic Acid Mono-2-Ethylhexyl Ester Extractant and Its Application for the Removal of Trace Scandium

Cheng LI¹, Yan-Ling LI²(), Song-Song LI², Xiao-Long LUO¹(), Bi-Cheng DENG³^,⁴, Wu-Ping LIAO²^,³^,⁴

^1.College of Chemistry and Life Sciences，Changchun University of Technology，Changchun 130022，China
^2.State Key Laboratory of Rare Earth Resources Utilization，Changchun Institute of Applied Chemistry，Chinese Academy of Sciences，Changchun 130022，China
^3.Institute of Material and Chemistry，Ganjiang Innovation Academy，Chinese Academy of Sciences，Ganzhou 341000，China
^4.Institute of Rare Earths Material and Chemistry，Jiangxi Institute of Rare Earths，Chinese Academy of Sciences，Ganzhou 341000，China

Received:2025-02-28 Accepted:2025-07-24 Published:2025-09-01 Online:2025-09-28
Contact: Yan-Ling LI,Xiao-Long LUO
About author:luoxiaolong890419@163.com
liyanling@ciac.ac.cn；
Supported by:
the National Key Research and Development Project(2022YFC2905201)

Abstract

Abstract:

Ion-imprinted material P-IIM was prepared using Sc³⁺-2-ethylhexylamino methyl phosphonic acid mono-2-ethylhexyl ester （HEHAMP） chelate as a template for the selective adsorption of scandium and characterized by Fourier transform infrared （FT-IR） spectrometer， thermal gravimetric analyzer （TGA）， and scanning electron microscopy （SEM）， etc. P-IIM can not be obtained when the percentage of HEHAMP extractant is more than 50%. The adsorption of Sc³⁺ ions in chloride solution by P-IIM was investigated and the effects of extractant mass， initial pH value， time， initial Sc³⁺ concentration and other coexisting metals were evaluated. The adsorption of Sc³⁺ by P-IIM increases gradually with the increasing content of HEHAMP extractant， while it first increases and then decreases as the initial pH of the solution increases. The adsorption capacity is the highest when the pH is 2. The adsorption of Sc³⁺ follows a quasi-two-stage kinetic model and is dominated by monolayer adsorption. P-IIM can be applied in the removal of trace scandium from rare earth solutions. The removal rate of scandium is more than 98%.

Key words: 2-Ethylhexylamino methyl phosphonic acid mono-2-ethylhexyl ester, Ion-imprinted material, Adsorption, Scandium, Selectivity

CLC Number:

O658.2

Cheng LI, Yan-Ling LI, Song-Song LI, Xiao-Long LUO, Bi-Cheng DENG, Wu-Ping LIAO. Preparation of Ion-Imprinted Material Based on 2-Ethylhexylamino Methyl Phosphonic Acid Mono-2-Ethylhexyl Ester Extractant and Its Application for the Removal of Trace Scandium[J]. Chinese Journal of Applied Chemistry, 2025, 42(9): 1245-1256.

Figures/Tables 16

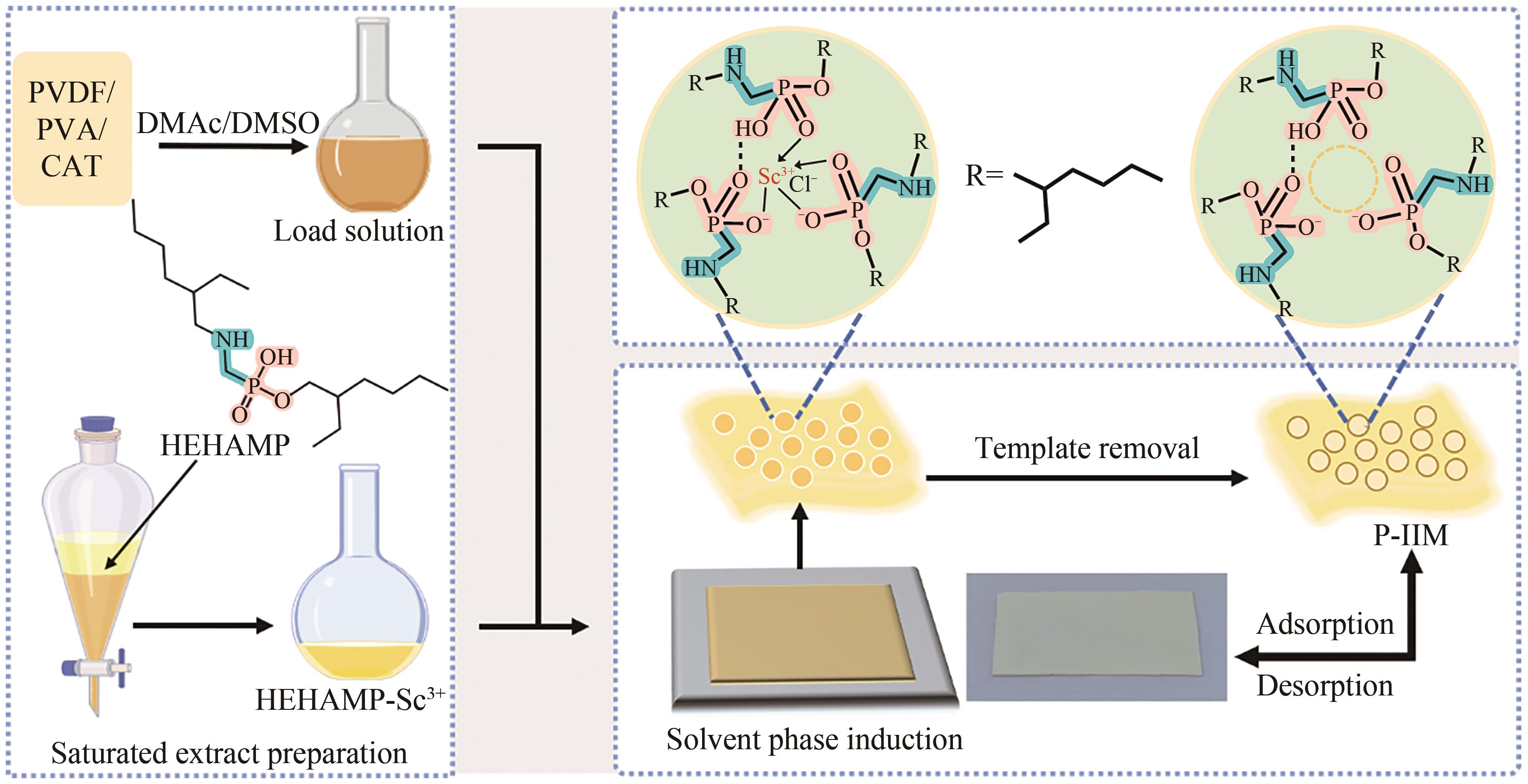

Fig.1 Flow chart of P-IIM preparation

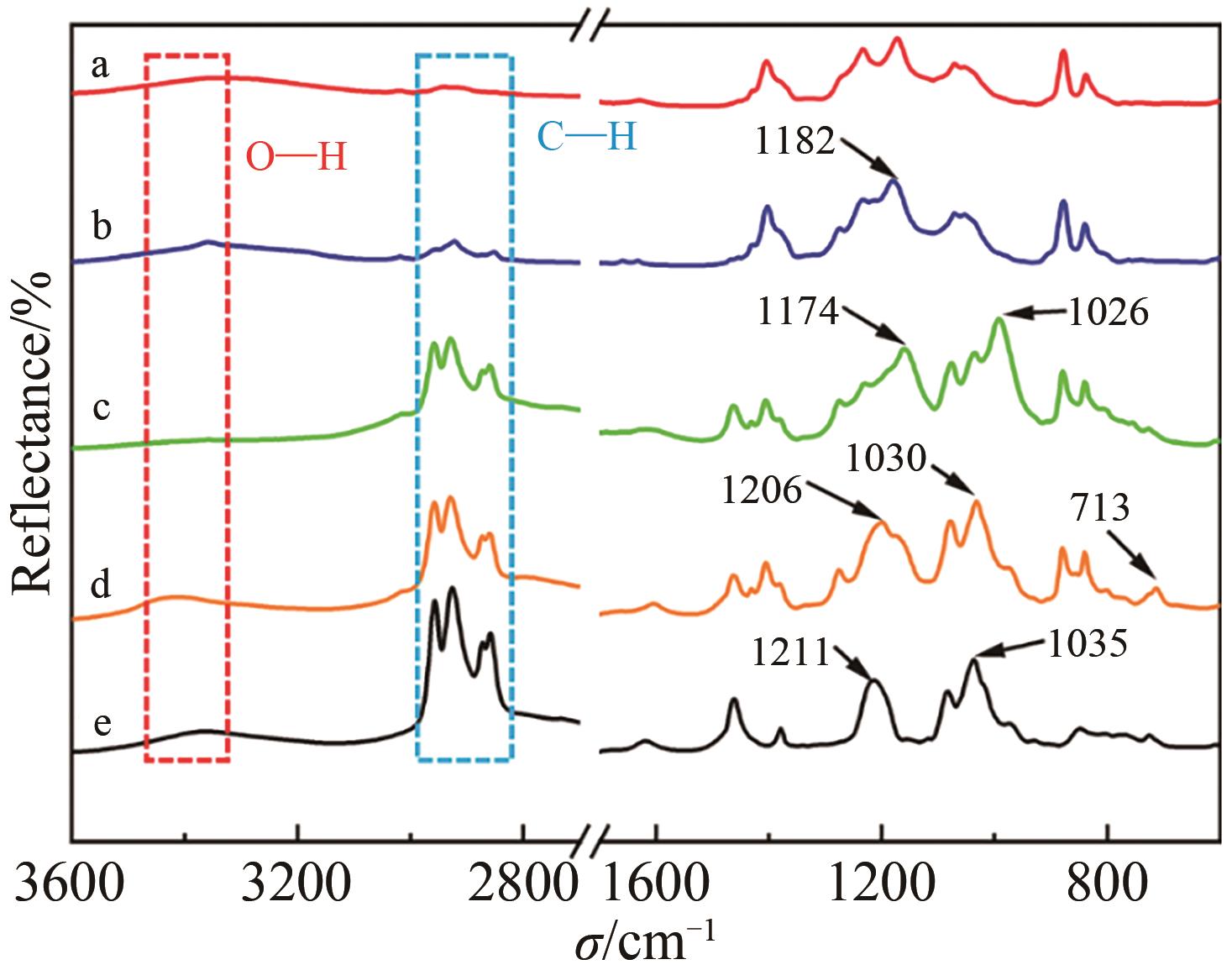

Fig.2 FT-IR spectra of （a） PVDF/PVA/CAT，（b） P-PIM，（c） P-IIM，（d） Sc3+-P-IIM and （e） HEHAMP

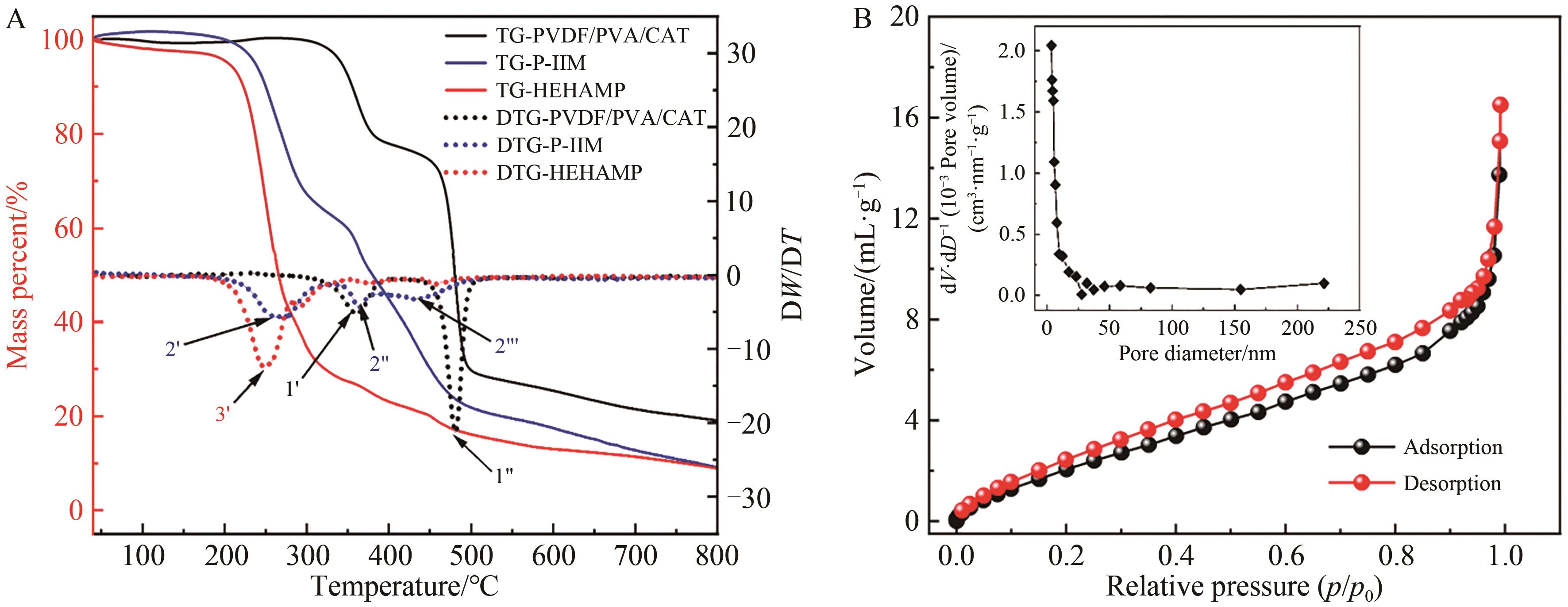

Fig.3 Plots of the TGA-DTA results for PVDF/PVA/CAT and P-IIM （A） and N2 adsorption isotherm for P-IIM （B）

Fig.4 SEM images of PVDF/PVA/CAT （A）， P-IIM （B） and Sc3+-P-IIM （C）； EDS mapping images of P， Sc and Cl of Sc3+-P-IIM （D-F）

Table 1 Determine the a（P）/（Sc） ratio of different materials

Serial number	m/g	n_HEHAMP/mmol	a_{（P）/（Sc）}
Ⅰ	0.040 7	0.048 53	66.64
Ⅱ	0.208 5	0.033 6	2.70
Ⅲ	0.043 5	0.034 3	2.76

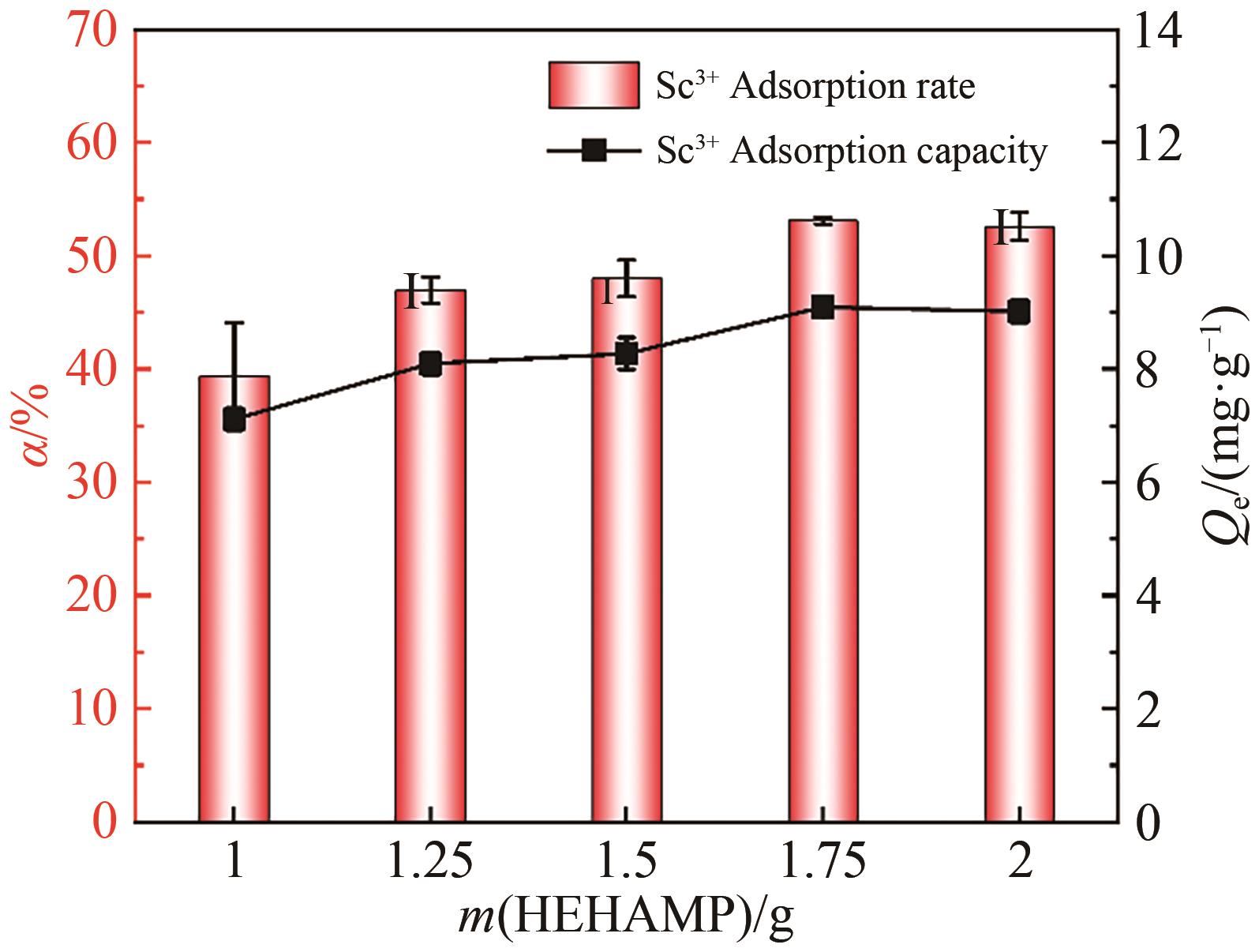

Fig.5 Effect of the content of HEHAMP on the Sc3+ adsorption by P-IIM

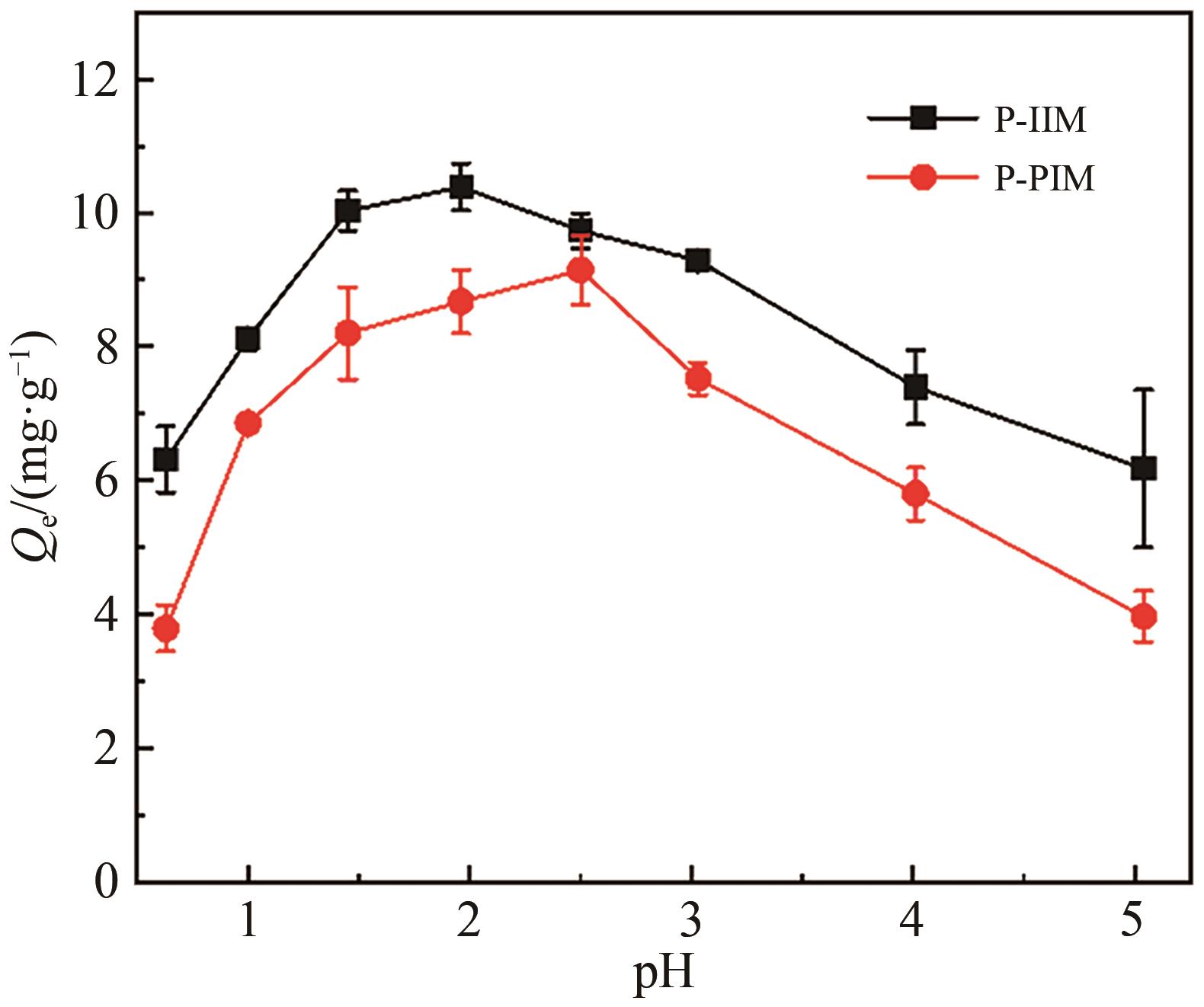

Fig.6 Effect of initial pH of the solution on the adsorption of Sc3+ by P-PIM and P-IIM

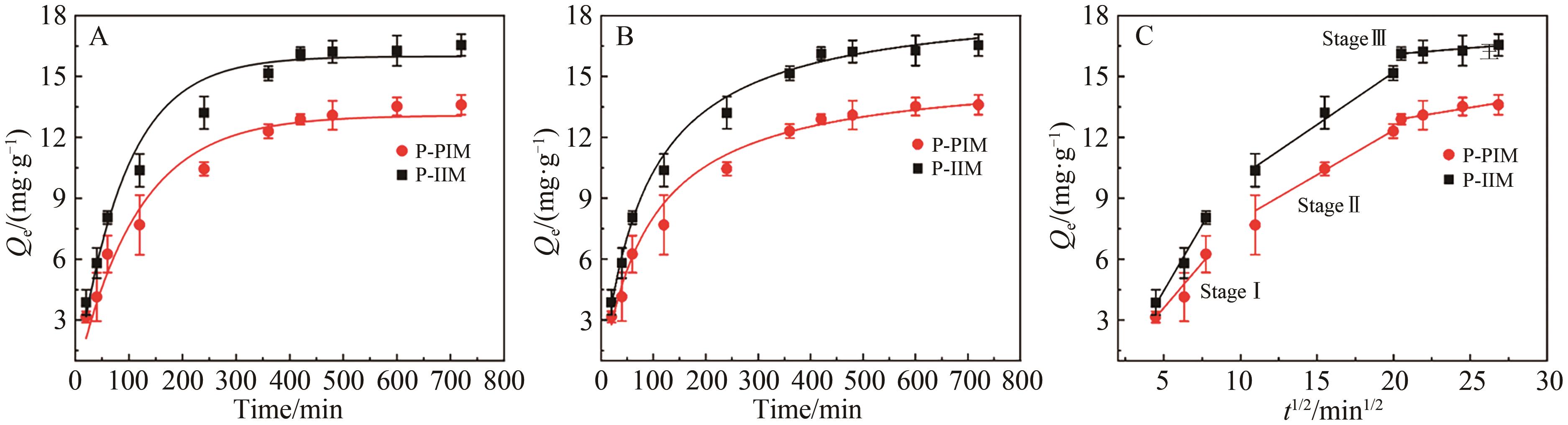

Fig.7 Effect of the adsorption time on the adsorption of Sc3+ and the fitting of quasi-first-order kinetics （A）， quasi-second-order kinetics （B） and intraparticle diffusion model （C）

Table 2 Kinetic parameters of Sc3+ adsorption by P-PIM and P-IIM

Adsorbents	PFOM			PSOM
Adsorbents	Q_e/（mg·g^-1）	k₁/min^-1	R²	Q_e/（mg·g^-1）	k₂/（g·mg^-1·min^-1）	R²
P-PIM	13.08	0.008 7	0.966 3	15.37	0.000 71	0.993 2
P-IIM	15.99	0.011 0	0.979 9	18.83	0.000 64	0.990 3

Table 3 Intraparticle diffusion model parameters for Sc3+ adsorption by P-PIM and P-IIM

Adsorbents	Intraparticle diffusion model
Adsorbents	k_d1/（mg·g^-1·min^-1/2）	k_d2/（mg·g^-1·min^-1/2）	k_d3/（mg·g^-1·min^-1/2）	C/（mg·g^-1）	$R 12$	$R 22$	$R 32$
P-PIM	0.885 2	0.438 4	0.124 5	10.35	0.937 2	0.972 5	0.937 4
P-IIM	1.297 3	0.514 4	0.006 2	14.84	0.985 4	0.985 6	0.928 4

Table 3 Intraparticle diffusion model parameters for Sc3+ adsorption by P-PIM and P-IIM

Adsorbents	Intraparticle diffusion model
Adsorbents	k_d1/（mg·g^-1·min^-1/2）	k_d2/（mg·g^-1·min^-1/2）	k_d3/（mg·g^-1·min^-1/2）	C/（mg·g^-1）	$R 12$	$R 22$	$R 32$
P-PIM	0.885 2	0.438 4	0.124 5	10.35	0.937 2	0.972 5	0.937 4
P-IIM	1.297 3	0.514 4	0.006 2	14.84	0.985 4	0.985 6	0.928 4

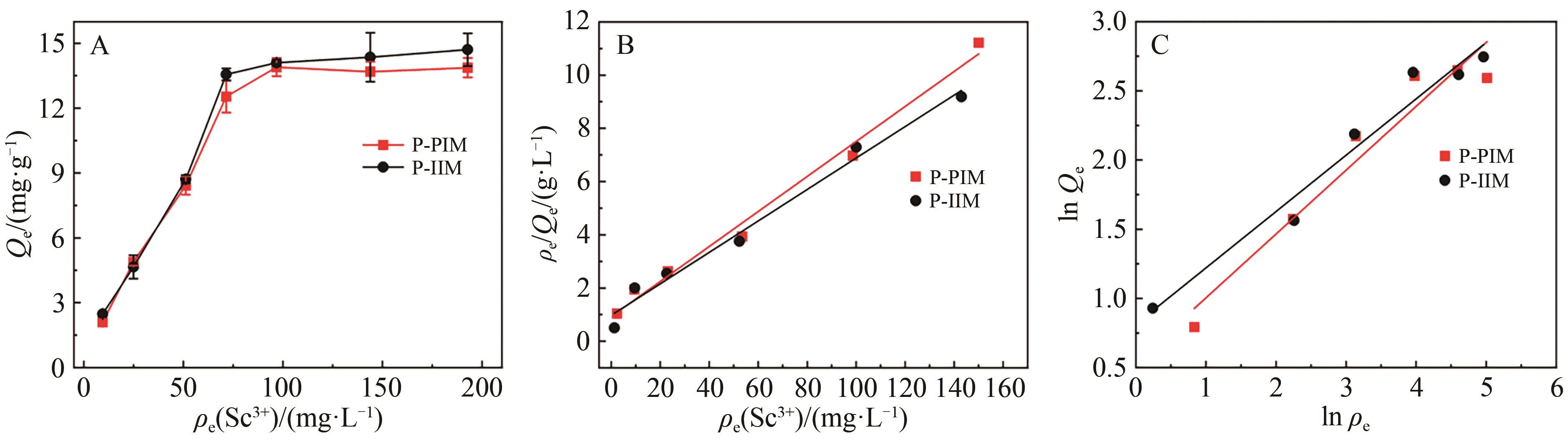

Fig.8 Influence of the initial Sc3+ concentration on P-IIM adsorption （A）， fitting curves of the Langmuir isotherm model and （B）， the Freundlich isotherm model （C）

Table 4 Adsorption isotherm parameters of Sc3+ by P-PIM and P-IIM

T/K	Adsorbents	Langmuir model			Freundlich model
T/K	Adsorbents	Q_m/（mg·g^-1）	K_L/（L·mg^-1）	R²	K_F/（L·mg^-1）	1/n	R²
301	P-PIM	15.21	0.089 6	0.986 0	1.721	0.461 3	0.922 7
301	P-IIM	16.92	0.060 5	0.980 1	2.257	0.407 1	0.954 2

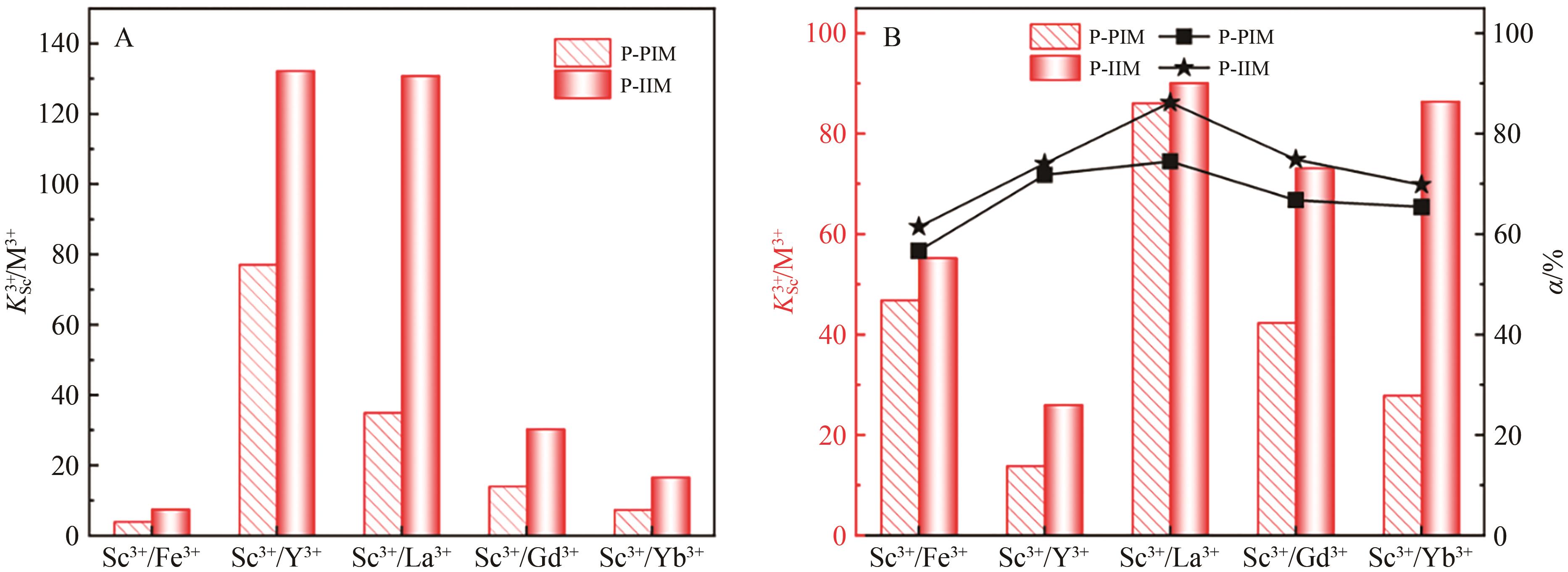

Fig.9 Effect of coexisting ion on the adsorption of Sc3+ at a mass concentration ratio of 1∶1 （A） and 1∶500 （B）

Table 5 Adsorption capacity and selectivity of Sc3+ by different materials

Adsorbents	Q_e/（mg·g^-1）	ρ（Sc³⁺）/ρ（coexisting ions）	Selectivity factor （K_Sc/M） of Sc³⁺ to coexisting ions		Ref.
Adsorbents	Q_e/（mg·g^-1）	ρ（Sc³⁺）/ρ（coexisting ions）	Fe³⁺	La³⁺， Gd³⁺， Y³⁺， Yb³⁺	Ref.
IIP-BT/CoFe₂O₄@SiO₂	128.02	1∶1	1.740	/	［15］
IIP-BT/CoFe₂O₄@SiO₂	128.02	1∶2	1.632	/	［15］
P40-750	20.77	1∶1	27.04	Y³⁺： 208.25， Dy³⁺： 77.74	［32］
PLS MTS9580	—	1∶4	6.9	—	［33］
TRPO/SiO₂-P	13.3	1∶1	＞4 089	Y³⁺＞4 089， La³⁺＞4 089， Ce³⁺＞4 089	［34］
P-IIM	16.54	1∶1	7.38	La³⁺： 130.81， Gd³⁺： 30.27， Yb³⁺： 16.52， Y³⁺： 132.2	This paper
P-IIM	16.54	1∶500	55.2	La³⁺： 90.1， Gd³⁺： 73.1 Yb³⁺： 86.4， Y³⁺： 26.0	This paper

Table 6 Concentration and removal rate of metal ions from mixed rare earth solutions

Concentration of the solution	Components
Concentration of the solution	La	Sc	Gd	Sc	Yb	Sc	Y	Sc
ρ_before/（mg·L^-1）	329.7	2.98	409.6	4.22	404.0	3.24	317.0	3.55
ρ_after/（mg·L^-1）	328.0	0.053	412.0	0.072	396.4	0.063	315.6	0.04
Removal rate/%	0.52	98.22	0.59	98.29	1.88	98.87	0.44	98.06

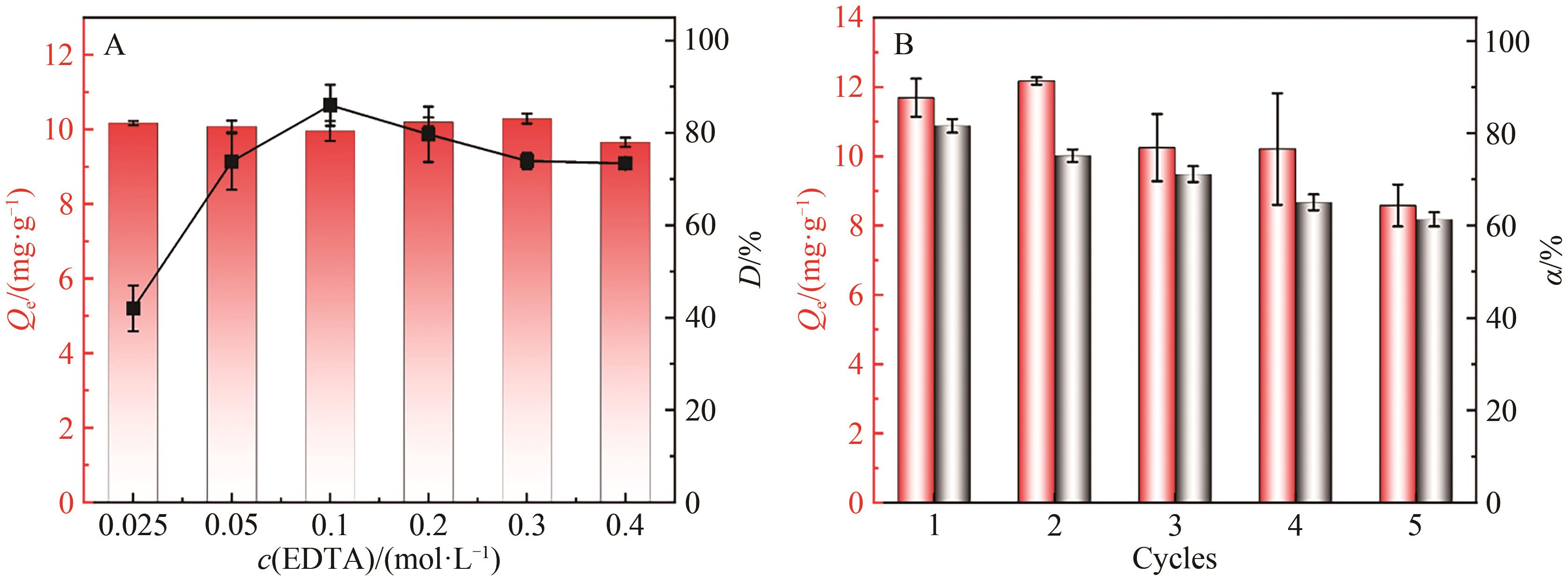

Fig.10 Desorption of Sc3+ by different concentrations of EDTA disodium salt （A） and the recycling and regeneration of Sc3+ by P-IIM （B）

References 34

[1]	XUE H Y， LV G Z， ZHANG T A， et al. Review of rare earth extraction and product preparation technologies and new thinking for clean utilization［J］. Miner Eng， 2024， 215： 108796.
[2]	LIU J， YANG X L， CHEN H M， et al. Synthesis and application of ion-imprinted polymer particles for solid-phase extraction and determination of trace scandium by ICP-MS in different matrices［J］. Anal Methods， 2013， 5（7）： 1811-1817.
[3]	智文科，王飞，杨斌，等. 钪的资源及提炼技术研究进展［J］. 中国稀土学报， 2022， 42（1）： 13-29.
	ZHI W K， WANG F， YANG B， et al. Progress of research on scandium resources and refining technology［J］. J Chin Soc Rare Earths， 2022， 42（1）： 13-29.
[4]	WANG W W， PRANOLO Y， CHENG C Y. Metallurgical processes for scandium recovery from various resources： a review［J］. Hydrometallurgy， 2011， 108（1）： 100-108.
[5]	ALI D S， SAJA M， IGOR C， et al. Scandium recovery methods from mining， metallurgical extractive industries， and industrial wastes［J］. Materials， 2022， 15（7）： 2376.
[6]	El OUARDI Y， GIOVE A， LANTIKAINEN M， et al. Benefit of ion imprinting technique in solid-phase extraction of heavy metals， special focus on the last decade［J］. J Environ Chem Eng， 2021， 9（6）： 106548.
[7]	SMYSHLYAEV D， KIRILLOV E， ALINA M A， et al. Recovery and separation of Sc， Zr and Ti from acidic sulfate solutions for high purity scandium oxide production： laboratory and pilot study［J］. Hydrometallurgy， 2022， 211： 105889.
[8]	SALMAN A D， JUZSAKOVA T， ABDULLAH T A， et al. Synthesis and surface modification of magnetic Fe₃O₄@SiO₂ core-shell nanoparticles and its application in uptake of scandium（Ⅲ） ions from aqueous media［J］. Environ Sci Pollut Res， 2021， 28（22）： 28428-28443.
[9]	LE W H， KUANG S T， LIAO W P， et al. Selective extraction and recovery of scandium from sulfate medium by Cextrant 230［J］. Hydrometallurgy， 2018， 178： 54-59.
[10]	QIU H B， WANG M L， XIE Y M， et al. From trace to pure： recovery of scandium from the waste acid of titanium pigment production by solvent extraction［J］. Process Saf Environ Prot， 2019， 121： 118-124.
[11]	PASECHNIK L A， SKACHKOV V M， YATSENKO S P， et al. High purity scandium extraction from red mud by novel simple technology［J］. Hydrometallurgy， 2021， 202： 105597.
[12]	DAMINESCU D， DUTEAUN N， CIOPEC M， et al. Adsorption of Scandium ion by amberlite XADTHP polymeric adsorbent loaded with tri-n-octylphosphine oxide［J］. Molecules， 2024， 29（7）： 1578.
[13]	JANCZURA M， LULINSKI P， SOBIECH M. Imprinting technology for effective sorbent fabrication： current state-of-art and future prospects［J］. Materials， 2021， 14（8）： 1850.
[14]	SALA A， BRISSET H， MARGAILLAN A， et al. Electrochemical sensors modified with ion-imprinted polymers for metal ion detection［J］. TrAC， 2022， 148： 116536.
[15]	WANG C Z， ZHANG L Y， ZHOU G Z， et al. Synthesis of environmental-friendly ion-imprinted magnetic nanocomposite bentonite for selective recovery of aqueous Sc（Ⅲ）［J］. J Colloid Interface Sci， 2023， 630： 738-750.
[16]	ZHANG W Q， YANG X Y， HUANG Y. Covalent organic framework for highly efficient extraction of rare earth ions［J］. Matter， 2023， 6（9）： 2630-2631.
[17]	ZHAO S F， SAMADI A R， WANG Z， et al. Ionic liquid-based polymer inclusion membranes for metal ions extraction and recovery： fundamentals， considerations， and prospects［J］. Chem Eng J， 2024， 481： 481792.
[18]	YOSHIDA W， KUBOTA F， BABA Y， et al. Separation and recovery of scandium from sulfate media by solvent extraction and polymer inclusion membranes with amic acid extractants［J］. ACS Omega， 2019， 4（25）： 21122-21130.
[19]	WEI H Q， LI Y L， KUANG S T， et al. Separation of trivalent rare earths from chloride medium using solvent extraction with heptylaminomethyl phosphonic acid 2-ethylhexyl ester （HEHHAP）［J］. Hydrometallurgy， 2019， 188： 14-21.
[20]	ZHAO Q， ZHANG Z F， LIAO W P， et al. Solvent extraction and separation of rare earths from chloride media using α-aminophosphonic acid extractant HEHAMP［J］. Solvent Extr Ion Exch， 2018， 36（2）： 136-149.
[21]	苏杰. Cextrant 230及其衍生物对稀土、铁和钍的萃取［D］. 南昌：南昌大学， 2023.
	SU J. Extraction of rare earths， iron and thorium by Cextrant 230 and its derivatives［D］. Nanchang： Nanchang University， 2023.
[22]	PANDA P K， PART K， SEO J. Development of poly（vinyl alcohol）/regenerated chitosan blend film with superior barrier， antioxidant， and antibacterial properties［J］. Prog Org Coat， 2023， 183： 107749.
[23]	YAO A R， YAN Y Q， HUANG S J， et al. Improvement of filtration and antifouling performance of cellulose acetate membrane reinforced by dopamine modified cellulose nanocrystals［J］. J Membr Sci， 2021， 637： 119621.
[24]	MA Y， LI L B， YANG P X， et al. Ionic conductivity enhancement in gel polymer electrolyte membrane with N-methyl-N-butyl-piperidine-bis（trifluoromethylsulfonyl） imide ionic liquid for lithium ion battery［J］. Colloids Surf A， 2016， 502： 130-138.
[25]	文雯，施亦东，谭淋，等. 醋酸纤维素纤维的醇解改性及性能研究［J］. 塑料工业， 2021， 49（10）： 47-51， 105.
	WEN W， SHI Y D， TAN L， et al. Study on the alcoholysis modification of cellulose acetate fiber and their properties［J］. Plast Ind， 2021， 49（10）： 47-51， 105.
[26]	CHEN L， DONG H， PAN W G， et al. Poly（vinyl alcohol-co-ethylene）（EVOH） modified polymer inclusion membrane in heavy rare earths separation with advanced hydrophilicity and separation property［J］. Chem Eng J， 2021， 426： 131305.
[27]	YU P P， ZHOU G Z， YANG R C， et al. Green synthesis of ion-imprinted macroporous composite magnetic hydrogels for selective removal of nickel（Ⅱ） from wastewater［J］. J Mol Liq， 2021， 344： 117963.
[28]	XU X C， LI Y， ZHENG X D， et al. A facile strategy toward ion-imprinted hierarchical mesoporous material via dual-template method for simultaneous selective extraction of lithium and rubidium［J］. J Cleaner Prod， 2018， 171： 264-274.
[29]	ZHOU G Z， WU S， YANG R C， et al. Synthesis of ion imprinted magnetic nanocomposites and application for novel selective recycling of Ni（Ⅱ）［J］. J Cleaner Prod， 2021， 314： 127999.
[30]	CHEN L， DONG H， PAN J M， et al. Role of natural deep eutectic solvents （NADESs） in coagulation bath for PVDF-based membranes on enhanced permeation and separation of rare earth ions［J］. J Membr Sci， 2023， 683： 127999.
[31]	程玉雯. 镧、镱离子表面印迹聚合物的制备及其性能研究［D］. 南昌：南昌大学， 2018.
	CHENG Y W. Preparation of surface-imprinted polymers of lanthanum and ytterbium ions and study of their properties［D］. Nanchang： Nanchang University， 2018.
[32]	DAI X， GUO Y X， FUJITA T， et al. Selective adsorption and recovery of scandium from red mud leachate by using phosphoric acid pre-treated pitaya peel biochar［J］.Sep Purif Technol， 2022， 292： 121043.
[33]	NAPPOL'SKIKH J， SHOPPERT A， VALEEDV D， et al. Selective recovery of scandium （Sc） from sulfate solution of bauxite residue leaching using puromet MTS9580 ion-exchange sorption［J］. Metals， 2024， 14（2）： 234.
[34]	YU Q， NING S Y， WEI Y Z， et al. Recovery of scandium from sulfuric acid solution with a macro porous TRPO/SiO₂-P adsorbent［J］. Hydrometallurgy， 2018， 181： 74-81.
