Facile Synthesis of Cyclohexanone Oxime via Solvent-Free Catalytic Oxidation of Cyclohexylamine Using Phosphorus-Modified TiO2/SBA-15

doi:10.19894/j.issn.1000-0518.240278

Chinese Journal of Applied Chemistry ›› 2026, Vol. 43 ›› Issue (1): 96-107.DOI: 10.19894/j.issn.1000-0518.240278

• Full Papers • Previous Articles Next Articles

Facile Synthesis of Cyclohexanone Oxime via Solvent-Free Catalytic Oxidation of Cyclohexylamine Using Phosphorus-Modified TiO₂/SBA-15

Xiao-Peng DENG, Shui-Lin LIU(), Yuan-Peng LI, Shan-Tong ZHANG

School of Chemical and Environmental Engineering，Hunan Institute of Technology，Hengyang 421002，China

Received:2024-08-28 Accepted:2025-01-20 Published:2026-01-01 Online:2026-01-26
Contact: Shui-Lin LIU
About author:shuilin89@126.com
Supported by:
the Research Foundation of Education Bureau in Hunan Province(22A0631);Natural Science Foundation in Hunan Province(2024JJ7127);Hunan Province College Students' Innovation and Entrepreneurship Training Program Project(S202411528205);Hunan Province First-Class Undergraduate Major Construction Project(DS2002)

Abstract

Abstract:

A highly efficient P-TiO₂/SBA-15_{catalyst using titanium butoxide and phosphoric as raw materials was synthesized by liquid phase hydrolysis method， and the physio-chemical properties of the catalysts were characterized by X-ray photoelectron spectroscopy （XPS）， fourier transform infrared spectroscopy （FT-IR）， transmission electron microscope （TEM）， X-ray powder diffraction （XRD）， and N₂ adsorption-desorption specific surface analyzer （BET） characterization techniques. The catalytic performance of P-TiO₂/SBA-15 in the solvent-free oxidation of cyclohexylamine to cyclohexanone oxime was further studied. And the reaction conditions such as temperature and pressure were systematically optimized. Furthermore， a probable dual pathway mechanism of cyclohexylamine catalytic oxidation was also suggested. The results indicated that surface modified P-TiO₂ nanoparticles could achieve high dispersion loading on SBA-15， which was beneficial for improving its catalytic efficiency. The best catalytic effect was achieved when the P-TiO₂ loading was 10%. Under the premise of equal loading of active components， the 10% P-TiO₂/SBA-15 composite exhibited significant catalytic performance advantages. Compared to the unloaded P-TiO₂， the catalytic conversion efficiency of cyclohexylamine increased by 3.2 times to 68.3%， and the selectivity of the target product cyclohexanone oxime increased by 15.3% simultaneously. Under standardized reaction conditions （90 ℃， 1.0 MPa， 4 h）， the efficient conversion could be achieved using 0.3 g of composite catalyst， confirming the dispersion strengthening effect of ordered mesoporous carriers on active components. In addition， the titanium hydroxyl groups on the surface of P-TiO₂/SBA-15 were the active centers for catalytic oxidation of cyclohexylamine. The method provides a novel and green route for the highly efficient preparation of cyclohexanone oxime， and has certain prospects for industrial applications.}

Key words: Cyclohexanone oxime, Solvent-free, Catalytic oxidation, Cyclohexylamine, P-TiO₂

CLC Number:

O643.3

Xiao-Peng DENG, Shui-Lin LIU, Yuan-Peng LI, Shan-Tong ZHANG. Facile Synthesis of Cyclohexanone Oxime via Solvent-Free Catalytic Oxidation of Cyclohexylamine Using Phosphorus-Modified TiO₂/SBA-15[J]. Chinese Journal of Applied Chemistry, 2026, 43(1): 96-107.

Figures/Tables 12

References 40

[1]	HAMMOND C， SCHUMPERLI M T， HERMANS I. Developments in the aerobic oxidation of amines［J］. ACS Catal， 2012， 2： 1108-1117.
[2]	XU Y Y， YANG Q S， LI Z H， et al. Ammoximation of cyclohexanone to cyclohexanone oxime using ammonium chloride as nitrogen source［J］. Chem Eng Sci， 2016， 152： 717-723.
[3]	YOU K Y， WU B H， MAO L Q，et al.A novel route to one-step formation of ɛ-caprolactam from cyclohexane and nitrosyl sulfuric acid catalyzed by VPO composites［J］.Catal Lett， 2007， 118： 129-133.
[4]	YIP A C K， HU X J. Formulation of reaction kinetics for cyclohexanone ammoximation catalyzed by a clay-based titanium silicalite-1 composite in a semibatch process［J］. Ind Eng Chem Res， 2011， 50（24）： 13703-13710.
[5]	薛晓璐，高鹏飞，张磊，等.微波法合成氟改性TS-1及其催化环己酮氨肟化性能）［J］.分子催化（中英文），2019，33（1：27-40
	XUE X L， GAO P F， ZHANG L， et al. Fluorinated TS-1 prepared by microwave irradiation and its catalytic performance on ammoximation of cyclohexanone［J］. J Mol Catal （China Engl）， 2019， 33（1）： 27-40.
[6]	PIEPER J H， WILMINGTON D， Process for the production of oximes： US， 2718528U.S.［P］.1955-09-20.
[7]	张美华，钟齐锋，陈梦婷，等.环己胺合成研究进展［J］.石油化工， 2023， 52（10）： 1452-1460.
	ZHANG M H， ZHONG Q F， CHEN M T， et al.Research progress in synthesis of cyclohexylamine［J］. Petrochem Technol， 2023， 52（10）： 1452-1460.
[8]	WEI Y N， YOU K Y， LI W T， et al. Highly-dispersed Ni₃Fe alloy nanoparticles anchored on MgAl-LDO for efficient catalytic amination of KA-oil to cyclohexylamine［J］. J Catal， 2024， 430： 115315.
[9]	CAVANI F， BALLARINI N， LUCIANI S， Catalysis for society： towards improved process efficiency in catalytic selective oxidations［J］. Top Catal， 2009， 52： 935-947.
[10]	KIDWAI M， BHARDWAJ S. Transformation of amines to oximes using heterogeneous nanocrystalline titanium （Ⅳ） oxide as a green catalyst［J］. Synth Commun， 2011， 41（18）： 2655-2662.
[11]	ZHAO F F， YI L， DENG R J， et al. Supported WO₃/γ-Al₂O₃ as bifunctional catalyst for liquid-phase highly selective oxidation of cyclohexylamine to cyclohexanone oxime under solvent-free conditions［J］. Mol Catal， 2019， 475： 110494.
[12]	LIU S L， LIU N， LI A Y， et al. Supported TiO₂/silica gel as an efficient and inexpensive catalyst for nonsolvent liquid-phase oxidation of cyclohexylamine to cyclohexanone oxime［J］.Can J Chem Eng， 2023， 101： 2810-2820.
[13]	HORVATH B， KASZONYI A， RAKOTTYAY K， et al. Towards the mechanism of the oxidation of cyclohexylamine by molecular oxygen over alumina-based catalysts［J］.React Kinet Mech Cat， 2015， 115（1）： 231-250.
[14]	NI W J， YOU K Y， CHAO C， et al. Novel functional TiPO/SiO₂ catalyst enriched surface hydroxyl groups for highly selective catalytic oxidation of cyclohexylamine to cyclohexanone oxime［J］. Appl Surf Sci， 2023， 631： 157575.
[15]	NI W J， LIU X， YANG Q， et al. Construction of dual active-site NH₂-MIL-125（Ti） for efficient selective oxidation of cyclohexylamine to cyclohexanone oxime［J］.Langmuir， 2025， 41（8）： 5323-5334.
[16]	钟哲浩，张聪，陈青，等.磷对TiO₂/MCM-41催化环己胺无溶剂氧化制备环己酮肟的调变作用［J］. 分子催化（中英文）， 2024， 38（4）： 352-365.
	ZHONG Z H， ZHANG C， CHEN Q， et al. Phosphorus modulation effect on the solvent-free oxidation of cyclohexylamine to cyclohexanone oxime catalyzed by TiO₂/MCM-41［J］. J Mol Catal （China Engl）， 2024， 38（4）： 352-365.
[17]	RAKOTTYAY K， KASZONYI A. Oxidation of cyclohexylamine over modified alumina by molecular oxygen［J］. Appl Catal A： Gen， 2009， 367（1）： 32-38.
[18]	RAKOTTYAY K， KASZONYI A， VAJÍČEK S. Oxidation of amines over alumina based catalysts［J］. Appl Catal A： Gen， 2010， 378（1）： 33-41.
[19]	ZHONG W Z， MAO L Q， YI W J， et al. New non-metallic mesoporous SBA-15 catalyst with high selectivity for the gas-phase oxidation of cyclohexylamine to cyclohexanone oxime［J］. Catal Commun， 2014， 56： 148-152.
[20]	LIU S L， YOU K Y， JIAN J， et al. Highly selective preparation of cyclohexanone oxime from vapor phase catalytic oxidation of cyclohexylamine with air over silica gel［J］. J Catal， 2016， 338： 239-249.
[21]	KLITGAARD S K， EGEBLAD K， MENTZEL U V， et al. Oxidations of amines with molecular oxygen using bifunctional gold-titania catalysts［J］. Green Chem， 2008， 10（4）： 419-423.
[22]	SUZUKI K， WATANABE T， MURAHASHI S I. Aerobic oxidation of primary amines to oximes catalyzed by DPPH and WO₃/Al₂O₃［J］. Angew Chem Int Ed， 2008， 47（11）： 2079-2081.
[23]	SUZUKI K， WATANABE T， MURAHASHI S I. Oxidation of primary amines to oximes with molecular oxygen using 1，1-diphenyl-2-picrylhydrazyl and WO₃/Al₂O₃ as catalysts［J］. J Org Chem， 2013， 78（6）： 2301-2310.
[24]	LIU S L， YOU K Y， SONG J Y， et al.Supported TiO₂/MCM-41 as an efficient and eco-friendly catalyst for highly selective preparation of cyclohexanone oxime from solvent-free liquid phase oxidation of cyclohexylamine with molecular oxygen［J］.Appl Catal A： Gen， 2018， 568： 76-85.
[25]	DING W， PENG H Y， ZHONG W Z， et al. Site-specific catalytic activities to facilitate solvent-free aerobic oxidation of cyclohexylamine to cyclohexanone oxime over highly efficient Nb-modified SBA-15 catalysts［J］. Catal Sci Technol， 2020， 10： 3409-3422.
[26]	NI W J， YOU K Y， YI L， et al. Highly selective preparation of cyclohexanone oxime from liquid-phase catalytic oxidation of cyclohexylamine with molecular oxygen over glucose-modified TiO₂ under solvent-free conditions［J］. Ind Eng Chem Res， 2021， 60： 3907-3913.
[27]	NI W J， YAN D J， FU S J， et al. Dominant anatase TiO₂ （001） with rich surface hydroxyls as catalytic active sites for selective catalytic oxidation of cyclohexylamine to cyclohexanone oxime［J］. Chem Eng J， 2023， 465： 142905.
[28]	HASANNIA S， KAZEMEINI M， SEIF A， et al. Selective oxidative conversion of cyclohexylamine to cyclohexanone oxime using an efficient Co-WO₃ catalyst： experimental and theoretical investigations［J］. Chem Eng Sci， 2023， 282： 119215.
[29]	CHU Y Y， ZHANG X Y， CHEN W X， et al. Plasma assisted-synthesis of magnetic TiO₂/SiO₂/Fe₃O₄-polyacrylic acid microsphere and its application for lead removal from water［J］. Sci Total Environ， 2019， 681： 124-132.
[30]	ZENG T Y， SHI D J， CHENG Q R， et al. Construction of novel phosphonate-based MOF/P-TiO₂ heterojunction photocatalysts： enhanced photocatalytic performance and mechanistic insight［J］. Environ Sci Nano， 2020， 7： 861-879.
[31]	ZHANG J J， WEI Z， HUANG T， et al. Carbon coated TiO₂-SiO₂ nanocomposites with high grain boundary density as anode materials for lithium-ion batteries［J］. J Mater Chem A， 2013， 1： 7360-7369.
[32]	CHEN X， SUN H， ZHANG J， et al. Cationic S-doped TiO₂/SiO₂ visible-light photocatalyst synthesized by co-hydrolysis method and its application for organic degradation［J］. J Mol Liq， 2019， 273： 50-57.
[33]	WU X Q， SHAO Z D， LIU Q， et al. Flexible and porous TiO₂/SiO₂/carbon composite electrospun nanofiber mat with enhanced interfacial charge separation for photocatalytic degradation of organic pollutants in water［J］.J Colloid Interf Sci， 2019， 553： 156-166.
[34]	VISWANADHAM B， SRIKANTH A， KUMAR V P， et al. Vapor phase dehydration of glycerol to acrolein over SBA-15 supported vanadium substituted phosphomolybdic acid catalyst［J］. J Nanosci Nanotechno， 2015， 15（7）： 5391-5402.
[35]	PASHKOVA V， WLOCH E， MIKOLAJCZYK A， et al. Composite SBA-15/MFI type materials： preparation， characterization and catalytic performance［J］. Catal Lett， 2008， 128（1）：64-71.
[36]	LIU C， SHAO J Z， WANG Y W， et al. Enhancing catalytic performance of TiO₂/P-doped C₃N₄ composite via preferentially bonded P-O-Ti［J］.J Alloy Compd， 2024， 970： 172460.
[37]	XIE W， FAN M. Biodiesel production by transesterification using tetraalkylammonium hydroxides immobilized onto SBA-15 as a solid catalyst［J］. Chem Eng J， 2014， 239： 60-67.
[38]	ZHANG F M， LIU B S， ZHANG Y， et al. Highly stable and regenerable Mn-based/SBA-15 sorbents for desulfurization of hot coal gas［J］. J Hazard Mater， 2012， 233： 219-227.
[39]	罗和安，游奎一，刘水林，等. 一种环己酮肟的制备方法：中国， 201710519215.8［P］. 2019-05-14.
	LUO H A， YOU K Y， LIU S L， et al. A preparation method of cyclohexanone oxime： CN， 201710519215.8［P］. 2019-05-14.
[40]	罗和安，游奎一，傅尚军，等. 一种环己酮肟的制备方法：中国， 202010103112.5［P］. 2022-11-01.
	LUO H A， YOU K Y， FU S J， et al. A preparation method of cyclohexanone oxime： CN， 202010103112.5［P］. 2022-11-01.

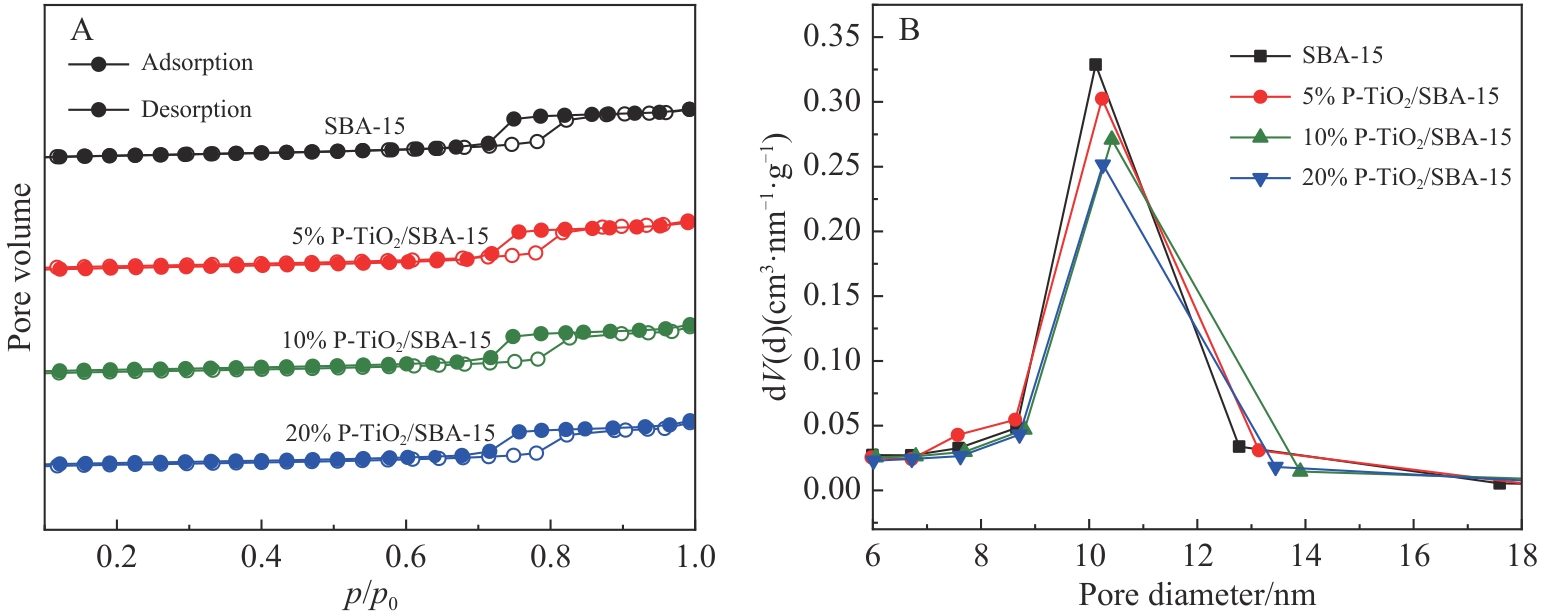

Sample	Surface area/（m²·g^-1）	Pore volume/（cm³·g^-1）	Pore diameter/nm
P-TiO₂	348.6	0.5	5.8
SBA-15	526.6	1.2	10.0
5% P-TiO₂/SBA-15	494.6	1.2	10.1
10% P-TiO₂/SBA-15	467.6	1.1	10.4
20% P-TiO₂/SBA-15	433.5	1.1	10.2

Sample	Surface area/（m²·g^-1）	Pore volume/（cm³·g^-1）	Pore diameter/nm
P-TiO₂	348.6	0.5	5.8
SBA-15	526.6	1.2	10.0
5% P-TiO₂/SBA-15	494.6	1.2	10.1
10% P-TiO₂/SBA-15	467.6	1.1	10.4
20% P-TiO₂/SBA-15	433.5	1.1	10.2

Catalyst	Conversion/%	Selectivity/%
Catalyst	Conversion/%	CHO	CH	NCH	CCA	Others ^b
None	5.3	24.2	2.1	0.6	61.9	11.2
SBA-15	22.9	72.1	3.2	1.2	17.5	6.0
P-TiO₂ （n（Ti）∶n（P）=1∶1）	38.3	78.9	1.6	3.9	11.3	4.3
P-TiO₂ （n（Ti）∶n（P）=2∶1）	45.0	80.6	3.0	5.9	4.8	5.7
P-TiO₂ （n（Ti）∶n（P）=3∶1）	45.8	79.4	2.9	6.8	5.1	5.8
P-TiO₂ （n（Ti）∶n（P）=2∶1） ^c	21.2	71.3	4.1	1.1	18.4	5.1
10%P₂O₅/SBA-15	24.1	74.5	3.3	2.4	15.3	4.5
10%TiO₂/SBA-15	49.8	81.4	1.8	4.6	7.0	5.2
5% P-TiO₂/SBA-15	38.4	79.5	1.7	3.7	11.5	3.6
10% P-TiO₂/SBA-15	68.3	86.6	2.1	6.8	2.4	2.1
20% P-TiO₂/SBA-15	61.9	85.4	2.7	6.5	2.8	2.6
10% P-TiO₂/SBA-15 ^d	7.2	51.2	2.4	0.8	37.8	7.8

Catalyst	Conversion/%	Selectivity/%
Catalyst	Conversion/%	CHO	CH	NCH	CCA	Others ^b
None	5.3	24.2	2.1	0.6	61.9	11.2
SBA-15	22.9	72.1	3.2	1.2	17.5	6.0
P-TiO₂ （n（Ti）∶n（P）=1∶1）	38.3	78.9	1.6	3.9	11.3	4.3
P-TiO₂ （n（Ti）∶n（P）=2∶1）	45.0	80.6	3.0	5.9	4.8	5.7
P-TiO₂ （n（Ti）∶n（P）=3∶1）	45.8	79.4	2.9	6.8	5.1	5.8
P-TiO₂ （n（Ti）∶n（P）=2∶1） ^c	21.2	71.3	4.1	1.1	18.4	5.1
10%P₂O₅/SBA-15	24.1	74.5	3.3	2.4	15.3	4.5
10%TiO₂/SBA-15	49.8	81.4	1.8	4.6	7.0	5.2
5% P-TiO₂/SBA-15	38.4	79.5	1.7	3.7	11.5	3.6
10% P-TiO₂/SBA-15	68.3	86.6	2.1	6.8	2.4	2.1
20% P-TiO₂/SBA-15	61.9	85.4	2.7	6.5	2.8	2.6
10% P-TiO₂/SBA-15 ^d	7.2	51.2	2.4	0.8	37.8	7.8
