Construction of Non-Enzymatic Electrochemical Biosensor and Its Application in Uric Acid Detection for Athletes

doi:10.19894/j.issn.1000-0518.250176

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (9): 1257-1264.DOI: 10.19894/j.issn.1000-0518.250176

• Full Papers • Previous Articles Next Articles

Construction of Non-Enzymatic Electrochemical Biosensor and Its Application in Uric Acid Detection for Athletes

Jin CAO¹(), Bo-Tian CHEN²

^1.Xiamen University Tan Kah Kee College，Zhangzhou 363123，China
^2.College of Chemistry，Xiamen University，Xiamen 361005，China

Received:2025-04-24 Accepted:2025-08-06 Published:2025-09-01 Online:2025-09-28
Contact: Jin CAO
About author:keijl8@sina.com

Abstract

Abstract:

Using seaweed as the precursor and iron salt as the graphitization catalyst， iron-doped carbon nanosheets （Fe-BC） were prepared via pyrolysis and modified onto a screen-printed electrode （SPE） to construct a novel non-enzymatic electrochemical sensor， Fe-BC/SPE， for the detection of uric acid （UA） in athletes. In this sensor， Fe-BC nanosheets serve as the active layer modified onto the surface of a flexible SPE， catalyzing the decomposition of UA without the need for additional enzyme modification. This paper utilizes differential pulse voltammetry （DPV） and cyclic voltammetry （CV） for the electrochemical characterization and performance testing of the electrochemical sensor Fe-BC/SPE. The research results indicate that the sensor exhibits a linear detection range of 0.5~6.73 μmol/L and a sensitivity of 0.1342 μA/（μmol·cm²）. Fe-BC nanosheets demonstrate good catalytic activity towards UA， and the constructed novel electrochemical sensor can achieve rapid and highly sensitive detection of UA in athletes.

Key words: Biomass carbon, Electrochemical sensors, Uric acid, High sensitivity detection

CLC Number:

O657

Jin CAO, Bo-Tian CHEN. Construction of Non-Enzymatic Electrochemical Biosensor and Its Application in Uric Acid Detection for Athletes[J]. Chinese Journal of Applied Chemistry, 2025, 42(9): 1257-1264.

Figures/Tables 10

Fig.1 SEM image of （A） algal biochar and （B） iron-doped algal biochar （Fe-BC）

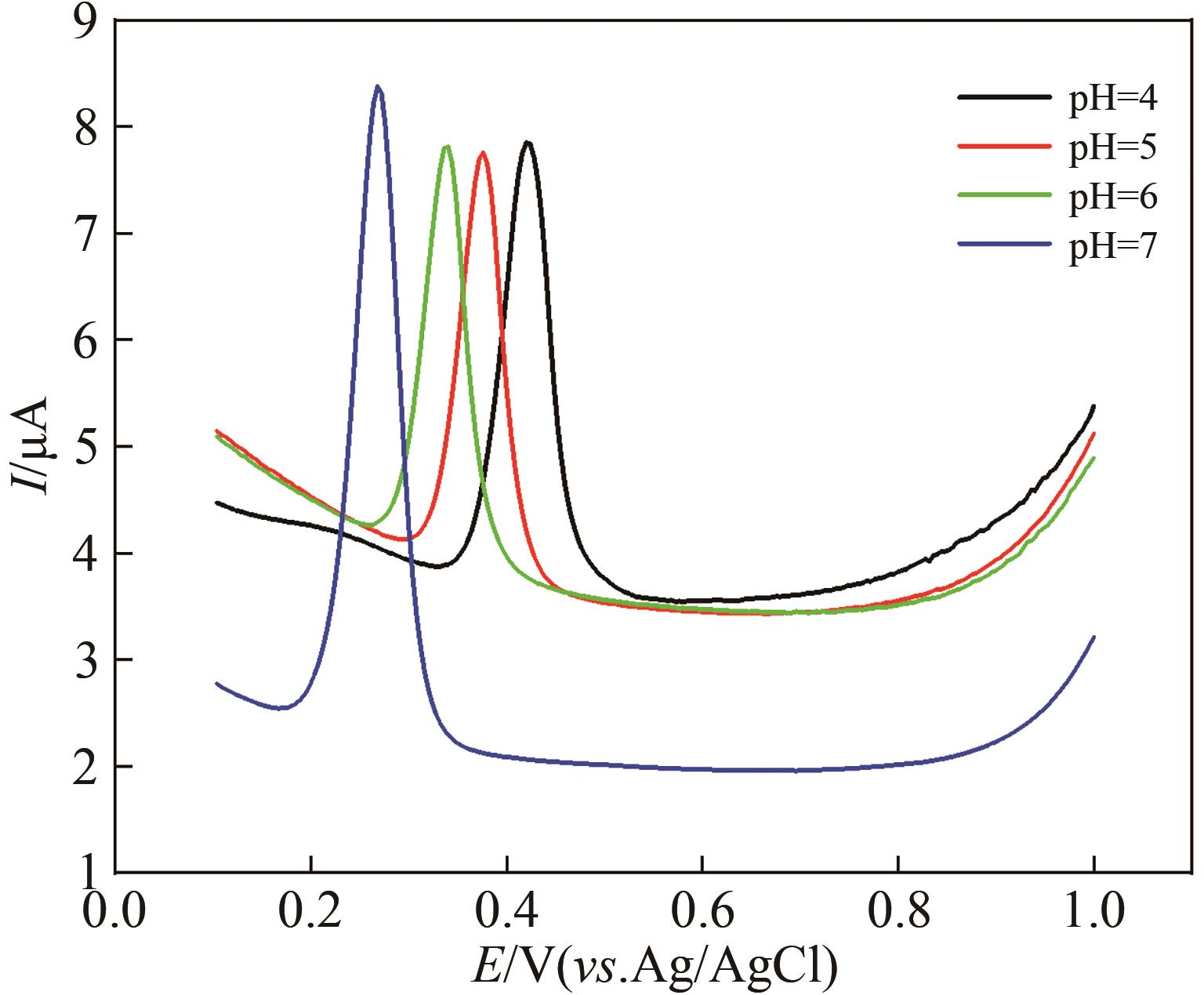

Fig.2 DPV curve overlay of UA sensor with 5×10-4 mol/L UA added to 0.01 mol/L PBS at different pH levels （pH=4.0~7.0）

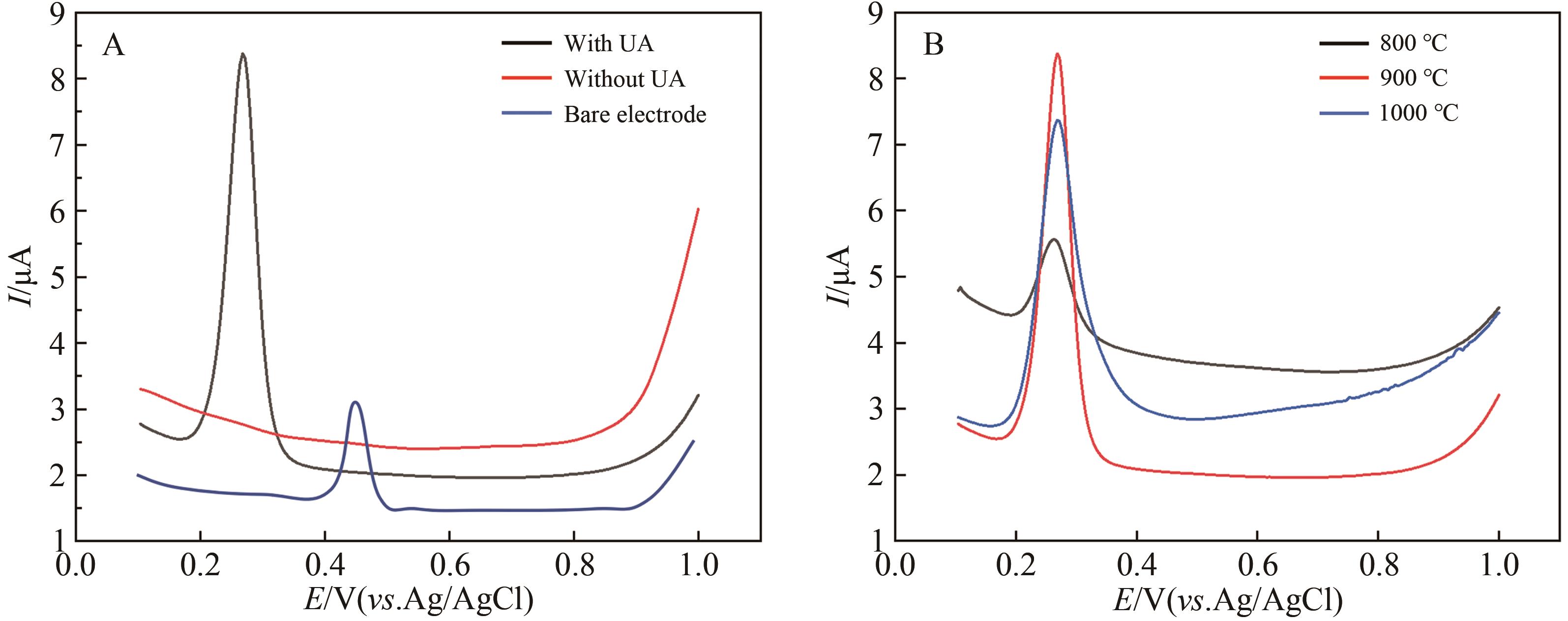

Fig.3 （A） DPV curves of Nafion/Fe-BC/SPE in PBS without UA and 5.0×10-4 mol/L UA；（B） Stacked DPV curves of UA on electrodes modified with different materials

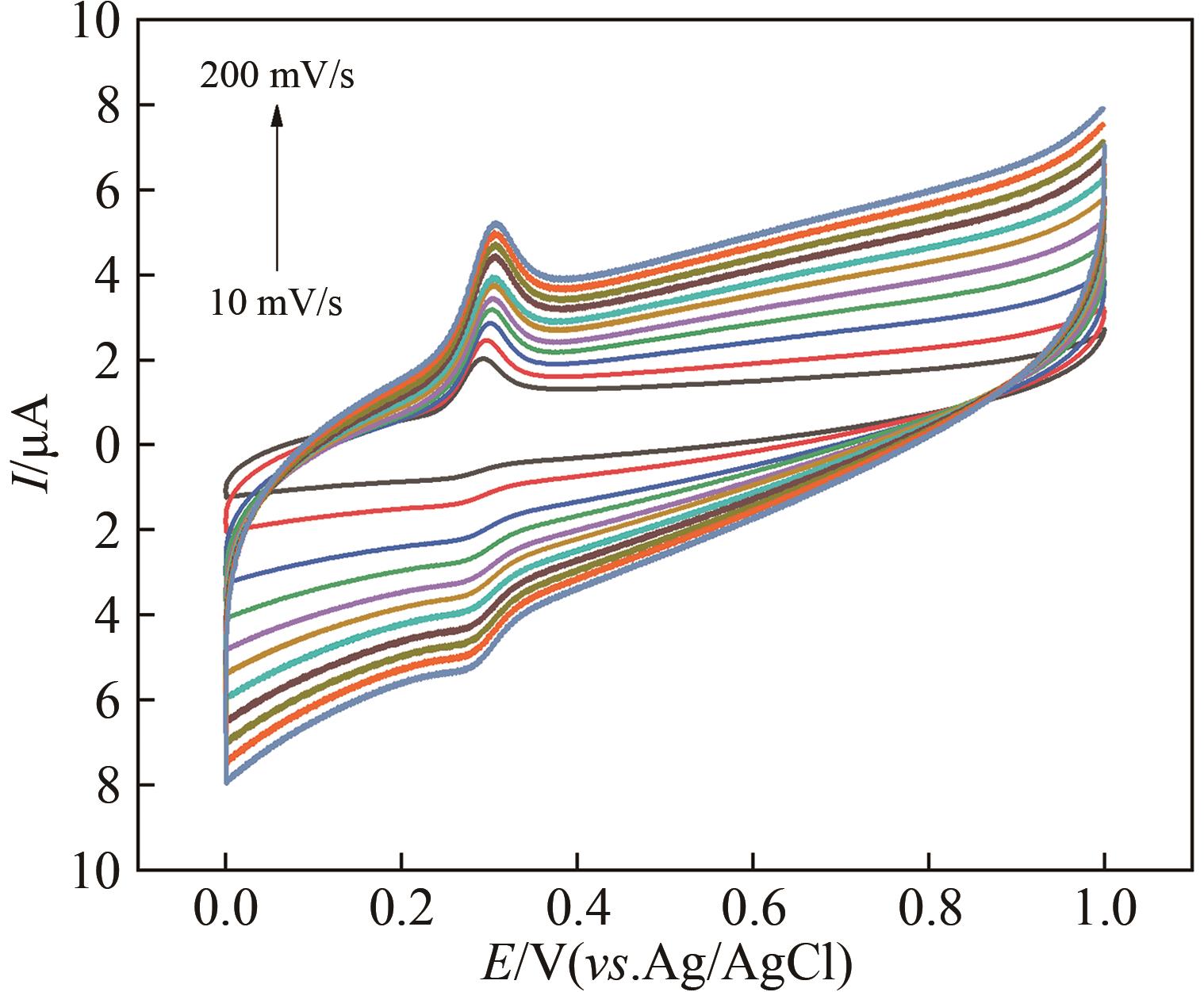

Fig. 4 CV plots of Nafion/Fe-BC/SPE at different scan rates in 0.01 mol PBS buffer （pH=7.0， containing 5.0×10-4 mol/L UA）

Table 1 Data fitting results

v/（mV·s^-1）	I_p/μA	lg v	lg I_p
10	8.2	1.30	0.91
20	12.5	1.70	1.10
50	17.3	2.00	1.24
100	24.1	2.30	1.38
200	37.6	2.70	1.58

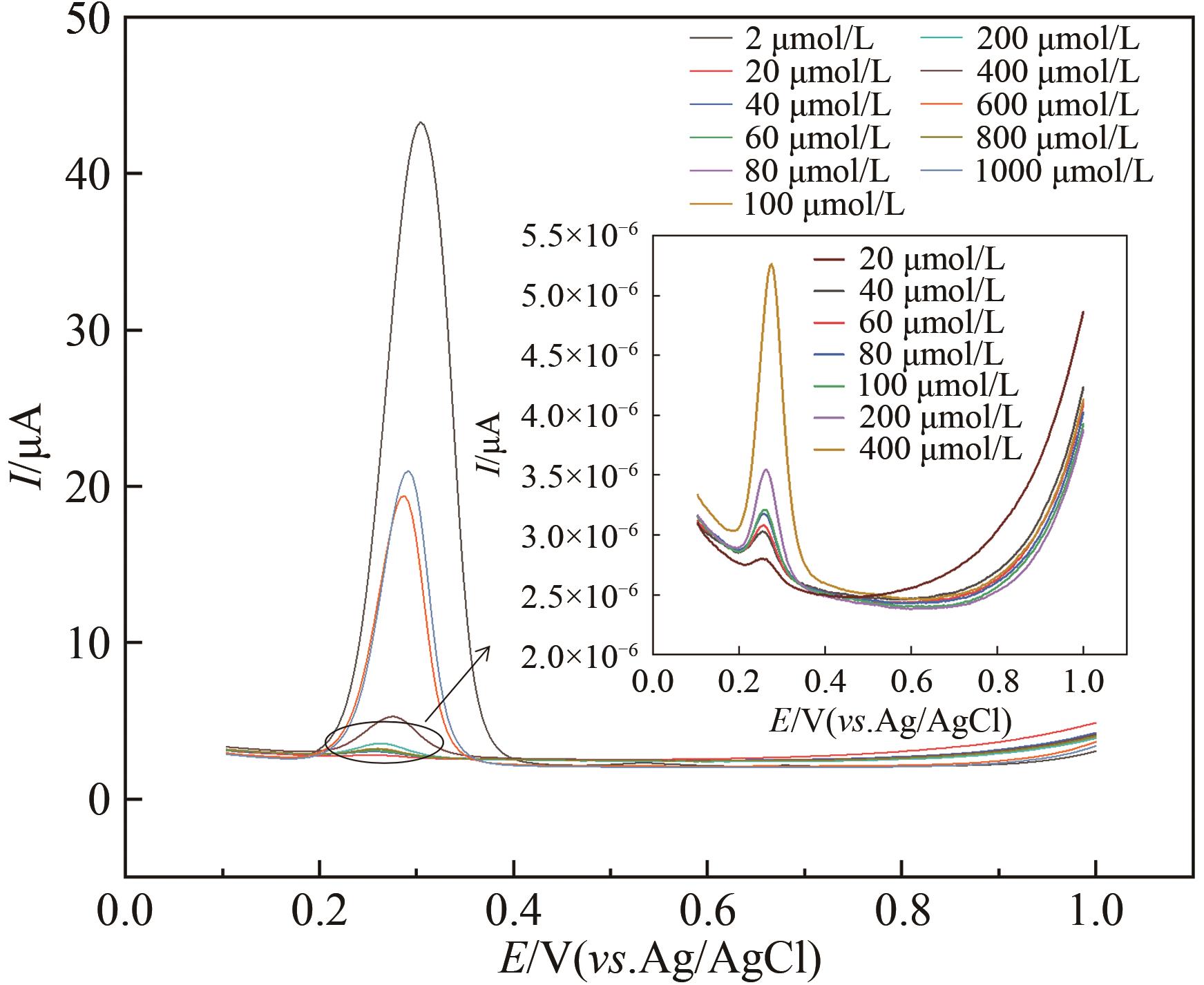

Fig.5 DPV curves of Nafion/Fe-BC/SPE for detecting different concentrations of UA （2.0×10-5~2.0×10-3 mol/L）

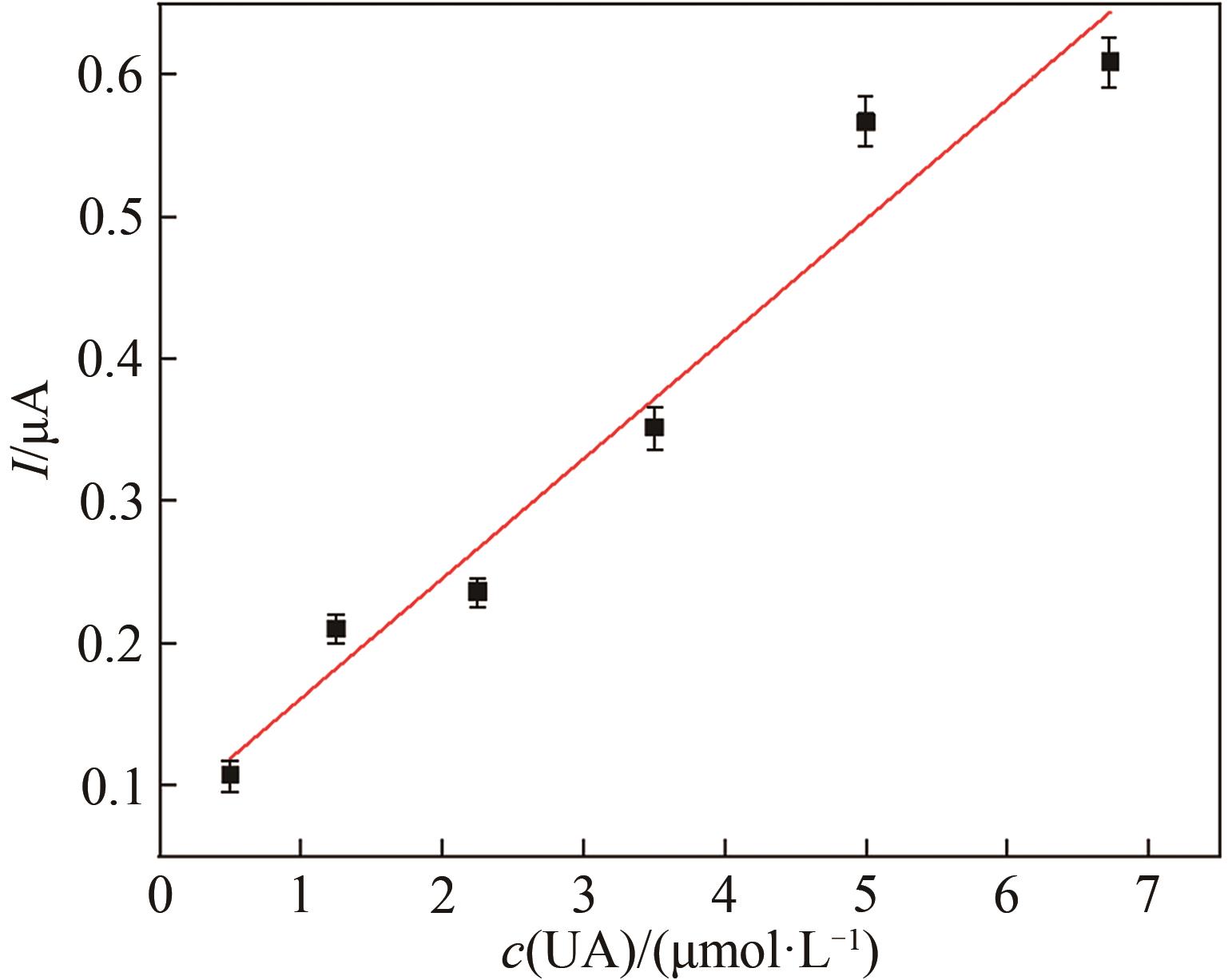

Fig.6 Linear relationship between DPV peak current and UA concentration

Table 2 Comparison of analytical performance of UA detection by different electrochemical sensors

Sensing material	Performance analysis		Detection platform		Ref.
Sensing material	10⁶ Linear range/（mol·L^-1）	10⁶ Detection limit/（mol·L^-1）	Electrode	Non enzymatic type	Ref.
Nafion/Fe-BC/SPE	0.5~6.73	6.67	SPE	Yes	This work
Uricase/CeO_2-y/C/rGO/GCE	49.8~1 050.0	2.0	GCE	No	［13］
Uricase/Ni microdiscs/NiO/ITO	50~1 000	30.0	ITO/glass	No	［14］
Nanoporous RuO₂/Au	20~1 000	9.6	Au	Yes	［15］
Nafion/Uricase/NiO/Ni	1~900	1.0	Ni wire	No	［16］

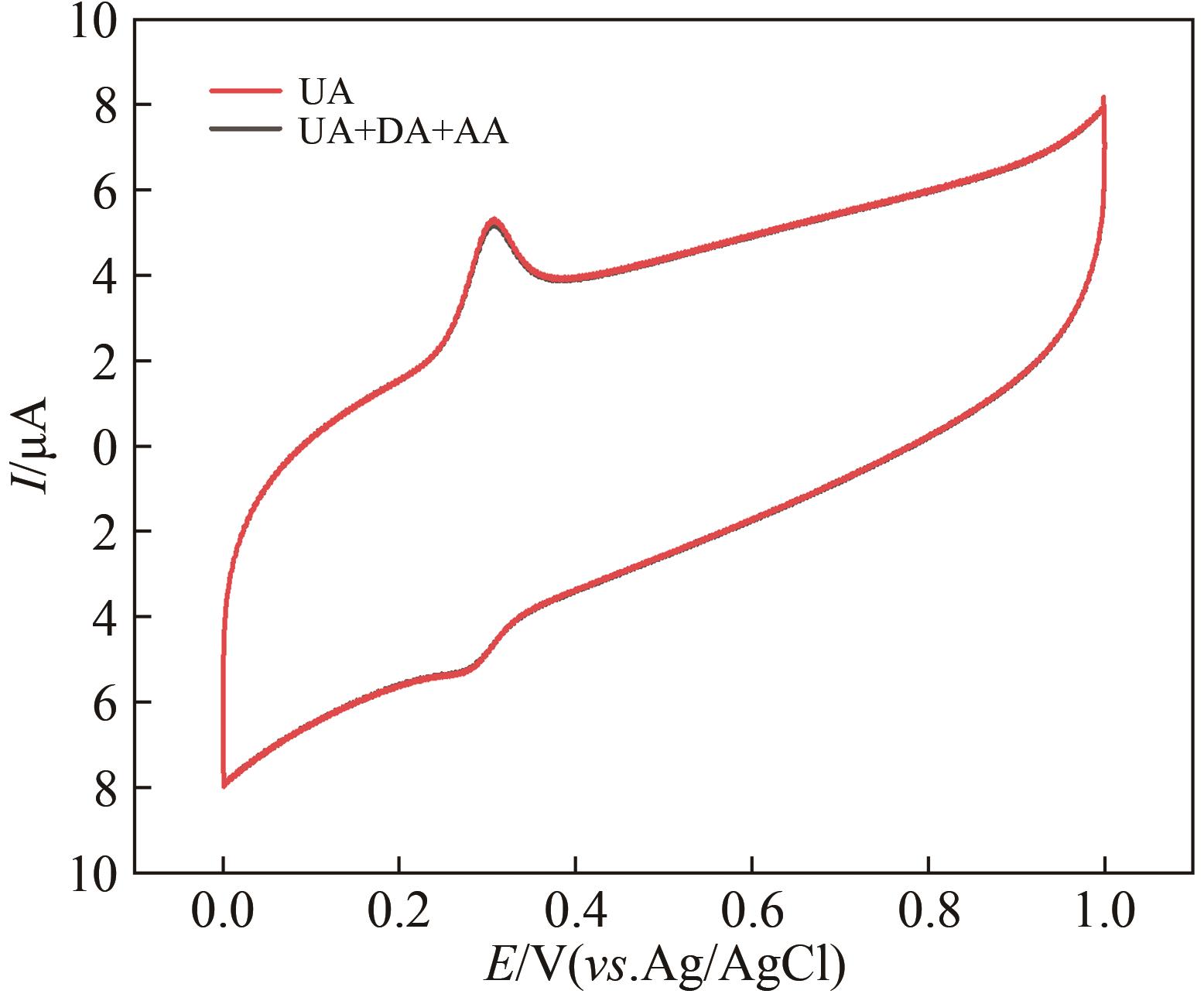

Fig.7 Comparison of CV curves of 5.0×10-4 mol/L UA and UA+AA+DA

Table 3 Uric acid detection results in actual serum samples （n=3）

Sample	Sensor detection value/（μmol·L^-1）	Test kit detection value/（μmol·L^-1）	Relative error/%
S1	325.6±4.2	318.4±3.8	2.26
S2	358.2±5.1	365.7±4.5	2.05
S3	297.8±3.5	302.1±3.2	1.42

References 17

[1]	FEIG D I， KANG D H， JOHNSON R J. Uric acid and cardiovascular risk［J］. N Engl J Med， 2008， 359（17）： 1811-1821.
[2]	杨俊红. 基于贵金属复合材料对尿液中生物标志物的SERS检测［D］.上海：上海师范大学，2024.
	YANG J H. SERS detection of biomarkers in urine based on noble metal composites［D］. Shanghai： Shanghai Norm University， 2024.
[3]	LI J W， HUANG X J， WEI S L. Copper oxide/carboxylated carbon nanosheet modified glassy carbon electrode for sensitive detection of uric acid［J］. Chem Res Appl， 2024， 36（7）： 1451-1457.
[4]	HU F X， HU T， LI C M， et al. Single-atom cobalt-based electrochemical biomimetic uric acid sensor with wide linear range and ultralow detection limit［J］. Nano-Micro Lett， 2021， 13（1）： 105-117.
[5]	CAI W， LAI J， LAI T， et al. Controlled functionalization of flexible graphene fibers for the simultaneous determination of ascorbic acid， dopamine and uric acid［J］. Sens Actuators B： Chem， 2016， 224： 225-232.
[6]	AZMI N E， RAMLI N I， ABDULLAH J， et al. A simple and sensitive fluorescence-based biosensor for the determination of uric acid using H₂O₂-sensitive quantum dots/dual enzymes［J］. Anal Methods， 2015， 67： 129-133.
[7]	SHA R， VISHNU N， BADHULIKA S. MoS₂-based ultra-low-cost， flexible， non-enzymatic and non-invasive electrochemical sensor for highly selective detection of uric acid in human urine samples［J］. Sens Actuators B： Chem， 2019， 279： 53-60.
[8]	ZHANG F F， WANG X L， AI S Y， et al. Immobilization of uricase on ZnO nanorods for a reagentless uric acid biosensor［J］. Anal Chim Acta， 2004， 519： 155-160.
[9]	ZHAO L， LI H， GAO S， et al. MgO nanobelt-modified graphene-tantalum wire electrode for the simultaneous determination of ascorbic acid， dopamine and uric acid［J］. Electrochim Acta， 2015， 168： 191-198.
[10]	REDDY Y V M， SRAVANI B， AGARWAL S， et al. Electrochemical sensor for detection of uric acid in the presence of ascorbic acid and dopamine using the poly（DPA）/SiO₂@Fe₃O₄ modified carbon paste electrode［J］. J Electroanal Chem， 2018， 820： 168-175.
[11]	WANG R N， PU S D， LI S R， et al. Research progress on carbon nanomaterial-based sensors for the detection of ascorbic acid， uric acid and dopamine［J］. Micro Nano Electron Technol， 2023， 60（5）： 671-681.
[12]	田宇红，汤艺伟，杜壮壮，等. 海藻渣多孔炭的制备及其电化学性能研究［J］. 功能材料， 2024， 55（11）： 11209-11217.
	TIAN Y H， TANG Y W， DU Z Z， et al. Preparation of porous carbon from seaweed residue and its electrochemical performance［J］. Funct Mater， 2024， 55（11）： 11209-11217.
[13]	PENG B G， CUI J W， WANG Y， et al. CeO_2- x/C/rGO nanocomposites derived from Ce-MOF and graphene oxide as a robust platform for highly sensitive uric acid detection［J］. Nanoscale， 2018， 10： 1939-1945.
[14]	ARORA K， TOMAR M， GUPTA V. Reagentless uric acid biosensor based on Ni microdiscs-loaded NiO thin film matrix［J］. Analyst， 2014， 139： 4606.
[15]	YANG Y J， JO A， LEE Y M， et al. Electrodeposited nanoporous ruthenium oxide for simultaneous quantification of ascorbic acid and uric acid using chronoamperometry at two different potentials［J］. Sens Actuators B： Chem， 2018， 255： 316-324.
[16]	贾宏亮，赵建伟，秦丽溶，等. 基于镍丝负载氧化镍纳米片的尿酸生物传感器［J］. 高等学校化学学报， 2019， 40（2）： 240-245.
	JIA H L， ZHAO J W， QIN L R， et al. Nickel wire-loaded NiO nanosheet-based uric acid biosensor［J］. Chem J Chin Univ， 2019， 40（2）： 240-245.
[17]	MA J， JIANG Y， SHEN L， et al. Wearable biomolecule smart sensors based on one-step fabricated Berlin green printed arrays［J］. Biosens Bioelectron， 2019， 144： 111637.
