Luminous Efficacy of Light Emitting Diode with SrS∶Eu2+ and SrAl2O4∶Eu2+，Dy3+ Long Afterglow Phosphors

doi:10.19894/j.issn.1000-0518.240411

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (5): 701-711.DOI: 10.19894/j.issn.1000-0518.240411

• Full Papers • Previous Articles Next Articles

Luminous Efficacy of Light Emitting Diode with SrS∶Eu²⁺ and SrAl₂O₄∶Eu²⁺，Dy³⁺ Long Afterglow Phosphors

Xian-Zhi CHU¹^,², Ran PANG², Song-Lin HAN², Li-Hong JIANG², Hui-Min LI², Xiao-Dong LI¹(), Su ZHANG²(), Hong-Jie ZHANG²

^1.School of Materials Science and Engineering，Jilin Architecture University，Changchun 130118，China
^2.State Key Laboratory of Application of Rare Earth Resources，Changchun Institute of Applied Chemistry，Chinese Academy of Sciences，Changchun 130022，China

Received:2024-12-16 Accepted:2025-04-18 Published:2025-05-01 Online:2025-06-05
Contact: Xiao-Dong LI,Su ZHANG
About author:zhangsu@ciac.ac.cn
lxdjlju@163.com；
Supported by:
the National Key R&D Program of China(2019YFA0709100)

Abstract

Abstract:

Light-emitting diode （LED） sources have become the primary choice for modern lighting systems. To address the flicker issue caused by alternating current （AC） power supplies in LED devices， the use of afterglow materials to mitigate flickering has emerged as a key area of research. However， the optoelectronic performance of LED devices encapsulated with afterglow materials has yet to be systematically investigated. In this study， SrS∶Eu2? and SrAl?O?∶Eu2?，Dy3? afterglow phosphors were synthesized via a high-temperature solid-state reaction， both of which can be efficiently excited by blue light， yielding red emission at 621 nm and green emission at 518 nm， respectively. By encapsulating these phosphors with a 450 nm blue LED chip， and fine-tuning the phosphor-to-encapsulation resin ratio， LED devices with luminous efficacy reaching 130 lm/W and a color rendering index exceeding 85 were achieved. These devices meet the requirements for general white-light illumination， underscoring the promising application prospects of long-afterglow phosphors in LED lighting technology.

Key words: Afterglow phosphors, Light-emitting diode, Luminous efficacy, Color rendering index

CLC Number:

O611.4

Xian-Zhi CHU, Ran PANG, Song-Lin HAN, Li-Hong JIANG, Hui-Min LI, Xiao-Dong LI, Su ZHANG, Hong-Jie ZHANG. Luminous Efficacy of Light Emitting Diode with SrS∶Eu²⁺ and SrAl₂O₄∶Eu²⁺，Dy³⁺ Long Afterglow Phosphors[J]. Chinese Journal of Applied Chemistry, 2025, 42(5): 701-711.

Figures/Tables 16

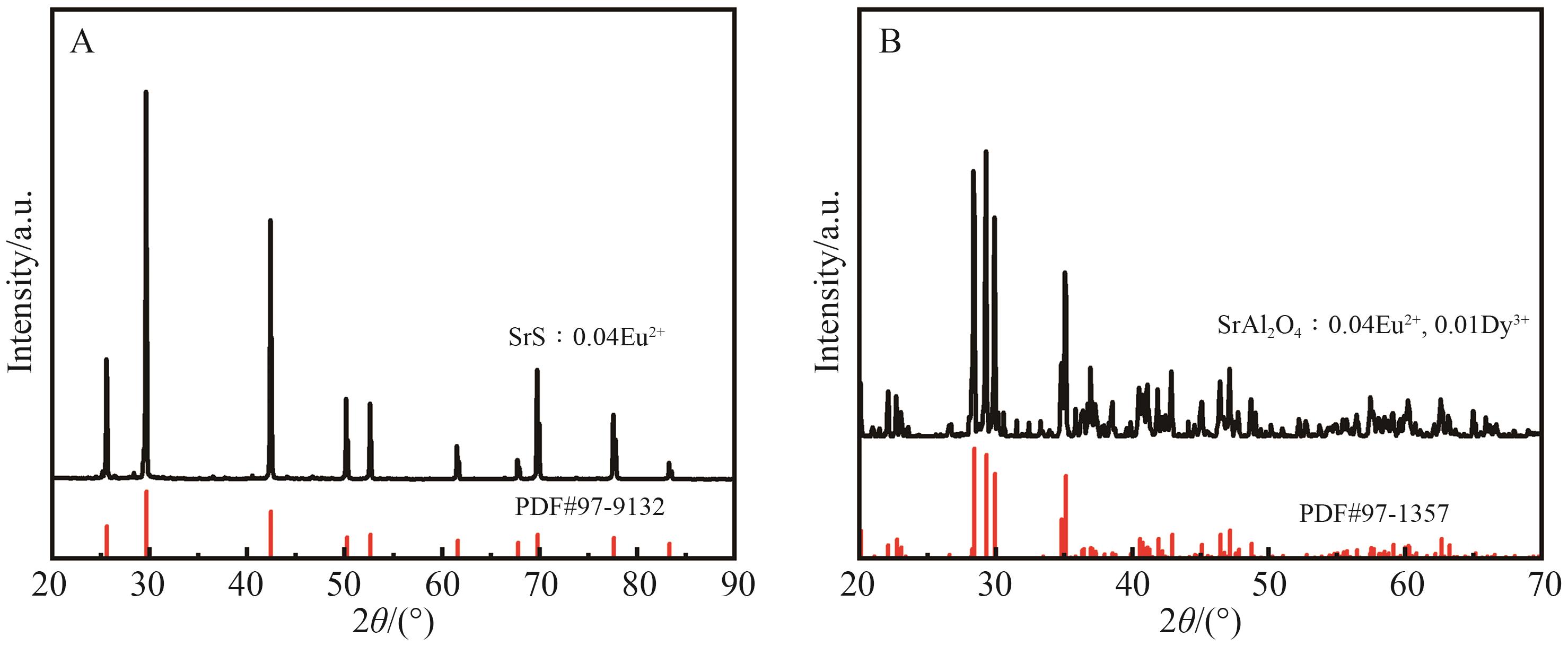

Fig.1 XRD patterns of the series of samples of SrS∶0.04Eu2+ （A） and SrAl2O4∶0.04Eu2+，0.01Dy3+（B）

Fig.2 The SEM diagrams and the morphology-related element mapping of the SrS∶0.04Eu2+

Fig.3 The SEM diagrams and the morphology-related element mapping of the SrAl2O4∶0.04Eu2+，0.01Dy3+

Fig.4 （A） Diffusive spectra of SrS∶0.04Eu2+；（B） Diffusive spectra of SrAl2O4∶0.04Eu2+，0.01Dy3+

Fig.5 Excitation and emission spectra of SrS∶0.04Eu2+

Fig.6 Excitation and emission spectra of SrAl2O4∶0.04Eu2+，0.01Dy3+

Table 1 Different proportions of epoxy resin and SrAl2O4∶0.04Eu2+，0.01Dy3+ phosphor

Serial number	m（epoxy resin）/g	m（phosphor）/g	m（phosphor）∶m（epoxy resin）
1	0.5	0.05	1︰10
2	0.5	0.10	1︰5
3	0.5	0.15	3︰10
4	0.5	0.20	2︰5
5	0.5	0.30	3︰5
6	0.5	0.50	1︰1
7	0.5	0.60	6︰5
8	0.5	0.80	8︰5
9	0.5	1.00	2︰1
10	0.5	1.50	3︰1

Fig.7 （A） The luminous efficacy and color rendering index of LEDs encapsulated with SrAl2O4∶0.04Eu2?，0.01Dy3? phosphor at different mass ratios of phosphate to adhesive；（B） The luminous efficacy and color rendering index of LEDs encapsulated with SrS∶0.04Eu2? phosphor at different ratios of phosphate to adhesive

Table 2 Different proportions of epoxy resin and SrS∶0.04Eu2+ phosphor

Serial number	m（epoxy resin）/g	m（phosphor）/g	m（phosphor）∶m（epoxy resin）
1	0.5	0.05	1︰10
2	0.5	0.10	1︰5
3	0.5	0.15	3︰10
4	0.5	0.20	2︰5
5	0.5	0.30	3︰5
6	0.5	0.50	1︰1

Fig.8 （A） The emission spectra of LEDs encapsulated with SrAl2O4∶0.04Eu2?， 0.01Dy3? phosphor at different mass ratios of phosphate to adhesive；（B） The CIE coordinates of LEDs device

Fig.9 （A） The emission spectra of LEDs encapsulated with SrS∶0.04Eu2? phosphor at different mass ratios of phosphate to adhesive；（B） The CIE coordinates of LEDs device

Table 3 LED light sources encapsulated with different phosphor-to-epoxy resin ratios

Serial number	m（SrAl₂O₄）/g	m（SrS）/g	m（S525）/g	m（HR-629H）/g
1	1	0.01	/	/
2	3	0.04	0.5	0.02

Fig.10 （A） Spectral comparison of LEDs encapsulated with SrAl2O4∶0.04Eu2?，0.01Dy3? and SrS∶0.04Eu2? phosphors （inset shows the source illuminated and unilluminated）；（B） The chromaticity coordinates of the light source plotted on the CIE chromaticity diagram

Table 4 Optical performance test data for LED light sources with various phosphor-to-epoxy resin ratios

Serial number	Luminous efficacy/（lm·W^-1）	CIE x	CIE y	Ra^*
1	132.68	0.273 1	0.315 1	86.2
2	142.6	0.302 6	0.320 3	96.4

Fig.11 Spectra of LEDs encapsulated with SrAl2O4∶0.04Eu2?，0.01Dy3?， SrS∶0.04Eu2?， and commercial phosphors （inset shows the source illuminated and unilluminated）；（B） The chromaticity coordinates of the light source plotted on the CIE chromaticity diagram

Fig.12 （A） Flexible LED film and Photograph of the AC LED device in operation； Flicker characteristics of the alternating current LED device with LED film （B） and without LED film （D） at 50 Hz； Flicker characteristics of the AC LED device with LED film （C） and without LED film （E） at 400 Hz

References 32

1	REINEKE S. Complementary LED technologies［J］. Nat Mater， 2015， 14（5）： 459-462.
2	ZHAO M， LIAO H， MOLOKEEV M S， et al. Emerging ultra-narrow-band cyan-emitting phosphor for white LEDs with enhanced color rendition［J］. Light： Sci Appl， 2019， 8（1）： 38.
3	ZHANG H J， ZHANG M， LI C Y， et al. Yellow-light afterglow material， manufacturing method thereof and LED luminescence device using the same： EP， 20090849381［P］. 2012-08-01.
4	CHEN L， ZHANG Y， XUE S， et al. The green phosphor SrAl₂O₄∶Eu²⁺，R³⁺ （R=Y， Dy） and itss application in alternating current light-emitting diodes［J］. Funct Mater Lett， 2013， 6（4）： 1350047.
5	YEH C W， LI Y， WANG J， et al. Appropriate green phosphor of SrSi₂O₂N₂︰Eu²⁺，Mn²⁺ for AC LEDs［J］. Opt Express， 2012， 20（16）： 18031-18043.
6	LI B， ZHANG J， ZHANG M， et al. Effects of SrCl₂ as a flux on the structural and luminescent properties of SrAl₂O₄∶Eu²⁺，Dy³⁺ phosphors for AC-LEDs［J］. J Alloys Comp， 2015， 651： 497-502.
7	LI B， XIE Q， QIN H， et al. Optical properties of SrAl_2- xSixO_4- xNx∶Eu²⁺，Dy³⁺ phosphors for AC-LEDs［J］. J Alloys Comp， 2016， 679： 436-441.
8	VAIDYANATHAN S. Recent progress on lanthanide-based long persistent phosphors： an overview［J］. J Mater Chem C， 2023， 11（26）： 8649-8687.
9	UEDA J， DORENBOS P， BOS A J J， et al. Control of electron transfer between Ce³⁺ and Cr³⁺ in the Y₃Al₅ xGaxO₁₂ host via conduction band engineering［J］. J Mater Chem C， 2015， 3（22）： 5642-5651.
10	LI W H， ZHUANG Y X， ZHENG P， et al. Tailoring trap depth and emission wavelength in Y₃Al_5- xGaxO₁₂∶Ce³⁺，V³⁺ phosphor-in-glass films for optical information storage［J］. ACS Appl Mater Interfaces， 2018， 10（32）： 27150-27159.
11	LIU Y F， LIU P， WANG L， et al. A two-step solid-state reaction to synthesize the yellow persistent Gd₃Al₂Ga₃O₁₂∶Ce³⁺ phosphor with an enhanced optical performance for AC-LEDs［J］. Chem Commun， 2017， 53（77）： 10636-10639.
12	LIN H， WANG B， HUANG Q， et al. Lu₂CaMg₂（Si_1- xGex）₃O₁₂∶Ce³⁺ solid-solution phosphors： bandgap engineering for blue-light activated afterglow applicable to AC-LED［J］. J Mater Chem C， 2016， 4（43）： 10329-10338.
13	LIN H， XU J， HUANG Q， et al. Bandgap tailoring via Si doping in inverse-garnet Mg₃Y₂Ge₃O₁₂∶Ce³⁺ persistent phosphor potentially applicable in AC-LED［J］. ACS Appl Mater Interfaces， 2015， 7（39）： 21835-21843.
14	YUAN W， PANG R， WANG S， et al. Enhanced blue-light excited cyan-emitting persistent luminescence of BaLu₂Al₂Ga₂SiO₁₂∶Ce³⁺，Bi³⁺ phosphors for AC-LEDs via defect modulation［J］. Light： Sci Appl， 2022， 11（1）： 184.
15	YUAN W， PANG R， WANG S， et al. Blue-light activated green emitting BaY₂Al₂Ga₂SiO₁₂∶Ce³⁺，Bi³⁺： efficient persistent luminescence phosphors for AC-LEDs［J］. Inorg Chem Front， 2022， 10（4）： 1203-1214.
16	HARIYANI S， SÓJKA M， SETLUR A， et al. A guide to comprehensive phosphor discovery for solid-state lighting［J］. Nat Rev Mater， 2023， 8（11）： 759-775.
17	CHANG S， FU J， WANG K， et al. Correlating doping with the stability and color rendition of red phosphors［J］. Adv Mater， 2022， 3（16）： 6529-6538.
18	QUANG V X， DAT N N， TUYEN V P， et al. VUV spectroscopy of lanthanide doped fluoride crystals K₂YF₅［J］. Opt Mater， 2020， 107： 110049.
19	MURAYAMA Y， WATANABE S， AKASE M， et al. Effects of composition and reduction conditions on persistent luminescence of SrAl₂O₄∶Eu，Dy prepared via a solid-state reaction［J］. J Lumin， 2022， 251： 119248.
20	VAN DER HEGGEN D， JOOS J J， FENG A， et al. Persistent luminescence in strontium aluminate： a roadmap to a brighter future［J］. Adv Funct Mater， 2022， 32（52）： 2208809.
21	XU C， YU S， SHI L， et al. A new insight into the mechanism of persistent luminescence phosphors SrS∶Eu²⁺，Pr³⁺［J］. Radiat Eff Defects Solids， 2023， 178（7/8）： 898-911.
22	KHARE A， MISHRA S， KSHATRI D S， et al. Optical properties of rare earth doped SrS phosphor： a review［J］. J Electron Mater， 2017， 46： 687-708.
23	DOS SANTOS D O A， GIORDANO L， BARBARÁ M A S G， et al. Abnormal co-doping effect on the red persistent luminescence SrS∶Eu²⁺，RE³⁺ materials［J］. Dalton Trans， 2020， 49（45）： 16386-16393.
24	ZHANG C， YANG J， LIN C， et al. Reduction of Eu³⁺ to Eu²⁺ in MAl₂Si₂O₈ （M=Ca， Sr， Ba） in air condition［J］. J Solid State Chem， 2009， 182（7）： 1673-1678.
25	DELGADO T， AFSHANI J， HAGEMANN H. Spectroscopic study of a single crystal of SrAl₂O₄∶Eu²⁺∶Dy³⁺［J］. J Phy Chem C， 2019， 123（14）： 8607-8613.
26	XU J W， CHEN G Q. Realizing white LEDs with high luminous efficiency and high color rendering index by using double green phosphors［J］. Results Phys， 2019， 15： 102648.
27	MIRHOSSEINI R， SCHUBERT M F， CHHAJED S， et al. Improved color rendering and luminous efficacy in phosphor-converted white light-emitting diodes by use of dual-blue emitting active regions［J］. Opt Express， 2009， 17（13）： 10806-10813.
28	KARPOV S Y. Light-emitting diodes for solid-state lighting： searching room for improvements［C］. SPIE， 2016， 9768： 19-35.
29	迈克·伍德，施端. 新旧明视觉光谱光视效率曲线［J］. 演艺科技， 2021（10）： 1-4.
	WOOD M， SHI D. Photopic curves—the old and the new［J］. Enter Technol， 2021（10）： 1-4.
30	黄彦，杨春宇. 光源光色对明视觉功效影响的模拟实验研究［J］. 灯与照明， 2015， 39（3）： 1-4.
	HUANG Y， YANG C Y. The simulative experimental analysis of the effect of light color on photopic visual performance［J］. Light Light， 2015， 39（3）： 1-4.
31	AZUMA T. CIE 13.3-1995 method of measuring and specifying colour rendering properties of light sources［S］. CIE， Vienna， 1995.
32	YING S P， SHEN J Y. Concentric ring phosphor geometry on the luminous efficiency of white-light-emitting diodes with excellent color rendering property［J］. Opt Lett， 2016， 41（9）： 1989-1992.
