Synthesis and Characterization of Highly Stable Nano-Sized Y Zeolite

doi:10.19894/j.issn.1000-0518.250291

Chinese Journal of Applied Chemistry ›› 2026, Vol. 43 ›› Issue (3): 373-386.DOI: 10.19894/j.issn.1000-0518.250291

• Full Papers • Previous Articles Next Articles

Synthesis and Characterization of Highly Stable Nano-Sized Y Zeolite

Jing-Hang XUE(), Bo QIN, Wei LIU, Tong ZHANG, Wen-Jie XIE

Sinopec Dalian Research Institute of Petroleum and Petrochemicals，Dalian 116045，China

Received:2025-07-20 Accepted:2025-10-16 Published:2026-03-01 Online:2026-03-26
Contact: Jing-Hang XUE
About author:xuejinghang.fshy@sinopec.com
Supported by:
the Joint Funds of the National Natural Science Foundation of China(U24A202895)

Abstract

Abstract:

Nano-sized Y zeolite has attracted increasing attention in the petroleum refining industry due to its excellent diffusion properties and abundant external surface acid sites. However， synthesizing highly stable nanosized Y zeolite still remains challenging. A novel hydrothermal crystallization method was developed using inexpensive anionic surfactant ammonium fatty alcohol ether sulfate （AESA） as a template agent. The synthesis involved a strategy of multiple gel formation steps， multi-stage crystallization， and post-addition of silicon source. The effects of synthesis conditions， AESA/Al₂O₃ ratio， and Na₂O/Al₂O₃ ratio on the morphology and physicochemical properties of the zeolite were investigated. The synthesized materials were characterized by powder X-ray diffraction （XRD）， X-ray fluorescence spectroscopy （XRF）， N? physisorption fourier transform infrared spectroscopy （FT-IR）， pyridine-adsorbed FT-IR （Py-FTIR）， solid-state NMR （²⁹Si MAS NMR and ²⁷Al MAS NMR）， scanning electron microscopy （SEM）， transmission electron microscopy （TEM）， and EDS-mapping. The hydrothermal stability at high temperatures was compared between the nano-sized Y and commercial Y zeolites. The results demonstrate that under optimized synthesis conditions， the nano-sized zeolite exhibits an average particle size of 83 nm， a silica-alumina ratio （SAR） of 5.8， a unit cell parameter of 24.62 ?， and a specific surface area of 887 m2/g. After hydrothermal treatment at 600 °C， the reduction rate of relative crystallinity was 16.0%， which recovered to 7.1% after acid treatment. Compared to commercial Y zeolite， the nano-sized Y zeolite possesses highly developed secondary pore structure （pore size distribution mainly in the 10~80 nm range）， retains more acid sites， and exhibits superior stability， which were attributed to its improved framework integrity and higher SAR.

Key words: Y zeolite, Nano-sized, High stability

CLC Number:

O611.4

Jing-Hang XUE, Bo QIN, Wei LIU, Tong ZHANG, Wen-Jie XIE. Synthesis and Characterization of Highly Stable Nano-Sized Y Zeolite[J]. Chinese Journal of Applied Chemistry, 2026, 43(3): 373-386.

Figures/Tables 21

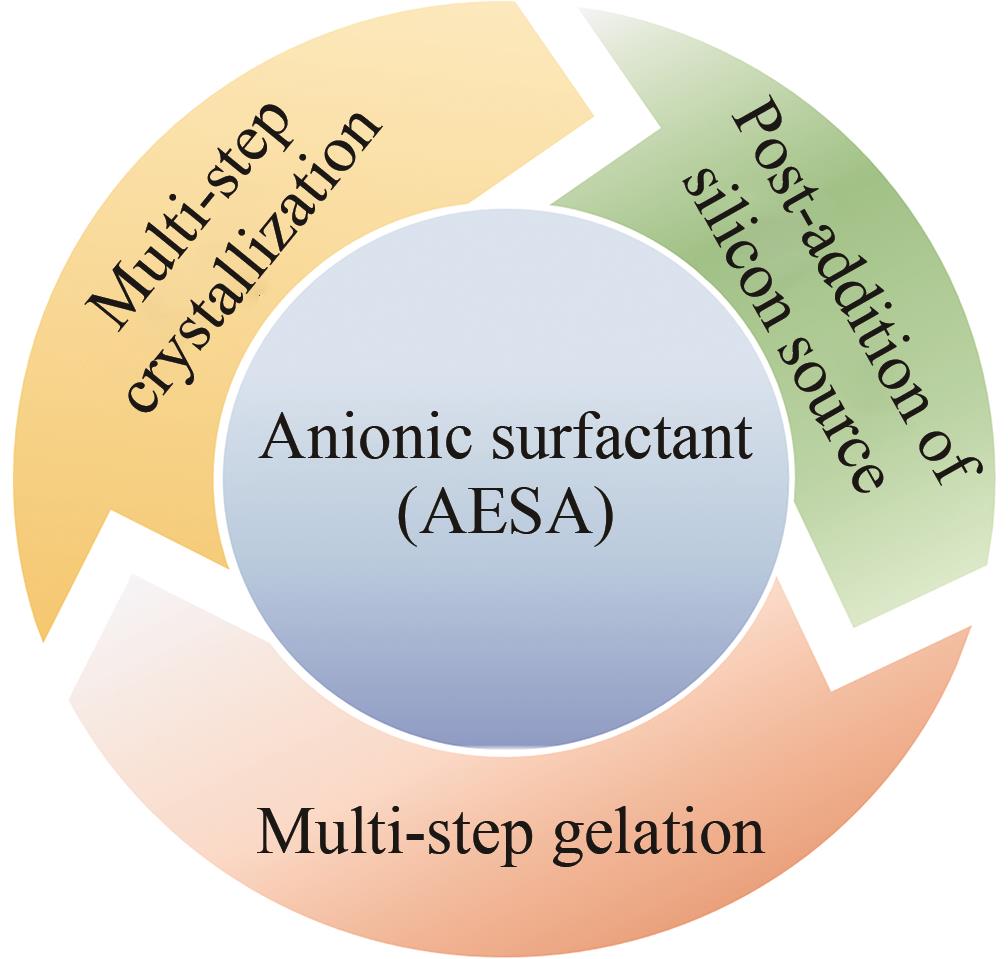

Fig.1 Synthesis strategies for highly stable nano-sized Y zeolite

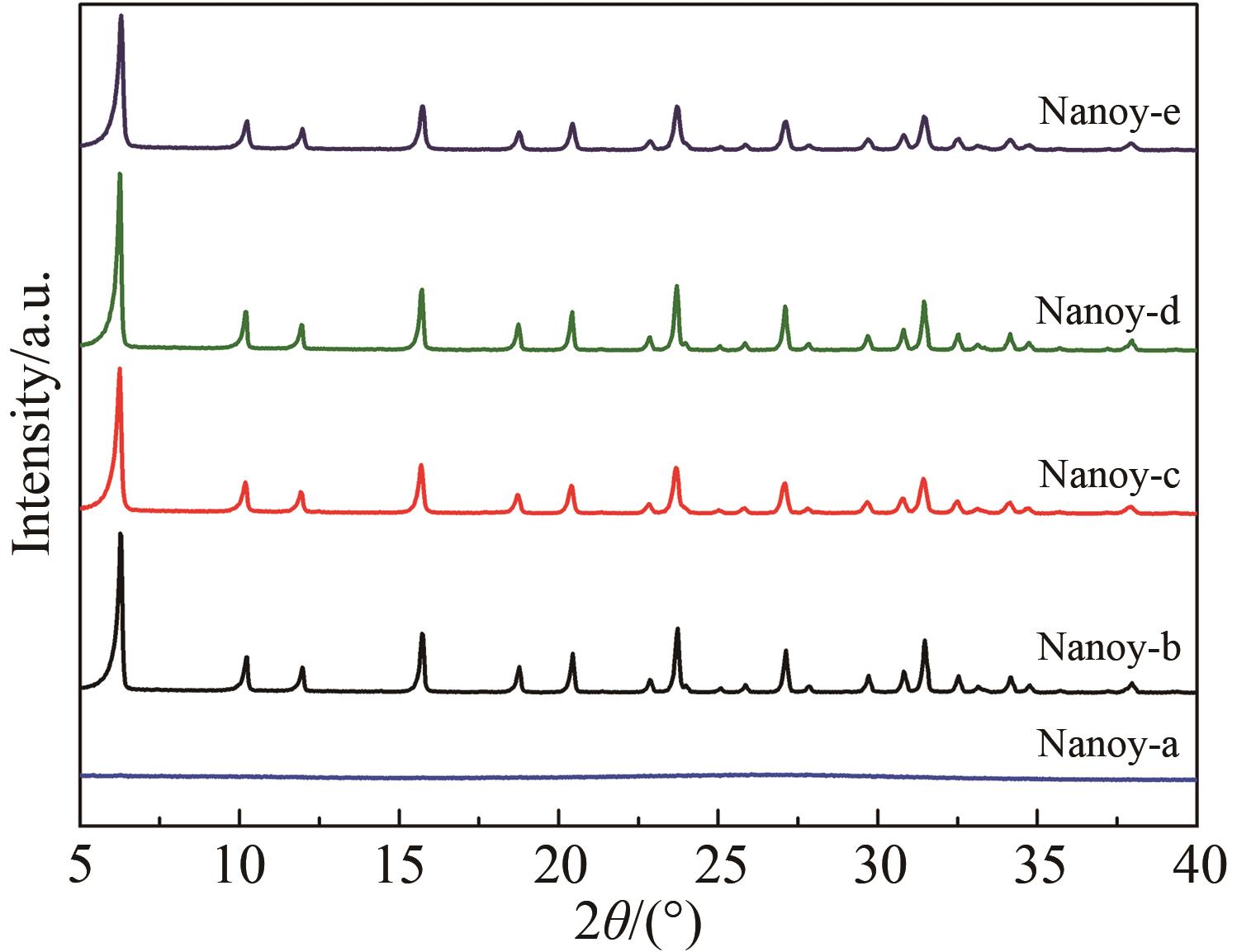

Fig.2 XRD spectra of products obtained by different synthesis methods

Table 1 Physicochemical properties of products obtained by different synthesis methods

Sample	S_BET/（m²·g^-1）	V_total/（cm³·g^-1）	SAR
Nanoy-b	858	0.37	5.3
Nanoy-c	861	0.40	5.1
Nanoy-d	856	0.37	4.9
Nanoy-e	859	0.40	4.6

Fig.3 SEM images of products obtained by different synthesis methods

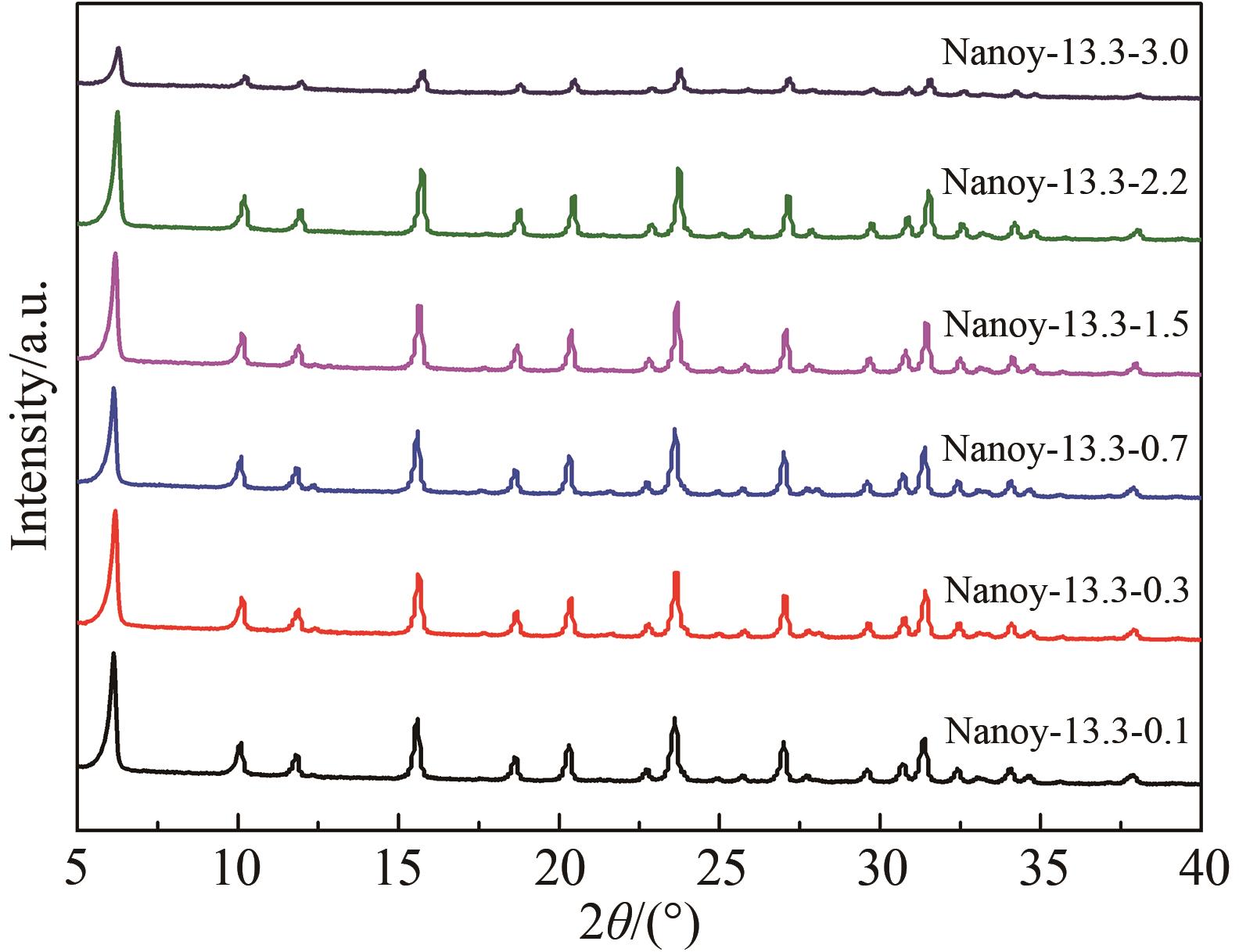

Fig.4 XRD patterns of products synthesized with different n（AESA）/n（Al2O3）

Fig.5 FT-IR spectra of products synthesized with different n（AESA）/n（Al2O3）

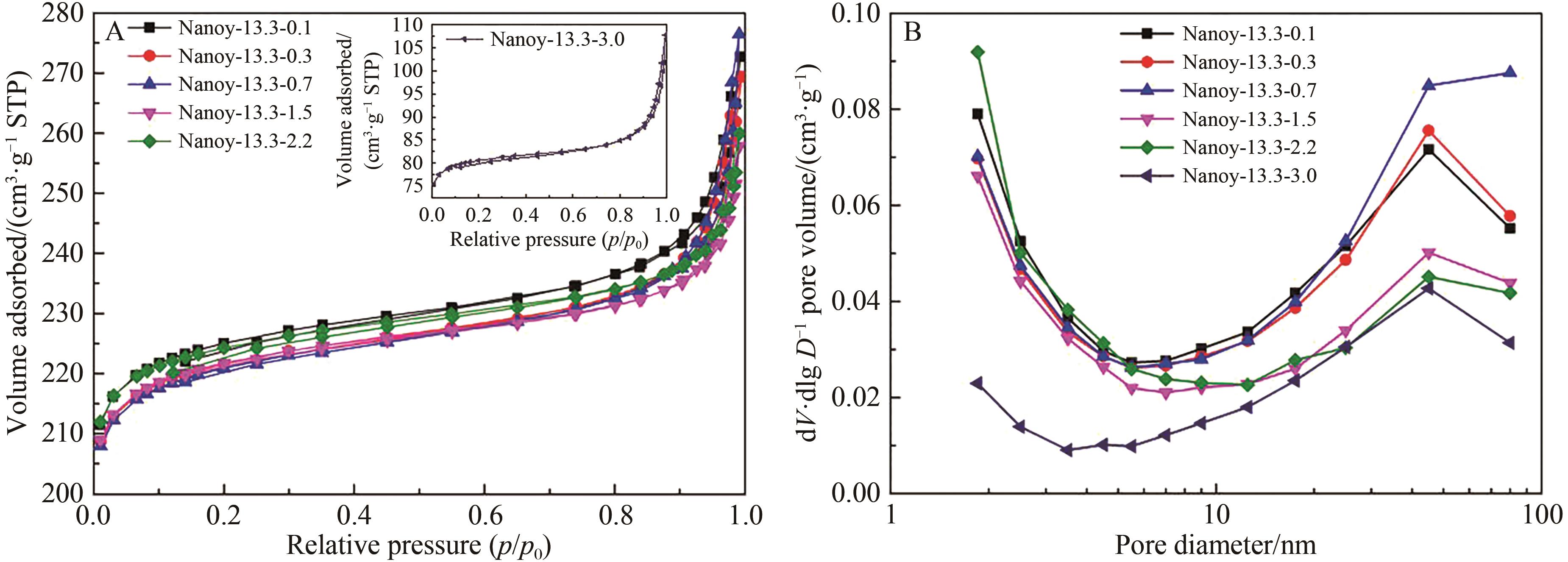

Fig.6 （A） N2 adsorption-desorption isotherms and （B） pore size distributions of samples with different n（AESA）/n（Al2O3）

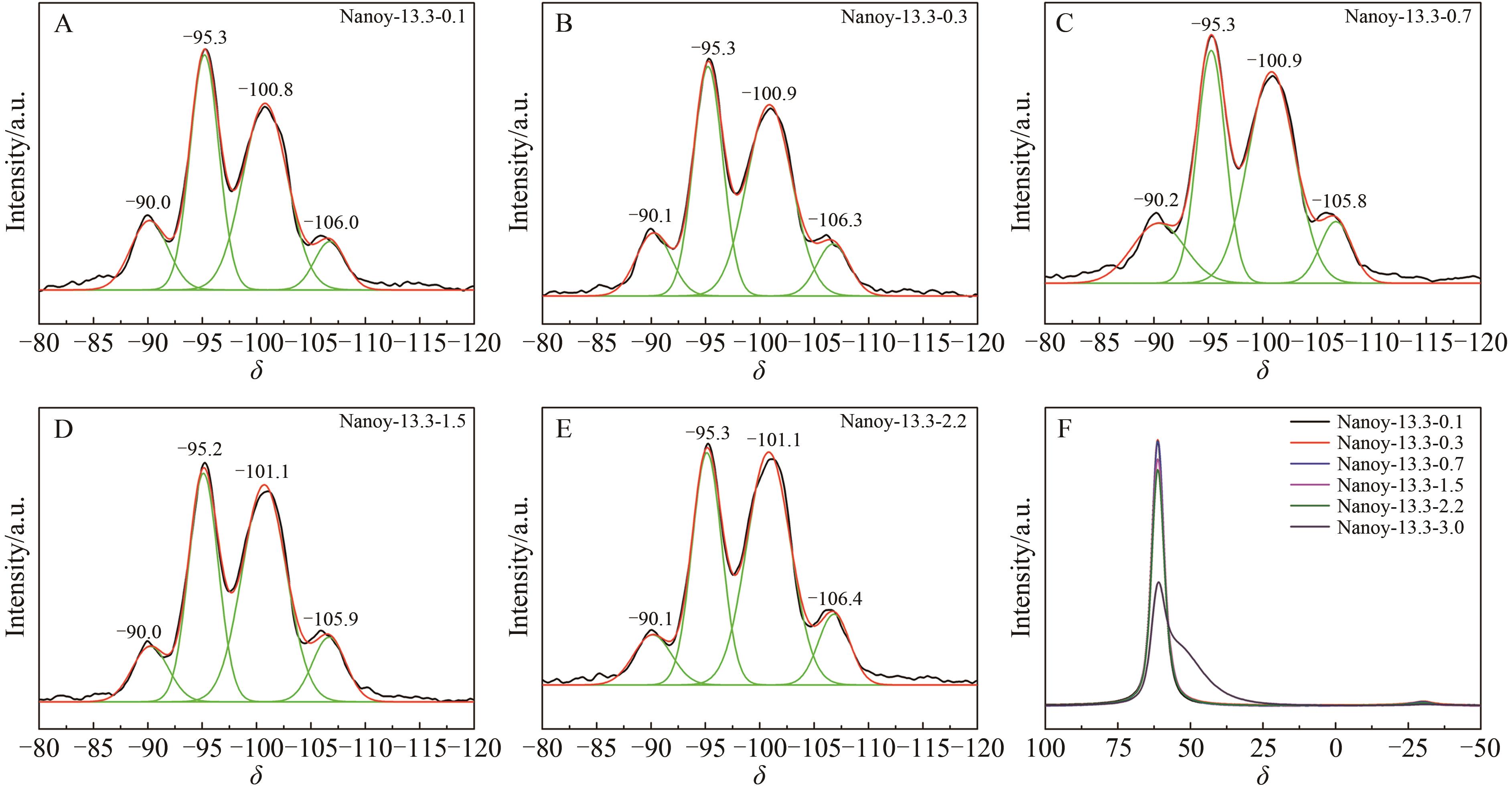

Fig.7 2?Si （A， B， C， D， E） and 2?Al （F） MAS NMR spectra of products synthesized with different n（AESA）/n（Al2O3）

Table 2 The SAR of products with different n（AESA）∶n（Al2O3）

Sample	SAR （XRF）	a₀/?	SAR （XRD） ^a	Composition/% of Q⁴（nAl）				SAR （²⁹Si NMR） ^b
Sample	SAR （XRF）	a₀/?	SAR （XRD） ^a	3	2	1	0	SAR （²⁹Si NMR） ^b
Nanoy-13.3-0.1	5.2	24.64	5.4	13.4	35.2	43.6	7.8	5.2
Nanoy-13.3-0.3	5.3	24.64	5.4	12.5	33.9	44.9	8.7	5.3
Nanoy-13.3-0.7	5.4	24.63	5.6	14.5	30.5	45.9	9.1	5.3
Nanoy-13.3-1.5	5.7	24.60	6.1	9.8	33.0	46.7	10.5	5.6
Nanoy-13.3-2.2	5.7	24.60	6.1	9.0	32.5	48.0	10.5	5.7
Nanoy-13.3-3.0	5.9	24.61	6.0	-	-	-	-	-

Fig.8 SEM images of synthesized products with different n（AESA）/n（Al2O3）

Fig.9 TEM images of synthesized products with different n（AESA）/n（Al2O3）

Fig.10 XRD patterns of synthesized products with different n（Na2O）/n（Al2O3）

Table 3 Physicochemical properties of synthesized products with different n（Na2O）∶n（Al2O3）

Sample	S_BET/（m²·g^-1）	S_micro/（m²·g^-1）	S_meso/（m²·g^-1）	V_total/（cm³·g^-1）	V_micro/（cm³·g^-1）	V_meso/（cm³·g^-1）	SAR	a₀/?	Relative crystallinity/%
Nanoy-12.3-0.5	832	764	68	0.38	0.30	0.08	6.0	24.61	77.77
Nanoy-12.8-0.5	874	799	75	0.40	0.32	0.08	6.0	24.61	75.21
Nanoy-13.3-0.5	865	790	75	0.40	0.32	0.08	5.6	24.63	64.07
Nanoy-13.8-0.5	859	783	76	0.40	0.31	0.09	5.4	24.64	65.49
Nanoy-14.3-0.5	844	767	77	0.39	0.31	0.08	4.2	24.73	64.24
Nanoy-14.8-0.5	651	597	54	0.33	0.24	0.09	4.1	24.74	47.08

Fig.11 SEM images of synthesized products with different n（Na2O）/n（Al2O3）

Fig.12 TEM images of nano-sized Y zeolite under different scales：（A） 500 nm （inset： particle size distribution from TEM）；（B） 100 nm

Fig.13 TEM-EDS elemental mapping images of nano-sized Y zeolite

Fig.14 XRD patterns of Y zeolite：（A） After ammonium ion exchange；（B） After high-temperature（600 ℃） hydrothermal treatment；（C） After acid treatment

Table 4 Comparison of the physicochemical properties of commercial Y and nanosized Y zeolite

Sample	S_BET/（m²·g^-1）	S_micro/（m²·g^-1）	S_meso/（m²·g^-1）	V_total/（cm³·g^-1）	V_micro/（cm³·g^-1）	V_meso/（cm³·g^-1）	SAR	a₀/?	Relative crystallinity/%	Reduction rate of relative crystallinity ^x /%
Coml Y	850	797	53	0.36	0.32	0.04	5.0	24.67	93.0	-
Nano Y	887	807	80	0.41	0.32	0.09	5.8	24.62	73.0	-
Coml-USY	537	431	106	0.33	0.17	0.16	5.0	24.39	51.2	44.9
Nano-USY	623	549	74	0.36	0.22	0.14	5.8	24.39	61.3	16.0
Coml-AUSY	730	579	151	0.45	0.23	0.22	14.7	24.39	54.9	41.0
Nano-AUSY	786	671	115	0.44	0.27	0.17	15.6	24.38	67.8	7.1

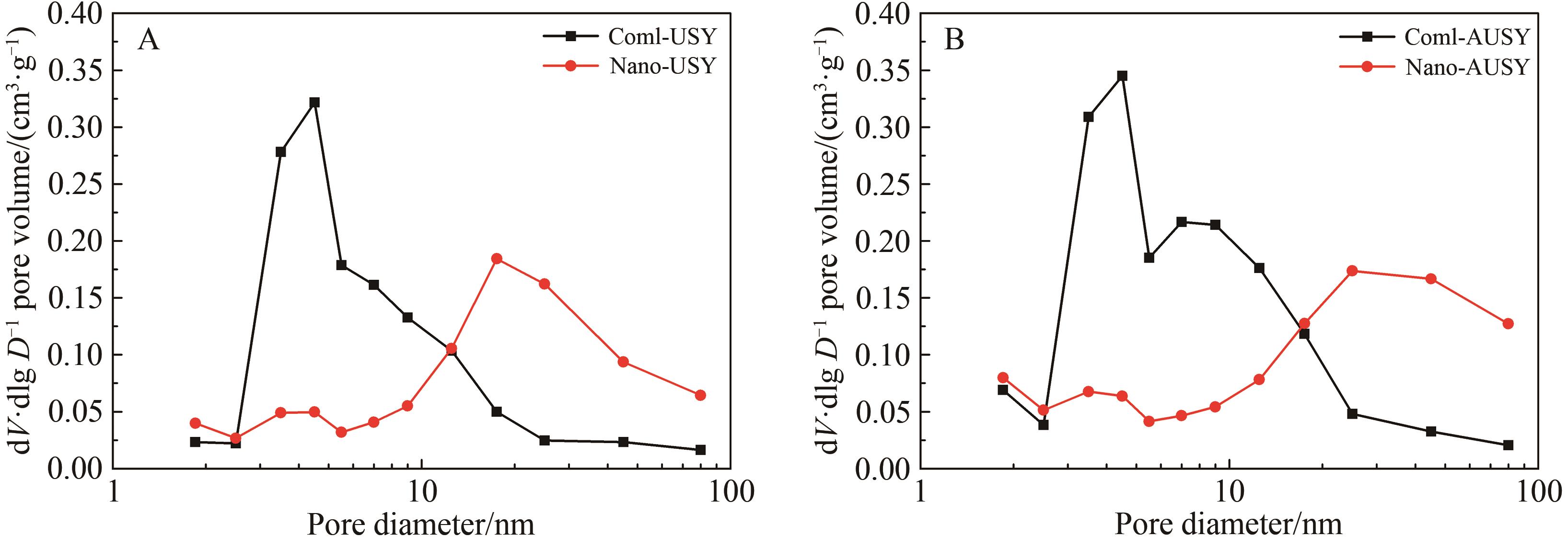

Fig.15 BJH pore diameter distribution of Y zeolite after （A） hydrothermal treatment and （B） acid treatment

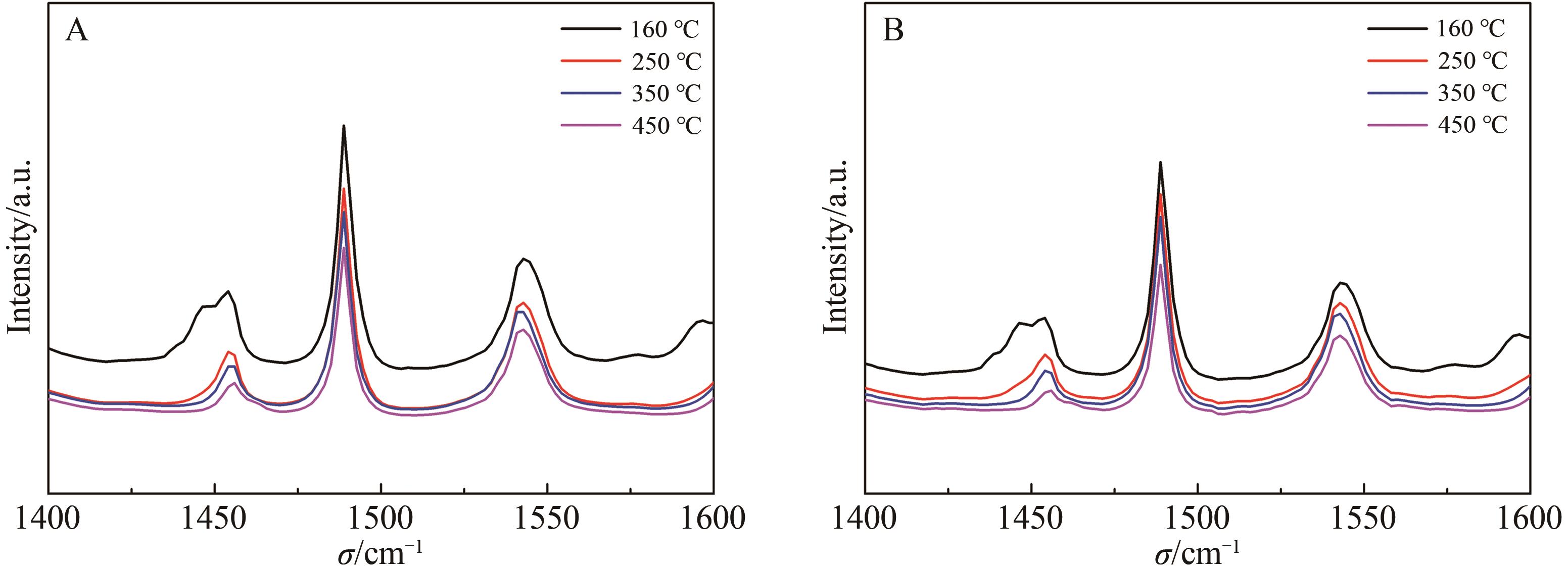

Fig.16 Py-FT-IR spectra of Y zeolite after acid treatment （A） Coml-AUSY and （B） Nano-AUSY

Table 5 Py-FT-IR acid content of Y zeolite after acid treatment

Sample	Acid amount（160 ℃）/（mmol·g^-1）				Acid amount（450 ℃）/（mmol·g^-1）
Sample	B	L	B+L	B/L	B	L	B+L	B/L
Coml-AUSY	0.52	0.24	0.76	2.17	0.29	0.07	0.36	4.14
Nano-AUSY	0.61	0.26	0.87	2.35	0.37	0.06	0.43	6.17

References 18

[1]	LI T S， LIU H Y， FAN Y， et al. Synthesis of zeolite Y from natural aluminosilicate minerals for fluid catalytic cracking application［J］. Green Chem， 2012， 14（12）： 3255-3259.
[2]	DE JONG K P， ZECEVIC J， FRIEDRICH H， et al. Zeolite Y crystals with trimodal porosity as ideal hydrocracking catalysts［J］. Angew Chem Int Ed， 2010， 49（52）： 10074-10078.
[3]	WEI L J， PENG P， QIAO K， et al. Hierarchical Y zeolite with accessible intracrystalline mesopores and enhanced hydrocracking performances via sequential multi-carboxyl acid and fluoroborate post-treatments［J］. Fuel， 2023， 354： 129289.
[4]	MASTROPIETRO T F， DRIOLI E， POERIO T. Low temperature synthesis of nanosized NaY zeolite crystals from organic-free gel by using supported seeds［J］. RSC Adv， 2014， 4（42）： 21951-21957.
[5]	WANG B， LI Y Z， SHAO C R， et al. Rapid and high yield synthesis method of colloidal nano faujasite［J］. Microporous Mesoporous Mater， 2016， 230： 89-99.
[6]	AWALA H， GILSON J P， RETOUX R， et al. Template-free nanosized faujasite-type zeolites［J］. Nat Mater， 2015， 14（4）： 447-451.
[7]	RADMAN H M， DABBAWALA A A， ISMAIL I， et al. Influence of salt on nanozeolite-Y particles size synthesized under organic template-free condition［J］. Microporous Mesoporous Mater， 2019， 282： 73-81.
[8]	BOREL M， DODIN M， DAOU T J， et al. SDA-free hydrothermal synthesis of high-silica ultra-nanosized zeolite Y［J］. Crystal Growth Design， 2017， 17（3）： 1173-1179.
[9]	HOLMBERG B A， WANG H T， NORBECK J M， et al. Controlling size and yield of zeolite Y nanocrystals using tetramethylammonium bromide［J］. Microporous Mesoporous Mater， 2003， 59（1）： 13-28.
[10]	QI J Y， GUO Y N， JIA H Q， et al. Unpredictable properties of industrial HY zeolite for tetralin hydrocracking［J］. Fuel Process Technol， 2023， 240： 107586.
[11]	GARCIA-MARTINEZ J， JOHNSON M， VALLA J， et al. Mesostructured zeolite Y-high hydrothermal stability and superior FCC catalytic performance［J］. Catal Sci Technol， 2012， 2（5）： 987-994.
[12]	WANG J， WANG L Y， ZHU D L， et al. Progress in direct synthesis of high silica zeolite Y［J］. Chem J Chin Univ， 2021， 42（1）： 10.
[13]	PENG P， ZHANG Z Q， WANG Y H， et al. Hierarchical molecular sieves： synthesis and catalytic applications［J］. Prog Chem， 2013， 25（12）： 2028-2037.
[14]	ZHANG X W， GUO Q， QIN B， et al. Structural features of binary microporous zeolite composite Y-beta and its hydrocracking performance［J］. Catal Today， 2010， 149（1/2）： 212-217.
[15]	LI Q， CREASER D， STERTE J. An investigation of the nucleation/crystallization kinetics of nanosized colloidal faujasite zeolites［J］. Chem Mater， 2002， 14（3）：1319-1324.
[16]	CHAVES T F， PASTORE H O， CARDOSO D. A simple synthesis procedure to prepare nanosized faujasite crystals［J］. Microporous Mesoporous Mater， 2012， 161： 67-75.
[17]	TANG T， ZHANG L， DONG H， et al. Organic template-free synthesis of zeolite Y nanoparticle assemblies and their application in the catalysis of the Ritter reaction［J］. RSC Adv， 2017， 7（13）： 7711-7717.
[18]	HUO Q， DOU T， ZHAO Z， et al. Synthesis and application of a novel mesoporous zeolite L in the catalyst for the HDS of FCC gasoline［J］. Appl Catal A Gen， 2010， 381（1/2）： 101-108.
