Exploring the Therapeutic Mechanism of Platycladus Orientalis Leaves on Exercise-Induced Asthma Based on Network Pharmacology and Molecular Docking

doi:10.19894/j.issn.1000-0518.240397

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (12): 1701-1710.DOI: 10.19894/j.issn.1000-0518.240397

• Full Papers • Previous Articles Next Articles

Exploring the Therapeutic Mechanism of Platycladus Orientalis Leaves on Exercise-Induced Asthma Based on Network Pharmacology and Molecular Docking

Peng WANG¹, Chao-Fa ZHANG¹(), Si-Jie LIANG²

^1.Sports Department，Xuzhou Medical University，Xuzhou 221000，China
^2.Affiliated Hospital，Xuzhou Medical University，Xuzhou 221000，China

Received:2024-12-06 Accepted:2025-11-07 Published:2025-12-01 Online:2025-12-30
Contact: Chao-Fa ZHANG
Supported by:
the Key Project of Jiangsu Provincial Health Commission(ZD2022064)

Abstract

Abstract:

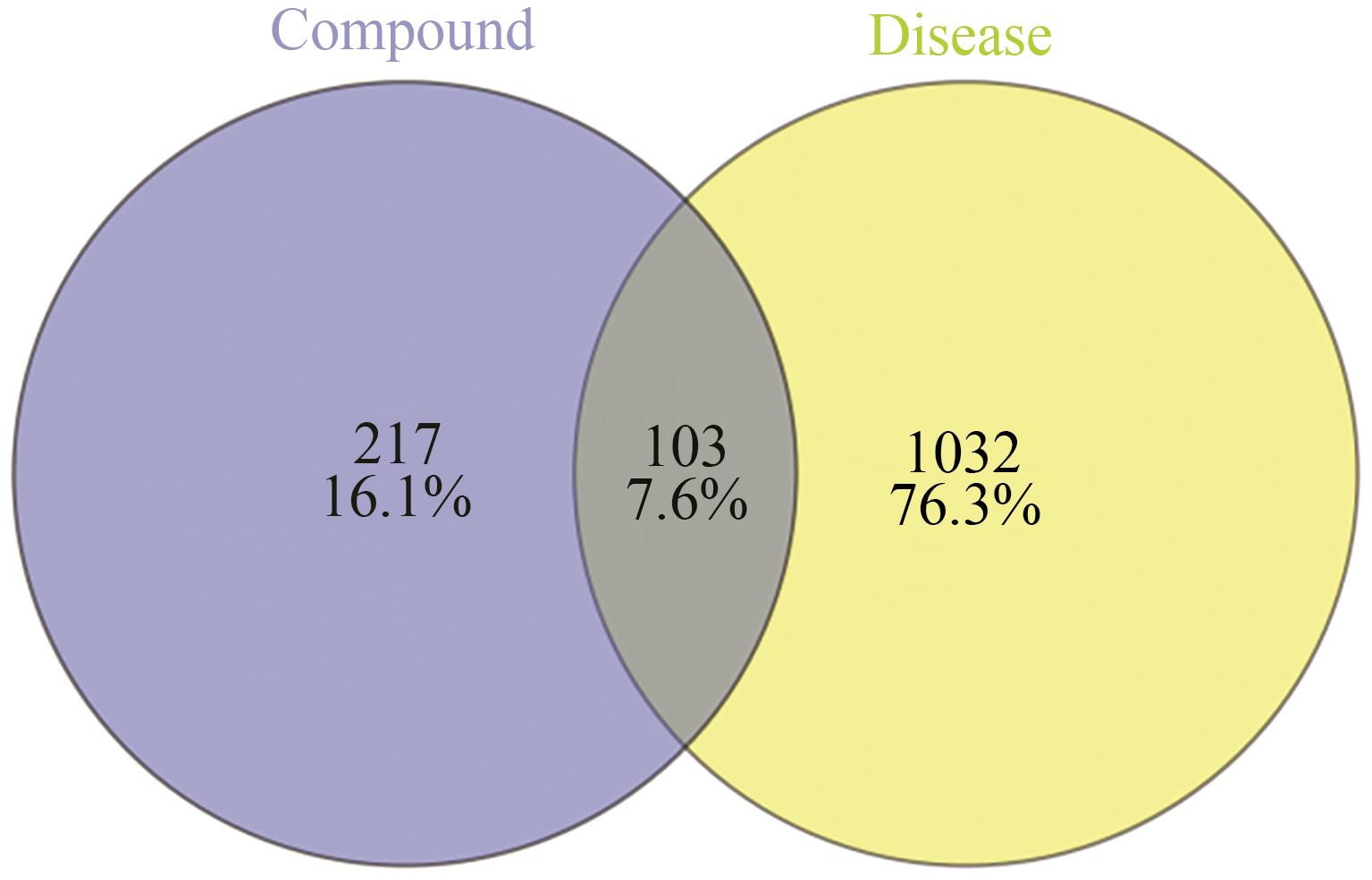

This study uses network pharmacology and molecular docking techniques to investigate the therapeutic mechanism of platycladus orientalis leaves （side-bai-ye） on exercise-induced asthma， aiming to provide richer theoretical support and new strategies for the treatment of this disease. First， the chemical components of platycladus orientalis leaves were retrieved from the TCMSP database， and active components with therapeutic potential were screened. Gene Cards database was then used to identify potential targets associated with exercise-induced asthma， and the Venny 2.1.0 database was employed to determine the common action targets between platycladus orientalis leaves and exercise-induced asthma. Next， based on the common action targets， the “exercise-induced asthma-targets-platycladus orientalis components-pathways” interaction network was constructed using Cytoscape 3.9.1 software. Finally， the interaction network of common action targets was built using the String database， followed by kyoto encyclopedia of genes and genomes （KEGG） and gene ontology （GO） enrichment analysis using the Divid database. Molecular docking analysis was performed using AutoDock Tools 1.5.7 software to predict the binding modes and affinities between these molecules. The results showed that the effective active components of platycladus orientalis leaves mainly include Isorhamnetin， Kaempferol， and Quercetin. There are 103 common targets between platycladus orientalis leaves and exercise-induced asthma， with 23 core targets. GO and KEGG enrichment analyses suggest that platycladus orientalis leaves treat exercise-induced asthma by regulating cancer-related pathways， metabolic pathways， PI3K-Akt signaling， and other signaling pathways. Molecular docking analysis revealed that AKT1， TP53， BCL2， PTGS2， and CASP3 may be key targets for platycladus orientalis leaves in treating exercise-induced asthma， mediating the cancer-related pathways， metabolic pathways， and other signaling pathways through active components such as Isorhamnetin， Kaempferol， and Quercetin， thus exerting a multi-target and multi-pathway synergistic therapeutic effect. In vivo and in vitro experiments further confirmed that the active components of platycladus orientalis leaves can participate in the treatment process of exercise-induced asthma by regulating the expression of core target proteins.

Key words: Platycladus orientalis leaves, Exercise-induced asthma, Network pharmacology, Signaling pathways

CLC Number:

O651

Peng WANG, Chao-Fa ZHANG, Si-Jie LIANG. Exploring the Therapeutic Mechanism of Platycladus Orientalis Leaves on Exercise-Induced Asthma Based on Network Pharmacology and Molecular Docking[J]. Chinese Journal of Applied Chemistry, 2025, 42(12): 1701-1710.

Figures/Tables 11

References 11

[1]	刘猛，章政，高炳宏，等. 橘皮素生物活性及其对运动性哮喘的潜在功效［J］. 天然产物研究与开发， 2023， 35（6）： 1088-1099.
	LIU M， ZHANG Z， GAO B H， et al. Biological activities of Naringenin and its potential benefits for exercise-induced asthma［J］. Nat Prod Res Dev， 2023， 35（6）： 1088-1099.
[2]	张长皓，卢根. 识别哮喘儿童运动诱发的支气管痉挛的研究进展［J］. 国际儿科学杂志， 2023（8）： 508-511.
	ZHANG C H， LU G. Research progress on identifying exercise-induced bronchospasm in children with asthma［J］. Int J Pediatr， 2023（8）： 508-511.
[3]	张瑞峰，曾阳，刘力宽，等. 侧柏叶的化学成分与药理学作用研究进展［J］. 中国野生植物资源， 2021， 40（4）： 53-56.
	ZHANG R F， ZENG Y， LIU L K， et al. Advances in the chemical components and pharmacological activities of platycladicacumen［J］. Chin Wild Plant Res， 2021， 40（4）： 53-56.
[4]	普冰清，徐怡，曹红云，等. HPLC结合聚类分析法对不同产地侧柏叶中化学成分的比较分析［J］. 云南中医中药杂志， 2017， 38（8）： 78-79.
	PU B Q， XU Y， CAO H Y， et al. Comparative analysis of chemical components in platycladi cacumen from different origins using HPLC combined with cluster analysis［J］. Yunnan J Tradit Chin Med Mater Med， 2017， 38（8）： 78-79.
[5]	雷萌，戴佳锟，曹朵，等. 侧柏叶和种子的化学成分及其药理作用研究进展［J］. 生命的化学， 2018， 38（2）： 281-289.
	LEI M， DAI J K， CAO D， et al. Advances in the chemical components and pharmacological effects of platycladi cacumen and its seeds ［J］. Chem Life， 2018， 38（2）： 281-289.
[6]	冯康，王福岗，席彩彩. 从叶熙春治血证用侧柏叶初探其药性寒温之别［J］. 内蒙古中医药， 2024， 43（3）： 144-146.
	FENG K， WANG F G， XI C C. A preliminary study on the cold and warm properties of platycladi cacumen based on Ye Xichun's treatment of blood disorders［J］. Inner Mongolia J Tradit Chin Med， 2024， 43（3）： 144-146.
[7]	周巍. 侧柏叶挥发油的GC-MS分析及抑菌作用研究［J］. 信阳农林学院学报， 2018， 28（4）： 110-113.
	ZHOU W. GC-MS analysis of volatile oils from platycladi cacumen and its antibacterial effects［J］. J Xinyang Agric For Univ， 2018， 28（4）： 110-113.
[8]	江雯，叶晨，胡熳，等. 基于网络药理学和分子对接探讨泽泻三萜抗肝纤维化的作用机制［J］. 中草药， 2022， 53（4）： 1100-1111.
	JIANG W， YE C， HU M， et al. Network pharmacology and molecular docking-based study on the anti-Fibrotic mechanism of alismatis triterpenes［J］. Chin Herb Med， 2022， 53（4）： 1100-1111.
[9]	李增，张明雪. 基于复方网络药理学和分子对接技术研究丹蒌片治疗冠心病的作用机制［J］. 辽宁中医杂志， 2023， 50（1）： 120-124.
	LI Z， ZHANG M X. Network pharmacology and molecular docking-based mechanistic study of Danlou tablets in treating coronary heart disease［J］. Liaoning J Tradit Chin Med， 2023， 50（1）： 120-124.
[10]	吴坚，薛晓燕，王丽芳，等. 分子对接方法应用与发展［J］. 亚太传统医药， 2013， 9（12）： 80-81.
	WU J， XUE X Y， WANG L F， et al. Application and development of molecular docking methods［J］. Asia Pac Tradit Med， 2013， 9（12）： 80-81.
[11]	段爱霞，陈晶，刘宏德，等. 分子对接方法的应用与发展［J］. 分析科学学报， 2009， 25（4）： 473-477.
	DUAN A X， CHEN J， LIU H D， et al. Applications and developments in molecular docking methods［J］. J Anal Sci， 2009， 25（4）： 473-477.

MOL ID	Molecule name	M_w	OB/%	DL
MOL002005	Hinokinin	354.38	56.5	0.64
MOL002032	DNOP	390.62	40.58	0.39
MOL000358	Beta-sitosterol	414.79	36.91	0.75
MOL002039	Isopimaric acid	302.50	36.19	0.28
MOL000422	Kaempferol	286.25	41.88	0.24
MOL000098	Quercetin	302.25	46.43	0.28

MOL ID	Molecule name	M_w	OB/%	DL
MOL002005	Hinokinin	354.38	56.5	0.64
MOL002032	DNOP	390.62	40.58	0.39
MOL000358	Beta-sitosterol	414.79	36.91	0.75
MOL002039	Isopimaric acid	302.50	36.19	0.28
MOL000422	Kaempferol	286.25	41.88	0.24
MOL000098	Quercetin	302.25	46.43	0.28

Rank	Target name	Degree	Betweenness	Closeness
1	AKT1	28	150.2	0.008 2
2	TP53	25	138.5	0.007 8
3	BCL2	22	125.7	0.007 5
4	PTGS2	20	118.9	0.007 1
5	CASP3	19	105.3	0.006 9
6	EGFR	17	92.1	0.006 5
7	SRC	16	88.7	0.006 3
8	MAPK3	15	85.4	0.006 1
9	ESR1	14	80.5	0.005 9
10	JAK2	13	76.8	0.005 7

Rank	Target name	Degree	Betweenness	Closeness
1	AKT1	28	150.2	0.008 2
2	TP53	25	138.5	0.007 8
3	BCL2	22	125.7	0.007 5
4	PTGS2	20	118.9	0.007 1
5	CASP3	19	105.3	0.006 9
6	EGFR	17	92.1	0.006 5
7	SRC	16	88.7	0.006 3
8	MAPK3	15	85.4	0.006 1
9	ESR1	14	80.5	0.005 9
10	JAK2	13	76.8	0.005 7

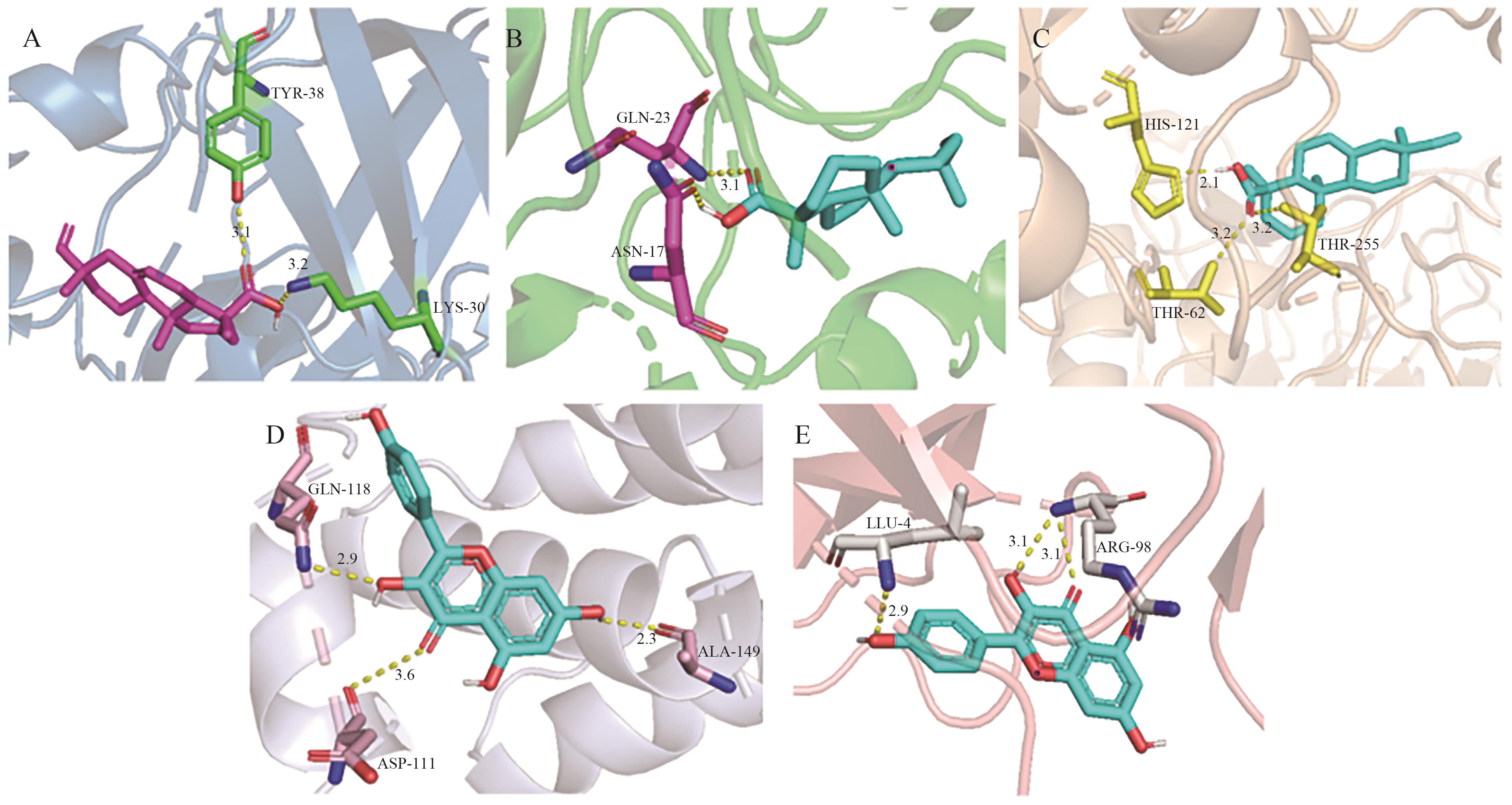

Pubchem CID	Ingredients	Target point	10^-4·Binding energy/（J·mol^-1）	PDB
442048	Isopimaric acid	AKT1	-4.14	7NHF
442048	Isopimaric acid	TP53	-3.43	3DCY
442048	Isopimaric acid	CASP3	-3.51	3DEI
5280863	Kaempferol	BCL2	-2.76	6GL8
5280863	Kaempferol	PTGS2	-3.22	5M2J

Exploring the Therapeutic Mechanism of Platycladus Orientalis Leaves on Exercise-Induced Asthma Based on Network Pharmacology and Molecular Docking

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 11

References 11

Related Articles 2

Recommended Articles

Metrics

Comments

Assay item	Group	AKT1	BCL2	PTGS2	TP53	CASP3
RT-PCR （mRNA）	Normal control group	-	-	-	-	-
	Model group	↑^*	↑^*	↑^*	↓^*	↓^*
	Active component treatment group	↓^**	↓^**	↓^**	↑^**	↑^**
Western blot	Normal control group	-	-	-	-	-
	Model group	↑^*	↑^*	↑^*	↓^*	↓^*
	Active component treatment group	↓^**，Active component Treatment group	↓^**，Dose-dependent	↓^**，Dose-dependent	↑^**，Dose-dependent	↑^**，Dose-dependent

Detection indicator	Group	Results （Compared to model group）	Trend/Conclusion
Lung function	Model group	FVC， FEV1， FEV1/FVC↓；Raw↑	Airway obstruction
Lung function	Active component Treatment group	FVC， FEV1， FEV1/FVC↑；Raw↓	Improved lung function， high dose > Low dose， combination group is best
BALF inflammatory factors	Model group	IL-4， IL-5， IL-13， TNF-α ↑	Exacerbated inflammatory response
BALF inflammatory factors	Active component Treatment group	IL-4， IL-5， IL-13， TNF-α ↓^*	Inhibited inflammatory factors
BALF inflammatory cells	Model group	Eosinophils %， Neutrophils % ↑	Inflammatory cell infiltration
BALF inflammatory cells	Active component Treatment group	Eosinophils %， Neutrophils % ↓^*	Reduced inflammatory cell infiltration
Lung tissue pathology	Model group	Epithelial damage， inflammatory infiltration， thickened airway wall， pathological score↑	Significant lung injury
Lung tissue pathology	Active component Treatment group	Injury alleviated， infiltration reduced， pathological score↓^*	Alleviated pathological damage
Immunohistochemistry （Lung tissue）	Model group	AKT1， BCL2， PTGS2 expression ↑； TP53， CASP3 expression ↓	Consistent with in vitro results
Immunohistochemistry （Lung tissue）	Active component treatment group	AKT1， BCL2， PTGS2 expression ↓； TP53， CASP3 expression ↑	Regulation of core target proteins
