Research Progress of Covalent Organic Framework Modified Silica Gel Composites in High Performance Liquid Chromatography

doi:10.19894/j.issn.1000-0518.240321

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (3): 313-320.DOI: 10.19894/j.issn.1000-0518.240321

• Review • Previous Articles

Research Progress of Covalent Organic Framework Modified Silica Gel Composites in High Performance Liquid Chromatography

Zhen LI¹^,², Zi-Xia TANG¹^,², Yang-Yang ZHANG¹, Yu-Chen CAO¹, Pei-Ke FU¹, Mei LYU¹, Li-Tao WANG¹^,²()

^1.School of Pharmacy，Jining Medical University，Rizhao 276826，China
^2.School of Pharmacy，Shandong First Medical University，Jinan 250117，China

Received:2024-10-16 Accepted:2025-03-04 Published:2025-03-01 Online:2025-04-11
Contact: Li-Tao WANG
About author:wanglilvtao@163.com
Supported by:
the Natural Science Foundation of Shandong Province(ZR2019MB035)

Abstract

Abstract:

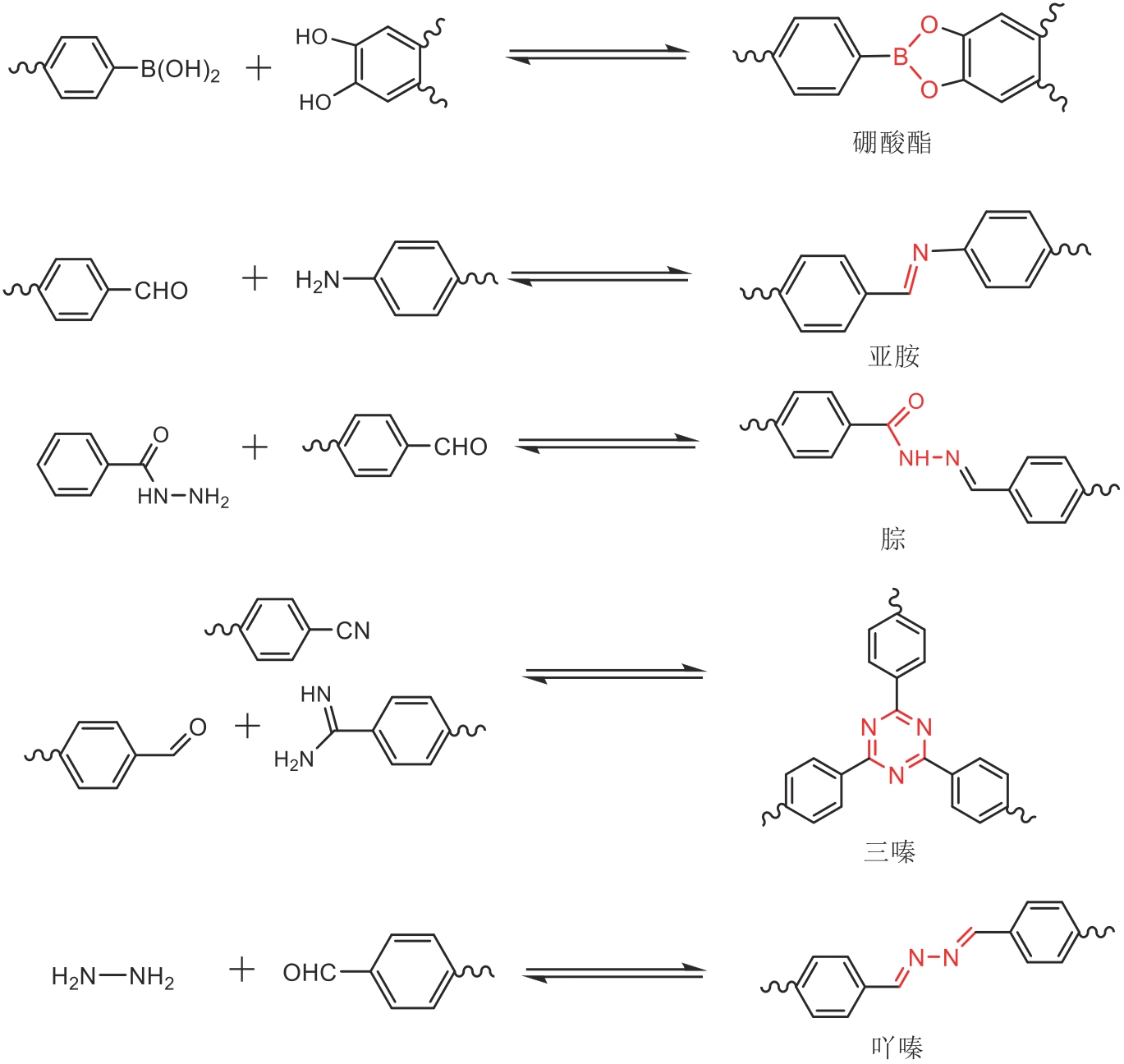

Covalent organic framework （COFs） has the advantages of high stability， easy modification and structural designability， and is regarded as a powerful choice for new stationary phase of high performance liquid chromatography. Although the application of COFs as chromatographic stationary phase is still in the initial stage， the development of new stationary phase materials to achieve efficient separation is still an important problem to be solved in the field of separation science. COFs silica gel composite material （COFs-SiO₂） combines the adjustable pore of COFs with the strong mechanical stability and pressure resistance of SiO₂， showing great potential in the field of chromatographic separation. In this paper， the advantages of COFs as stationary phase materials are summarized， and the design of COFs-SiO₂ composites by different connection methods such as triazine ring， imine bond， hydrazone bond and boron bond and its application in the separation of chiral compounds， isomers and environmental pollutant are introduced in detail. The application prospect of COFs-SiO₂ in high performance liquid chromatography was further prospected.

Key words: Covalent organic framework, High-performance liquid chromatography, Stationary phase, Composite materials

CLC Number:

O657.7

Zhen LI, Zi-Xia TANG, Yang-Yang ZHANG, Yu-Chen CAO, Pei-Ke FU, Mei LYU, Li-Tao WANG. Research Progress of Covalent Organic Framework Modified Silica Gel Composites in High Performance Liquid Chromatography[J]. Chinese Journal of Applied Chemistry, 2025, 42(3): 313-320.

Figures/Tables 3

References 41

1	JAEKEL A， LEGELLI M， WIRTZ M， et al. Selectivity optimization in liquid chromatography via stationary phase tuning［J］. J Sep Sci， 2023， 46（20）： e2300204.
2	FU D T， ZHONG L L， XU J， et al. Hydrazone-functionalized nanoscale covalent organic frameworks as a nanocarrier for pH-responsive drug delivery enhanced anticancer activity［J］. RSC Adv， 2024， 14（29）： 20799-20808.
3	韩周洋，刘昌威，孙丹. 高效液相色谱法测定环境空气醛酮类化合物的研究及应用［J］. 辽宁化工， 2024， 53（1）： 158-161.
	HAN Z Y， LIU C W， SUN D. Study and application of determination of acarbonyl compounds in ambient air by high performance liquid chromatography［J］. Liaoning Chem Ind， 2024， 53（1）： 158-161.
4	HAN X X， ZHAO R J， TIAN Y， et al. Simple high-performance liquid chromatography-ultraviolet method for simultaneous separation and detection of 14 bisphenol pollutants in building materials［J］. J Sep Sci， 2023， 46（11）： 2300006.
5	田毅峰，李先国，沙春洁，等. C18反相硅胶键合相的制备与性能评价［J］. 化学试剂， 2007， 29（1）： 12-14.
	TIAN Y F， LI X G， SHA C J， et al. Preparation and characterization of C18 bonded phase［J］. Chem Reag， 2007， 29（1）： 12-14.
6	SEOG D J H， KIEN N V， RYOO J J. Amino alcohol-derived chiral stationary phases［J］. Chirality， 2023， 35（10）： 739-752.
7	WANG L T， LI Z， WANG Y， et al. A singular chromatographic column breakthrough： achieving full polarity range separations with the epoxy propanol molecular cage bonded silica stationary phase［J］. J Chromatogr A， 2024， 1730： 465098.
8	WANG L T， HAN S Q， YU H Y， et al. Porous organic cage-embedded C10-modified silica as HPLC stationary phase and its multiple separation functions［J］. Molecules， 2022， 27（24）： 8895.
9	SUN S S， WANG L T， WANG J S， et al. Homochiral organic molecular cage RCC3-R-modified silica as a new multimodal and multifunctional stationary phase for high-performance liquid chromatography［J］. J Sep Sci， 2023， 46（16）： e2200935.
10	LIU S L， HUI J J， LI H D， et al. Efficient removal of diclofenac sodium from aqueous environments by magnetic ionic covalent organic frameworks based on polydopamine： adsorption performance and mechanism study［J］. Sep Purif Technol， 2025， 354： 129020.
11	WANG J L， LUO C， WANG W T， et al. Efficient capture of palladium from nuclear wastewater by the sulfide and thiol modified covalent organic framework［J］. Colloid Surface A， 2024， 698： 134601.
12	DU L L， LI X， LU X F， et al. The synthesis strategies of covalent organic frameworks and advances in their application for adsorption of heavy metal and radionuclide［J］. Sci Total Environ， 2024， 939： 173478.
13	HUANG L Y， LI W D， WEI F C， et al. Hierarchical porous covalent organic framework nanosheets with adjustable large Mesopores［J］. Chem， 2024， 10（10）： 3100-3113.
14	RAN X Y， GUO P， LIU C F， et al. Chiral covalent-organic framework MDI-β-CD-modified COF@SiO₂ core-shell composite for HPLC enantioseparation［J］. Molecules， 2023， 28（2）： 662.
15	WAN M J， ZHENG Y C， DAI X M， et al. Click chemistry for the preparation of β-cyclodextrin grafting uniform spherical covalent organic framework materials for chiral separation［J］. Chem Mater， 2023， 35（2）： 609-616.
16	ZHANG Y， LU Y R， LIU C， et al. Room temperature synthesis of a chiral covalent organic framework core-shell composite for high-performance liquid chromatography enantioseparation［J］. J Sep Sci， 2024， 47（15）： 2400140.
17	初楚，倪彩玲，秦元成，等. 共价有机骨架的设计、合成与应用进展［J］. 南昌航空大学学报（自然科学版）， 2022， 36（3）： 38-65.
	CHU C， NI C L， QIN Y C， et al. Devolopment of covalent organic framework：design，synthesis and appucations［J］. J Nanchang Hangkong Univ （Nat Sci）， 2022， 36（3）： 38-65.
18	QIAN C， TEO W L， GAO Q， et al. Polycrystalline covalent organic frameworks［J］. Mater Today， 2023， 71： 91-107.
19	VARDHAN H， RUMMER G， DENG A， et al. Large-scale synthesis of covalent organic frameworks： challenges and opportunities［J］. Membranes， 2023， 13（8）： 696.
20	JIANG Q， XIN X B， ZHANG S W， et al. Advances of covalent organic frameworks as the stationary phases for liquid chromatography［J］. Trac-Trends Anal Chem， 2024， 174： 117680.
21	KE Z P， CHENG Y Y， YANG S Y， et al. Modification of COF-108 via impregnation/functionalization and Li-doping for hydrogen storage at ambient temperature［J］. Int J Hydrogen Energy， 2017， 42（16）： 11461-11468.
22	DING H M， MAL A， WANG C. Tailored covalent organic frameworks by post-synthetic modification［J］. Mater Chem Front， 2020， 4（1）： 113-127.
23	KUHN P， ANTONIETTI M， THOMAS A. Porous， covalent triazine-based frameworks prepared by ionothermal synthesis［J］. Angew Chem Int Ed Engl， 2008， 47（18）： 3450-3453.
24	ZHAO W J， HU K， HU C C， et al. Silica gel microspheres decorated with covalent triazine-based frameworks as an improved stationary phase for high performance liquid chromatography［J］. J Chromatogr A， 2017， 1487： 83-88.
25	LIU C， GUO P， LU Y R， et al. In situ growth preparation of a new chiral covalent triazine framework core-shell microspheres used for HPLC enantioseparation［J］. Microchim Acta， 2023， 190（6）： 238.
26	WEI W J， LONG H Y， LIU Y J， et al. Preparation and application of a novel imine-linked covalent organic framework@silica composite for reversed-phase and hydrophilic interaction chromatographic separations［J］. Anal Chim Acta， 2023， 1276： 341635.
27	LIU Y F， SHANG S Q， WEI W J， et al. Ionic liquid/covalent organic framework/silica composite material： green synthesis and chromatographic evaluation［J］. Anal Chim Acta， 2023， 1283： 341992.
28	ZHANG K， CAI S L， YAN Y L， et al. Construction of a hydrazone-linked chiral covalent organic framework-silica composite as the stationary phase for high performance liquid chromatography［J］. J Chromatogr A， 2017， 1519： 100-109.
29	WANG S L， ZHANG L Y， XIAO R L， et al. Fabrication of SiO₂@COF5 microspheres and their application in high performance liquid chromatography［J］. Anal Methods， 2018， 10（17）： 1968-1976.
30	URIBE-ROMO F J， HUNT J R， FURUKAWA H， et al. A crystalline imine-linked 3-D porous covalent organic framework［J］. J Am Chem Soc， 2009， 131（13）： 4570-4571.
31	XU H， GAO J， JIANG D L. Stable， crystalline， porous， covalent organic frameworks as a platform for chiral organocatalysts［J］. Nat Chem， 2015， 7（11）： 905-912.
32	URIBE-ROMO F J， DOONAN C J， FURUKAWA H， et al. Crystalline covalent organic frameworks with hydrazone linkages［J］. J Am Chem Soc， 2011， 133（30）： 11478-11481.
33	VARGESSON N， STEPHENS T. Thalidomide： history， withdrawal， renaissance， and safety concerns［J］. Expert Opin Drug Saf， 2021， 20（12）： 1455-1457.
34	CERAMELLA J， IACOPETTA D， FRANCHINI A， et al. A look at the importance of chirality in drug activity： some significative examples［J］. Appl Sci-Basel， 2022， 12（21）： 10909.
35	PAPP L A， SZABO Z I， HANCU G， et al. Comprehensive review on chiral stationary phases in single-column simultaneous chiral-achiral HPLC separation methods［J］. Molecules， 2024， 29（6）： 1346.
36	ZHOU H M， LIU C， ZHANG Y， et al. Asymmetric catalytic synthesis of chiral covalent organic framework composite（S）-DTP-COF@SiO₂ for HPLC enantioseparations by normal-phase and reversed-phase chromatographic modes［J］. Microchim Acta， 2024， 191（8）： 445.
37	ZHENG Y， WAN M， ZHOU J， et al. One-pot method for the synthesis of β-cyclodextrin and covalent organic framework functionalized chiral stationary phase with mixed-mode retention mechanism［J］. J Chromatogr A， 2022， 1662： 462731.
38	XIE M C， QUAN K J， LI H， et al. Non-porous silica support covalent organic frameworks as stationary phases for liquid chromatography［J］. Chem Commun， 2023， 59（3）： 314-317.
39	ZHENG Y C， WAN M J， ZHOU J Q， et al. Striped covalent organic frameworks modified stationary phase for mixed mode chromatography［J］. J Chromatogr A， 2021， 1649： 462186.
40	XU S， LI Z X， ZHANG L Y， et al. In situ growth of COF-rLZU1 on the surface of silica sphere as stationary phase for high performance liquid chromatography［J］. Talanta， 2021， 221： 121612.
41	LIU Y F， HU J， ZHOU Y D， et al. Chiral microporous organic network/covalent organic framework/silica composites： powerful and versatile chromatographic separation materials［J］. Sep Purif Technol， 2025， 355： 129701.

Stationary phase	Synthesis methods	Separated substance	Separation mode	Aperture/nm	specific surface area/（m2·g^-1）	Connection type	Ref.
CTF-SiO₂	Quiescence in room-temperature synthesis	Monosubstituted benzene， PAHs， phenol， aniline	RPLC		359	Triazine	［24］
CC-MP CCTF@SiO₂	In-situ growth strategy	Alcohols， phenols， amines， ketones， and organic acid	NPLC			Triazine	［25］
TAPT-DHTA-COF@SiO₂	In-situ growth strategy	Hydrophobic benzophenone， steroid hormones， phthalates， water-soluble nucleosides/bases	RPLC/HILIC	9.54	154.78	Imine	［26］
IL-COF@SiO₂	Green synthesis strategy	Alkylphenol， steroid hormones， bisphenols， nucleosides/bases， b vitamins， sulfonamides.	RPLC/HILIC			Imine	［27］
BTAMTH@SiO₂	One-pot synthetic method	Nitrotoluene， nitrochlorobenzene， beta-cypermethrin， metconazole.	RPLC/NPLC	1.41	723	Hydrazone	［28］
SiO₂@COF5	In-situ growth strategy	Alkyl benzenes， PAHs， anilines， acetophenones， benzaldehydes and isomers of hydroxyacetophenone	RPLC	7	373.93	Boronic ester	［29］

Stationary phase	Synthesis methods	Separated substance	Separation mode	Aperture/nm	specific surface area/（m2·g^-1）	Connection type	Ref.
CTF-SiO₂	Quiescence in room-temperature synthesis	Monosubstituted benzene， PAHs， phenol， aniline	RPLC		359	Triazine	［24］
CC-MP CCTF@SiO₂	In-situ growth strategy	Alcohols， phenols， amines， ketones， and organic acid	NPLC			Triazine	［25］
TAPT-DHTA-COF@SiO₂	In-situ growth strategy	Hydrophobic benzophenone， steroid hormones， phthalates， water-soluble nucleosides/bases	RPLC/HILIC	9.54	154.78	Imine	［26］
IL-COF@SiO₂	Green synthesis strategy	Alkylphenol， steroid hormones， bisphenols， nucleosides/bases， b vitamins， sulfonamides.	RPLC/HILIC			Imine	［27］
BTAMTH@SiO₂	One-pot synthetic method	Nitrotoluene， nitrochlorobenzene， beta-cypermethrin， metconazole.	RPLC/NPLC	1.41	723	Hydrazone	［28］
SiO₂@COF5	In-situ growth strategy	Alkyl benzenes， PAHs， anilines， acetophenones， benzaldehydes and isomers of hydroxyacetophenone	RPLC	7	373.93	Boronic ester	［29］

Stationary phase	Synthesis methods	Separated substance	Separation mode	Application classification	Ref.
（S）-DTP-COF@SiO₂	In-situ growth strategy	1-phenylethylamine， 1-（4-fuorophenyl） ethanol， 1-phenyl-1-pentanol， mandelic acid， styrene oxide， 4-chloroben-zhydrol， 4-phenyl-2-butanol， styrene oxide， 1，1′-bi-2-naphthol， and Dl-benzoin	RPLC/NPLC	Enantiomers	［36］
COF@CD@SiO₂	One-pot synthetic method	2-phenylpropionic acid， n-acetyl-l- phenylalanine， dopa， methyldopa， menthol and styrene oxide	HILIC	Enantiomers	［37］
NPS@TPB-DMTP	In-situ polymerization	benzenediol， triphenyl， p-phenylenediamine， aminophenol， nitroaniline and nitrophenol	RPLC	Isomers	［38］
SiO₂@COF	One-pot synthetic method	sulfadiazine tablets	RPLC	Complex sample	［39］
SiO₂@rLZU1	In-situ growth strategy	coking wastewater and fullerenes （C₆₀ and C₇₀）	RPLC/HILIC	Complex sample	［40］
CMON/CCOF@SiO₂	In-situ polymerization	environmental endocrine disruptors in water samples	RPLC	Complex sample	［41］

Stationary phase	Synthesis methods	Separated substance	Separation mode	Application classification	Ref.
（S）-DTP-COF@SiO₂	In-situ growth strategy	1-phenylethylamine， 1-（4-fuorophenyl） ethanol， 1-phenyl-1-pentanol， mandelic acid， styrene oxide， 4-chloroben-zhydrol， 4-phenyl-2-butanol， styrene oxide， 1，1′-bi-2-naphthol， and Dl-benzoin	RPLC/NPLC	Enantiomers	［36］
COF@CD@SiO₂	One-pot synthetic method	2-phenylpropionic acid， n-acetyl-l- phenylalanine， dopa， methyldopa， menthol and styrene oxide	HILIC	Enantiomers	［37］
NPS@TPB-DMTP	In-situ polymerization	benzenediol， triphenyl， p-phenylenediamine， aminophenol， nitroaniline and nitrophenol	RPLC	Isomers	［38］
SiO₂@COF	One-pot synthetic method	sulfadiazine tablets	RPLC	Complex sample	［39］
SiO₂@rLZU1	In-situ growth strategy	coking wastewater and fullerenes （C₆₀ and C₇₀）	RPLC/HILIC	Complex sample	［40］
CMON/CCOF@SiO₂	In-situ polymerization	environmental endocrine disruptors in water samples	RPLC	Complex sample	［41］
