Construction of a Photoelectrochemical Biosensor Based on ZnS-Modified Electrode for the Determination of L-Cysteine

doi:10.19894/j.issn.1000-0518.240222

Chinese Journal of Applied Chemistry ›› 2025, Vol. 42 ›› Issue (3): 321-329.DOI: 10.19894/j.issn.1000-0518.240222

• Full Papers • Previous Articles Next Articles

Construction of a Photoelectrochemical Biosensor Based on ZnS-Modified Electrode for the Determination of L-Cysteine

Jie-Xia CHEN, Zhuo-Er LIU, Chang-Ning LU, Ke-Xin YANG, Zi-Yan CHEN, Yan WEI()

School of Pharmacy，Wannan Medical College，Wuhu 241002，China

Received:2024-07-21 Accepted:2025-01-21 Published:2025-03-01 Online:2025-04-11
Contact: Yan WEI
About author:yanwei@wnmc.edu.cn
Supported by:
the Research Fund for Major Natural Science Research Projects in Universities of Anhui Province(2023AH040250);the University Natural Science Research Project of Anhui Province(KJ2021A0842);the Undergraduate Research Grants Programme(WK2023XS43)

Abstract

Abstract:

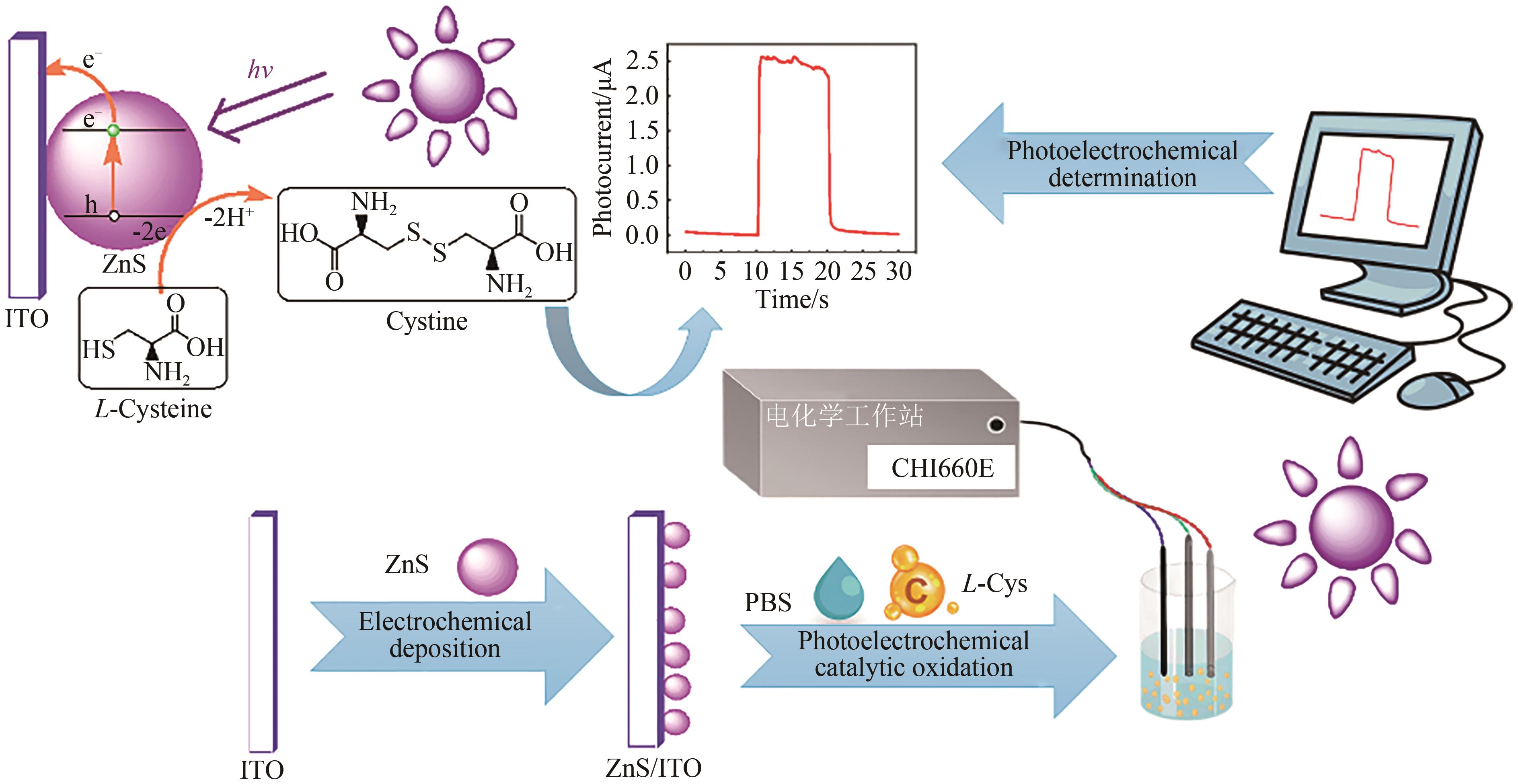

L-Cysteine（L-Cys） levels in serum are correlated with many diseases， and their highly sensitive detection is of great significance. A novel strategy for selective detection of L-Cys based on photoelectrochemical catalytic oxidation was developed utilizing the electrochemical deposition of ZnS nanomodified electrodes. Under light irradiation， ZnS nanoparticle underwent a process of electron-hole pair formation. The thiol groups （—SH） on L-Cys in the solution provided electrons to occupy the holes， and the photoinduced electrons on the conduction band were injected into the ITO electrode to form an anodic photocurrent. Meanwhile， the L-Cys in the solution underwent a reduction process， whereby electrons were transferred to form cystine containing disulfide bridge （—S—S—）， which then underwent a photoelectrochemical catalytic oxidation process. The photoelectric conversion efficiency was improved. The photocurrent of the sensor based on the photochemical catalytic oxidation mechanism increased linearly in the concentration range of 2~50 μmol/L， and obtained the detection limit of 0.67 μmol/L. This method was applied to determine the content of L-Cys in human serum， and the recovery rates were in the range of 97.6% to 104.6%.

Key words: Photoelectrochemical analysis, ZnS, L-Cysteine

CLC Number:

O657.1

Jie-Xia CHEN, Zhuo-Er LIU, Chang-Ning LU, Ke-Xin YANG, Zi-Yan CHEN, Yan WEI. Construction of a Photoelectrochemical Biosensor Based on ZnS-Modified Electrode for the Determination of L-Cysteine[J]. Chinese Journal of Applied Chemistry, 2025, 42(3): 321-329.

Figures/Tables 7

References 35

1	AGHAYAN M， MAHMOUDI A， SAZEGAR M R， et al. Tailoring cysteine detection in colorimetric techniques using Co/Fe-functionalized mesoporous silica nanoparticles［J］. J Mater Chem B， 2021， 9（17）： 3716-3726.
2	HE J H， WU X， LONG Z， et al. Fast and sensitive fluorescent and visual sensing of cysteine using Hg-metalated PCN-222［J］. Microchem J， 2019， 145： 68-73.
3	TAJIK S， DOURANDISH Z， JAHANI P M， et al. Recent developments in voltammetric and amperometric sensors for cysteine detection［J］. RSC Adv， 2021， 11（10）： 5411-5425.
4	张召娟，侯学振，张凌素. 半胱氨酸分析检测方法的研究进展［J］. 广东化工， 2022， 49（16）： 185-187.
	ZHANG Z J， HOU X Z， ZHANG L S. Research progress of cysteine detection technology［J］. Guangdong Chem Ind， 2022， 49（16）： 185-187.
5	钱蕙，曹蕊，曹玉华. 毛细管电化学检测法测定光损伤头发中的氨基酸［J］. 苏州科技学院学报（自然科学版）， 2008， 25（2）： 40-43.
	QIAN H， CAO R， CAO Y H. Determination of cysteine and tyrosine in hair eradiated under UVB by capillary electrophoresis with electrochemical detection［J］. J Suzhou Univ Sci Technol （Nat Sci Ed）， 2008， 25（2）： 40-43.
6	WENG Q F， JIN W R. Carbon fiber bundle-Au-Hg dual-electrode detection for capillary electrophoresis［J］. J Chromatogr A， 2002， 971（1/2）： 217-223.
7	XU Z Y， QIN T Y， ZHOU X F， et al. Fluorescent probes with multiple channels for simultaneous detection of Cys， Hcy， GSH， and H₂S［J］. TrAC Trends Anal Chem， 2019， 121： 115672.
8	HUANG Y， SHEN Y J， CHEN T T， et al. Specific detection and determination of cysteine by a luminescent samarium macrocycle-based fluorescent probe platform［J］. New J Chem， 2021， 45（5）： 2366-2369.
9	WANG C， LAN Y X， YUAN F， et al. Chemiluminescent determination of L-cysteine with the lucigenin-carbon dot system［J］. Microchim Acta， 2019， 187（1）： 50.
10	LIU C Y， MIAO Y Q， ZHANG X J， et al. Colorimetric determination of cysteine by a paper-based assay system using aspartic acid modified gold nanoparticles［J］. Microchim Acta， 2020， 187（6）： 362.
11	AMARNATH K， AMARNATH V， AMARNATH K， et al. A specific HPLC-UV method for the determination of cysteine and related aminothiols in biological samples［J］. Talanta， 2003， 60（6）： 1229-1238.
12	RASHEED P A， PANDEY R P， JABBAR K A， et al. Sensitive electrochemical detection of L-cysteine based on a highly stable Pd@Ti₃C₂Tx （MXene） nanocomposite modified glassy carbon electrode［J］. Anal Methods， 2019， 11（30）： 3851-3856.
13	KHAMCHAROEN W， HENRY C S， SIANGPROH W. A novel L-cysteine sensor using in situ electropolymerization of L-cysteine： potential to simple and selective detection［J］. Talanta， 2022， 237： 122983.
14	LOMONT J P， SMITH J P. In situ Raman spectroscopy for real time detection of cysteine［J］. Spectrochim Acta Part A， Mol Biomol Spectrosc， 2022， 274： 121068.
15	XIAO C H， CHEN J H， LIU B， et al. Sensitive and selective electrochemical sensing of L-cysteine based on a caterpillar-like manganese dioxide-carbon nanocomposite［J］. Phys Chem Chem Phys， 2011， 13（4）： 1568-1574.
16	ZHAO W W， XU J J， CHEN H Y. Photoelectrochemical bioanalysis： the state of the art［J］. Chem Soc Rev， 2015， 44（3）： 729-741.
17	王琼，张伊，唐浩，等. 量子点在光电化学传感器中的研究进展［J］. 材料导报， 2022， 36（18）： 20-27.
	WANG Q， ZHANG Y， TANG H， et al. Recent progress of quantum dots in photoelectrochemical sensors［J］. Mater Rep， 2022， 36（18）： 20-27.
18	ZHAO W W， XU J J， CHEN H Y. Photoelectrochemical detection of metal ions［J］. Analyst， 2016， 141（14）： 4262-4271.
19	AI L C， WANG Y， ZHOU Y L， et al. Photoelectrochemical biosensor for N6-methyladenosine detection based on enhanced photoactivity of TiO₂-X and MoS₂ nanocomposite［J］. J Electroanal Chem， 2021， 895： 115444.
20	LI Y R， LIU G， JI D Z， et al. Smartphone-based label-free photoelectrochemical sensing of cysteine with cadmium ion chelation［J］. Analyst， 2022， 147（7）： 1403-1409.
21	XIAO H J， LIAO X J， WANG H， et al. In situ formation of Bi₂MoO₆-Bi₂S₃ heterostructure： a proof-of-concept study for photoelectrochemical bioassay of L-cysteine［J］. Front Chem， 2022， 10： 845617.
22	ZHANG Y J， YU J R， HUANG W J， et al. Detection of L-cysteine in urine samples based on CdS/TiO₂-modified extended-gate field-effect transistor photoelectrochemical sensor［J］. Microchim Acta， 2023， 190（7）： 280.
23	CHEN J D， LI H Y， SHAO D， et al. A photoelectrochemical sensor based on copper-based metal organic framework derivatives for the homogeneous detection of L-cysteine［J］. Microchem J， 2024， 197： 109768.
24	HUANG L Z， LI J D， WANG Y L， et al. A light-driven enzyme-free photoelectrochemical sensor based on HKUST-1 derived Cu₂O/Cu@microporous carbon with g-C₃N₄ p-n heterojunction for ultra-sensitive detection of L-cysteine［J］. Carbon， 2023， 215： 118466.
25	YANG H， ZHAO X， WANG H， et al. Sensitive photoelectrochemical immunoassay of Staphylococcus aureus based on one-pot electrodeposited ZnS/CdS heterojunction nanoparticles［J］. Analyst， 2020， 145： 165.
26	余秀萍. 电化学沉积法制备Ⅱ-Ⅵ族金属硫化物纳米粒子及性能研究［D］. 苏州：苏州大学， 2010.
	YU X P. Preparation of the Ⅱ-Ⅵ metallic sulfide nanoparticles by electrochemical method and their properties［D］. Suzhou： Suzhou University， 2010.
27	陈结霞，张凯凯，张宾，等. 电化学沉积ZnS@CdS构建光电化学传感器测定谷胱甘肽［J］. 分析试验室， 2022， 41（5）： 523-528.
	CHEN J X， ZHANG K K， ZHANG B， et al. A photoelectrochemical sensor for determination of glutathione constructed by electrochemical deposition of ZnS@CdS［J］. Chin J Anal Lab， 2022， 41（5）： 523-528.
28	WANG C， ZHANG B， CAO J， et al. Organic-inorganic hybrid flower-shaped microspheres appliedin photoelectrochemical sensing［J］. ACS Appl Mater Interfaces， 2022， 14（20）： 23743-23755.
29	LI Y， ZHANG N， ZHAO W W， et al. Polymer dots for photoelectrochemical bioanalysis［J］. Anal Chem， 2017， 89（9）： 4945-4950.
30	SABIR N， KHAN N， VOLKNER J， et al. Photo-electrochemical bioanalysis of guanosine monophosphate using coupled enzymatic reactions at a CdS/ZnS quantum dot electrode［J］. Small， 2015， 11（43）： 5844-5850.
31	SHAIDAROVA L G， ZIGANSHINA S A， BUDNIKOV G K. Electrocatalytic oxidation of cysteine and cystine at a carbon-paste electrode modified with ruthenium（Ⅳ） oxide［J］. J Anal Chem， 2003， 58（6）： 577-582.
32	PIYUSH K S， VELLACHAMY G， DHARMENDRA K Y， et al. Dual electrocatalytic behavior of oxovanadium （Ⅳ） salen immobilized carbon materials towards cysteine oxidation and cystine reduction： graphene versus single walled carbon nanotubes［J］. Chem Select， 2016， 1： 6726-6734.
33	刘汝涛，宗万松，孙凤. 一种利用电化学技术快速鉴别半胱氨酸和胱氨酸的方法：中国， 200910019947.6［P］. 2009-03-20.
	LIU R T， ZONG W S， SUN F. The invention relates to a method for rapid identification of cysteine and cystine by electrochemical technique： CN， 200910019947.6［P］. 2009-03-20.
34	JACOBSEN D W， GATAUTIS V J， GREEN R， et al. Rapid HPLC determination of total homocysteine and other thiols in serum and plasma： sex differences and correlation with cobalamin and folate concentrations in healthy subjects［J］. Clin Chem， 1994， 40（6）： 873-881.
35	HUANG Z， WU C Y， LI Y Q， et al. A fluorescent probe for the specific detection of cysteine in human serum samples［J］. Anal Methods， 2019， 11（26）： 3280-3285.

Method	Linear range/（mol·L^-1）	Detection limit/（mol·L^-1）	Ref.
Capillary electrophoresis	1.0×10^-6~5.0×10^-4	8.76×10^-7	［6］
Fluorescence	0~0.135×10^-3	5.7×10^-6	［8］
Electrogenerated chemiluminescence	10.0×10^-6~100×10^-6	8.8×10^-6	［9］
Colorimetric method	99.9×10^-6~998.7×10^-6	1.0×10^-6	［10］
Liquid chromatography-ultraviolet method	80×10^-6~230×10^-6	4×10^-6	［11］
Electrochemistry	0.5×10^-6~10×10^-6	0.14×10^-6	［12］
Photoelectrochemical method CdS/TiO₂	5.0×10^-9~1.0×10^-6	1.3×10^-9	［22］
Photoelectrochemical method CuO/Cu₂O/C	0.2×10^-6~50×10^-6	0.12×10^-6	［23］
Photoelectrochemical method ZnS	2×10^-6~50×10^-6	0.67×10^-6	This work

Method	Linear range/（mol·L^-1）	Detection limit/（mol·L^-1）	Ref.
Capillary electrophoresis	1.0×10^-6~5.0×10^-4	8.76×10^-7	［6］
Fluorescence	0~0.135×10^-3	5.7×10^-6	［8］
Electrogenerated chemiluminescence	10.0×10^-6~100×10^-6	8.8×10^-6	［9］
Colorimetric method	99.9×10^-6~998.7×10^-6	1.0×10^-6	［10］
Liquid chromatography-ultraviolet method	80×10^-6~230×10^-6	4×10^-6	［11］
Electrochemistry	0.5×10^-6~10×10^-6	0.14×10^-6	［12］
Photoelectrochemical method CdS/TiO₂	5.0×10^-9~1.0×10^-6	1.3×10^-9	［22］
Photoelectrochemical method CuO/Cu₂O/C	0.2×10^-6~50×10^-6	0.12×10^-6	［23］
Photoelectrochemical method ZnS	2×10^-6~50×10^-6	0.67×10^-6	This work

Sample	Added/（μmol·L^-1）	Found/（μmol·L^-1）	Recovery/%	RSD/%（n=3）
1	0	10.17	-	3.2
2	5	15.16	99.8	4.3
3	10	19.93	97.6	3.5
4	20	31.09	104.6	2.7

Sample	Added/（μmol·L^-1）	Found/（μmol·L^-1）	Recovery/%	RSD/%（n=3）
1	0	10.17	-	3.2
2	5	15.16	99.8	4.3
3	10	19.93	97.6	3.5
4	20	31.09	104.6	2.7
