Synthesis and Properties of Sulfonated Polyether Ketone/Barium Titanate Proton Exchange Membrane
WNAG Wenjuan, CHEN Pei, AN Zhongwei, CHEN Xinbing*
Key Laboratory of Applied Surface and Colloid Chemistry of Ministry of Education, School of Materials Science and Engineering,Shaanxi Normal University,Xi'an 710119,China
Fund:Supported by the National Natural Science Foundation of China(No.51373092 ), the Key Science and Technology Program of Shaanxi Province, China(No.2012K08-09), the State Education Ministry and the Fundamental Research Funds for the Central Universities(No.GK201302036, No.GK201302037)
Abstract

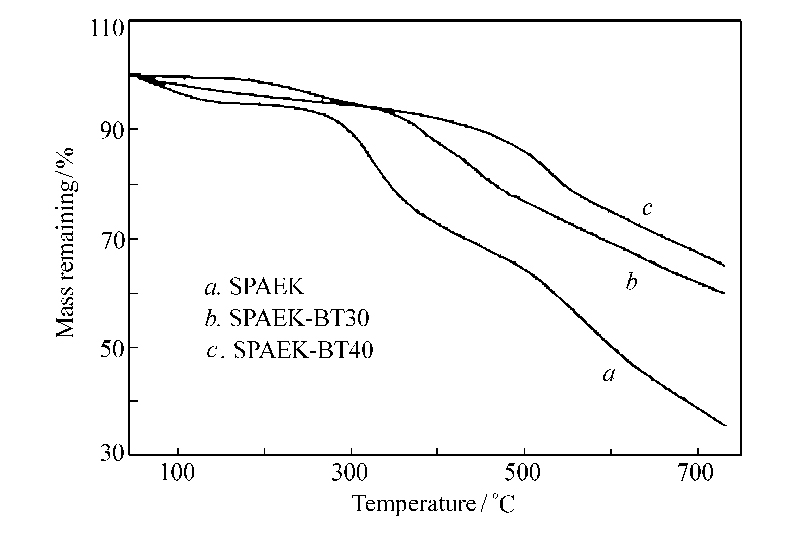

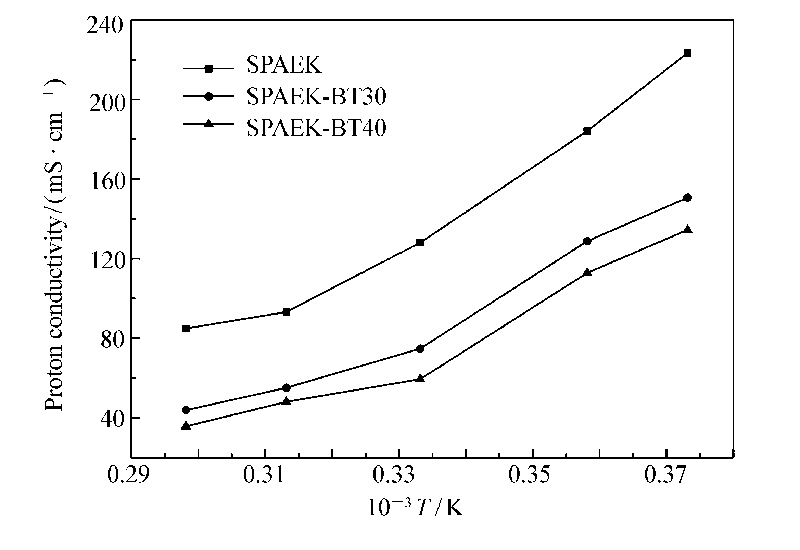

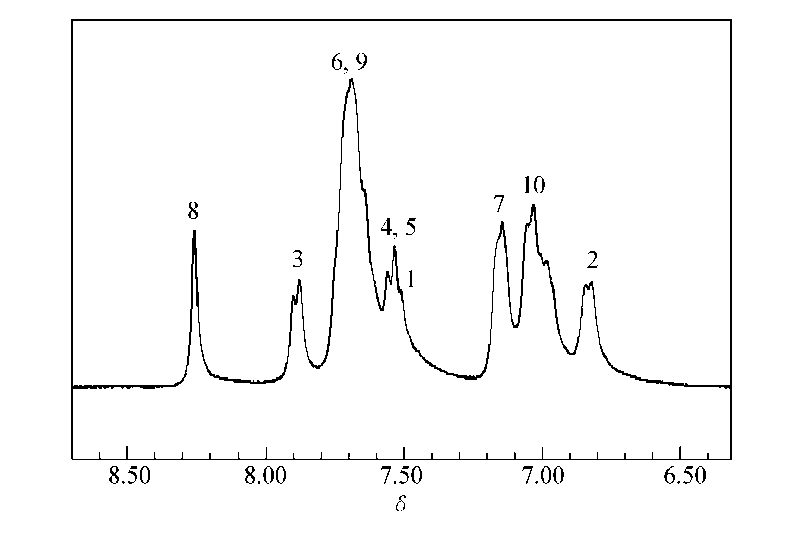

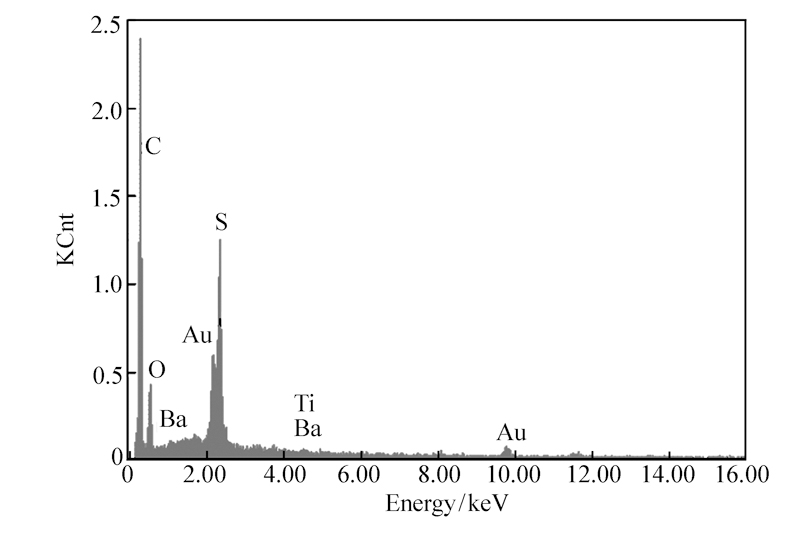

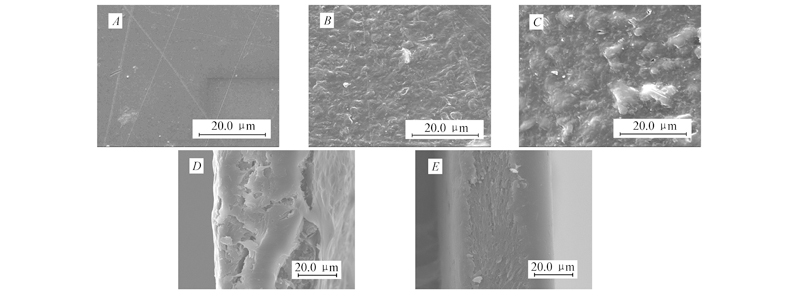

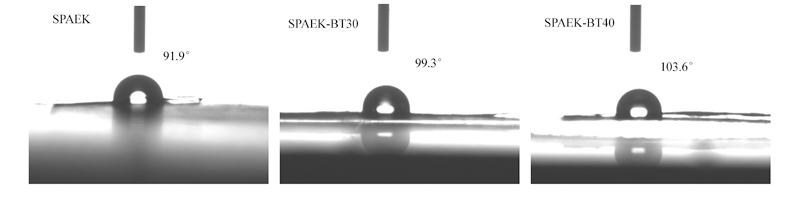

To prepare sulfonated polyether ketone/barium titanate(SPAEK/BT) hybrid membrane, the mixture containing BT suspension in cyclohexane obtained under ultrasonic condition and dimethyl sulfoxide solution of SPAEK was casted onto the glass plates. The uniform dispersion of BT in the hybrid membrane was confirmed via SEM. The properties of the corresponding hybrid membranes, such as water uptake, solvent uptake, size change, proton conductivity, methanol permeability, mechanical properties, and stabilities were investigated. Compared to blank membrane, the anti-swelling, thermal stability, and oxidative stability of hybrid membranes are improved respectively. The water stability and mechanical properties are also improved, whereas the proton conductivity of the hybrid membrane is decreased in some extent.
a.Ca or Titr: calculated or titrated IEC value; b.SU was obtained at 32% mass fraction of methanol solution and 25 ℃; SU/%=100(mmw-md)/md; mmw or md:the mass of the swollen or dry membranes; c.WU/%=100(mS-md)/md; in water; ms:the mass of the swollen membranes; d.Δ tc=(ts-td)/td; Δ lc=(ls-ld)/ld; Δ t/l=Δ tc/Δ lc; td and ld:the thickness and length of the dry membrane, respectively; ts and ls refer to those of the membrane immersed in water; e.R1:30%BT & R; R2:40%BT & R.
表2 膜的电导率、抗氧化性、甲醇吸收率、力学性能和水稳定性数据Table 2 Proton conductivity, oxidative stability, methanol uptake, methanol permeability, mechanical property and water stability of membranes
Membrane
σ a/(mS· m-1)
/min
MUc/%
107/(cm2· s-1)
Mechanical property
Water stabilityh
25 ℃
85 ℃
YMe/GPa
MSf/MPa
EBg/%
Mass loss/%
SPAEK
84.86
184.10
137
21.67
0.59
1.24
31.06
25.04
18.37
SPAEK-BT30
43.90
128.77
260
S
1.95
3.81
41.86
11.00
12.37
SPAEK-BT40
35.65
112.85
312
S
2.33
2.76
47.11
17.04
11.29
R1
26.60
65.31
251
22.82
2.40
3.32
56.84
17.10
5.71
R2
24.84
53.14
271
26.49
2.59
1.65
82.67
50.00
5.62
a. σ :proton conductivity in water; b.τ 1:oxidative stability, refers to the elapsed time that the membranes became broken; c.MU:methanol uptake; at 25 ℃; d.PM:methanol permeability; at 32wt.% methanol solution and 25 ℃; e.YM:Young's modulus; f.MS:maximum stress; g.EB:elongation at break; h.aging in sealed autoclave in water at 130 ℃ for 48 h.
表2 膜的电导率、抗氧化性、甲醇吸收率、力学性能和水稳定性数据Table 2 Proton conductivity, oxidative stability, methanol uptake, methanol permeability, mechanical property and water stability of membranes
